IKEA LUNDSKÄR Wash-basin mixer tap with strainer

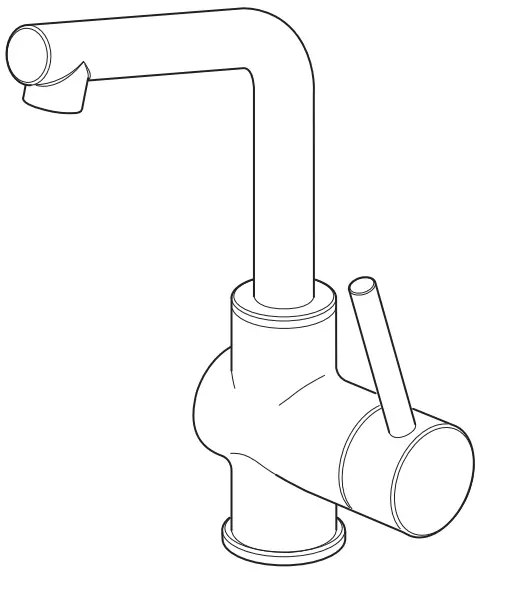

IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig1

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

Switch off main shut-off valve before changing mixer tap.

TOOLS

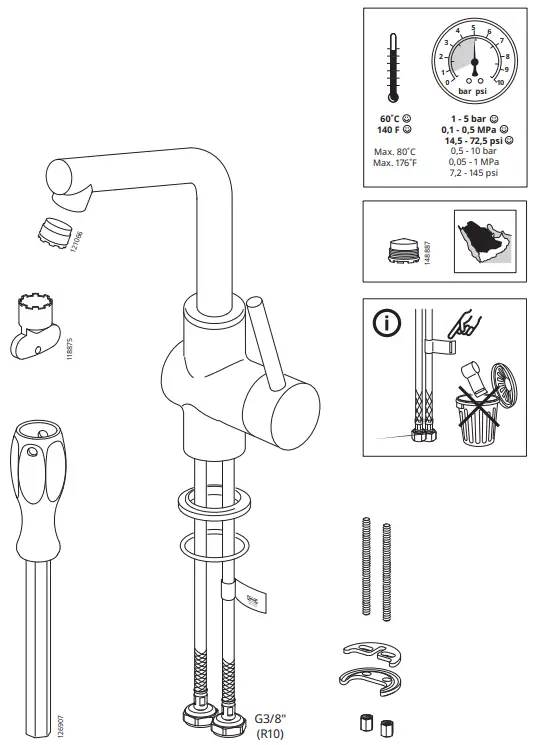

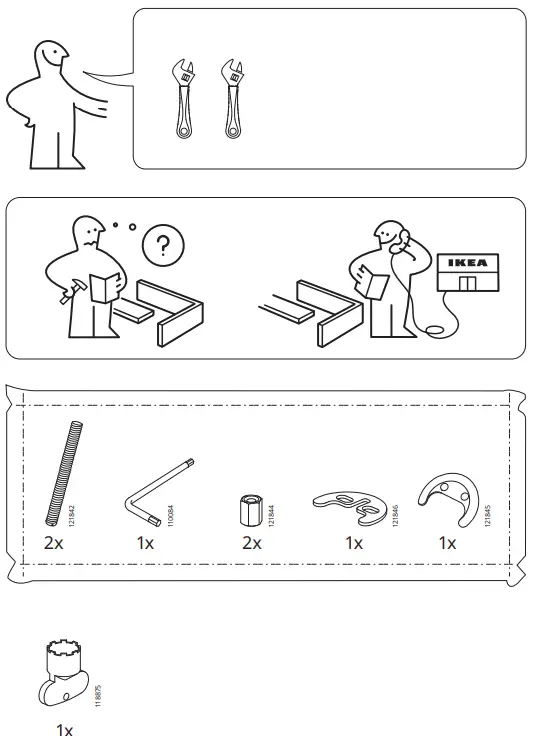

IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig2IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig3

INSTALLATION

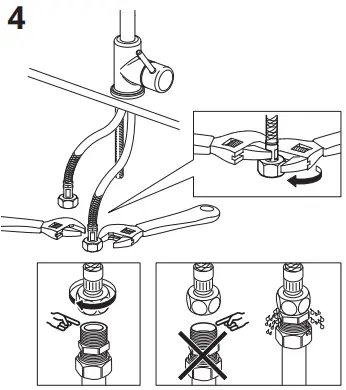

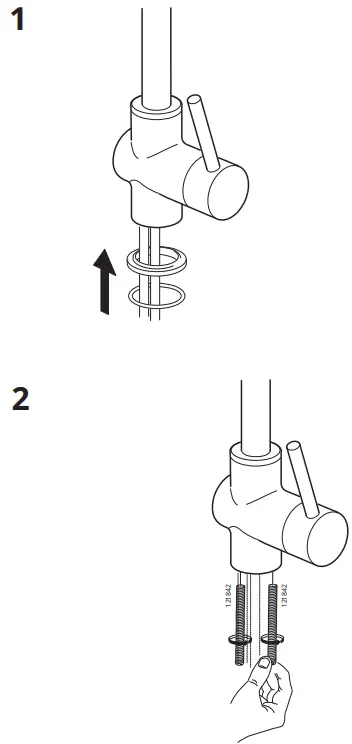

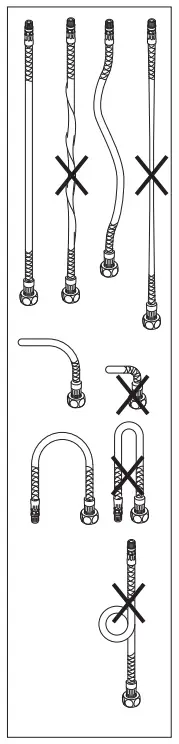

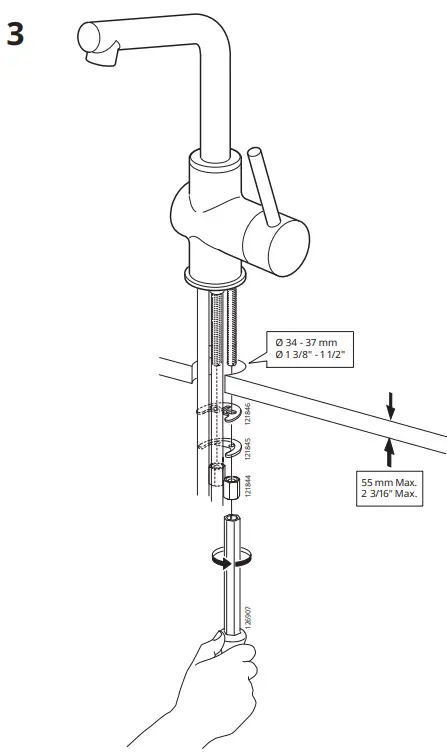

IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig4IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig5IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig6IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig7

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

IKEA LUNDSKÄR Wash-basin mixer tap with strainer-fig8

Before use: Unscrew the Aerator/Flow Guide and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place. Ensure that it is tight to prevent removal by hand.

Check at regular intervals to make sure that the installation is not leaking.
