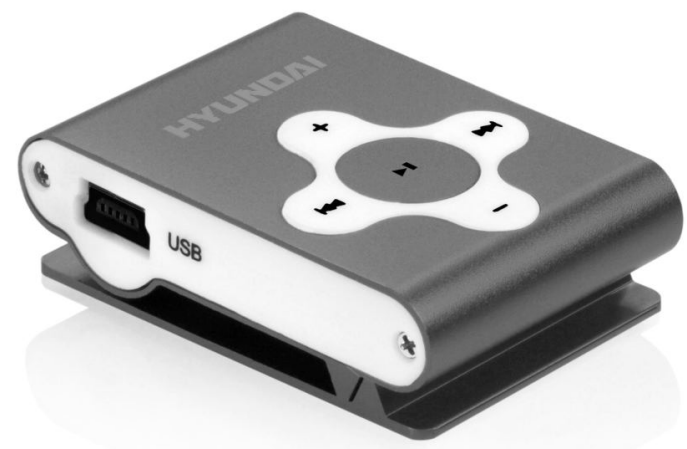

MP 212
MP3 PLAYER
INSTRUCTION MANUAL
Thank you for purchasing our digital MP3 player. Before you use this player, please read through this manual book, so you can operate it correctly.
CAUTION
- Please switch off power when not using the player
- Avoid using the MP3 player in a very cold or hot place.
- Do not put the MP3 player in the water.
- Do not knock or beat the MP3 player
- Do not use an MP3 player when you drive a car or ride a bike to avoid danger.
- Please do not open the MP3 player by yourself if you are not a professional person.
- The lithium battery inside. The battery must ONLY be removed by authorized personal
- This model cannot playback DRM-protected WMA files, such as sound books, songs bought from the internet, etc

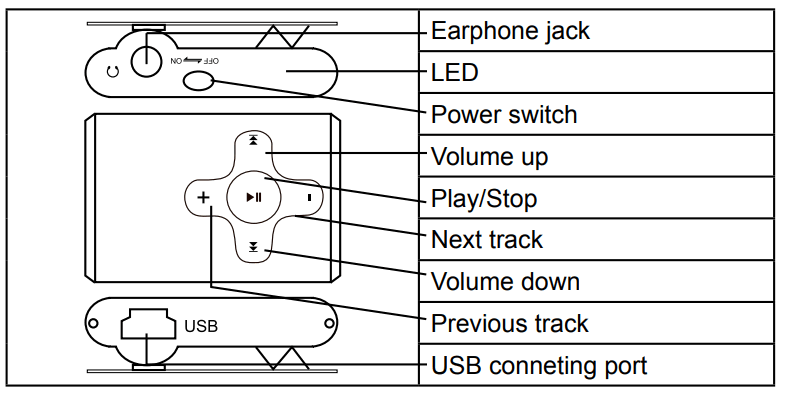

KEY FUNCTION AND OPERATING METHOD
- Key function:
Power switch: Switch on/switch off the player.
Play/Off/On: Power on/power off/pause/play (mark as
)
Vol+: volume rises up
Vol-: volume low down
: The previous song, fast backward
: Next song, fast forward
Light indicator: LED - Operating method:
Power on:
Please insert earphones, press the PLAY key for 3 seconds, and the LED will light up and the player enters the playing status.
Power switch: Switch on/switch off the player.
)Music playing:
When playing music, the LED will be flashing. The mp3 player will keep playing the song that was unfinished last time without pressing any key. when finishing playback of the last track, it will play from the first track again.
File management:
In stop mode, press
or
button to select the next or previous folder.
Forward and backward track:
When the player is playing music, press the key, and the player skips playing the next song, long press the key to fast forward, press the key, it skips to the previous song, long press the key to fast backward.
Volume adjustment:
When playing music, short press the Vol+ key to rise up the volume; short press the Vol- key to low down volume.
Pause playing:
In playing status, press the PLAY key, player stop temporarily (LED light on), pressing the PLAY key again, it continues playing music (LED flashing).
Power off:
In standby status, long press the PLAY key for 3 seconds (or more than 3 Seconds), and this player will be powered off.
When you press the PLAY key to pause playing and without pressing any keys, this player will be powered off automatically after 90 seconds.
CONNECT WITH COMPUTER
- Connect the USB jack of this MP3 player with your computer’s USB socket, the LED will be flashing continually, you can find the removable disk on your computer.
- Copy your files from the computer into this MP3 player, this MP3 player also can be used as a flash disk.
HOW TO CHARGE
Turn ON the unit and connect it to the PC or remove the hardware safely, MP3 will be automatically charged. When the unit is fully recharged the LED bulb will turn off. Suggest charge for three hours around.
TROUBLESHOOTING
| No power | If the battery has enough power. If you have powered on the player. |
| No sound from the Earphone | Make sure the earphone is connecting with the player correctly. Make sure the earphone is clean. The damaged MP3 files may have some kind of noise or even cannot have audio output. Make sure your downloaded files are not destroyed. |
| Can not download the file | Check if the USB connection is ok. |
SPECIFICATIONS
| Power: | Maximum 4 hours for music playback |
| USB transfers rate: | USB2.0 (High Speed) |
| Music format: | MP3 bit rate: 8KBPS-320KBPS WMA bit rate: 64KBPS-320KBPS |
| Frequency scope: | 20HZ-20KHZ |
| Earphone output power: | (L)5mW+(R)5mW |
| Operate system: | Windows2000/XP/Vista |
| Operate Temperature: | -5 ~ +40 °C |
| Dimensions: | 28x41x12 mm |
| Weight (NET) | 30 g |
We reserve the right to change technical specifications.
Old electrical appliances used batteries and accumulators disposal
This symbol appears on the product, on the product accessories, or on the product packing means that the product must not be disposed of as household waste. When the product/battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product, you can prevent possible negative impacts on the environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/accumulator. Recycling of materials contributes to the protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/accumulators in the household waste. Information, about where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, on where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.
Notes
Licensed by Hyundai Corporation, Korea
