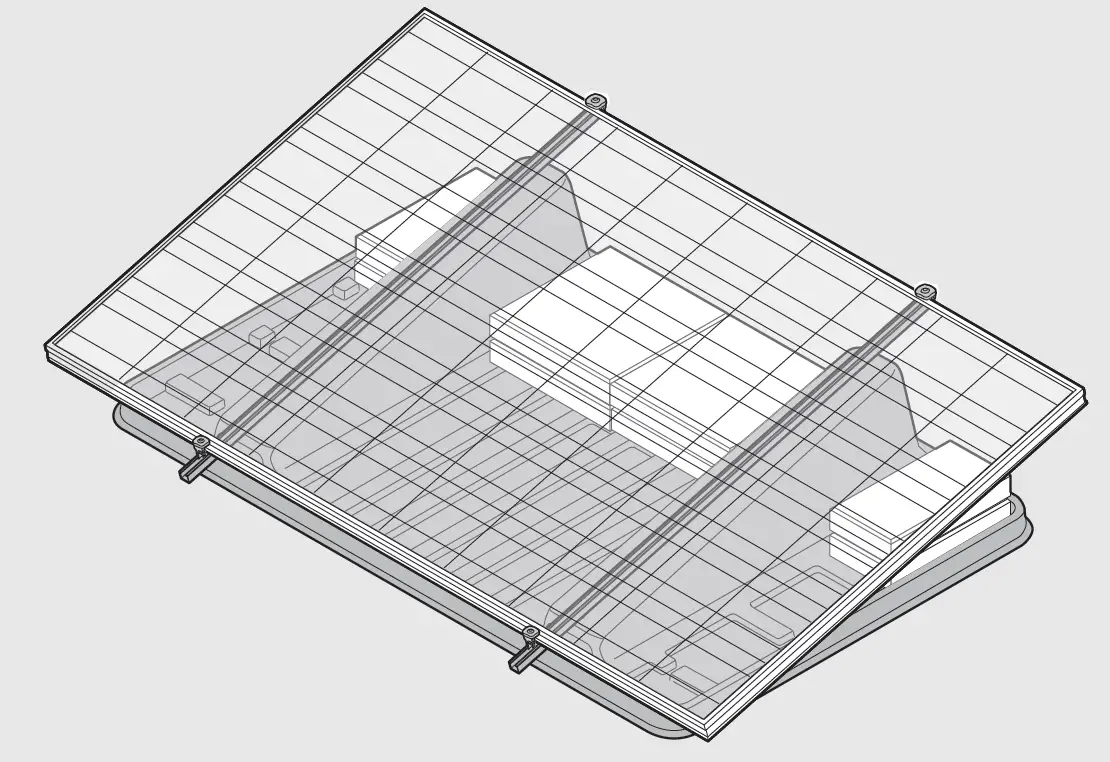

ubbink FRS60 Flat Roof Mounting System
Installation instructions
Always work according to health and safety regulations. Take proper fall prevention measures.
Before you start
Before installation make sure that roof construction and roofing allow for placing the Solar system (weight of installation, ballast, etc).
Components included
Components not included
Tiles
Tools required

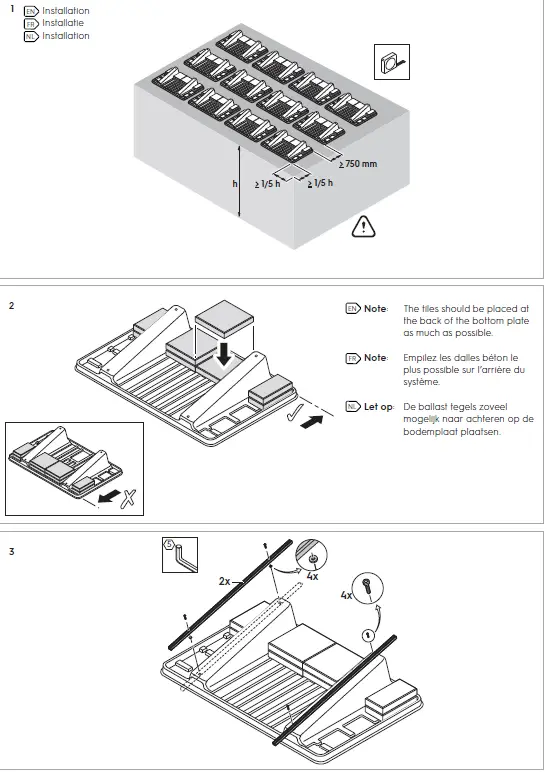

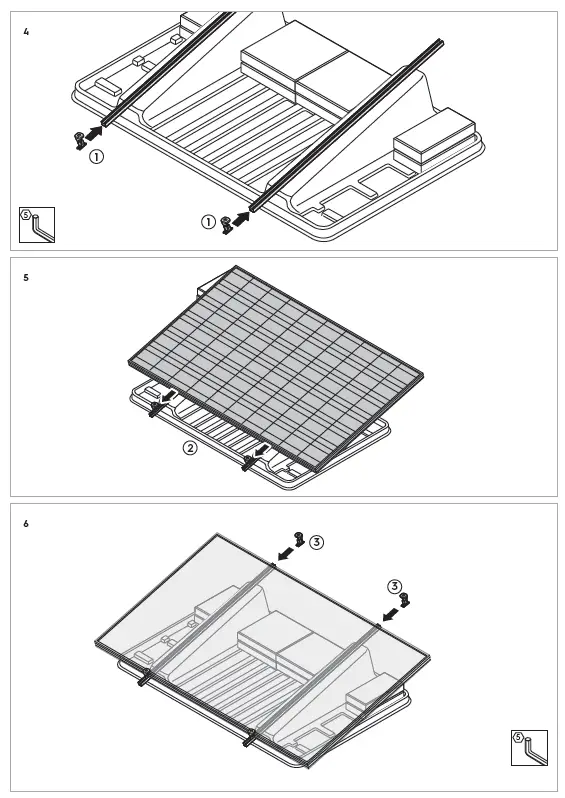

Installation
Note: The tiles should be placed at the back of the bottom plate as much as possible.
BALLAST TABEL NEDERLAND
| h < 4 m | 4 m < h < 8 m | 8 m < h < 12 m | ||||
| Paneel tot 1,7 x 1,0 m | Paneel tot 1,75 x 1,15 m | Paneel tot 1,7 x 1,0 m | Paneel tot 1,75 x 1,15 m | Paneel tot 1,7 x 1,0 m | Paneel tot 1,75 x 1,15 m | |
| Zone I | 98 kg | 116 kg | 106 kg | 125 kg | 129 kg | 153 kg |
| Zone II | 79 kg | 94 kg | 86 kg | 102 kg | 106 kg | 125 kg |
| Zone III | 62 kg | 73 kg | 68 kg | 80 kg | 83 kg | 98 kg |

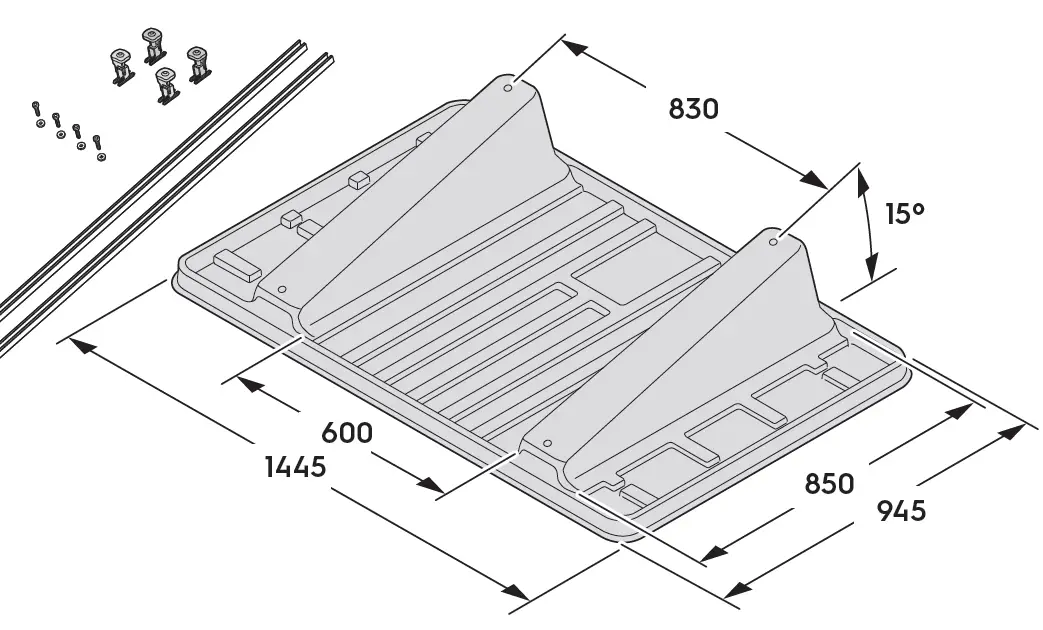

DIMENSION
| Pression dynamique de pointe (daN/m²) | Lest à utiliser dont poids du module (kg) | |||
|
Centre | Module < 1,7 x 1,0 m Bordure | Module Centre | 1,75 x 1,15 m Bordure | |
| 40 | 53 | 67 | 63 | 78 |
| 45 | 60 | 75 | 71 | 88 |
| 50 | 67 | 83 | 78 | 98 |
| 55 | 73 | 92 | 86 | 108 |
| 60 | 80 | 100 | 94 | 118 |
| 65 | 87 | 108 | 102 | 127 |
| 70 | 93 | 117 | 110 | 137 |
| 75 | 100 | 125 | 118 | 147 |
| 80 | 107 | 133 | 126 | 157 |
| 85 | 113 | 142 | 133 | 167 |
| 90 | 120 | 150 | 141 | 177 |
| 95 | 127 | 158 | 149 | 186 |
| 100 | 133 | 167 | 157 | 196 |
| 105 | 140 | 175 | 165 | X |
| 110 | 147 | 183 | 173 | X |
| 115 | 153 | 192 | 180 | X |
| 120 | 160 | 200 | 188 | X |
