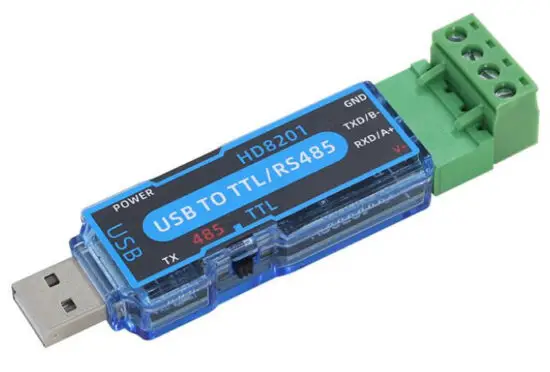

HD8201 USB TO TTL
User Manual
HD8201 using the standard USB, easy access to PLC, DCS, and other instruments or systems for monitoring RS485,TTL state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485, CAN,4- 20mA, DC0~5V\10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.
Technical Parameters
| Technical parameter | Parameter value |
| RS485 | A+ B- |
| Communication Interface | USB |
| Default baud rate | 9600 8 n 1 |
| Power | DC5V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |

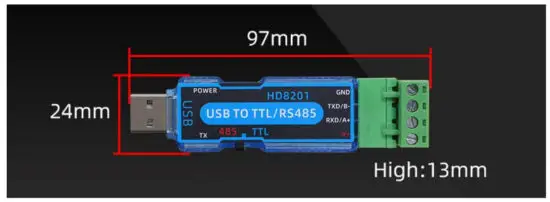

Product Size

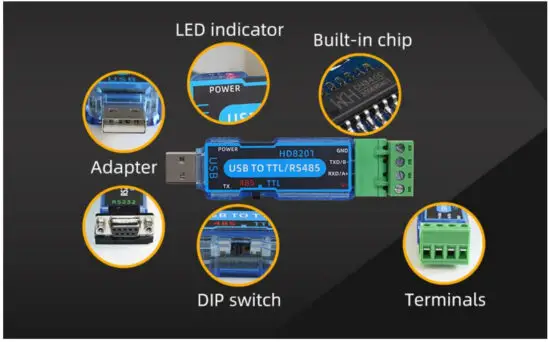

How to wiring?

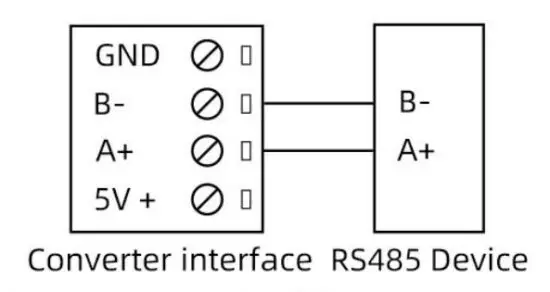

RS485 Connection mode
Note: When the power supply of the user equipment is DC5V, the converter can directly supply power to the user equipment, GND is the negative pole of the power supply, and 5V is the positive pole of the power supply. It can only supply power to devices with a power supply of 5V.

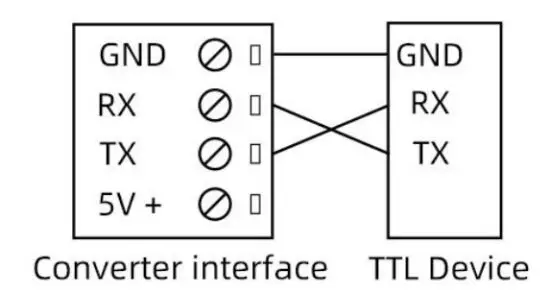

TTL wiring method
Note: When the power supply of the user equipment is DC5V, the converter can directly supply power to the user equipment, GND is the negative pole of the power supply, and 5V is the positive pole of the power supply. You can only supply power to devices whose power supply is 5V.

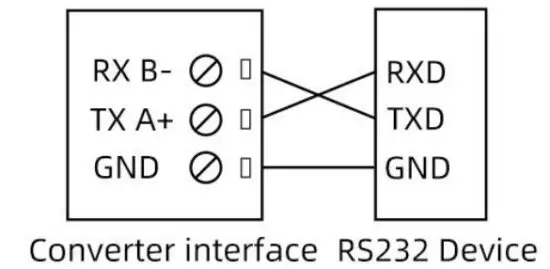

RS232 Connection mode
Note: When the power supply of the user equipment is DC5V, the converter can directly supply power to the user equipment

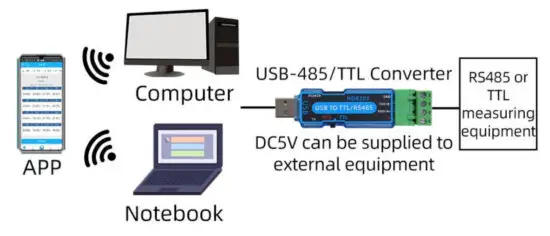

Application solution
Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability, or the infringement liability for any patent, copyright, or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
