Sonbus Hd813 Ttl Controller User Manual

HD813
User Manual
File Version: V21.7.13

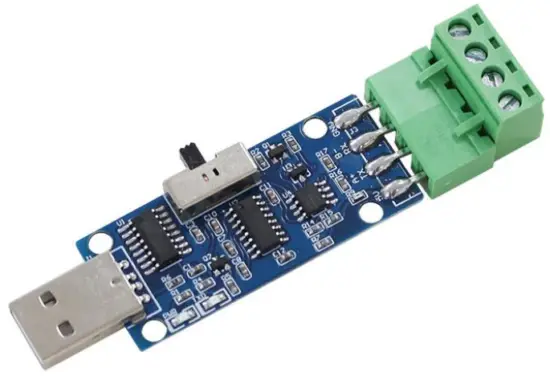

HD813 using the standard USB, easy access to PLC, DCS, and other instruments or systems for monitoring RS485, TTL state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485, CAN,40mA, DC0~5V\10V, ZIGBEE,Lora, WIFI, GPRS, and other output methods.

Technical Parameters

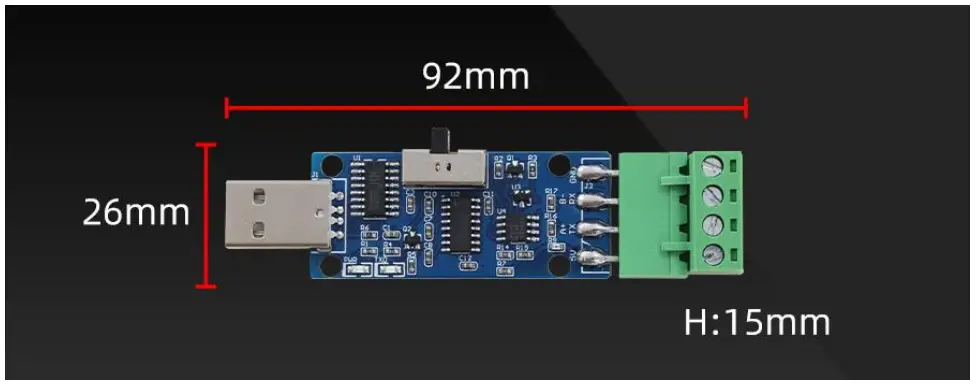

Product Size

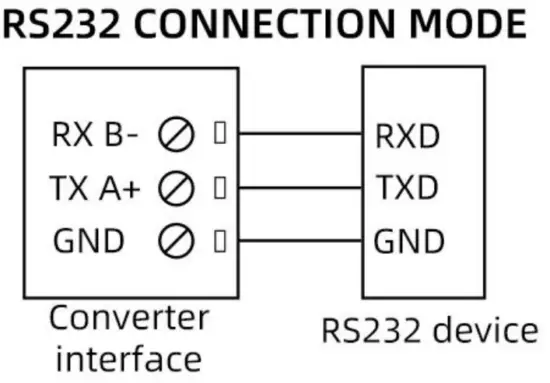

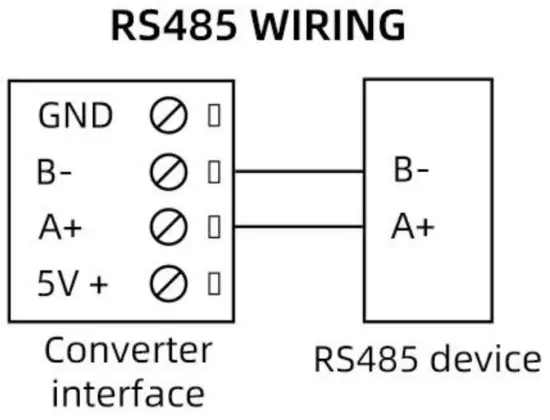

How to wiring?

Note: When the power supply of the user equipment is DC5V, the converter can directly supply power to the user equipment, GND is the negative pole of the power supply, and 5V is the positive pole of the power supply. It can only supply power to devices with a power supply of 5V

Note: When the power supply of the user equipment is DC5V, the converter can directly supply power to the user equipment

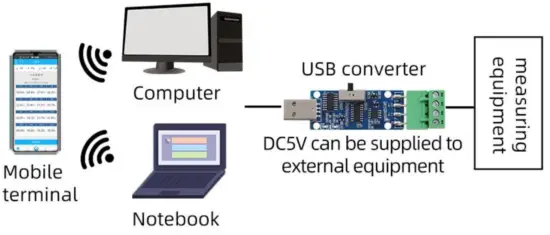

Application solution
