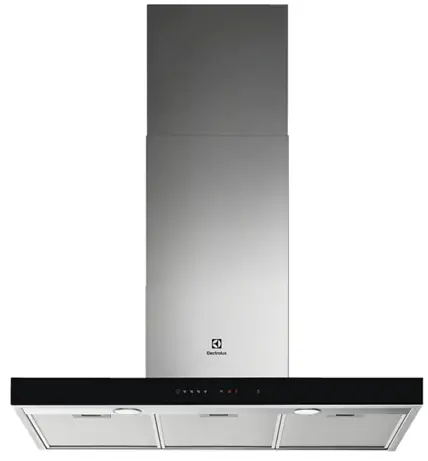

CFG516W Built In Hood

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.

Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
Register your product for better service: www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.

SAFETY INFORMATION AND INSTALLATION

WARNING!
Refer to the separate
Installation Instructions booklet for Safety
Information and Installation.
Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

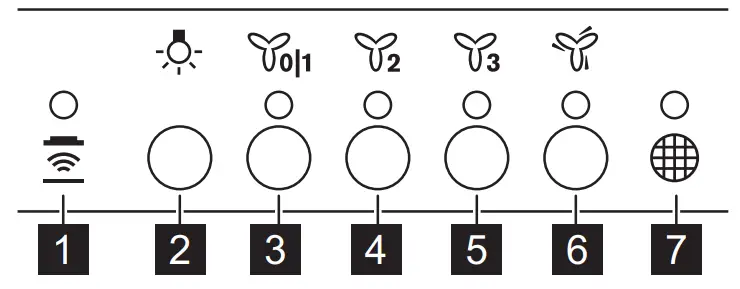

2.1 Control panel overview

	Function	Description
1	Hob²Hood	Indicator of the function to control hood from hob.
2	Lamp	Turns the lights on and off.
3	First speed / Off	The motor switches to first speed level. Second press turns off the appliance.
4	Second speed	The motor switches to second speed level.
5	Third speed	The motor switches to third speed level.
6	Maximum speed	The motor switches to maximum speed level.
7	Filter notification	Reminds to change or clean the charcoal filter and clean the grease filter.

DAILY USE

3.1 Using the hood
Check the recommended speed according to the table below.

	While heating up food, cooking with covered pots.
	While cooking with covered pots on multiple cook‐ing zones or burners, gentle frying.
	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burn‐ers.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maxi‐mum speed. After 6 minutes the appliance returns to previous setting.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

Press the first speed button to switch on the appliance.
If needed, press the light button to illuminate the cooking surface.
If needed, change the speed by pressing the desired button.
To turn off the appliance press the first speed button again.

3.2 Hob²Hood function
It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually.
The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

3.3 Activating Maximum Motor Speed
When you press , the Maximum Motor Speed starts to operate for 6 minutes. After that time, the appliance returns to its previous speed settings.

3.4 Filter notification
Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function press the button for 3 seconds.

To activate or deactivate function:

To activate function press the button for 3 seconds.
If the function is activated, the indicator flashes two times.
To deactivate function press the button for 3 seconds.
If the function is deactivated, the indicator flashes ones.

3.5 Remote-control
The appliance can be controlled with a remote-control. Visit local supplier to buy the remote-control.
The connection is originally enabled.

To connect or disconnect remotecontrol:

Switch off the appliance.
Press the for 3 seconds.
The indicator on control panel flashes twice if function is enabled and once if disabled.

CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.
Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
Clean stains with a mild detergent.

Keep the hood clean
Clean the appliance and grease filters each month. Clean the inte‐rior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
Follow the instructions for cleaning the accessories when filter noti‐fication is on. Refer to Filter notification in daily use chapter.
Grease filters can be washed in a dishwasher.
The dishwasher must be set to a low temperature and a short cy‐cle. The grease filter may discolour, it has no influence on the per‐formance of the appliance.
Charcoal filter
The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not ashable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

4.2 Cleaning the grease filter
Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

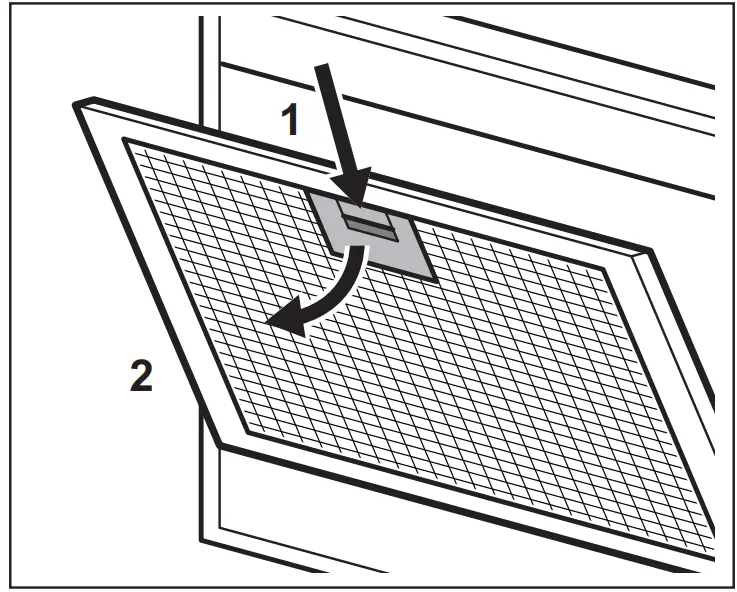

Press the handle of the mounting clip on the filter panel underneath the hood (1).
Slightly tilt the front of the filter downwards (2), then pull.
Repeat the first two steps for all filters.
Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
To mount the filters back follow the first two steps in reverse order.
Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter
WARNING!
The charcoal filter is nonwashable!

To replace the filter:

Remove the grease filters from the appliance.
Refer to “Cleaning the grease filter” in this chapter.
Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards.
To install a new filter, perform the same steps in reverse order.
In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp
This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
