ET2 Contemporary Lighting E42080-90PC Luminance 30×36 Inch Mirror

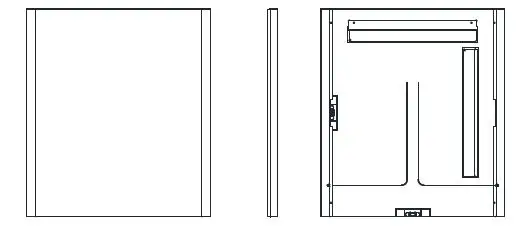

PRODUCT NAME: LUMINANCE 24″ X 30″ MIRROR
ITEM NUMBER:E42080-90PC / E42082-90PC
Please consult your electrician for installing fixture and wiring.
Install the Fixtures
- Ensure that the electrical box is located behind the mirror location.

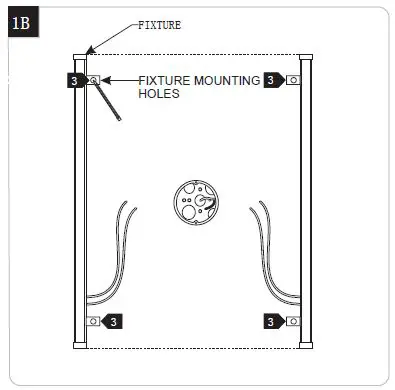

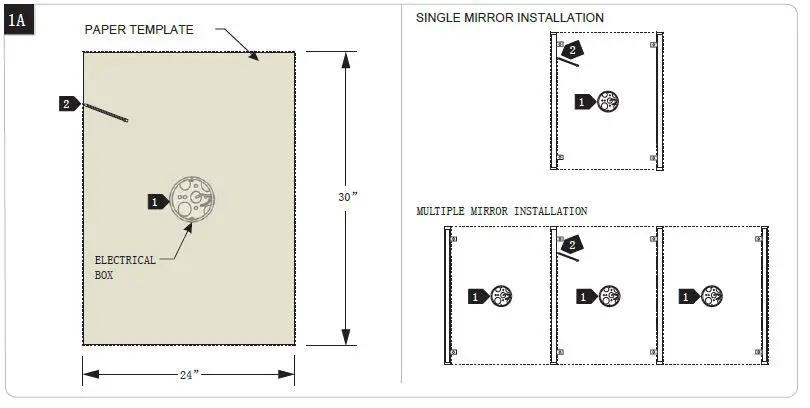

- Using the paper template (provided) and a fixture; level, measure, and mark the location of mirror(s) and fixtures.
- Place the fixture on the marked location and mark the location of the holes for the fixture
Note: Ensure that the mounting holes are located behind the mirror

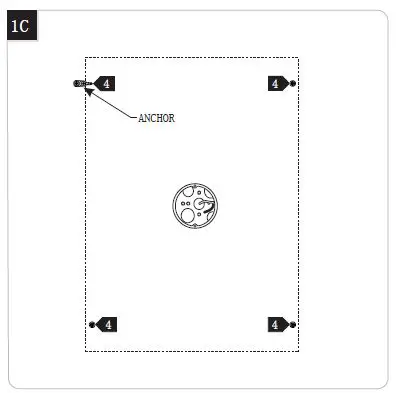

- At a mounting hole location, push the anchor into the wall up to the threads.
- Screw the anchors in the rest of the way with a Phillips-head screwdriver.
- Repeat steps 4-5 for the other anchors and screw.
Wiring Driver & Fixtures

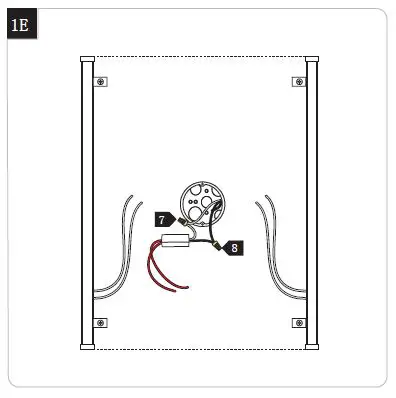

- Connect the white driver wire to the neutral power line.
- Connect the black driver wire to the hot power line.
- Properly place the driver input wires, and wire nut connections into the electrical box.
- Feed the fixture wires through the mounting plate center hole .

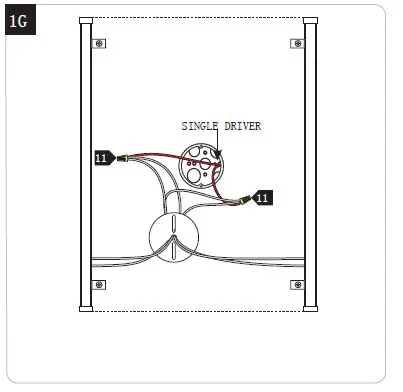

- Connect the lead wire of fixture marked “+” to Led driver output wire marked “+”with connector, and connect the lead wire of fixture marked “- ” to Led driver output wire marked “-”with connector. Never connect the wire with “+” to wire with “-”.

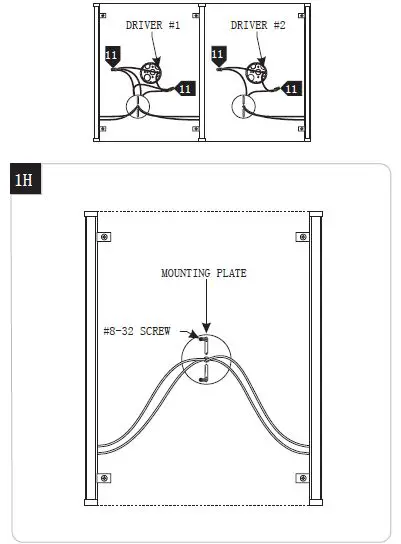

2 Multiple mirror’s driver installation
- Properly place the wires and wire nut connections inside the electrical box.
- If necessary push any excess fixture wire into the electrical box through the mounting plate.
- Attach the mounting plate to the electrical box using the two #8-32 screws provided.
Install the Mirror

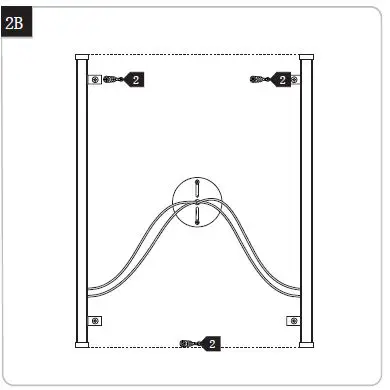

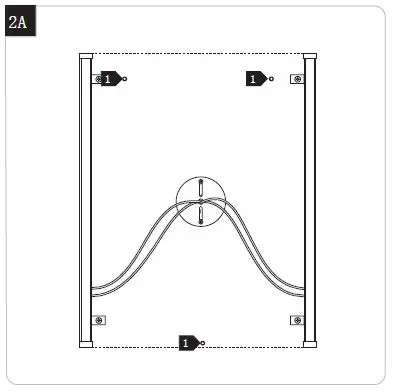

- Drill holes for installation the bracket
- Place the wall anchors into holes
Accessories bag include:- Wall anchors 7pcs
- Wood screws 6pcs
- T shape sccrew 1pc
- Wire nut 4pcs

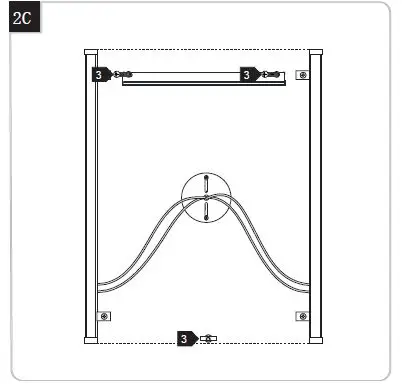

- Mount the bracket with screws

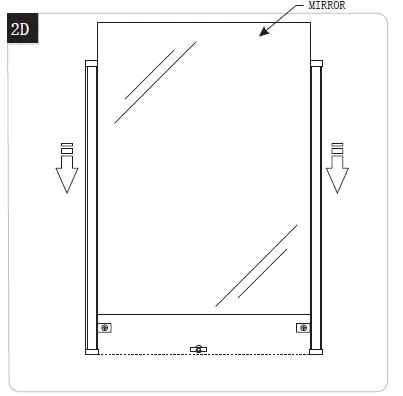

- Hang the mirror onto bracket and secure the part at the backside of bottom mirror with T screws if needed.
