DAKE SXC Electrical Diagrams

DAKE-SXC-Electrical-Diagrams-PRODUCT

ELECTRICAL DIAGRAMS

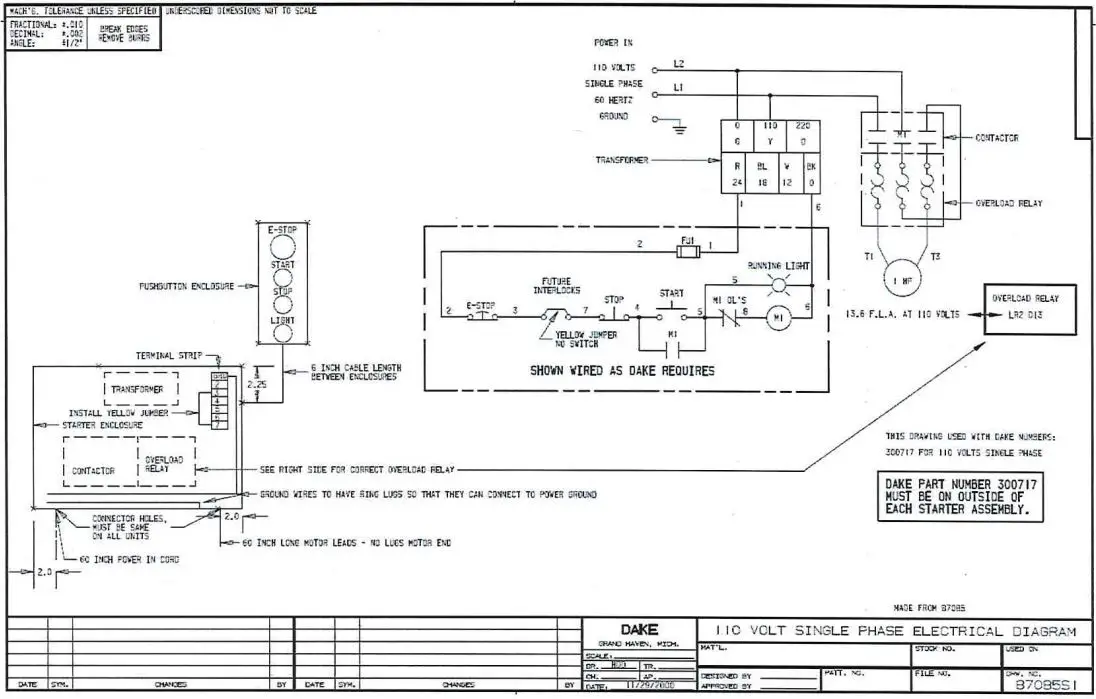

110V

DAKE-SXC-Electrical-Diagrams-FIG-1

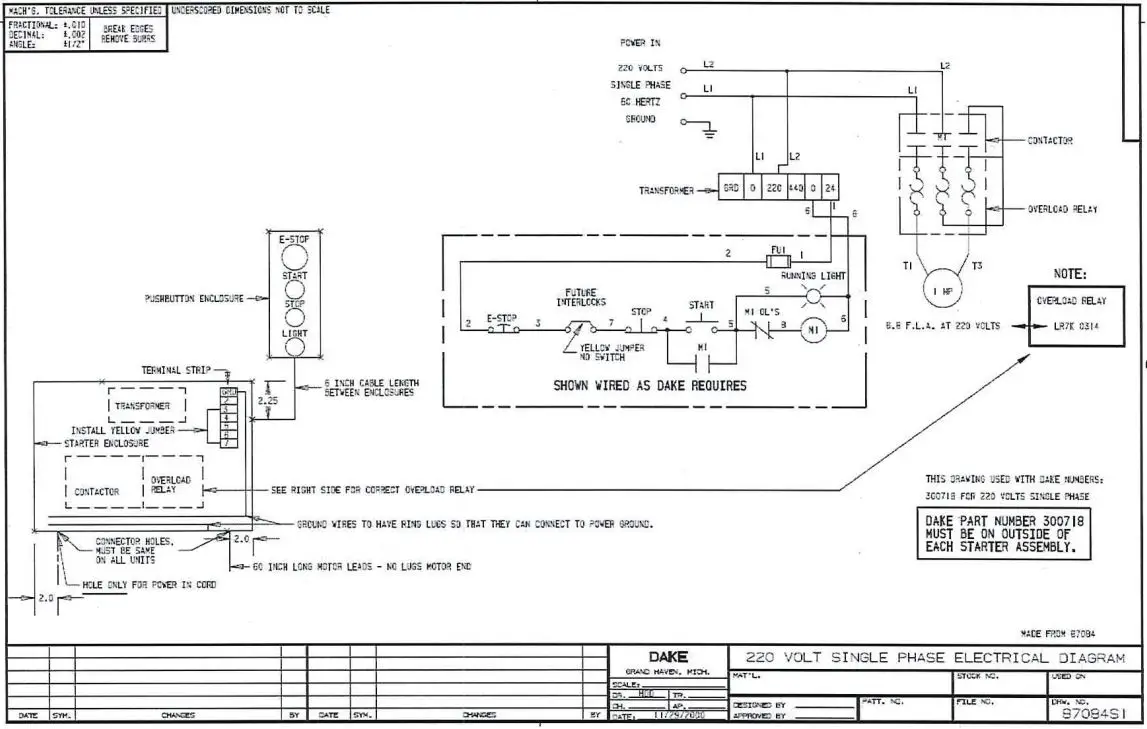

220V Single Phase

DAKE-SXC-Electrical-Diagrams-FIG-2

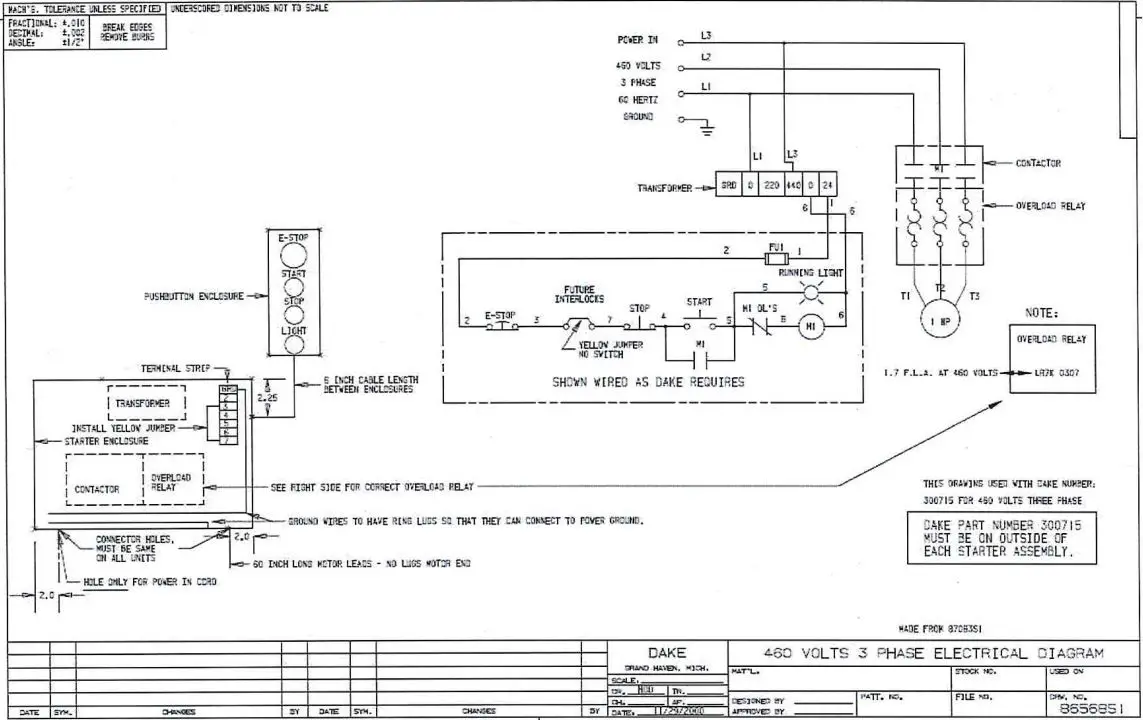

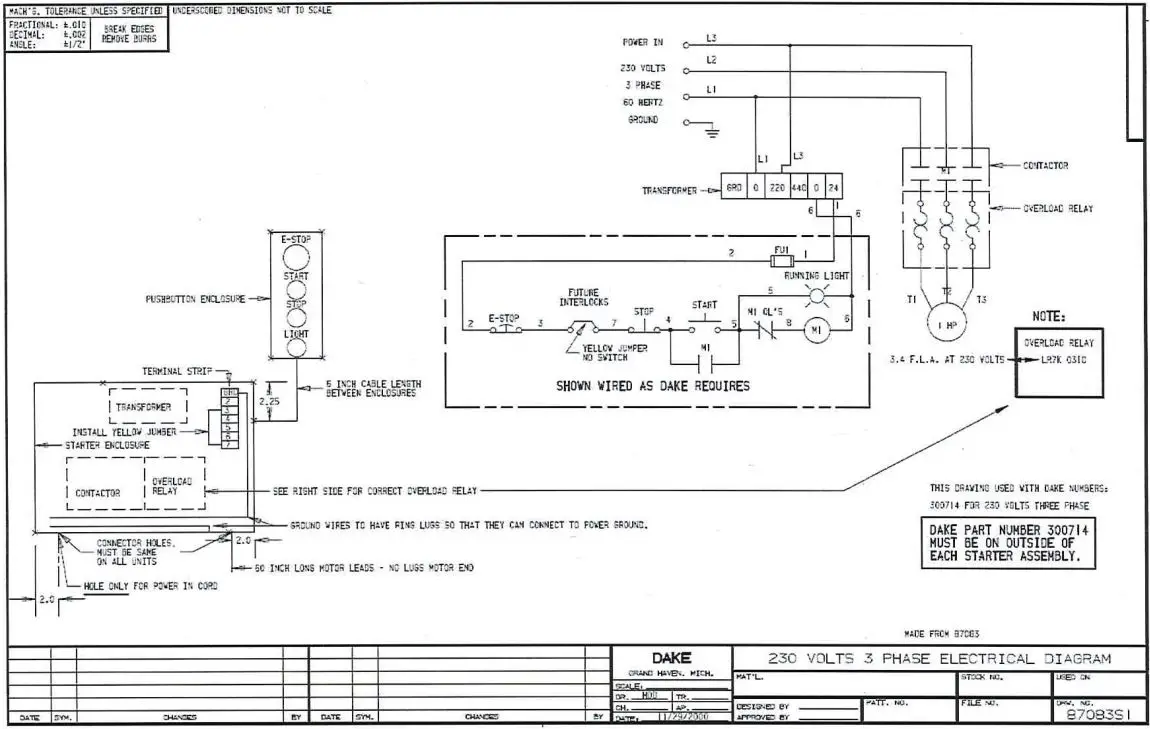

230V 3-Phase

DAKE-SXC-Electrical-Diagrams-FIG-3DAKE-SXC-Electrical-Diagrams-FIG-4

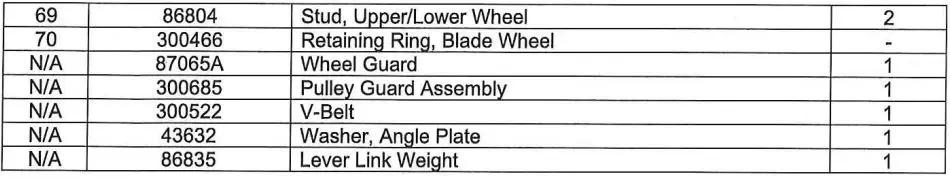

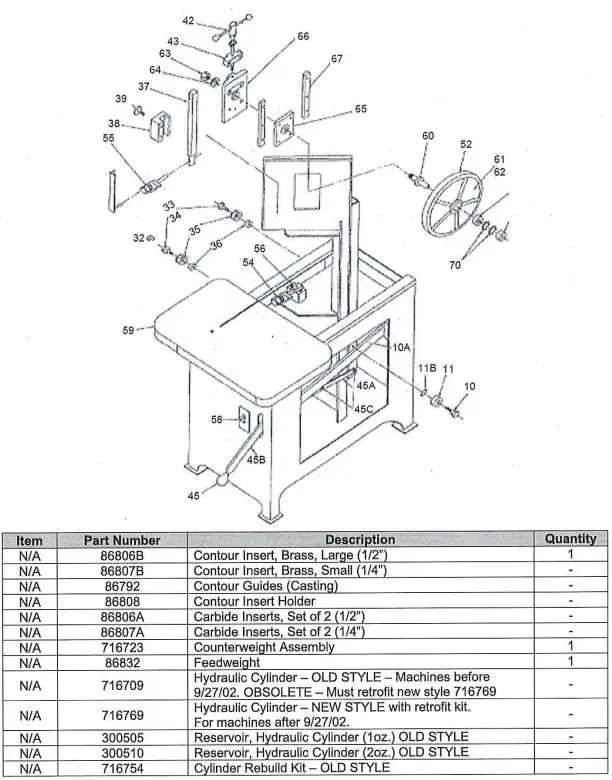

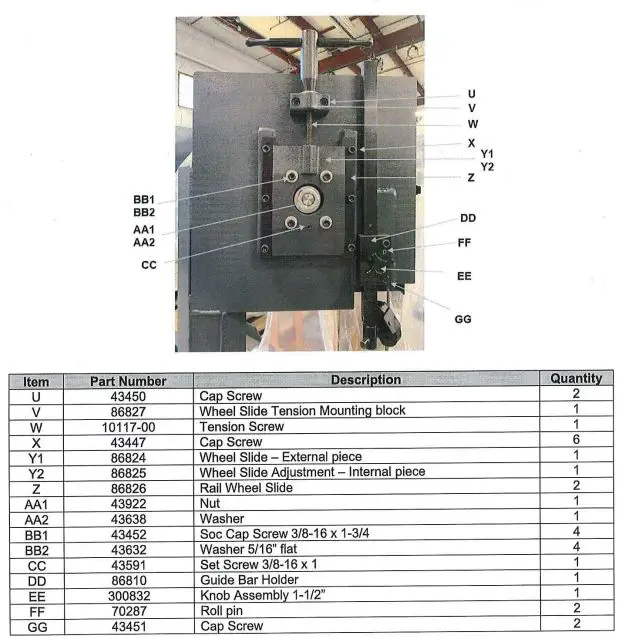

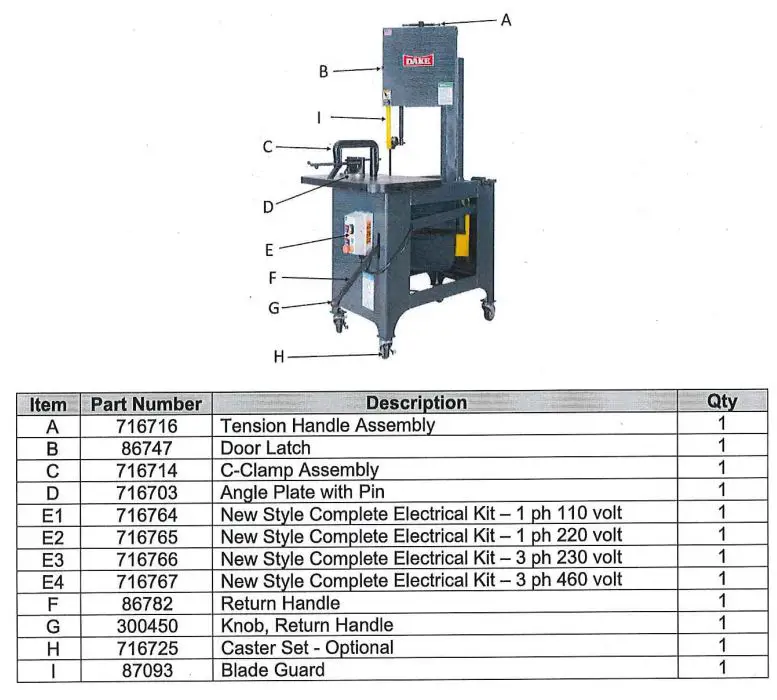

EXPLODED VIEWS & PARTS LISTS

DAKE-SXC-Electrical-Diagrams-FIG-5

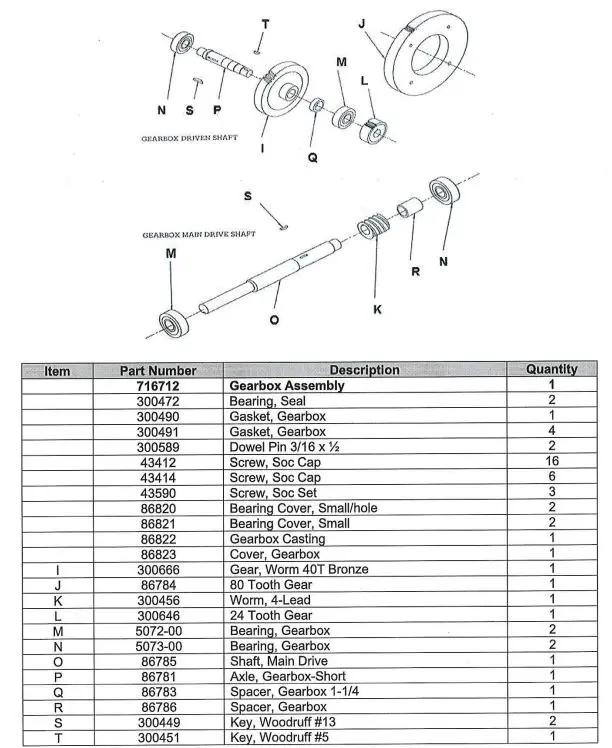

Gear Assembly Parts List

DAKE-SXC-Electrical-Diagrams-FIG-6DAKE-SXC-Electrical-Diagrams-FIG-7DAKE-SXC-Electrical-Diagrams-FIG-8DAKE-SXC-Electrical-Diagrams-FIG-9DAKE-SXC-Electrical-Diagrams-FIG-10

ORDER INFORMATION

  • Please contact factory for current prices
  • Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B. Factory in Grand Haven, MI.
  • If a customer has any questions or concerns regarding a Dake product that was purchased, please email customer service at [email protected]
