V-tac Vt-39st-s Led Street Light With Light Sensor Instruction Manual

INSTALLATION INSTRUCTION
LED STREET LIGHT WITH LIGHT SENSOR

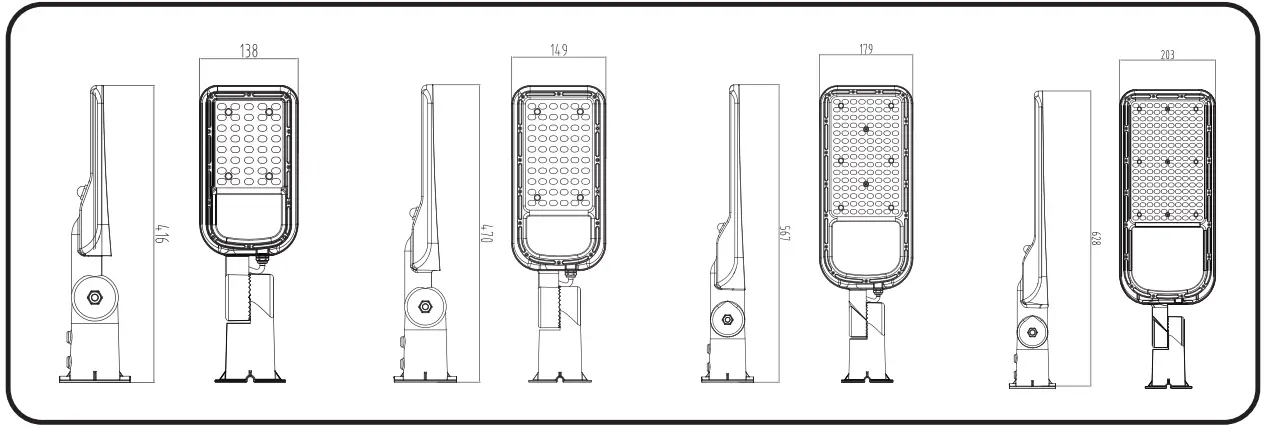

TECHNICAL SPECIFICATIONS

INTRODUCTION & WARRANTY

Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at their best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of  Daily operation. Usage of the product for 24 Hours a day would void the warranty. This product is

WARNING!

• Please make sure to turn off the power before starting the installation.

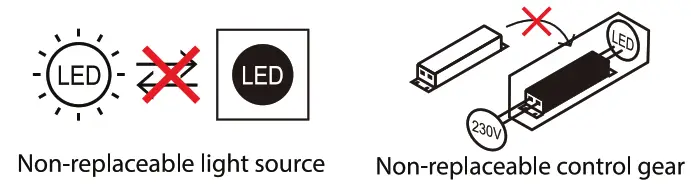

• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
• Replace any cracked protective shield.
• The minimum distance from lighted objects is 1m.
• Proper grounding should be ensured throughout the installation.
• Please read through all the following instructions before installing the unit.
• The user should prepare all the necessary accessories and spare parts (Spare parts not provided) including the junction box.
• The raised lighting must be connected to the earth’s ground.
• Installation must be performed by a qualified electrician.
  Strictly follow these instructions for installation, and avoid the intensity of the power cable during installation.

This marking indicates that this product should not be disposed of with other household wastes

Caution, risk of electric shock.

FEATURES

• LED streetlight with the light sensor is convenient and easy to connect.
• Connect to the power directly as a normal streetlight
• The light sensor will function automatically in accordance with available daylight.
•  When natural light is above 75LUX, the streetlight will be auto-off and the streetlight will be Auto On if Natural light is below 75lux. Buffer mode point is 75LUX ±25%.
• Turning the light on/off is not required.
• If the sensor is obstructed it may not operate as expected.

INSTALLATION & WIRING DIAGRAM

INSTALLATION INSTRUCTION

INSTALLATION INSTRUCTION

1. Switch OFF the power before starting the installation.
2. Connect supply wires to the luminaire as displayed in the wiring diagram.

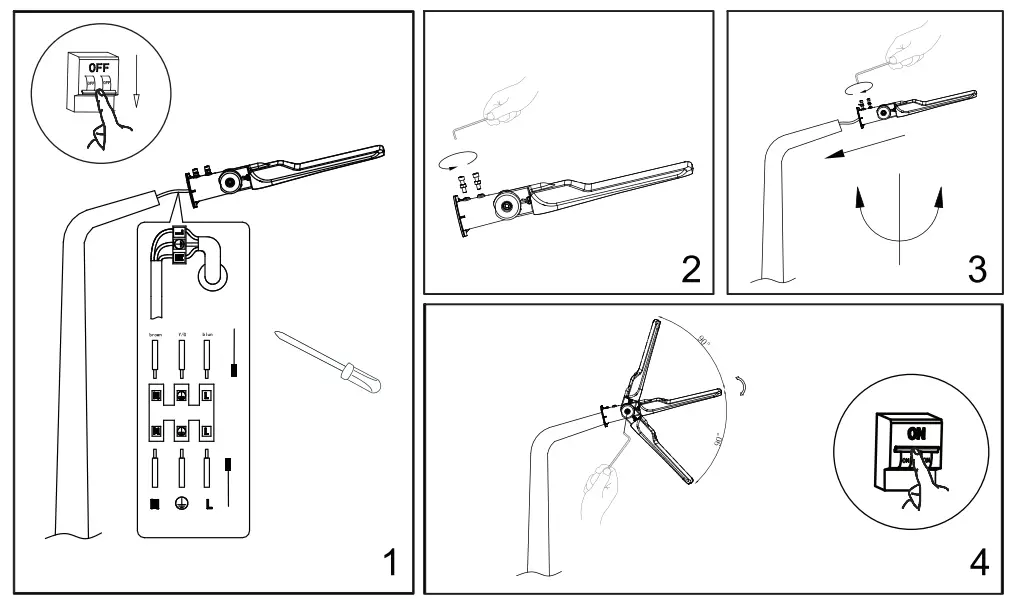

3. (a) For Pole: Pass the cable through the mounting adaptor, and tighten the screws on the pole with an M8 Allen wrench. Use the wrench to loosen the screw on the  luminaire and adjust the angle and tighten them

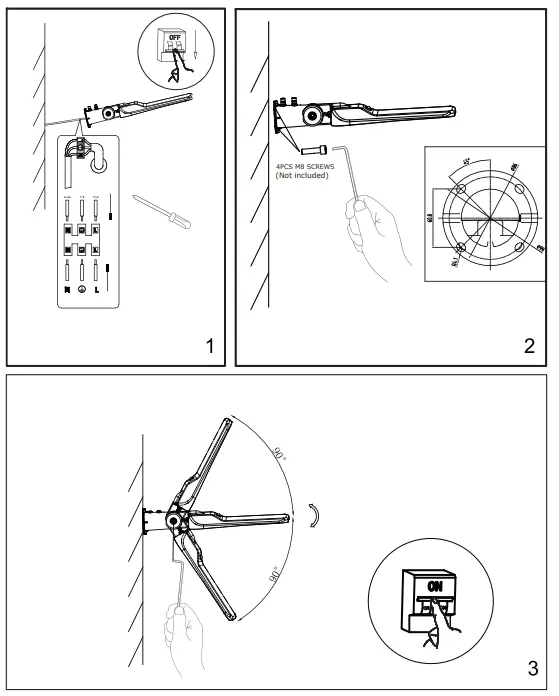

   (b) For wall: Pass the cable through the mounting adaptor, Fasten screws against the wall by 4PCs of M8 screws (NOT INCLUDED). Use the wrench to loosen the screw  on the luminaire and adjust the angle and tighten them.
4. Turn ON the power to Test

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
