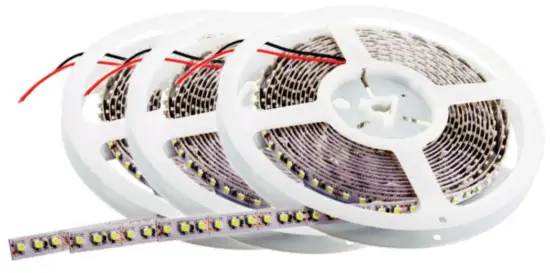

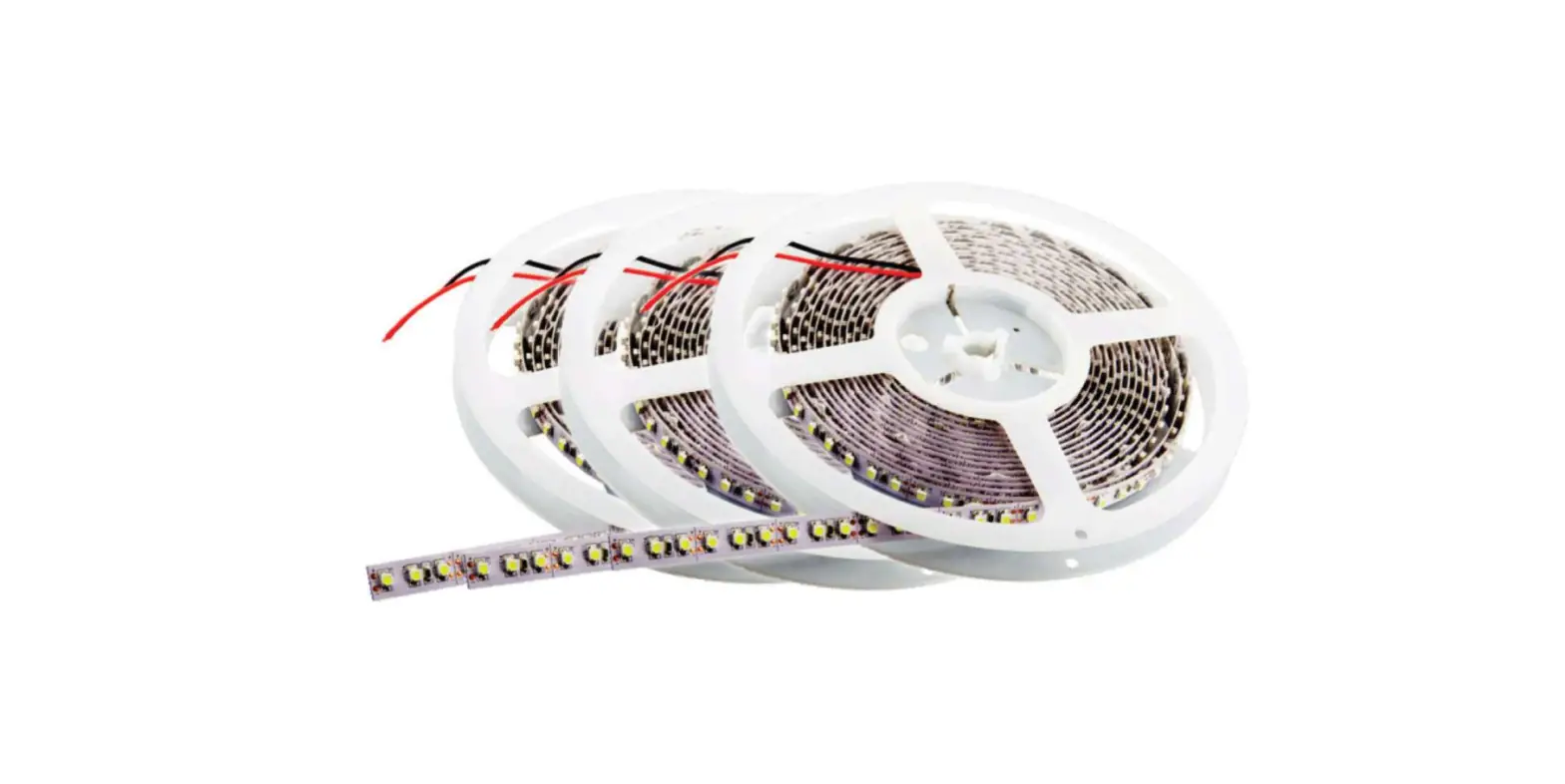

V-TAC VT-3529-60 LED Strip Lights

Disposal icon This marking indicates that this product should not be disposed of with other household wastes.

Warning icon Caution, risk of electric shock.

Contents hide
1 SAFETY INSTRUCTION AND WARNINGS!
2 INSTALLATION
3 CUTTING INSTRUCTIONS
4 PARALLEL CONNECTION
5 POWERING STRIPLIGHT FROM BOTH THE ENDS [SERIES CONNECTION]
6 Specifications
7 Documents / Resources
8 Related Posts

SAFETY INSTRUCTION AND WARNINGS!

  1. Please make sure to turn off the power before starting the installation.
  2. Please cut the LED Strip Light according to the cutting as shown in the cutting instructions. Cutting outside the marking will damage the product. Please cut only on the dotted/scissor marking on the LED Strip Light.
  3. LED Strip Light cannot be folded or twisted during the installation. DO NOT turn on power until LED Strip Light is connected properly and well-installed.
  4. DO NOT touch/cut the LED Strip Light when power is on.
  5. DO NOT power the LED Strip Light in roll/package.
  6. DO NOT install in water or flammable environment, and make sure well ventilated.
  7. DO NOT wrap or cover LED Strip Light with any objects.
  8. Once the IP65 LED Strip Light is cut, it loses its IP rating. To ensure and regain the IP rating kindly use the silicone glue.
  9. Please use only approved accessories and engage professional electrician for installation work.
  10. Do not turn on the power supply until the lighting strip has been properly installed.
  11. Please do not use the product if any damage is found on the striplight.
  12. Not to be used for a long period of time is an environment with temperature exceeding 40°C.
  13. Do not wipe the strip with organic solvent to avoid damage to the insulation layer.
  14. Install only by certified Electrician.

INSTALLATION

  • Use only power supply DC: 12/24V
  • In case when section is longer that 10M , we recommended to power strips from both ends
  • When selecting appopriate power supply, please take into account , the electric power consumed by LED strips (kindly check the technical data sheet)

During Installation

  • Red wire should be connected to the positive(+) side of the power supply unit.
  • Black wire should be connected to the negative(-) side of the power supply unit.

Connecting LED Strip with power supply
Installation

Connecting RGB LED Strip with power supply and LED Controller
Installation

Remarks

  • 1P20 can be used only indoors

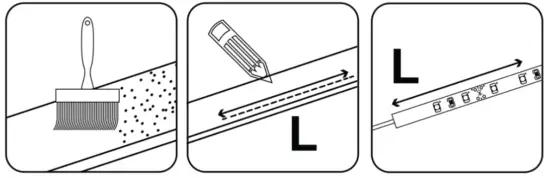

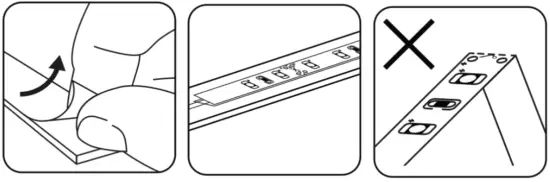

CUTTING INSTRUCTIONS

CUTTING INSTRUCTIONSCUTTING INSTRUCTIONS

CUTTING INSTRUCTIONS

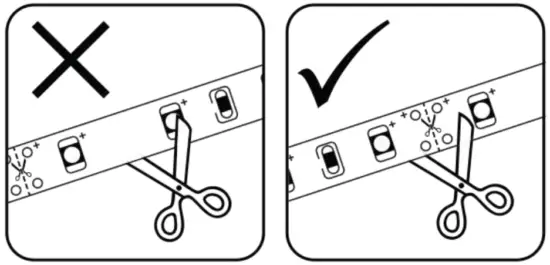

NOTE: Cutting outside the marking will damage the product. Please cut only on the dotted/scissor marking on the LED Strip light.
IMPORTANT: When cutting IP6S Striplight, it will loose its IP protection. Please ensure to use Silicone Glue on the end of the striplight to ensure the IP Protection is retained.
CUTTING INSTRUCTIONS

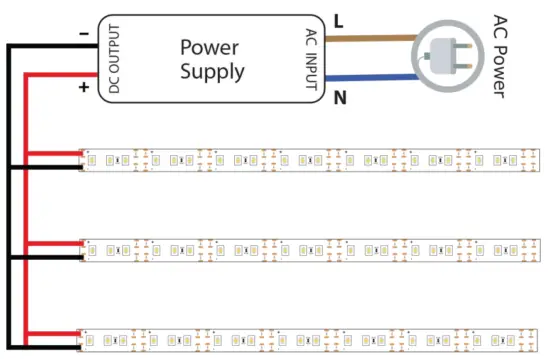

PARALLEL CONNECTION

PARALLEL CONNECTION

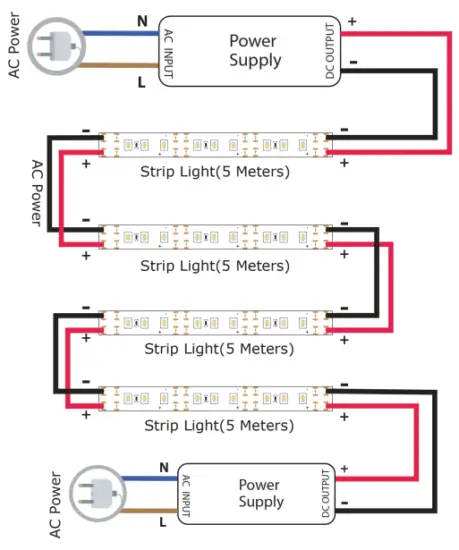

POWERING STRIPLIGHT FROM BOTH THE ENDS [SERIES CONNECTION]

NOTE: In case when section is longer that 10M , we recommended to power strips from both ends

POWERING STRIPLIGHT

Specifications

ModelWhiteLEO
Type
SMD 2835		LED
Quantity/M
60		Voltage
(V)
12V DC		Watt/M
4.2W		Current/MIP Rating IP20/1P65Beam
Angle
120′
VT-3525.600.35A
VT-3528-60Warm WhiteSMC 28356012V DC4.2W0.35AIP20/1P65120′
VT-3528-604000<SMD 28356012V DC4.2V:0.35AIP20PP65120′
VT•3528-60RedSMD 28356012v DC4.2W0 35AIP20/iP65120′
VT-3525•50GiRenSMD 28356012V DC4.2W0 3541P20/tP65120′
VT-3528.60BlueWC 28356012V DC4.2W0 3541P20/1P65120′
VT-3528-120WhiteSMD 283512012V DC&W0 6741P20/1P65120′
VT-3528-120V…,(rra WhiteSMD 283512012V DC8W0 674IP20PP65120′
VT-3528-1204000cSMO 283512012V DC8W0 674IP20PP65120′
VT•35:8.120BlueSMO 283512012V 0CSW0 674IP20/1P65120′
VT-352E-120RedSMD 283512012V DC8W0.67A1820/1P65120′
VT-6050-30WhiteSMO 5050301211 DC4W0 33AIP20PP65120′
VT-5050-30Warm WhiteSMD 50503012V DC4W0.33A1P20/1P65120′
VT-5050.304000KSMD 50503012V DC4W0.3341P20PP65120′
VT-5050-30RedSMD 50503012v DC4W0 3341P20pP65120′
VT-5050-30GreenSMD 50503012V DC4W0.334IP20PP65120′
VT-5050.30BlueSMD 50503012V DC4W0 33A1P20,00365120′
VT-5050-30RGBSMO 50503012V DC4W0 33AIP20/1P65120′
VT-5050,60WhiteSMD 50506012V DC11W0.92AIP2OPP65120′
VT-5050.60Warm WhiteSMD 50506012V DC11W0.92AIP20/1P65120′
VT-5050-604000(SMD 50506012V DC11W0.92AIP20PP65120′
VT-5050.60RedSMD 50506012V DC11W0.92A1P20/1P65120′
VT-5050-60Gr.r…nSMD 50506012V DC11W0.92AIP2OPP6S120′
VT-5050.60BlueSMD 50506012V DC11W0.924IP2OPP65120′
VT-5050-60RGBSMD 50506012V DC7W0.59AIP20/1P65120′
VT-5050.60RG9 -WSMD 50506012■.. DC8W0 674IP20/1P65120′
Vf-5050.60RG9*-SA”NSW) 50506012V DC8W0 674IP20/’P65120′
VT-5050-60RGB•4000KSMD 50506012V DC8W0.67AIP20/1P65120′
VT-505040YellowSMD 50506012V DC11W0•92AIP20/IP65120′
VT-2835-204WhiteSMD 283520412‘• DC17W1.42AIP20120′
VT-2835.204Warm WhiteSMD 233520412V DC17W1.42A1P20120′
VT-2835-2046000KSMD 233520412V DC17W1 424IP20120′

.

VT-5050-60.24WhiteSMD 50506024V DClOW0 42A1P20120′
VT-5050.60-24Warm WhiteSMD 50506024V DClOW0.42AIP20120′
VT-5050.60-2440►0cSMD SOSO6024? DCIOW0.424IP20120′
VT         835-60-5WhiteSMD 23356012V DC4.2W0 354IP20,1IP65120′
VT-2835.60-SWarm WhiteSMD 23356012V DC4.2W0 354IP20pP65120′
VT-2835-60-S4000KSMD 23356012V DC4.2W0 354IP2OfiP65120′
VT-2835-240WhiteSMD 283524012V DC20W1 574IP20120
VT-2835 240Warm WhiteSMD 233524012V DC20W1 67A1P20120′
VT-2835 2404000KSMO 283524012V DC20w1.67AIP20120′
VT-2835.126WhiteSMC 253512624V DC8W0.334IP20120″
VT-2835.126Warm WhiteSMD 283512624v DC8W0.33A1P20120′
VT-28351264000KSMO 283512624V OC8W0 33AIP20120′
VT-2835.168WhiteSMD 283516824V DC12W0.5AIP20120′
VT•2835 168Warm White SMD 283516824V DC 12W0.5AIP20120′
VT-2835-1684000KSMD 2835 16824V DC12W0.5A1P20120′
VT-2835 238WhiteSMD 283523824V DC18W0.75AIP20120′
VT-2835.238Warm WhiteSMD 2835 23824V DC18W0.75A1P20120′
VT-2835 2384000KSMD 283523824V DC18W0.75A1P20120′
VT-2110-7004000KSMD 211070024V DC21W0 87541P20120′
VT-2110-700WhiteSMD 2110 70024V DC21W0.875AIP20120′
VT-2110-700Warm WhiteSMD 211070024V DC21W0.875AIP20120′
VT-2216.364WhiteSMD 221636424V DC30W1.25AIP20120′
VT-2216-364Warm WhiteSMD 221636424V DC30WUSAIP20120′
VT-2216.3644000KSMD 221636424V DC30W1.25A1P20120′
VT- COB -S124000KI51224V DC12W0.5AIP20120′
VT- COB -512White/51224V DC12W0.5AIP20120′
VT- COB -512Warm White/51224V DC12W0.5AIP20120′
VT- COB -280Warm White/28024V DC10W0.42AIP20120′
VT- COB -2804000K/28024V DC10W0.42AIP20120′
VT- CO8 -280White/28024V DClOW0.42A1P20120′
VT- COB -421Warm White/42124V DC10W0.42A1P20120′
VT- COB -4214000K/42124V DC10W0.42AIP20120′
VT- COB -421White/42124V DClOW0.42A1P20120′
VT’ 2835-904000KSMO 28359024V DC4W0.17A1P20120′
VT- 2835-906400KSMo an9024v DC4 W0.17A1P20120′
VT- 2835-903000KSMO 28359024v DC4 W017A_ (P20120′

REMARKS

  1. 1P20 can be used only indoors.
  2. 1P65 can be used only indoors as well as outdoors (Not for signage use).
