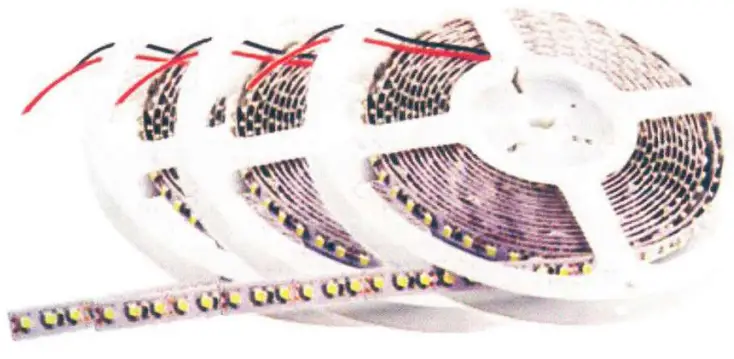

LED STRIP LIGHTS
INSTRUCTION MANUAL
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.
| Model | LED Type Quantity/M | LED Quantiy/M | Voltage (V) | Watt/M | Current/M | IP Rating | Beam Angle | |
| VT-3528.60 | White | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120″ |
| VT-3528-60 | Warm White | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120- |
| VT-3528-60 | 4000K | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | 1P20/1P65 | 120 |
| VT-3528.60 | Red | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | 1P20/1P65 | 120 |
| VT-3528.60 | Green | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120′ |
| VT-3528-60 | Blue | SMD 3528 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120 |
| VT-3528.120 | White | SMD 3528 | 120 | 12V DC | 7.2W | 0.6A | IP20/1P65 | 120 |
| VT-3528.120 | Warm White | SMD 3528 | 120 | 12V DC | 7.2W | 0.6A | IP20/1P65 | 120 |
| VT-3528-120 | 4000K | SMD 3528 | 120 | 12V DC | 7.2W | 0.6A | 1P20/1P65 | 120 |
| VT-3528-120 | Blue | SMD 3528 | 120 | 12V DC | 7.2W | 0.6A | IP20/1P65 | 120 |
| VT-3528-120 | Red | SMD 3528 | 120 | 12V DC | 7.2W | 0.6A | 1P20/11165 | 120 |
| VT-5050-30 | White | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050-30 | Warm White | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050-30 | 4000K | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | 1P20/1P65 | 120 |
| VT-5050.30 | Red | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050.30 | Green | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050-30 | Blue | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050-30 | RGB | SMD 5050 | 30 | 12V DC | 4.8W | 0.4A | IP20/1P65 | 120 |
| VT-5050.60 | White | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-5050-60 | Warm White | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-5050-60 | 4000K | SMD 5050 | 60 | 12V DC | 9W | 0.75A | 1P20/1P65 | 120 |
| VT-5050.60 | Red | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT•5050.60 | Green | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-5050.60 | Blue | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-5050-60 | RGB | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT•5050.60 | RGB0A, | SMD 5050 | 60 | 12V DC | 9W | 0.7SA | IP20/1P65 | 120 |
| VT-5050.60 | RGB+WW | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-5050-60 | RGB+4000K | SMD 5050 | 60 | 12V DC | 9W | 0.75A | 1P20/1P65 | 120 |
| VT-5050.60 | Yellow | SMD 5050 | 60 | 12V DC | 9W | 0.75A | IP20/1P65 | 120 |
| VT-3014-204 | White | SMD 3014 | 204 | 12V DC | I8W | 1.5A | IP20 | 120 |
| VT-3014.204 | Warm White | SMD 3014 | 204 | 12V DC | 18W | 1.5A | IP20 | 120 |
| VT-3014-204 | 4000K | SMD 3014 | 204 | 12V DC | 18W | 1.5A | 1P20 | 120′ |
| VT-2835-204 | White | SMD 2835 | 204 | 12V DC | 18W | 1.5A | IP20 | 120′ |
| VT-2835-204 | Warm White | SMD 2835 | 204 | 12V DC | 18W | 1.5A | IP20 | 120′ |
| VT-2835-204 | 4000K | SMD 2835 | 204 | 12V DC | 18W | 1.5A | IP20 | 120′ |
| VT-5050-60-24 | White | SMO 5050 | 60 | 24V DC | 9W | 0.375A | IP20 | 120′ |
| VT-5050-60-24 | Warm White | SMD 5050 | 60 | 24V DC | 9W | 0.375A | IP20 | 120′ |
| VT-5050-60-24 | 4000K | SMO 5050 | 60 | 24V DC | 9W | 0.375A | IP20 | 120′ |
| VT-2835-60-S | White | SMD 2835 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120′ |
| VT 2835 60-S | Warm White | SMD 2835 | 60 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120′ |
| VT-2835.60.S | 4000K | SMD 2835 | 0 | 12V DC | 3.6W | 0.3A | IP20/1P65 | 120′ |
| VT 2835-240 | White | SMD 2835 | 240 | 12V DC | 18W | 1.SA | IP20 | 120′ |
| VT-2835-240 | Warm White | SMD 2835 | 240 | 12V DC | 18W | 1.SA | IP20 | 120′ |
| VT-2835-240 | 4000K | SW 2835 | 240 | 12V DC | 18W | 1.5A | IP20 | 120′ |
| VT-2835-126 | White | SMD 2835 | 126 | 24V DC | 8W | 0.3A | IP20 | 120′ |
| VT•2835 126 | Warm White | SMD 2835 | 126 | 24V DC | 8W | 0.3A | IP20 | 120′ |
| VT-2835-126 | 4000K | SMD 2835 | 126 | 24V DC | 8W | 0.3A | IP20 | 120′ |
| VT-2835.168 | White | SMD 2835 | 168 | 24V DC | 11W | 0.45A | IP20 | 120′ |
| VT•2835.168 | Warm White | SMD 2835 | 168 | 24V DC | 11W | 0.45A | IP20 | 120′ |
| VT.2835-168 | 4000K | SMD 2835 | 168 | 24V DC | 11W | 0.45A | IP20 | 120′ |
| VT•2835.238 | White | SMD 2835 | 238 | 24V DC | 17W | 0.7A | IP20 | 120′ |
| VT 2835.238 | Warm White | SMD 2835 | 238 | 24V DC | 17W | 0.7A | IP20 | 120′ |
| VT-2835-238 | 4000K | SMD 2835 | 238 | 24V DC | 17W | 0.7A | IP20 | 120′ |
| VT-2110 -700 | 4000K | SW 2110 | 700 | 24V DC | 21W | 0.875A | IP20 | 120′ |
| VT-2110 -700 | White | SMD 2110 | 700 | 24V DC | 21W | 0.875A | IP20 | 120′ |
| VT-2110 -700 | Warm White | SMD 2110 | 700 | 24V DC | 21W | 0.875A | IP20 | 120′ |
| VT-2216-364 | White | SMD 2216 | 364 | 24V DC | 30W | 1.2SA | IP20 | 120′ |
| VT-2216-364 | Warm White | SMD 2216 | 364 | 24V DC | 30W | 1.25A | IP20 | 120′ |
| VT-2216-364 | 4000K | SMD 2216 | 364 | 24V DC | 30W | 1.25A | IP20 | 120′ |
| VT- COB -512 | 4000K | / | 512 | 24V DC | 12W | 0.5A | IP20 | 120′ |
| VT- COB 512 | White | / | 512 | 24V DC | 12W | 0.5A | IP20 | 120′ |
| VT- COB .512 | Warm White | / | 512 | 24V DC | 12W | 0.5A | IP20 | 120′ |
| VT COB 280 | Warm White | / | 280 | 24V DC | 10W | 0.42A | IP20 | 120′ |
| VT- COB -280 | 4000K | / | 280 | 24V DC | lOW | 0.42A | 1P20 | 120′ |
| VT- COB -280 | White | / | 280 | 24V DC | lOW | 0.42A | IP20 | 120′ |
REMARKS
- IP20 can be used only indoors.
- IP65 can be used only indoors as well as outdoors (Not for signage use).
SAFETY INSTRUCTION AND WARNINGS!
- Please make sure to turn off the power before starting the installation.
- Please cut the LED Strip Light according to the cutting as shown in the cutting instructions. Cutting outside the marking will damage the product. Please cut only on the dotted/scissor marking on the LED Strip Light.
- LED Strip Light cannot be folded or twisted during the installation. DO NOT turn on the power until LED Strip Light is connected properly and well-installed.
- DO NOT touch/cut the LED Strip Light when power is on.
- DO NOT power the LED Strip Light in the roll/package.
- DO NOT install in water or flammable environment, and make sure well ventilated.
- DO NOT wrap or cover LED Strip Light with any objects.
- Once the IP65 LED Strip Light is cut, it loses its IP rating. To ensure and regain the IP rating kindly use silicone glue.
- Please use only approved accessories and engage a professional electrician for installation work.
- Do not turn on the power supply until the lighting strip has been properly installed.
- Please do not use the product if any damage is found on the striplight.
- Not to be used for a long period of time is an environment with a temperature exceeding 40°C.
- Do not wipe the strip with an organic solvent to avoid damage to the insulation layer.
- Install only by certified Electrician.

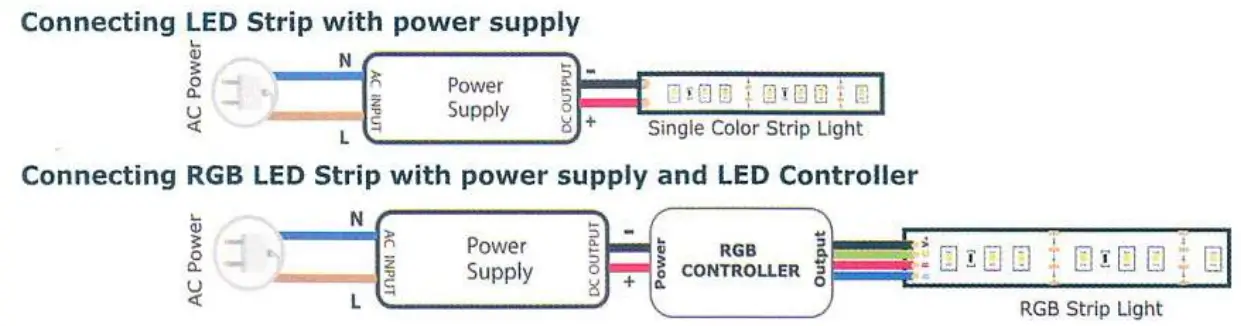

INSTALLATION
- Use only power supply DC: 12/24V
- In case when a section is longer than 10M , we recommended power strips from both ends
- When selecting the appropriate power supply, please take into account, the electric power consumed by LED strips (kindly check the technical datasheet)
During Installation
- The red wire should be connected to the positive(+) side of the power supply unit.
- The black wire should be connected to the negative(-) side of the power supply unit.
Remarks
- IP can be used only indoors
In case of any query/issue with the product, please reach out to us at: [email protected] For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 98
