4417-VT-53ST LED Street Light Inventronics Driver
Instruction Manual
TECHNICAL DATA
| POWER | WATTS | LUMENS | IP RATING | CRI | INPUT VOLTAGE | BEAM ANGLE | PF | LIFE TIME | SURGE PROTECTION GRADE | MOUNTING DIAMETER |
| VT-53ST | 50W | 7000 LM | IP65 | 70 | AC90-305V, 50Hz | Type3 (153″70°) | 0.9 | 30,000 Hours | 4KV/6KV | (p6OMM |
| VT-103ST | 100W | 14000 LM | IP65 | 70 | AC90-305V, 50Hz | Type3 (153″70°) | 0.9 | 30,000 Hours | 6KV/10KV | cp6OMM |
| VT-1S3ST | 150W | 21000 LM | IP65 | 70 | AC90-305V, 50Hz | Type3 (153″70°) | 0.9 | 30,000 Hours | 6KV/10KV | cp6OMM |
INVENTRONICS DRIVER
| Watts | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER FACTOR | THD | SURGE | Efficiency | |
| 120Vac | 220Vac | |||||||
| 50W | 90-305Vac | 34-80Vdc | 950mA | 0.99 | 0.96 | <20% | 4KV/6KV | 89% |
| 100W | 90-305Vac | 48-137Vdt | 700-1050mA | 0.99 | 0.96 | <20% | 6KV/10KV | 93% |
| 150W | 90-305Vac | 75-214Vdc | 700-1050mA | 0.99 | 0.96 | <20% | 6KV/10KV | 93% |
INTRODUCTION & WARRANTY
Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
- Please read through all the following instructions before installing the unit.
- User should prepare all the necessary accessories and spare parts (Spare parts not provided) including junction box.
- The raised lighting must be connected to the earth’s ground.
- Installation must be performed by a qualified electrician.
Strictly follow these instructions for installing, avoid the intensity of power cable during installing.
 | This marking indicates that this product should not be disposed of with other household wastes. |
 | Caution, risk of electric shock. |

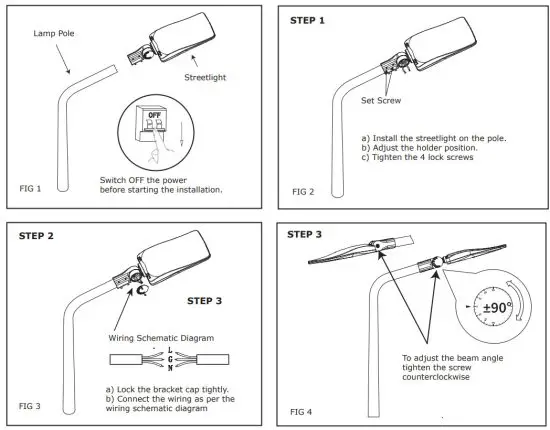

INSTALLATION INSTRUCTION
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
