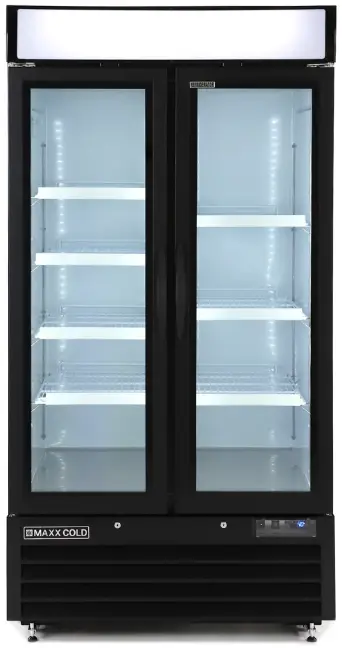

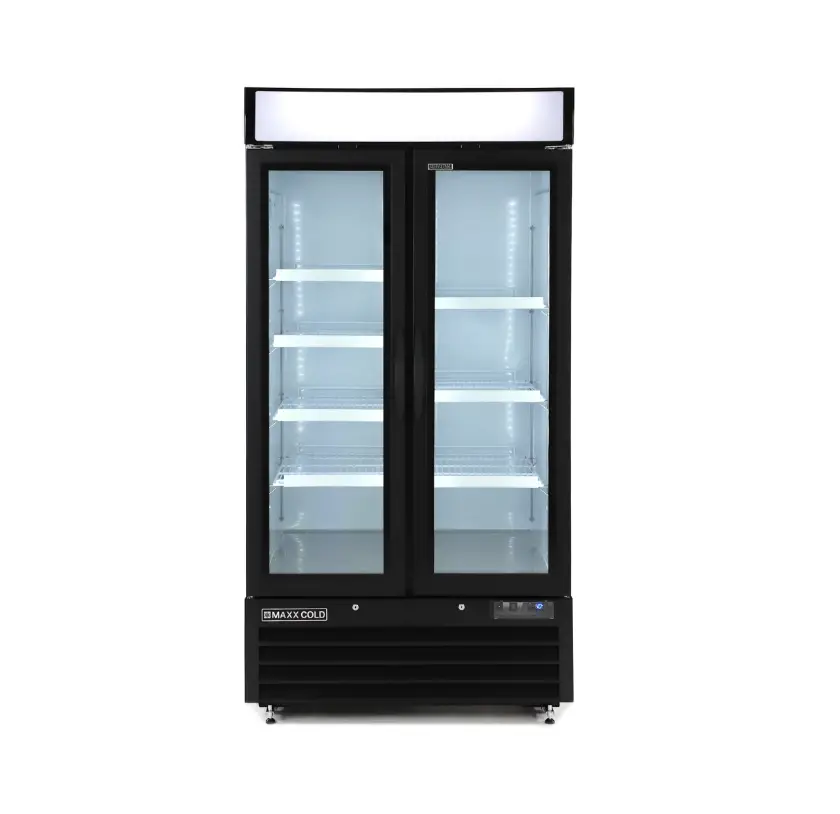

MAXX COLD MXM2-36RHC Glass Door Refrigerators Owner’s Manual
Introduction
Maxx Cold Narrow Width, Double Glass Door Merchandisers are ideal for compact environments offering an attractive display for last minute purchases or storage depending on the foodservice, beverage and retail application.
The upright refrigerated cabinets are available in two door, self-closing swing doors or sliding doors.
Smooth, powdered coated steel exterior is available in either white or black with an illuminated top to personalize your advertising message.
Refrigerated Merchandiser units are supplied with four (4) adjustable shelves per door, lock and key set and interior LED lighting to display merchandiser contents.
Electronic thermostat and digital LED temperature display regulate accurate temperature, prolonging and preserving shelf life of products.
Not only are controls simple to use, operation is energy efficient with CFC refrigerant and foam insulation.

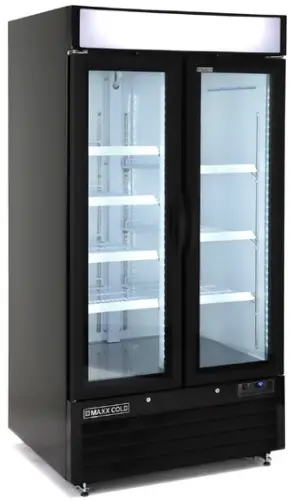

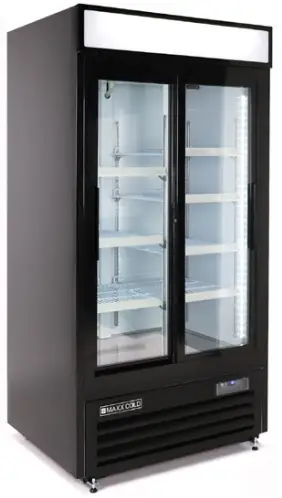

Models

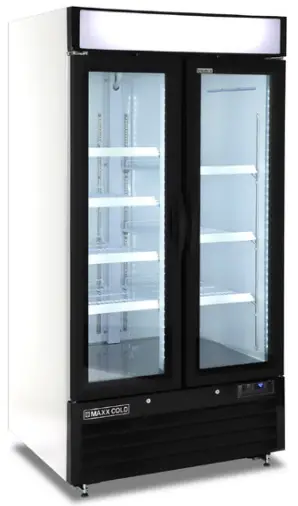

- MXM2-36RHC
- MXM2-36RBHC

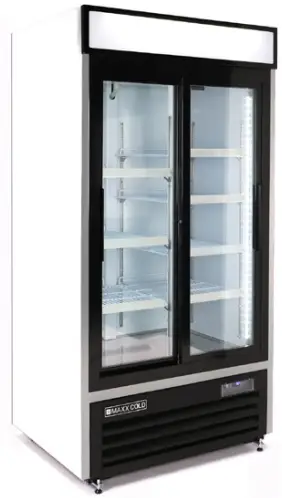

- MXM2-36RSHC
- MXM2-36RSBHC
ELECTRIC
- 115V / 60Hz / 1Ph
6’ (2m) power cord set included

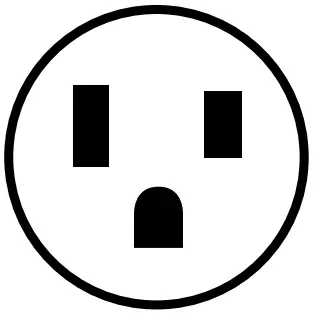

NEMA 5-15P
FEATURES AND CONSTRUCTION
- Smooth, powder coated steel exterior available in either white or black
- Low-e double pane glass doors
- Four (4) adjustable heavy-duty PE-coated wire shelves per door, include pricing strips
- Electronic thermostat and digital LED temperature display
- HC refrigerant R290
- CFC refrigerant and foam insulation
- Self-closing swing doors or sliding doors available, both are provided with lock and key set for security
- Automatic defrost system, equipped with integrated condensate pan therefore no drain line connection is needed
- Interior LED lighting
- Designed with an illuminated plastic merchandising top panel
NOMINAL STORAGE CAPACITY
- MXM2-36RHC/36RBHC: 36 Cu Ft (1019 L)
- MXM2-36RSHC/36RSBHC: 36 Cu Ft (1019 L)
TEMPERATURE
- Holding temperature: 33°F to 41°F (1°C to 5°C)
- Oversized refrigeration system delivers optimum storage temperature and rapid temperature recovery

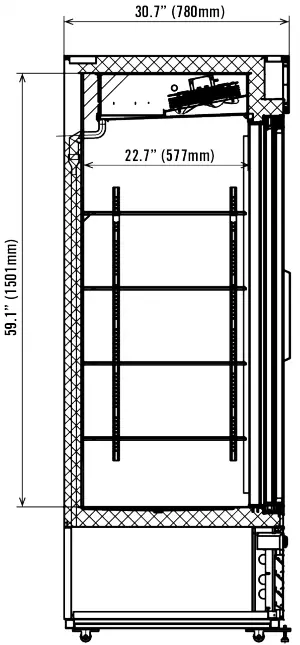

Dimensions
MXM2-36RHC/36RBHC

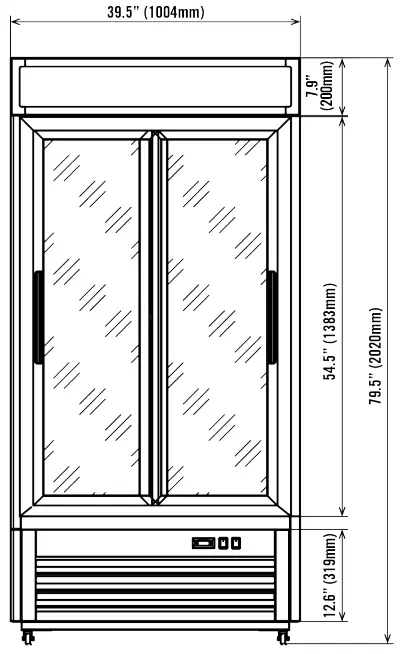

- FRONT VIEW
- SIDE VIEW

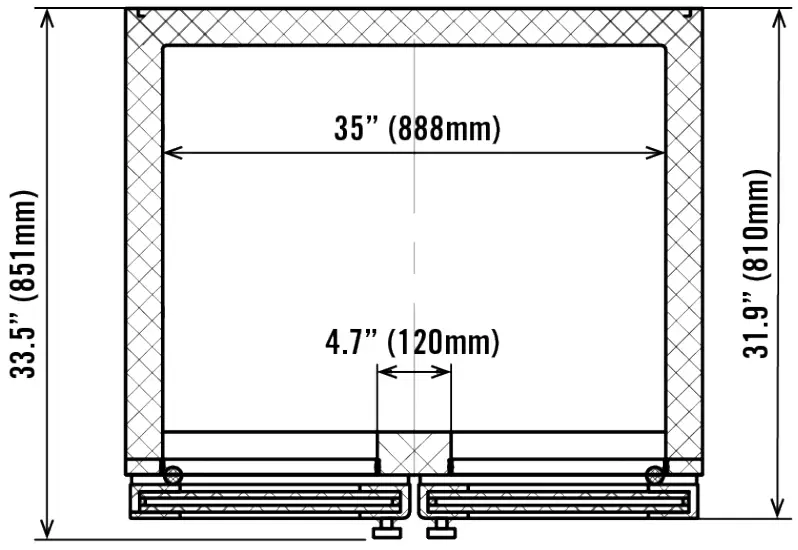

- TOP VIEW

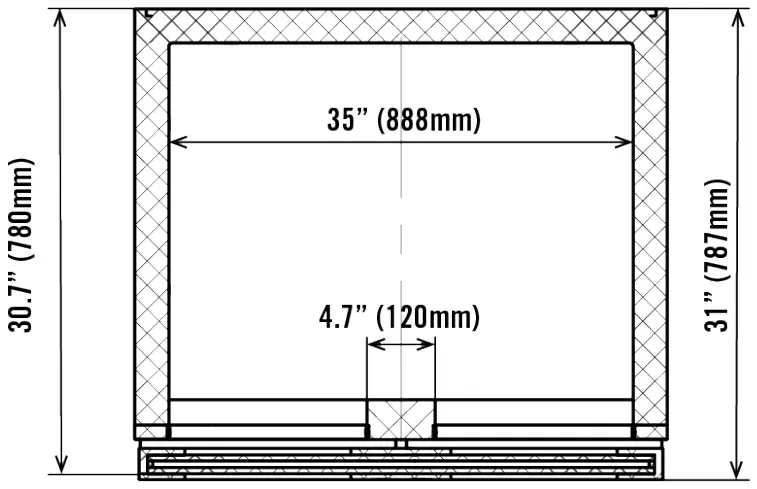

MXM2-36RSHC/36SRBHC
| MODEL | EXTERNAL DIMENSIONS | INTERNAL DIMENSIONS | NOMINAL CAPACITY | HOLDING TEMPERATURE RANGE | AMP DRAW | SHIPPING WEIGHT | REFRIGERANT AND CHARGE SIZE | DOORS | ELECTRICAL |
| MXM2-36RHC | 39.5” x 33.5” x 79.5” (1119 x 851 x 2019 mm) | 35” x 27.6” x 52.4” (889 x 701 x 1331 mm) | 36 Cu Ft (1019 L) | 33°F to 41°F (1°C to 5°C) | 4.5A | 430 lbs (196 kg) | R-290A 3.07 oz (105 g) | 2 Swing | 115V / 60Hz / 1Ph |
| MXM2-36RBHC | 39.5” x 33.5” x 79.5” (1119 x 851 x 2019 mm) | 35” x 27.6” x 52.4” (889 x 701 x 1331 mm) | 36 Cu Ft (1019 L) | 33°F to 41°F (1°C to 5°C) | 4.5A | 430 lbs (196 kg) | R-290A 3.07 oz (105 g) | 2 Swing | 115V / 60Hz / 1Ph |
| MXM2-36RSHC | 39.5” x 31” x 79.5” (1119 x 787 x 2019 mm) | 35” x 22.7” x 52.4” (889 x 577 x 1331 mm) | 36 Cu Ft (1019 L) | 33°F to 41°F (1°C to 5°C) | 4.5A | 430 lbs (196 kg) | R-290A 3.07 oz (105 g) | 2 Sliding | 115V / 60Hz / 1Ph |
| MXM2-36RSBHC | 39.5” x 31” x 79.5” (1119 x 787 x 2019 mm) | 35” x 22.7” x 52.4” (889 x 577 x 1331 mm) | 36 Cu Ft (1019 L) | 33°F to 41°F (1°C to 5°C) | 4.5A | 430 lbs (196 kg) | R-290A 3.07 oz (105 g) | 2 Sliding | 115V / 60Hz / 1Ph |
INSTALLATION
- Units are equipped with roller wheels and leveling feet.
- Door Handles are removable if unit is needed to fit through a 32” width door frame
3RD PARTY APPROVALS
 |  |  |
| Certified to ANSI NSF 7 | Certified to ANSI UL 471 | Zero Ozone Depletion Potential |
MAXX COLD WARRANTY (USA / CANADA)
Contact Maxx Cold for warranty statement at:
[email protected] or 877.368.2797
