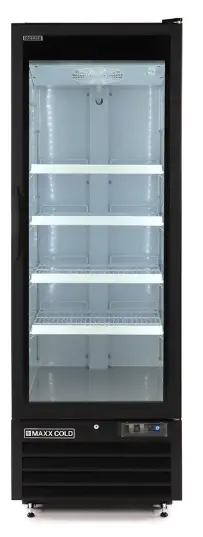

MAXX COLD MXM1-23FHC-ICE 27 Inch Glass Door Ice Merchandiser Freezer
Maxx Cold Glass Door Ice Merchandisers are engineered to store and hold up to (54) 8-lb bags of ice at one time for a single door unit and up to (117) 8-lb bags of ice for a double door unit. The full length, triple pane glass doors prevent condensation as well as display and regulate the merchandise at the right temperature. Interior and exterior is constructed of white powder coated steel and is supplied with an illuminated plastic merchandising top panel. The self-closing doors are provided with a lock and key set. Electronic thermostat and digital LED temperature display provides accurate and easy reading; temperatures range from 0° to 10° Fahrenheit to ensure ice stays frozen and does not stick together. The automatic defrost system ensures the indoor ice merchandiser operates properly.
FEAFEATURES AND CONSTRUCTIONTURES AND CONSTRUCTION
- Constructed of a white powder coated steel exterior and interior
- Low-e triple pane glass doors
- Bottom mounted compressor
- One (1) heavy-duty PE-coated floor support with customer facing bag retainer per section
- Four (4) rollers (2 with leveling feet)
- Electronic thermostat and digital LED temperature display provides accurate and easy reading
- Self-closing doors are provided with lock and key set for security
- Magnetic gasket can be replaced without tools
- CFC free refrigerant and foam
- Automatic defrost system, equipped with integrated condensate pan therefore no drain line connection is needed
- Designed with an illuminated plastic merchandising top panel
MAXX COLD WMAXX COLD WARRANTY (USA / CANADA)ARRANTY (USA / CANADA)
Contact Maxx Cold for warranty statement at [email protected] or 877.368.2797
The Legacy Companies
- 3355 Enterprise Avenue, Suite 160
- Fort Lauderdale, FL 33331 Sales: 954.202.7419
- [email protected]
- www.Maxx-Cold.com
NOMINAL STORAGE CAPACITY
MXM1-23FHC-ICE……………………… 23 Cu Ft (651 L)
MXM2-48FHC-ICE……………………… 48 Cu Ft (1359 L)
TEMPERATURE
Holding temperature………………….. 0°F to 10°F (-18°C to -12°C)
• Oversized refrigeration system delivers optimum storage temperature and rapid temperature recovery

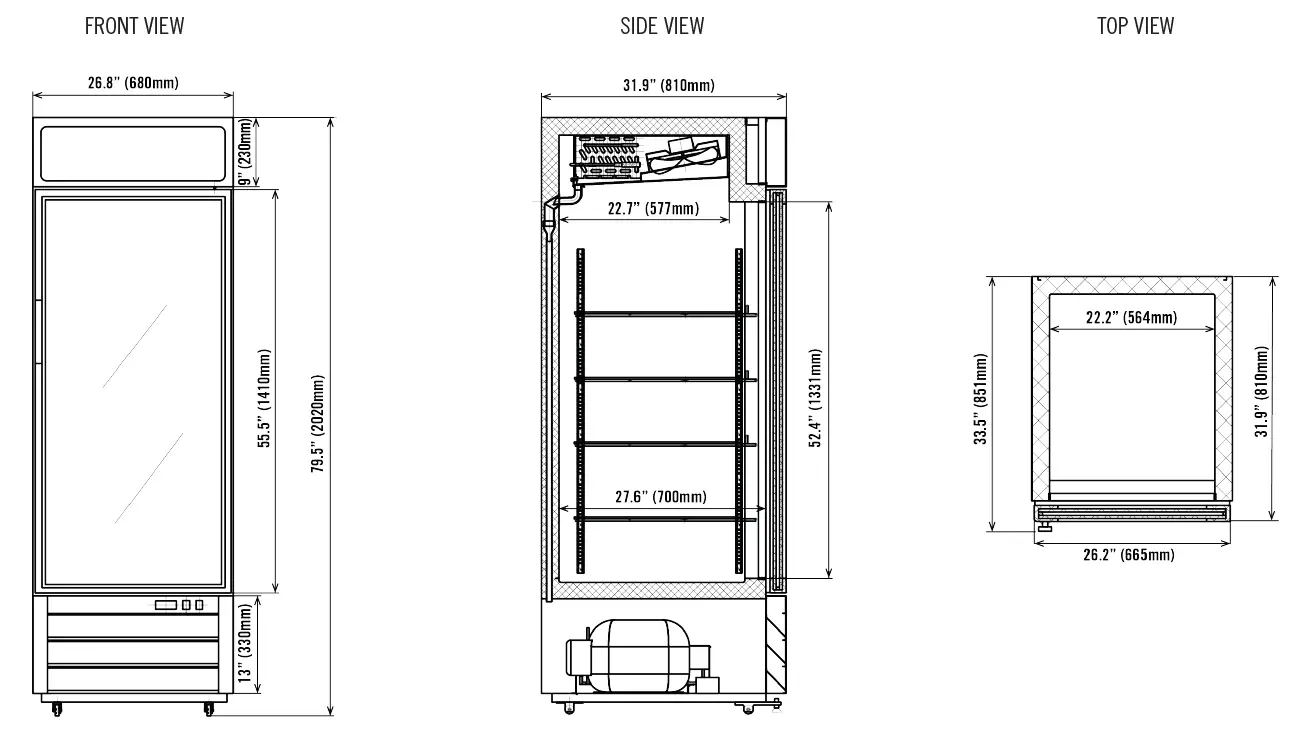

| MODEL | EXTERNAL DIMENSIONS | INTERNAL DIMENSIONS | NOMINAL CAPACITY | HOLDING TEMPERATURE RANGE | AMP DRAW | SHIPPING WEIGHT | REFRIGERANT AND CHARGE SIZE | DOORS | ELECTRICAL |
| MXM1-23FHC-ICE | 27” x 33.5” x 79.5” (686 x 851 x 2019 mm) | 22.2” x 27.6” x 52.4” (564 x 701 x 1331 mm) | 23 Cu Ft (651 L) | 0°F to 10°F (-18°C to -12°C) | 8.0A | 353 lbs (161 kg) | R-290A 3.88 oz (110 g) | 1 Swing | 115V / 60Hz / 1Ph |
| MXM2-48FHC-ICE | 54” x 33.5” x 79.5” (1372 x 851 x 2019 mm) | 49.4” x 27.6” x 52.4” (1255 x 701 x 1331 mm) | 48 Cu Ft (1359 L) | 0°F to 10°F (-18°C to -12°C) | 9.0A | 567 lbs (258 kg) | R-290A 5.29 oz (150 g) | 2 Swing | 115V / 60Hz / 1Ph |
INSTALLATIONINSTALLATION
- Units are equipped with roller wheels and leveling feet.
- Door Handles are removable if unit is needed to fit through a 32” width door frame.
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this document are subject to change without notice. While we exercise good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.
