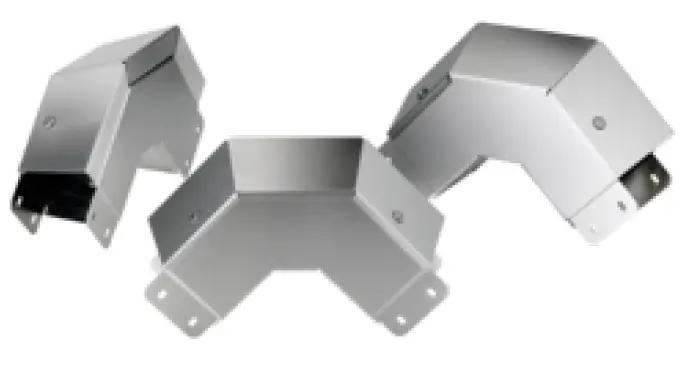

nVent Cleantray 90 Degree Elbow Outside Cover Sloped
FEATURES & BENEFITS
Clean Tray 90-Degree Elbows are used for right-angle installations The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
SPECIFICATIONS
- Color: Unpainted
- Finish: Brushed #3
| Table 1/1 | ||||||
| Catalog Number | Type | Height | Width | Protection Rating | Material | Thickness |
| CTS44EOC90SS | Elbow | 102 mm | 102 mm | NEMA Type 1 | Stainless Steel 304 | 1.27 mm |
| CTS46EOC90SS | Elbow | 102 mm | 152 mm | NEMA Type 1 | Stainless Steel 304 | 1.27 mm |
| CTS66EOC90SS | Elbow | 152 mm | 152 mm | NEMA Type 1 | Stainless Steel 304 | 1.27 mm |
