Trust Care 370772 Outdoor Rollator Owner's Manual

TRUST CARE 370772 Outdoor Rollator
Owner's Manual

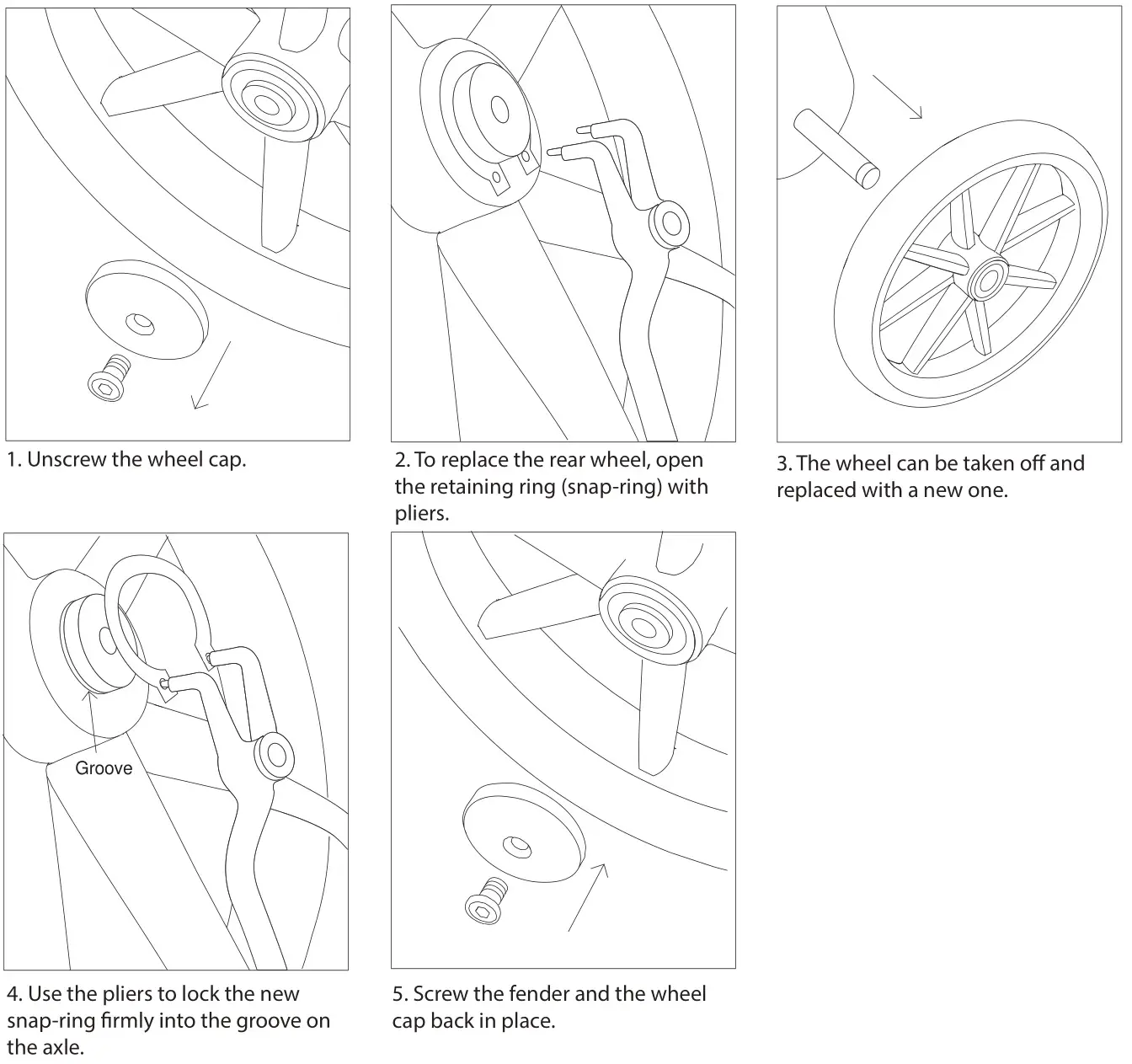

Exchange of front or rear wheel.

Let’s Shop Spare part. Art. No. LS317.
Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

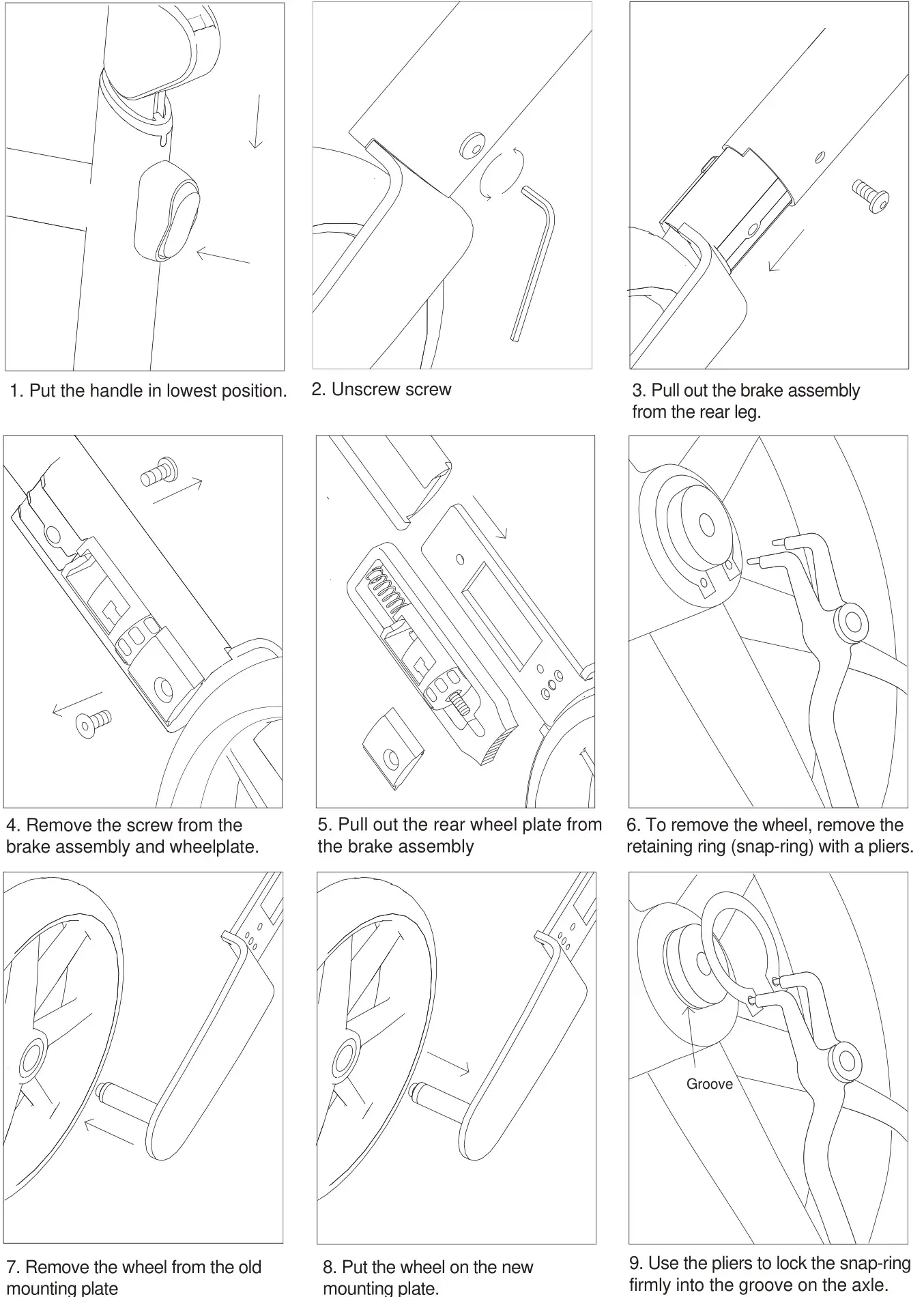

Page 1. Exchange of rear wheel mounting plate

Let’s Shop Spare part. Art. No. LS323
Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

Page 2. Exchange of rear wheel mounting plate

Let’s Shop Spare part. Art. No. LS323

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

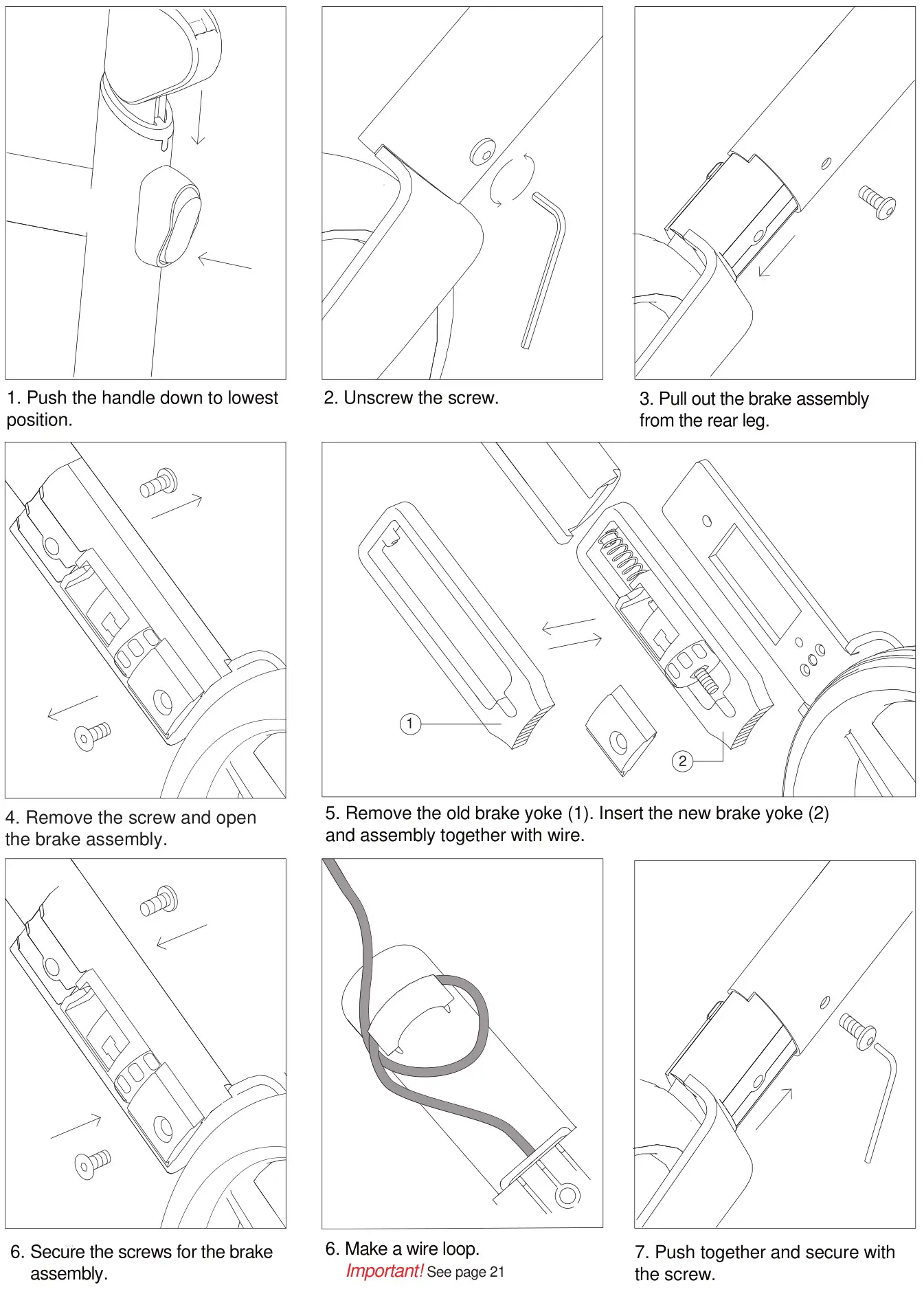

Exchange of brake yoke.

Let’s Shop Spare part. Art. No. LS328.
Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

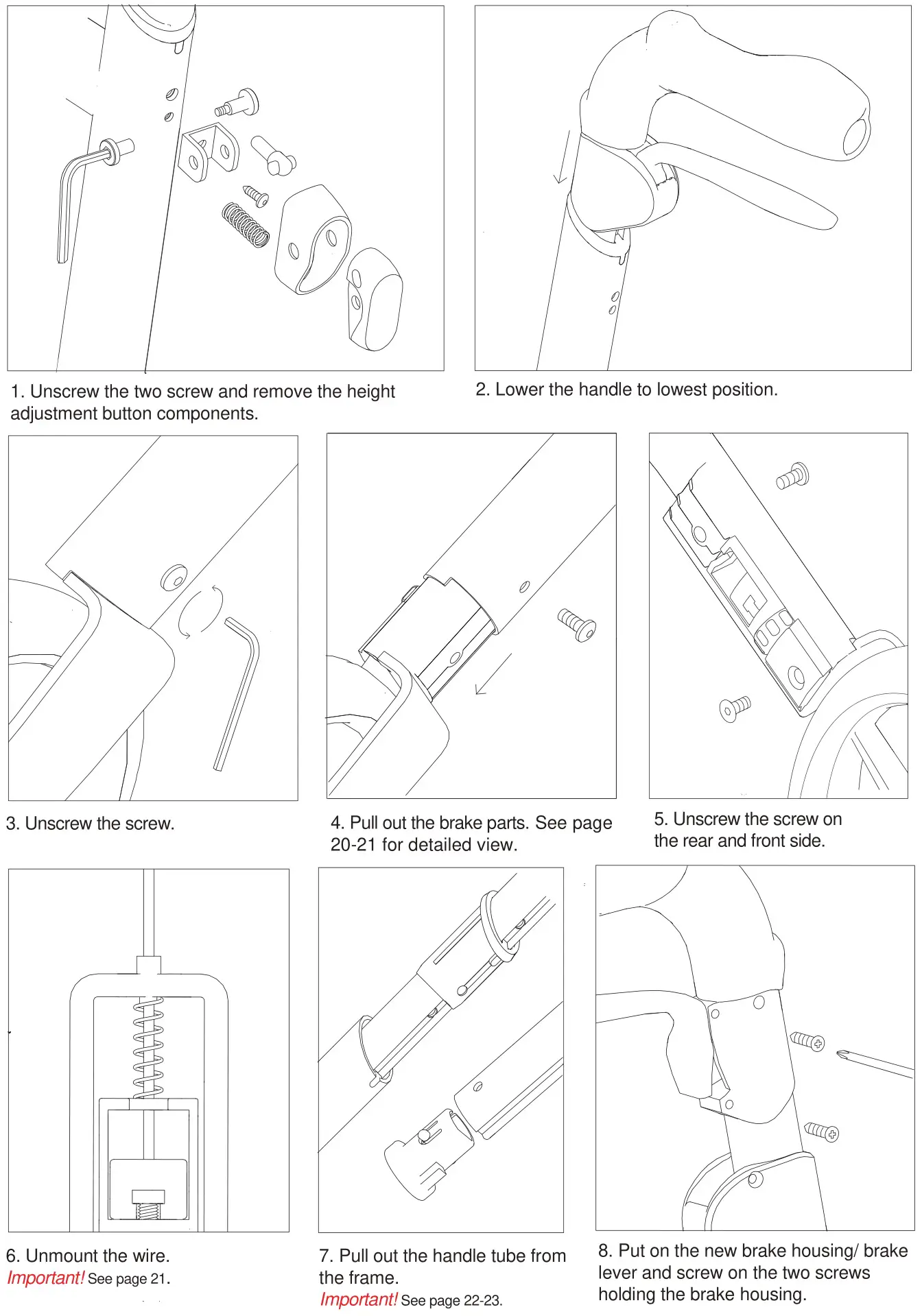

Page 1. Exchange of brake housing and brake lever.

Let’s Shop Spare part. Art. No. LS306

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

Page 2. Exchange of brake housing, brake lever.

Let’s Shop Spare part. Art. No. LS306.
Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

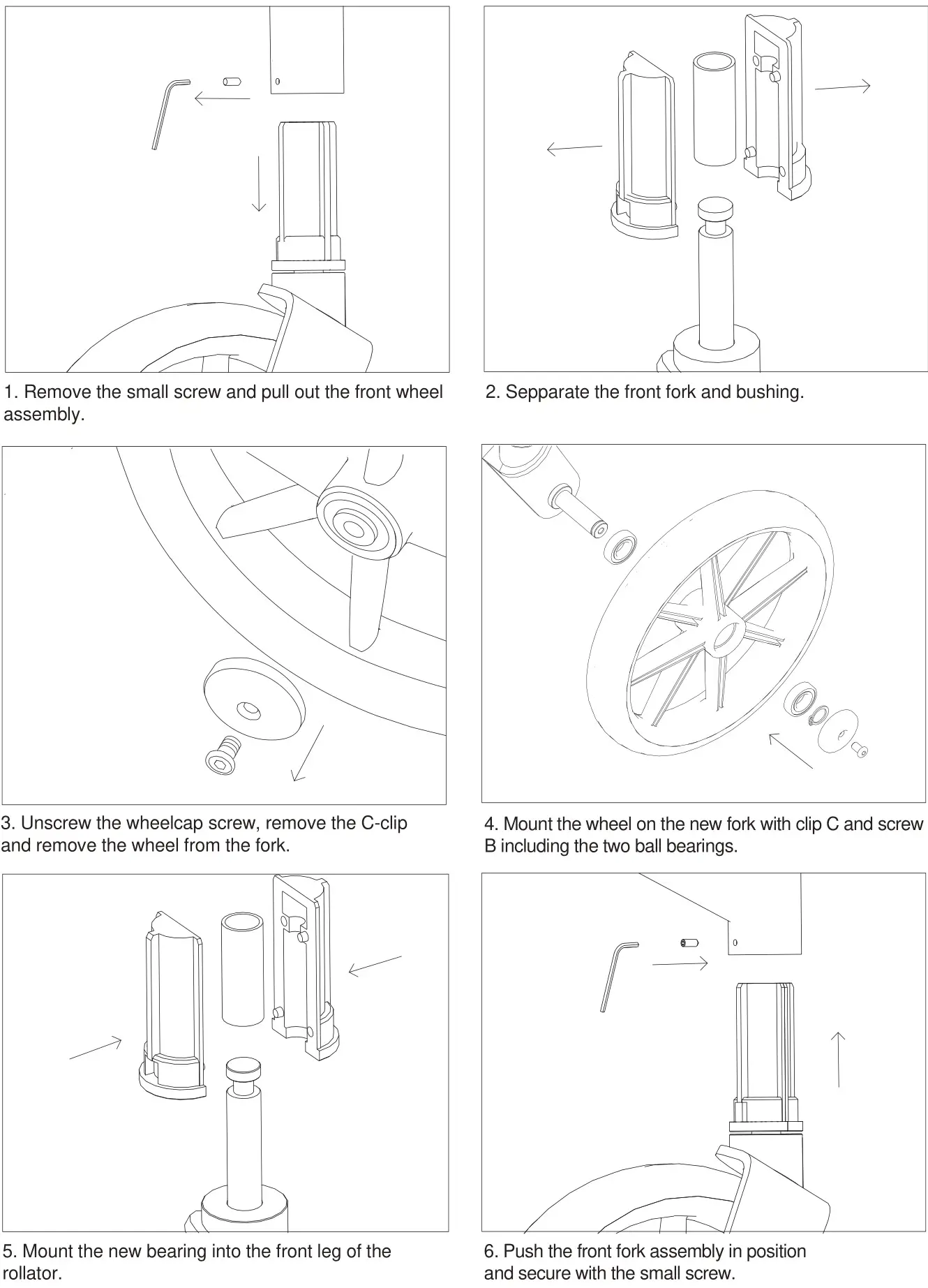

Exchange of front fork and bearings.

Let’s Shop Spare part. Art. No. LS318.

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

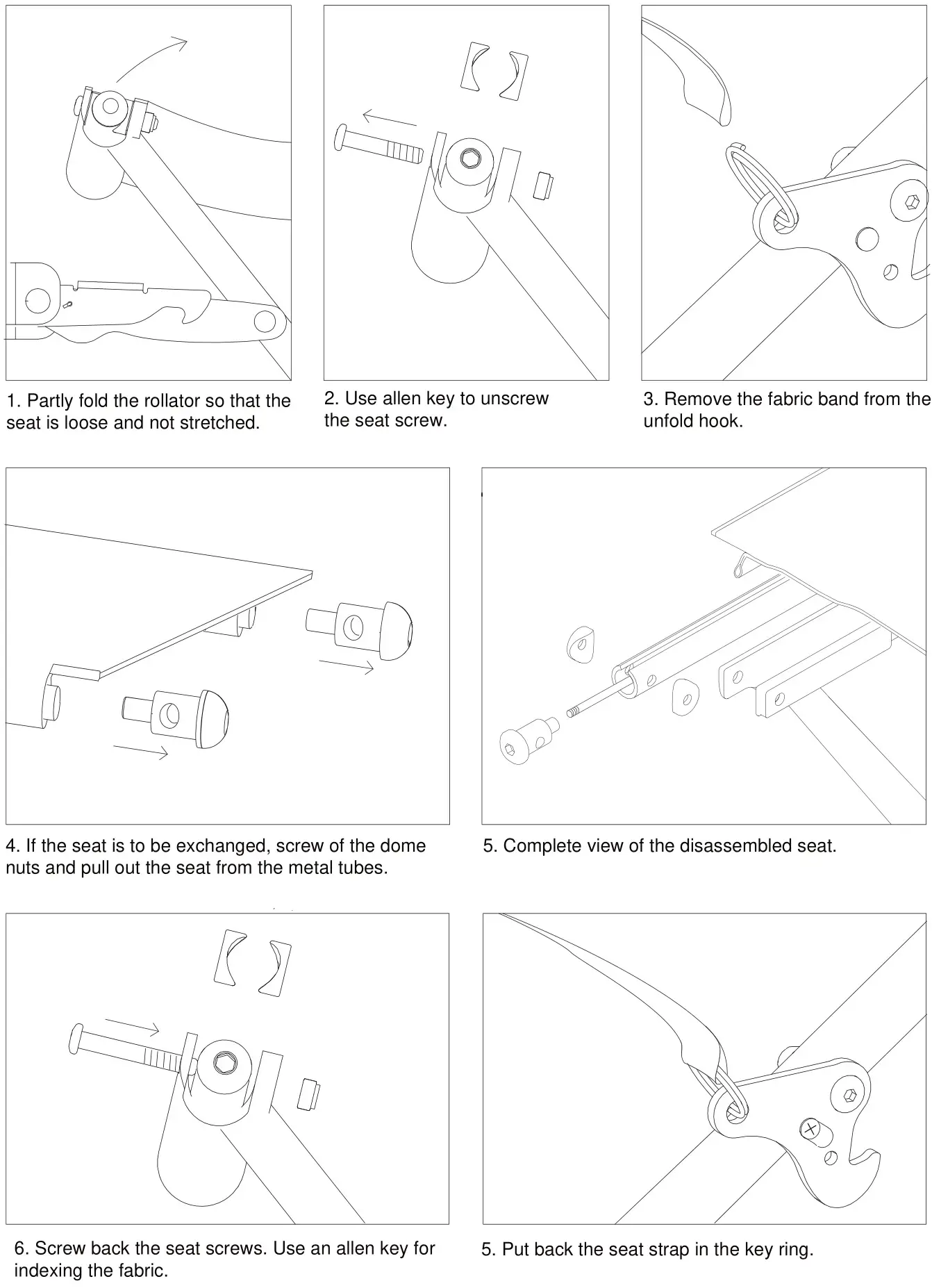

Exchange of seat and seat mounting set.

Let’s Shop Spare part. Art. No. LS310, LS324
Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

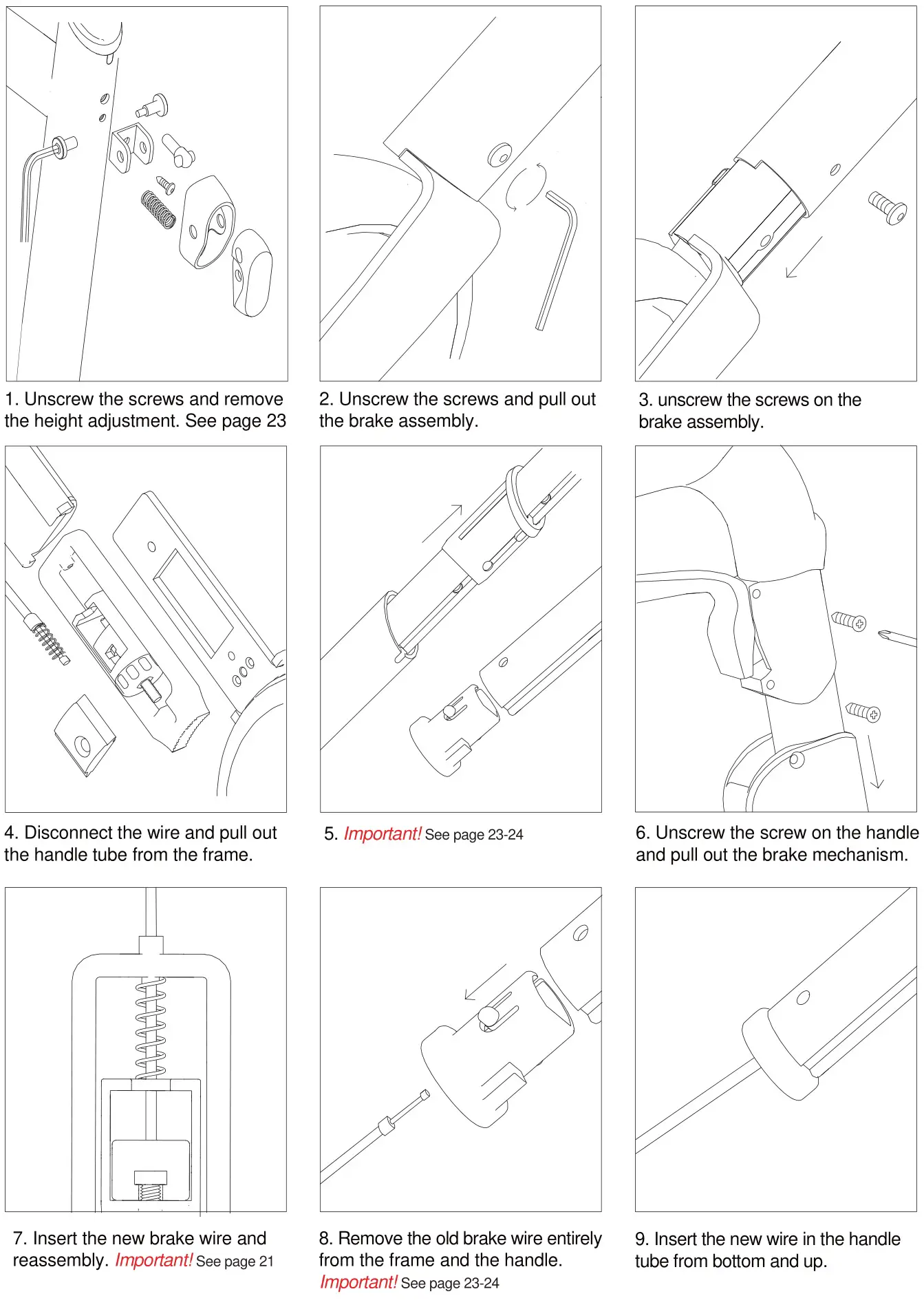

Page 1. Exchange of brake wire.

Let’s Shop Spare part. Art. No. LS305.

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

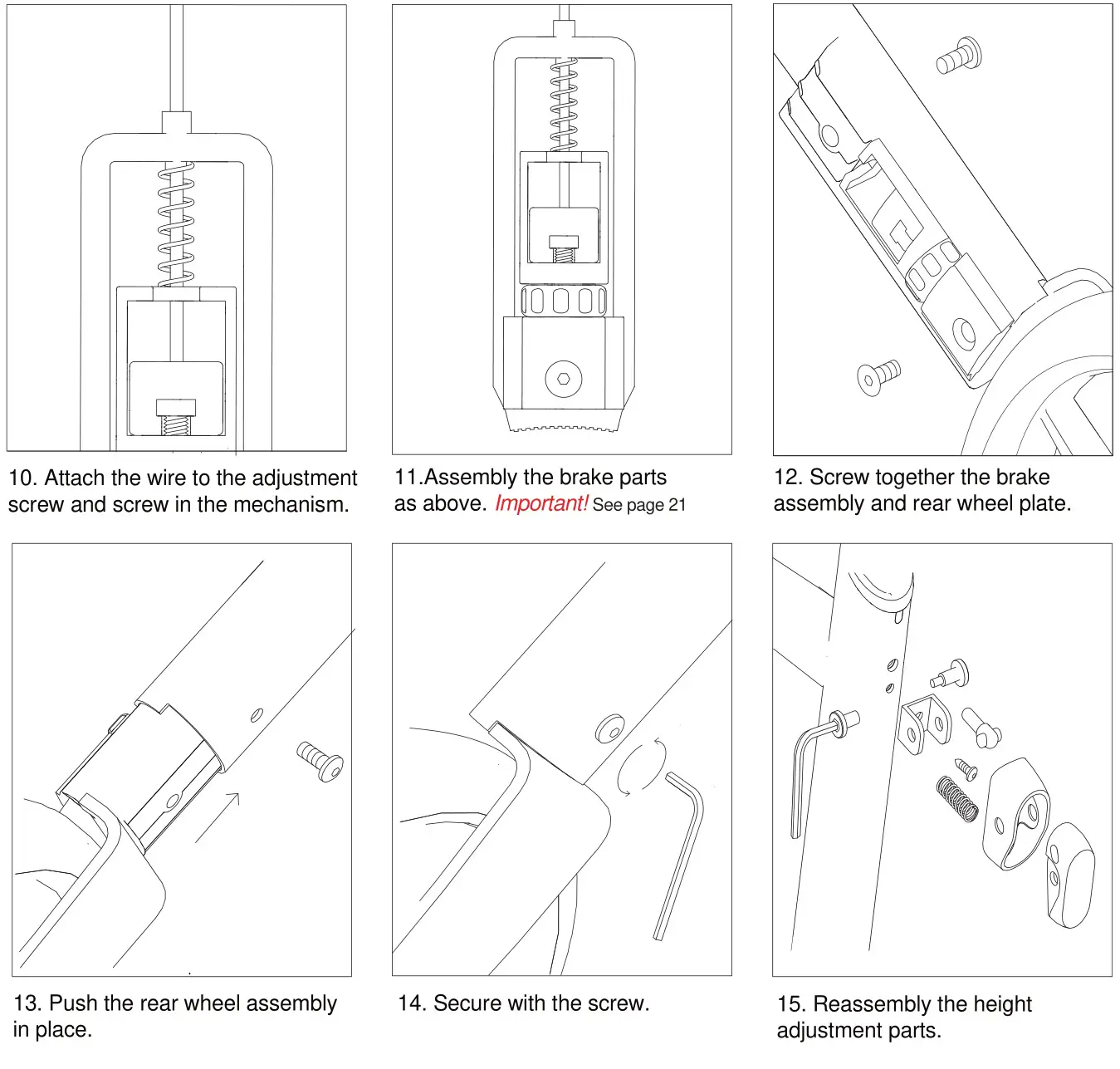

Page 2. Exchange of brake wire.

Let’s Shop Spare part. Art. No. LS305.

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

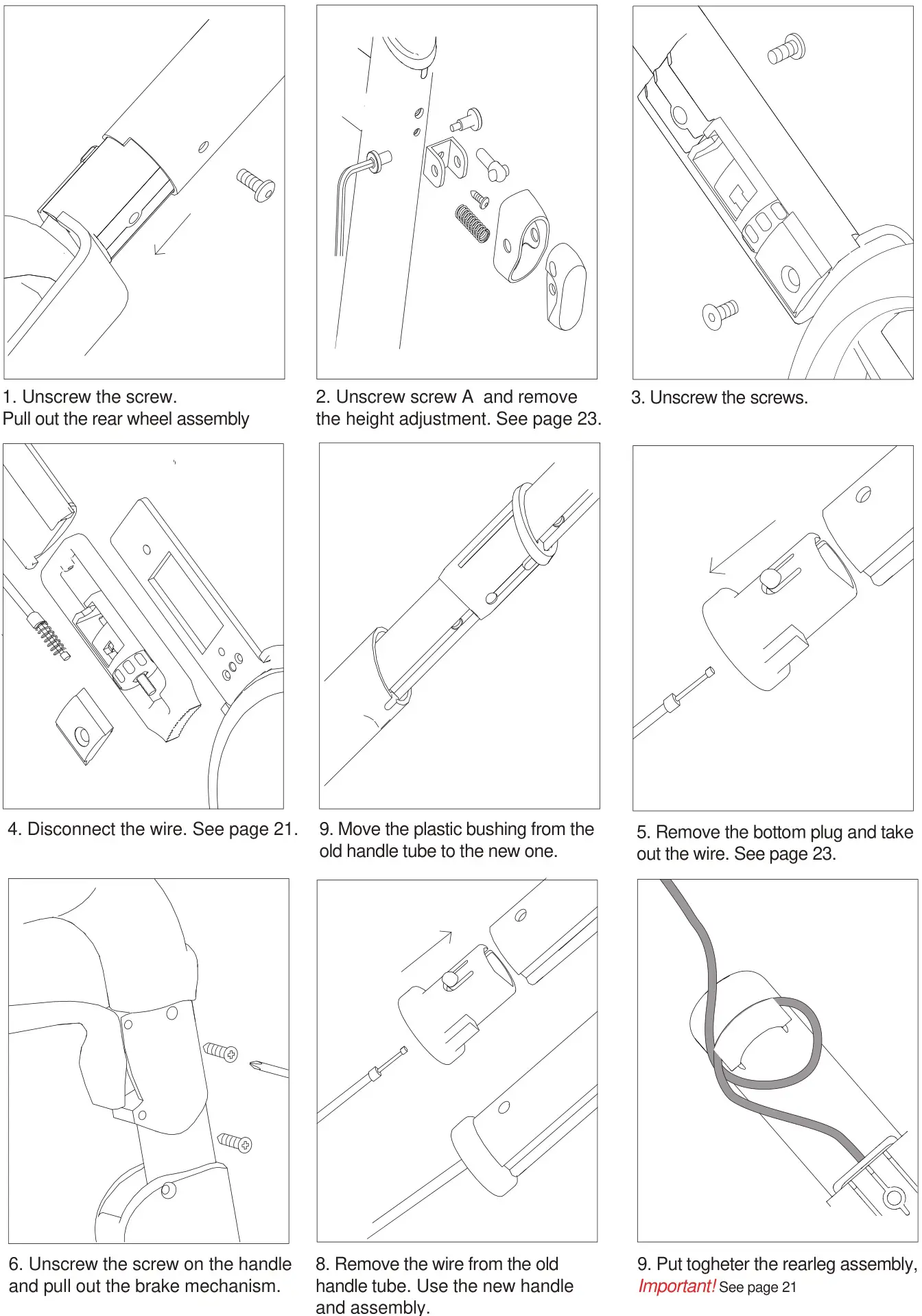

Page 1. Exchange of handle tube

Let’s Shop Spare part. Art. No. LS307, LS308.

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

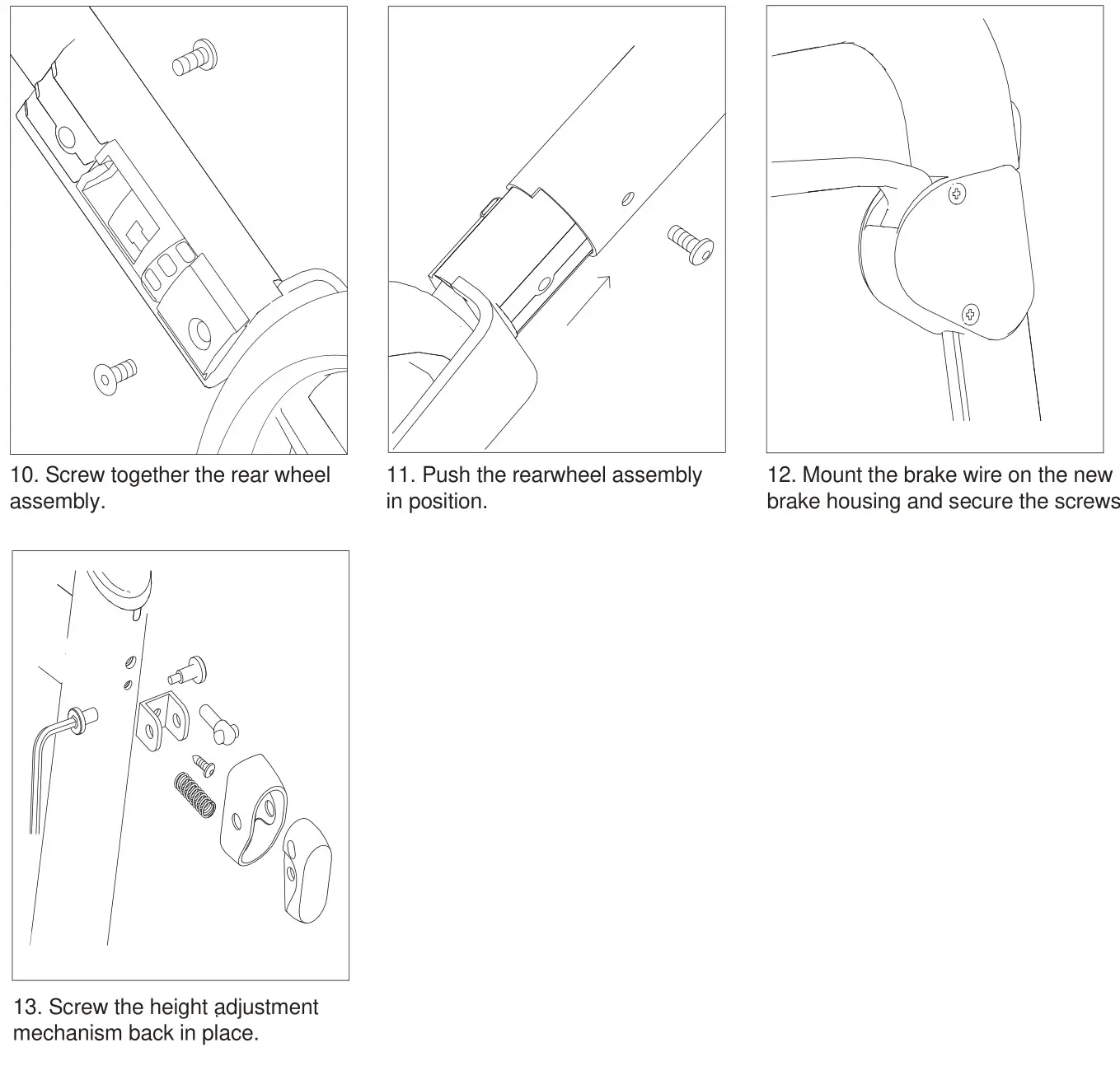

Page 2. Exchange of handle tube.

Let’s Shop Spare part. Art. No. LS307, LS308.

Let’s Shop Service Manual. Revision version No: 2 – Nov 2019

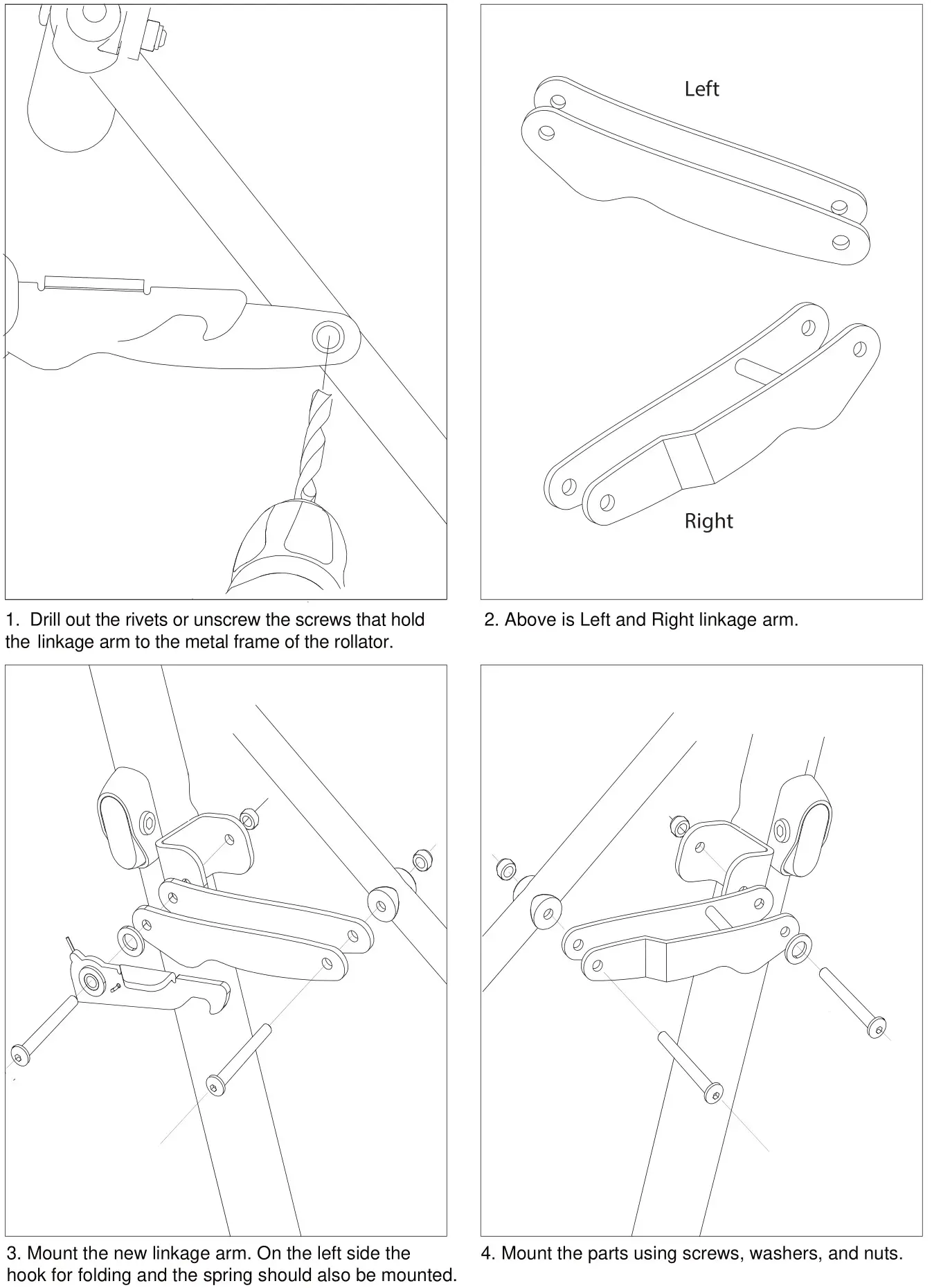

Mounting of linkage arm.

Let’s Shop Spare part. Left Art. No. LS312. Right Art. No. LS321.

Let’s Shop Service Manual. Revision version No: 2 – Nov 2019

Exchange of height adjustment button.

Let’s Shop Spare part. Art. No. LS319.

Let’s Shop Service Manual. Revision version No: 2 – Nov 2019

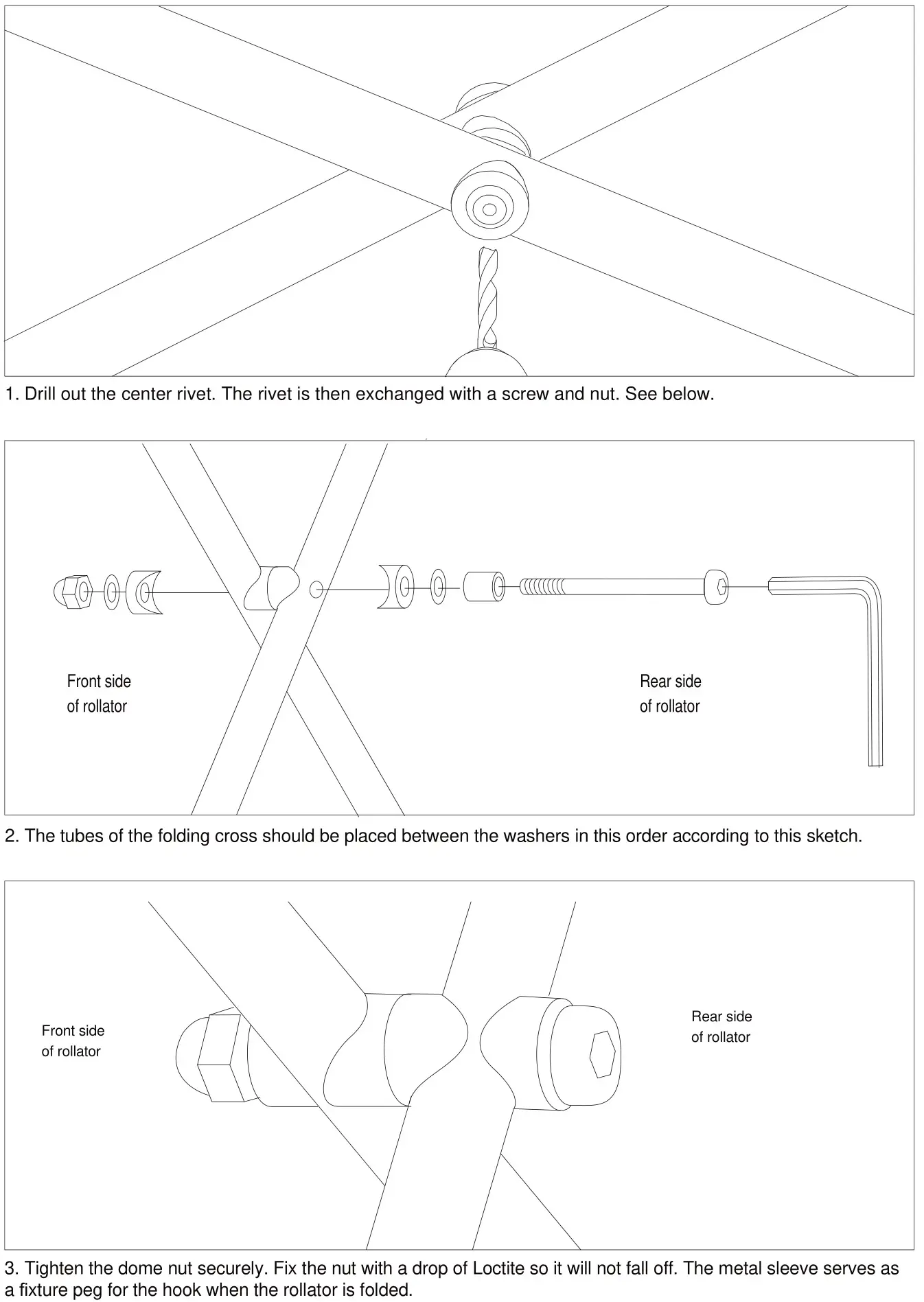

Mounting the middle joint of the folding cross.

Let’s Shop Spare part Art. No. LS326.

Let’s Shop Service Manual. Revision version No: 2 – Nov 2019

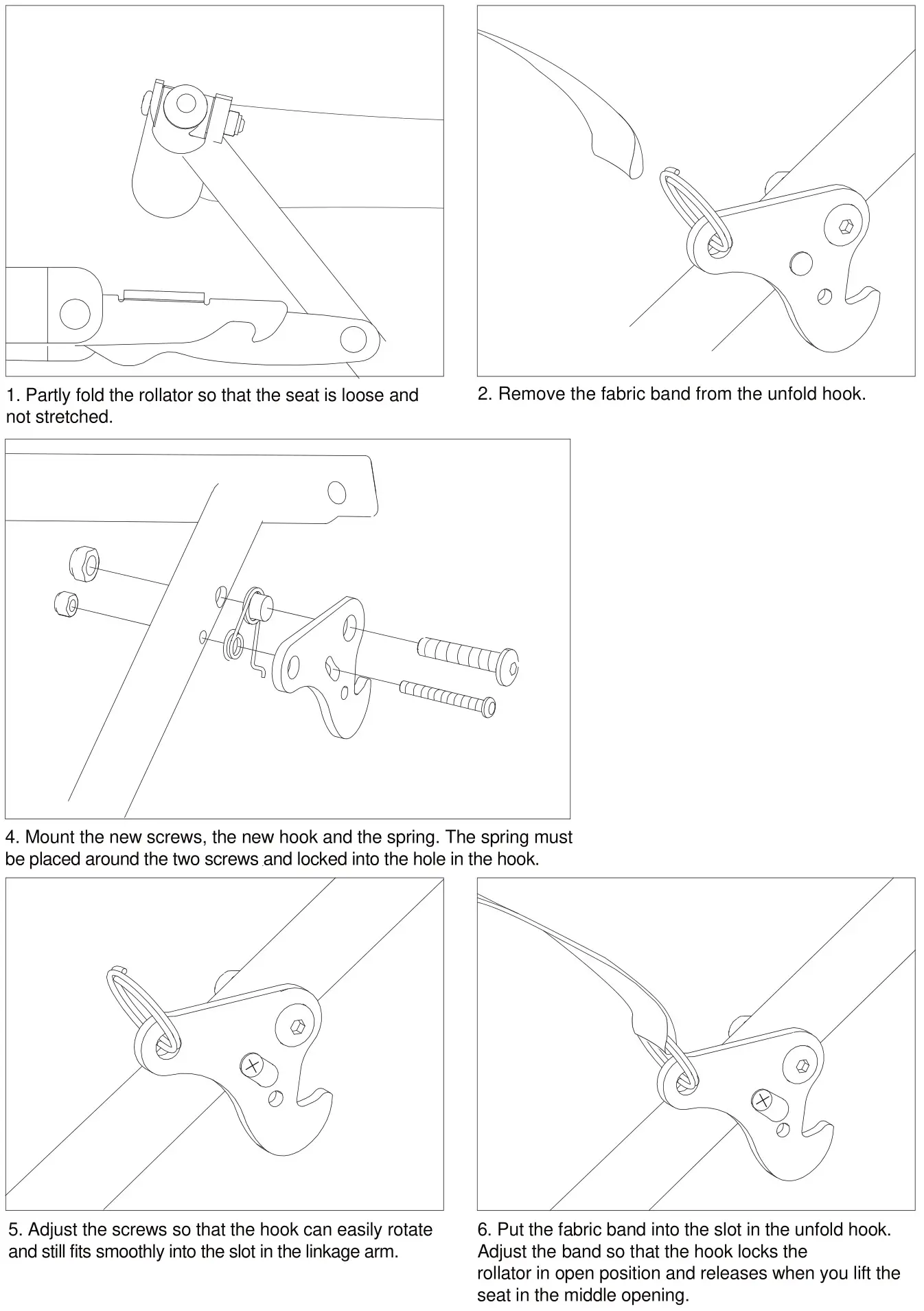

Exchange of the unfold hook.

Let’s Shop Spare part. Art. No. LS311.

Let’s Shop Service Manual. Revision version No: 2 – Nov 2019

Notes

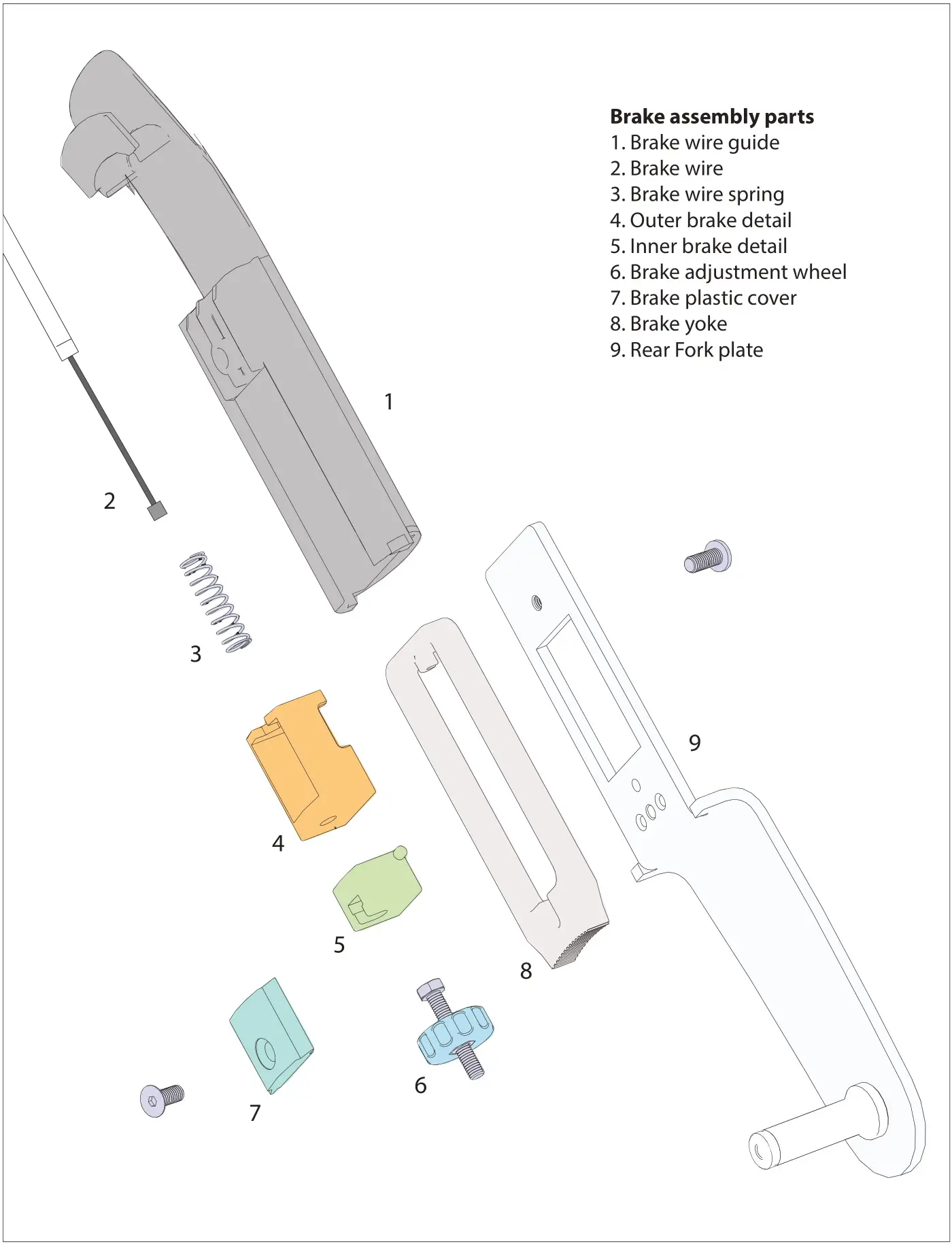

Exploded view of brake assembly

Disassembling the brake assembly

Let’s Shop Service Manual. Revision version No: 1 – Nov 2019

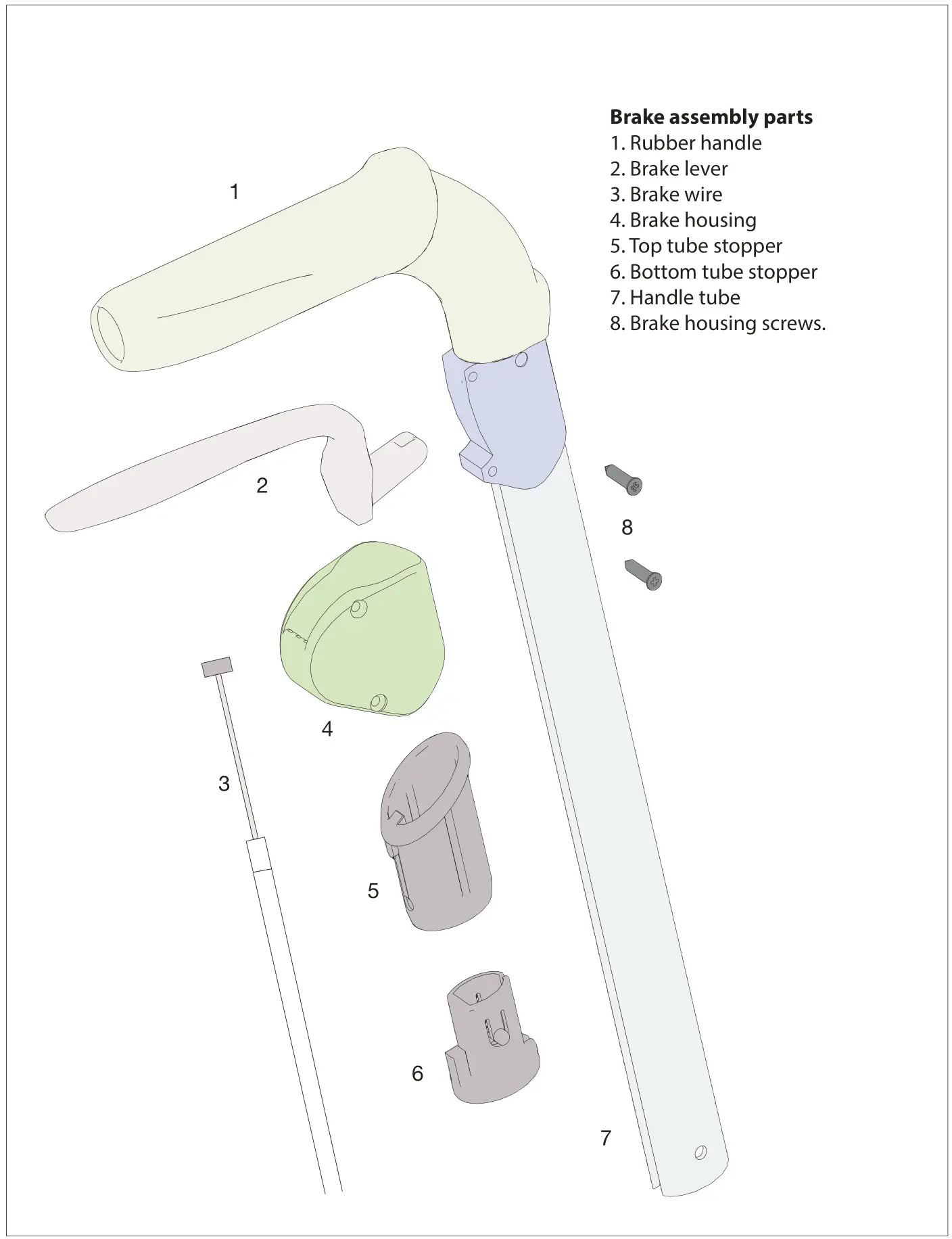

Exploded view of Handle assembly

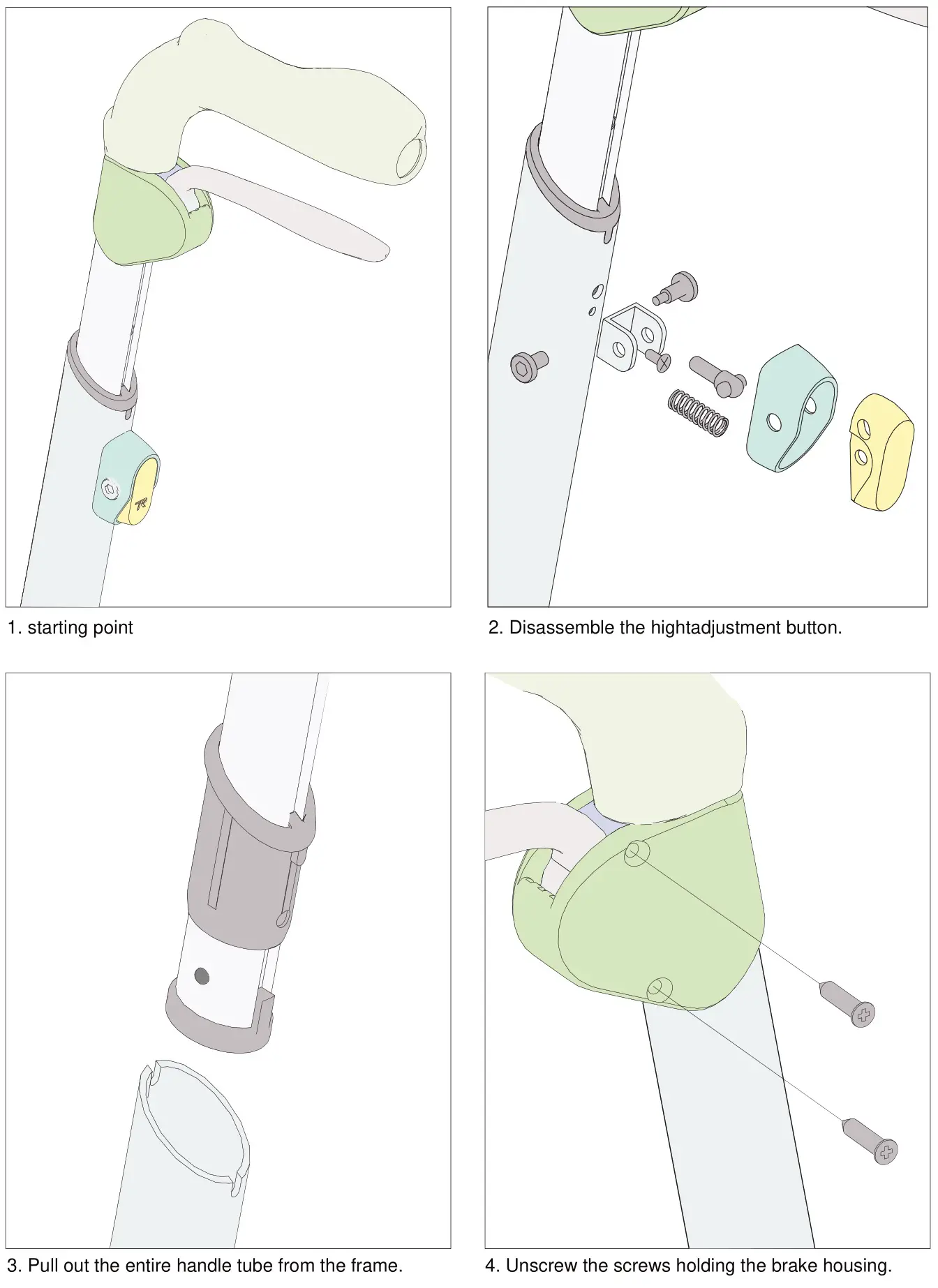

Page 1. Disassembling the handle assemble

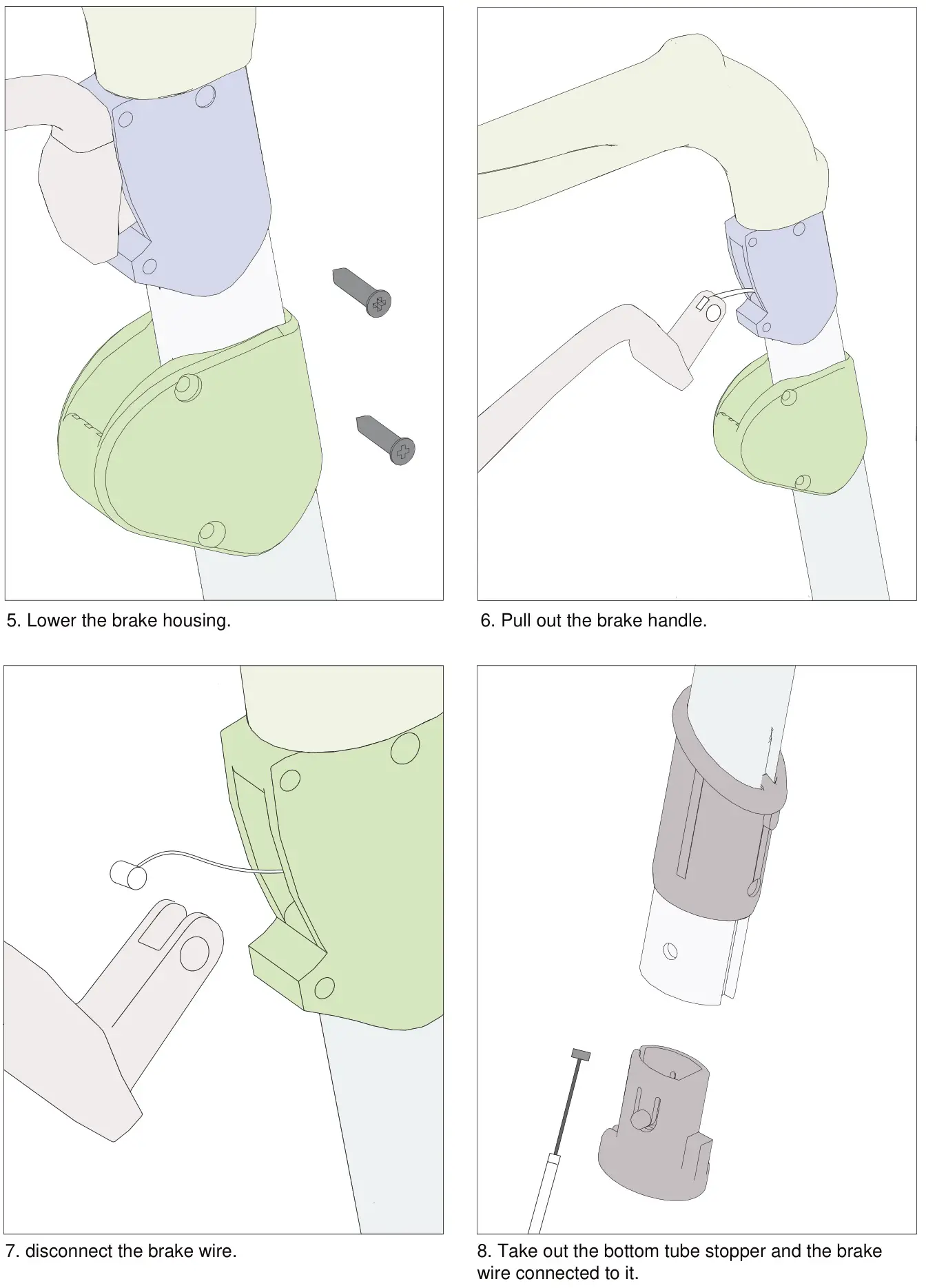

Page 2. Disassembling the handle assemble
