Mountain Top 122608072BE Evo Roll Cover

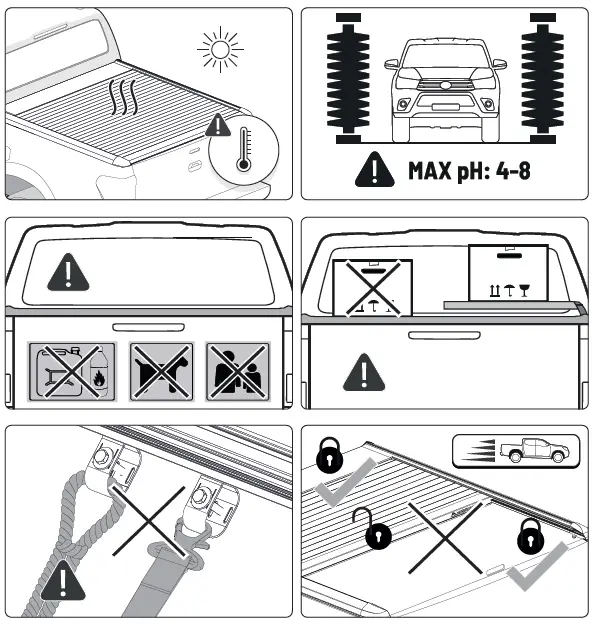

WARNINGS
- Temperatures can be very high under the cover when closed.
- We do not recommend washing the EVO roll cover in a brushless carwash, as the coating may be damaged due to use of chemicals.

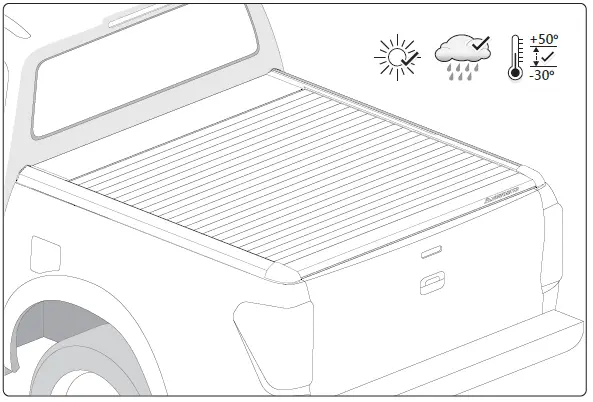

CONDITIONS OF USE
- The Mountain Top EVO roll cover design is lightweight and not suitable for extreme usage.
- Designed to withstand rainwater, some water ingress may occur.
- Dust can enter the compartment through various gaps.
- Profiles that relatively quickly heat up and cool down according to weather conditions can cause condensation on the inside.
- The EVO roll cover is not designed for loading although it can support normal snow loads.
- Goods in the bed must be secured during transportation to prevent damage.

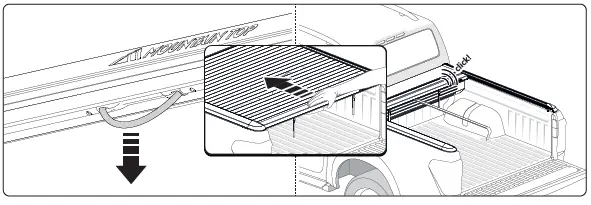

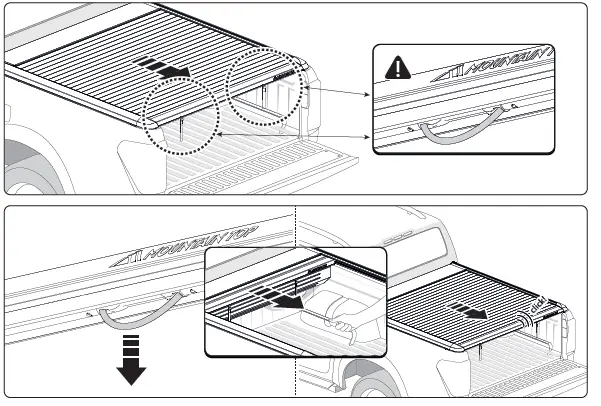

OPERATION EVOm
- Close
- Open
- When the EVOm roll cover is fully opened, a lock activator is automatically triggered, engaging the locking system.
- For the EVOm roll cover to close correctly, the locking system must be engaged before the cover is closed.
MAINTENANCE

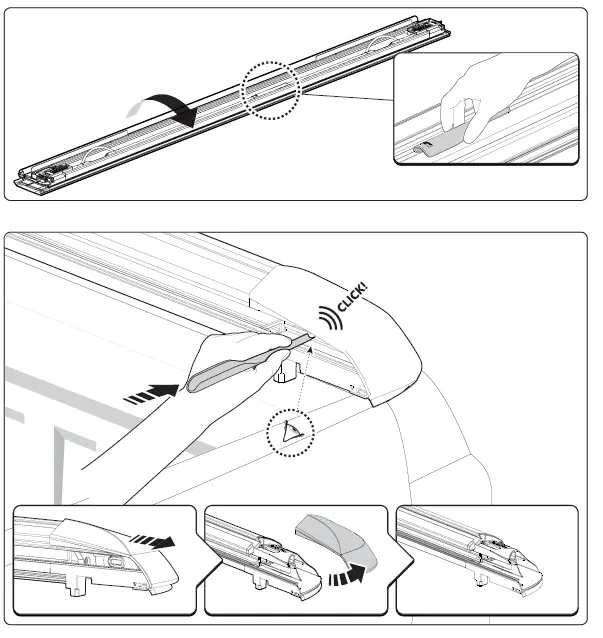

- Use the multi tool to remove the plastic covers on the side profiles.

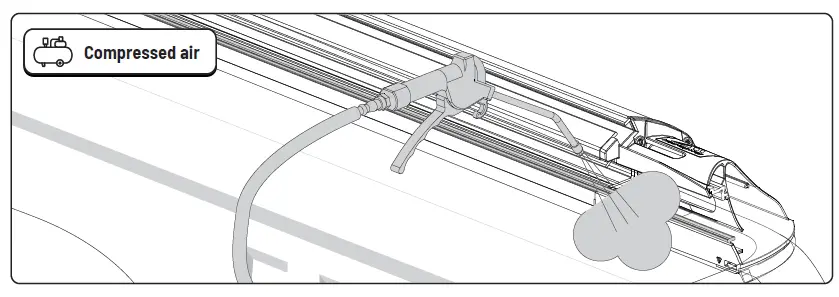

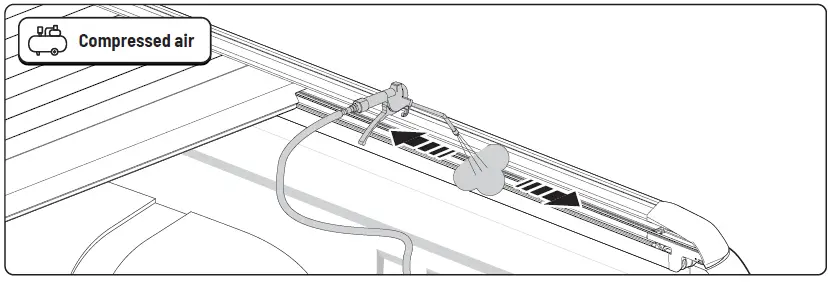

- Remove dirt and debris using compressed air.

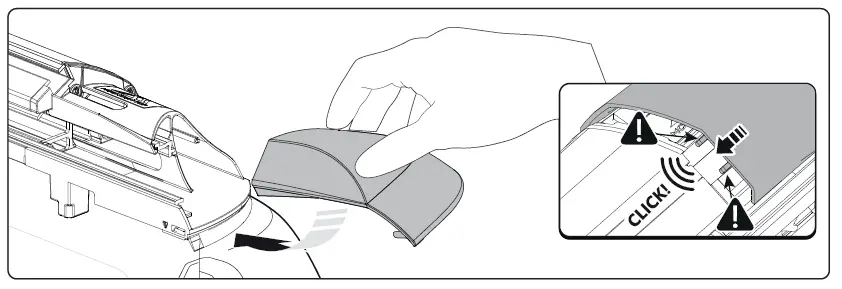

- Mount plastic covers.

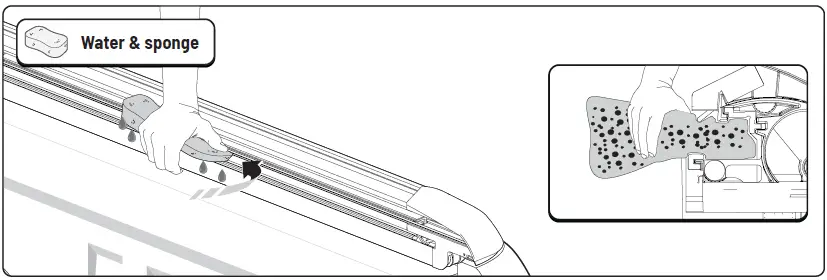

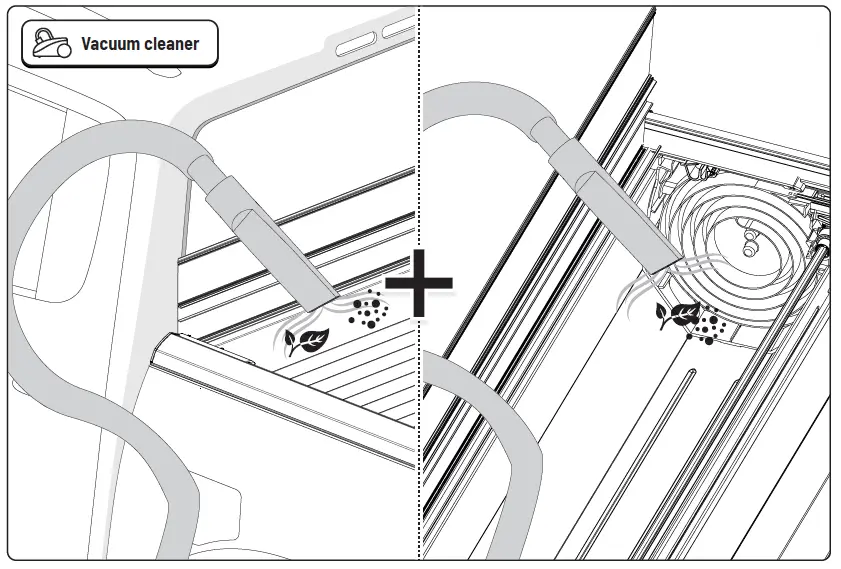

- Clean the side profiles.
- Open the canister.
- Clean the canister.

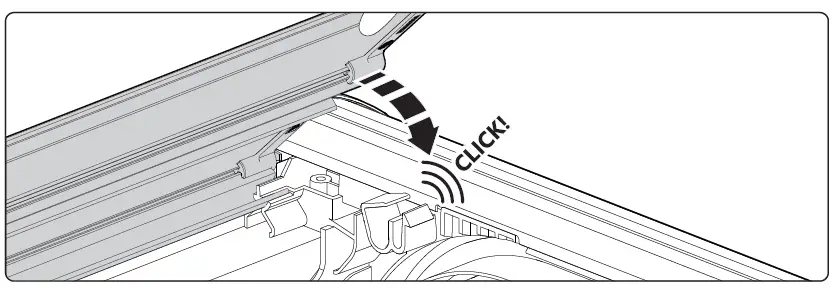

- Close the canister.
- Clean the drainage channels on the side profiles.
- The EVO roll cover should be cleaned regularly.

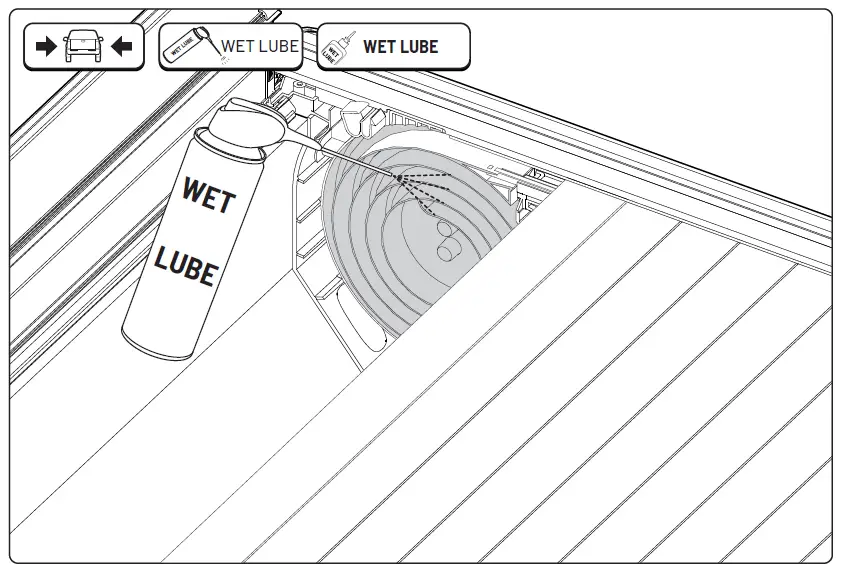

- Regularly, and following cleaning, apply a PTFE-free all-conditions wet lube product to the inside of the canister ends.

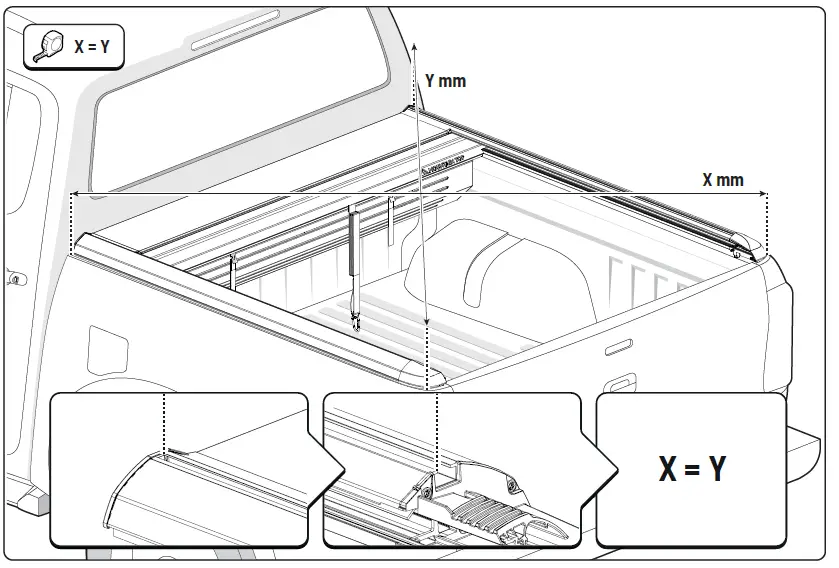

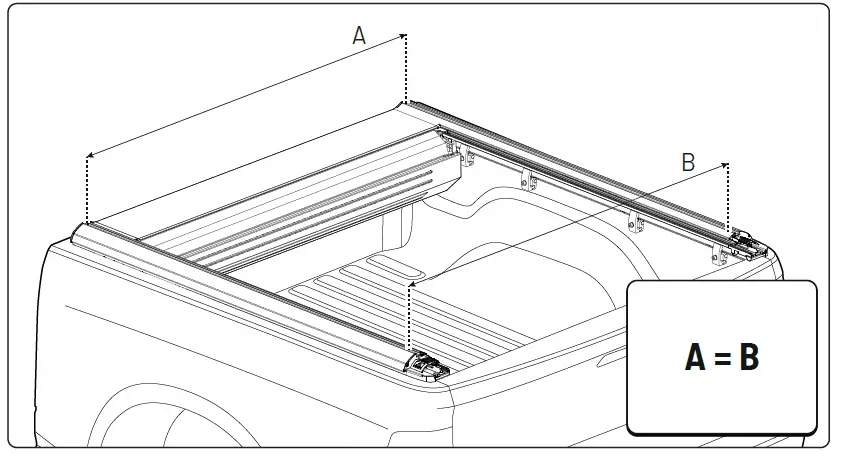

CHECK MEASUREMENTS MAINTENANCE
- Ensure the cross measurements are identical.

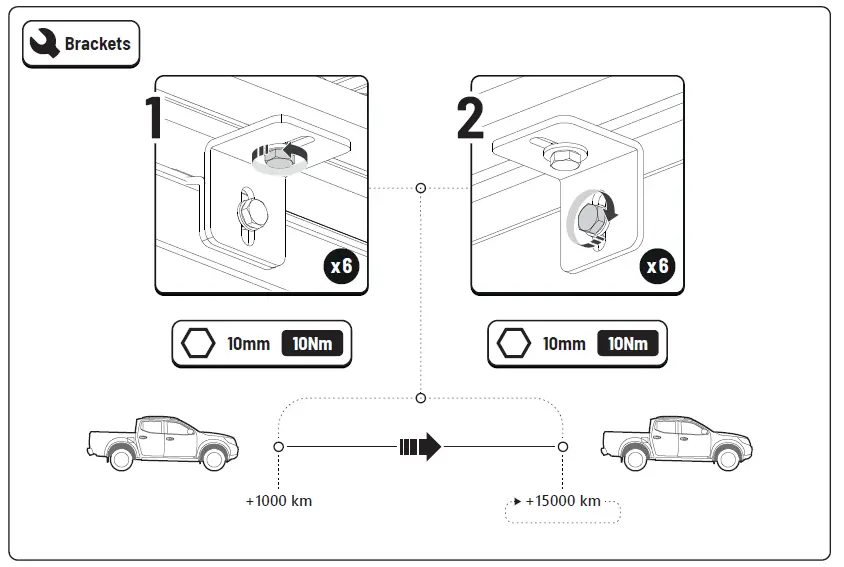

BRACKETS
- Re-tighten the brackets after the first 1000 km. And then every 15000 km

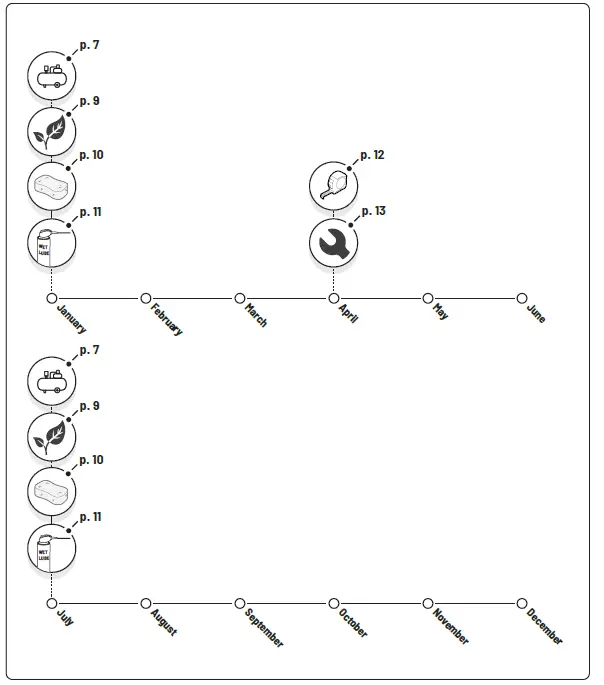

MINIMUM MAINTENANCE REQUIREMENTS
- Maintenance requirements and frequency depend on the actual usage of the roll cover and the environments and elements that it is exposed to.
- Clean and lubricate the cover accordingly to ensure the best possible operation and function.
Maintenance EVOm manager
- Type of Maintenance Date Done by

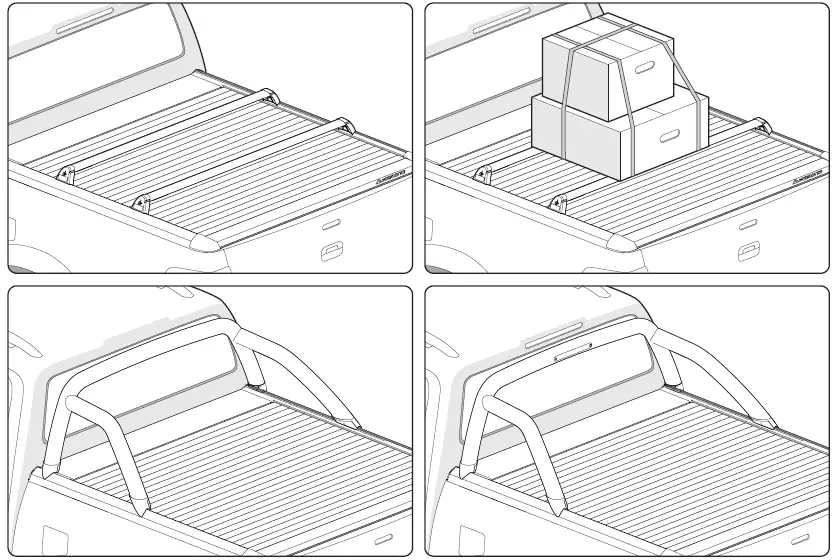

ACCESSORIES
- Mountain Top Cargo Carrier combined load capacity of 75 Kg.
- Mountain Top Sports Bar available in 2 versions; with and without brakelight.
- See more accessories www.mountaintop.dk.
Customer Service +45 4810 2950 (08:00 – 16:00 CET)
Support [email protected]
Website www.mountaintop.dk
Address Pedersholmparken 10, 3600 Frederikssund, Denmark
Scan for more information
