Overview

5G Gigabit Ethernet 802.3at PoE Injector

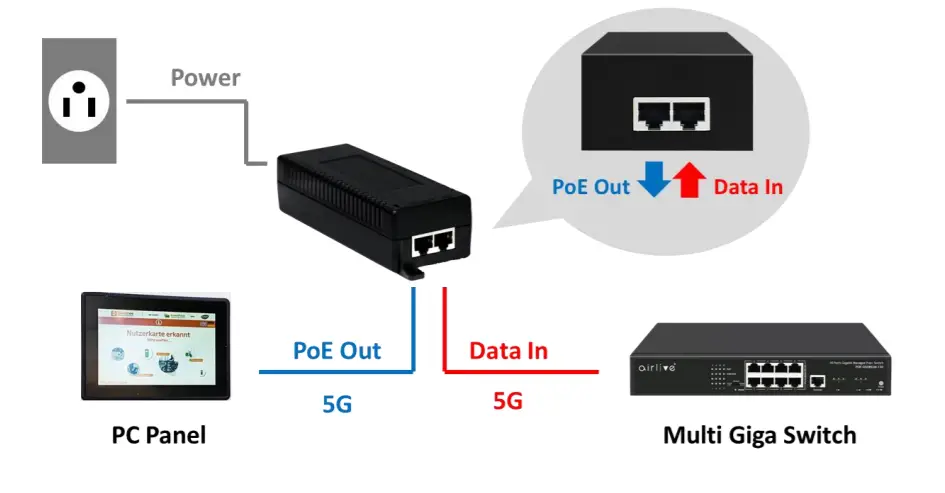

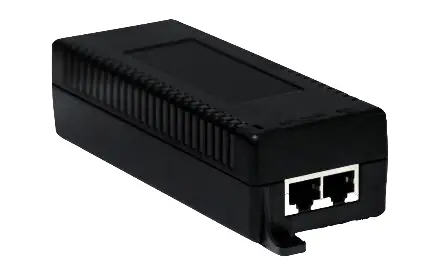

The AirLive PJ-5G-30W 5Gigabit Ethernet POE Injector is fully compatible withIEEE802.3af (15.4W) and IEEE802.3at (30W). The POE port supports a maximum output power of 30W, and the port supports 5G Gigabit self-adaption. It supports AC 100-240V voltage input, the working temperature range is -20°C ~ + 50°C, seamless ultrasonic bonding, better protection effect. It takes the electricity from the power source and the data from the Ethernet network and then combines them into a signal that can be transmitted through the UTP/STP cable up to 100m.
The product can be widely used in PoE PC-Panel, all-in-in Computer, advanced AP, digital signage display system, etc. Its reliable hardware design can ensure your automation system runs without interruption and stability.

Features

Support 1 x 5G Gigabit POE port (PoE out) + 1 x 5G Gigabit Ethernet port (Data in), Auto fallback
Ethernet Port Supports 10/100/1000Mbps/2.5/5G adaptive and PoE functions
Compatible with IEEE802.3af (15.4W), IEEE802.3at (30w)

Support AC 100-240V power supply
-20°C to 50°C operating temperature
Support Port Auto Flip (Auto MDI/MDIX）
Support Wall Mount

Suggest Application Environment

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education, and other industries
Multimedia transmission: integrated transmission of images, voice, and data, suitable for remote teaching, conference TV, videophone, and other applications
Real-time monitoring: simultaneous transmission of real-time control signals, images, and data

Specification

Model

30W 5Gigabit POE Injector 100-240VAC

General parameter

Connection Type
1 x 5 Gigabit POE Port + 1 x 5 Gigabit Ethernet Port
POE Parameters
POE Standard：IEEE802.3af / IEEE802.3at
Each port Max：15.4 W (IEEE 802.3af)
Each port Max：30 W (IEEE 802.3at)
POE port output voltage: DC 52V
POE power supply core of conductor:1/2- 3/6+
Network Standard
10BASE-T: Cat3、4、5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
LED indicator
Green: The device is powered on normally
Red: PoE power is normal
Off: The device is not powered on
Power Supply
Power input: AC 100-240 V
Testing Standard
EN61000-4-2 （ESD）
EN61000-4-4 （EFT）
IEC 60068-2-27 Shock
IEC 60068-2-32 Freefall
IEC 60068-2-6 Vibration

Environment
Operating Temperature: -20℃~50℃
Storage Temperature: -40℃~85℃
Working Humidity: 10%~90% ( non-condensing)
Storage Humidity: 5%~95% ( non-condensing)
