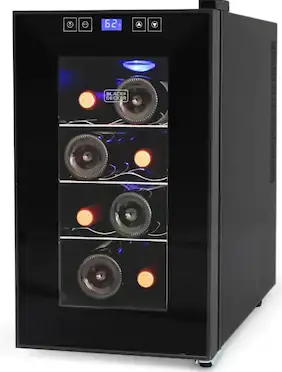

BLACK And DECKER BD60016 Bottle Wine Fridge
IMPORTANT SAFETY INSTRUCTIONS
- Read all of the instructions before using this appliance.
- This wine cellar must be properly installed in accordance with the installation instructions before is it used. See grounding instructions in the installation section.
- Never unplug the wine cellar by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
- Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
- Unplug the wine cellar before cleaning or before making any repairs.
- If the wine cellar is not being used, we recommend to remove the door and leave the shelves in place. This will reduce the possibility of danger to children.
- This wine cellar should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only.
- Do not operate wine cellar in the presence of explosive fumes.
- Do not store foods in wine cellar as interior temperature may not be cool enough to prevent spoilage.
GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS
In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The appliance must be connected to a cord having an equipmentgrounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
A. DANGER – Improper connection of the equipment grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment grounding conductor. If repair or replacement of the cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician or service person if the grounding instructions are not completely understood, or if in doubt as to whether the [tool/appliance] is properly grounded. Do not modify the plug connected to the [tool/appliance] – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
SUPPLY CIRCUIT
The appliance is for use on a nominal 120V circuit and should be connected to a grounding outlet that looks like the one illustrated below. The use of a temporary adaptor is not recommended.
POWER SUPPLY CORD
- Avoid the use of an extension cord because of potential safety hazards under certain conditions. Have a qualified electrician or serviceman to install an outlet near the appliance.
- If it is absolutely necessary to use an extension cord, extreme care must be exercised.
- Use only a grounding type 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
- The marked electrical rating of the extension cord must equal to or greater than the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

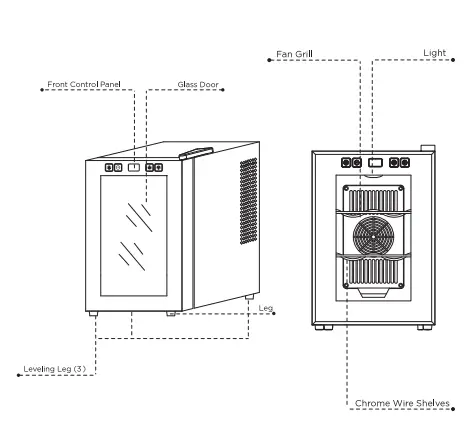

PARTS & FEATURES
INSTALLATION GUIDE
- Unpack your wine cellar by removing all packaging materials like carton, base, foams, adhesive tape, etc.
- Remove all accessories, internal packaging material that was used to hold shelves, etc., in place during transport.
- Clean the remains of all adhesive tape used and remove all printed material supplied.
- Install the wine cellar in a convenient location away from extreme heat and cold. Allow sufficient clearance between the wine cellar and side wall so the door(s) will open without obstruction. Wine cellar is not designed for recessed or built-in installation.
- The floor on which the wine cellar should be placed must be flat, hard, solid, and even. The wine cellar should not be placed on any soft material such as carpet, foam, plastic, etc.
- To level your wine cellar, use the two leveling legs in the rear and one in the front left of your wine cellar. Adjust by turning the legs counter clockwise to raise or counterclockwise to lower your wine cellar.
- The following are recommended minimum clearances around the wine cellar for proper air circulation:
- Sides: 2″ (50mm)
- Top: 4″ (100mm)
- Back: 2″ (50mm)
- Proper air circulation will help your wine cellar work at maximum efficiency.

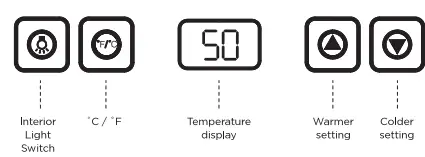

OPERATION GUIDE
- Plug in the wine cellar to power the unit on.
- Press the °C/°F button to select the temperature display in Fahrenheit or Celsius.
- You may choose a temperature setting for your wine cellar within the range of 46° to 65° Fahrenheit.
BENEFITS OF THERMAL ELECTRIC COOLING
Thermal Electric or semiconductor technology is an environmentally friendly cooling process which does not use any CFC, HCFC or HCF-type of refrigerants which are harmful to the environment. The absence of a compressor reduces the noise and vibration usually associated with refrigerated appliances.
CLEANING AND CARE
- To avoid electric shock always unplug the wine cellar before cleaning. Ignoring this warning may result in death or injury.
- Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage.
- General: Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution to wipe down your wine cellar.
- Rinse with clean warm water and dry with a soft cloth.
- Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrate detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/ or discolor your wine cellar
Power Interruptions
Occasionally there may be power interruptions due to thunderstorms or other events. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet.
Vacation and Moving Care
For long vacations or absences, unplug the unit, empty contents from wine cellar and clean the wine cellar and door gaskets according to “General Cleaning” section. Prop doors open, so air can circulate inside. When moving always move the wine cellar vertically. Do not move or store the unit on its side.
TROUBLESHOOTING & WARRANTY
- BEFORE YOU CALL FOR SERVICE IF THE UNIT FAILS TO OPERATE:
- Check to make sure that the unit is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
- Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
- IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE WINE CELLAR YOURSELF
TROUBLESHOOTING
Troubleshoot your problem by using the chart below. If the unit still does not work properly, contact customer service center or the nearest authorized service center. Customer must never troubleshoot internal components.
| SYMPTOMS | POSSIBLE CAUSE | SOLUTIONS |
| The wine cellar does not work. | There is a power failure.
A circuit breaker has activated. | Ensure the cellar is plugged in and the power socket is turned on. Reset circuit breaker. |
| Wine cellar is not reaching the desired temperature | The cellar is placed too close to a heat source
No sufficient ventilation | Keep the cellar away from sunshine or other heat sources.
Place the wine cellar in good ventilation and keep any items away from the fans. |
| The door is opened too frequently or for a long period of time. | Close the door tightly and do not open the door too frequently or for a long period of time. | |
| Frost forming in the wine cellar | Too much humidity. The ambient temperature is too low. | Unplug to defrost, plug again after the frost thaws. |
LIMITED WARRANTY
Any repair, replacement, or warranty service, and all questions about this product should be directed to BLACK+DECKER at 844-299-0879 from the USA or Puerto Rico. BLACK+DECKER warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of 1 year (12 months) for labor/I year (12 months) for parts (manufacturing defects only). BLACK+DECKER agrees that it will, at its option, replace the defective product with either a new or remanufactured unit equivalent to your original purchase during the warranty period.
FAQS
How long is power cord with plug?
Power cord is about 6’ long
can the floor legs be removed or adjusted?
One of the legs adjusts to level the unit. You want the box up off the counter for air flow.
How much weight on top can it support? Keep small 43″ TV?
Not a great idea to place a heat generating appliance near a wine cooler, which is unlikely to support the weight or to provide a stable platform.
How tall is it?
14.5” tall. 10” wide. 20” deep.
Can you store a fur in it?
Well, you could, but probably wouldn’t like the results!
what’s the correct outside height?
There might be some confusion because 3 sizes of wine coolers are presented on one page
What does thermoelectric cooling mean? How does it work?
Thermo-electric refers to the use of Peltier devices, rather than compressor circulation for cooling the air.
I’m guessing the listed 19.8 x 9.7 x 14.9″ are the exterior dimensions. what are the interior dimensions?
Inside dimensions are 7.25” wide, 11.5” deep, 11″ tall. Holds 6 regular size wine/liquor bottles on their side with 3 removable metal racks.
Description says hinges are on the left, picture shows door hinges on the right. Are door hinges reversible?
The hinges are on the right and there is no easy way to reverse the door. You’d have to turn the door upside down and then drill holes
Are the shelves removable
Yes they shelves removable
How many legs are supposed to come with this?
My unit rests on 3 large circumference legs and one leg that is smaller in circumference.
Will the shelves hold champagne bottles?
to place one champagne bottle on the bottom shelf, alongside a red wine bottle. But the champagne bottle would not fit on either upper shelf, nor could a second bottle fit on the bottom shelf at the same time.
For the 6 bottle version – does the 14.9 inch height include the legs AND the little hinge at the top right?
My unit measures 14 15/16″ high, from counter top to top of hinge. Be sure to leave some room around this or any similar device for air to circulate. Very happy with my unit so far! Best of luck.
By jimstake on August 24, 2022
What is the energy usage?
The 6-bottle Black & Decker carries an “Energy Star” certification, is billed as “energy efficient,” and claims an annual energy consumption of 90 Watts.
Does this hold 1.5 liter bottles?
No – the magnums I tried were about 1″ too tall to allow the door to close.
