DIVING BOARDS + STANDS

Over 90 Years of Diving Experience
Quality, safety and selection are the hallmarks of S.R.Smith residential diving boards and stands. Available in a wide range of shapes, styles, and colors, our boards and stands are designed with varying degrees of flex and spring. Rigid stands or those that have a spring mechanism can be paired with a variety of boards with varying flex to create unique performance characteristics. Diving board and stand combinations are defined in two ways, according to their level of flex:

Jump Boards – a flexible board on a base that utilizes a spring mechanism.
Diving Boards – a flexible board on a rigid base.

New or Replacement?
While all of our diving boards can be installed on new pool decks, providing they meet safety standards, we also have replacement diving board options. A wide variety of our stands utilize the same jig, so upgrading your stand is simple. Refer to our jig identification guide on page 63. If a new jig is required for the new stand, you can drill holes in the deck and secure a new jig with one of our epoxy kits.

Salt Pool Friendly
All S.R.Smith diving boards are salt pool friendly. Select stands also perform well in salt pool environments.

Boards

Whether it’s placing a brand new diving board and stand on a pool deck, or updating a well-loved diving board, S.R.Smith has an option that will delight builders and pool owners alike. The diving experience is at the very heart of backyard pools, and S.R.Smith is creating new, exciting options to help ensure diving boards continue to be a centerpiece of swimming pool fun and memories.

TrueTread ®
This patent pending diving board features a durable, marine-grade composite surface. Available in blue, red, gray and tan.

Fibre-Dive Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread.

Frontier II Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread.

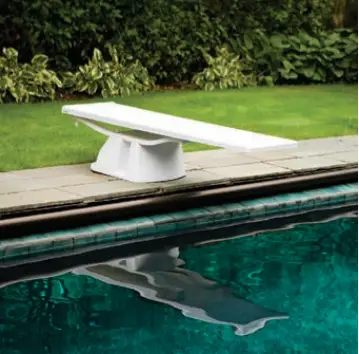

Frontier III Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread

Frontier IV Board*
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread

* Frontier IV boards require a special stand

SPECIALTY JUMP SYSTEMS

T7 Jump Board Systems

Manufactured from composite materials and the only 7′ board on the market. Available in unique colors and visual textures to match our Destination Series In-Pool Furniture and Custom Slides.

Stands

JUMP BOARD SYSTEMS:
a flexible board on a base that utilizes a spring mechanism

DIVING BOARD SYSTEMS:
a flexible board on a rigid base

BOARD & STAND SELECTOR
	STANDS	TYPE	SALT FRIENDLY	JUMP BOARD SYSTEMS	DIVING BOARD
				COMPATIBLE BOARDS & PERFORMANCE CATEGORY
MOST FLEXIBLE	Cantilever	Jump Stand: Powder-coated Steel		TrueTread®, Frontier III
	Supreme	Jump Stand: Acrylic Reinforced Fiberglass		TrueTread®, Frontier III
	Salt Pool Jump System	Jump Stand: Acrylic Reinforced Fiberglass		TrueTread®, Frontier III
	Frontier II	Jump Stand: Powder-coated Steel		Frontier II
	T7 Jump System	Jump Stand: Acrylic Reinforced Fiberglass		T7 (optional board fall ordered separately)
LEAST FLEXIBLE	U-Frame	Dive Stand: Stainless Steel Tubing			TrueTread®, Fibre-Dive, Frontier III, Frontier IV*
	Flyte-Deck II	Dive Stand: Acrylic Reinforced Fiberglass			TrueTread®, Frontier III, Fibre-Dive
	*Frontier IV boards require a special stand, see page 18 for additional information.

Fulcrum Settings for Diving Boards

Diving Boards must be installed with rubber fulcrum pads*. Fulcrum settings beyond the stated tolerance void the warranty. Diving boards must be installed level across fulcrum and heel supports. Rubber mounting pads (washers) must be installed. Tightening Schedule can be found in the product’s instruction manual.

* Except Frontier II

S.R.Smith has reinvented the diving board category with a unique, patent pending design: the TrueTread® Diving Board Series. These stylish diving boards make an old favorite new again with a modern, sporty look that provides an exceptional launching grip. TrueTread is a durable, marine grade composite material that stands up to salt, sun and hours of fun. Compatible with multiple S.R.Smith stands, TrueTread Diving Boards are an ideal upgrade that makes the diving board experience new again.

For more information, visit srsmith.com/truetread

TrueTread® Diving Board Series

• Ideal replacement board, provides fresh, custom look
• Available in 6′ and 8′ lengths
• Modern, sporty look
• Salt Pool Friendly
• Long-lasting, durable anti-slip surface
• U.S. Patent No. 10,556,141

COLOR OPTIONS

BLUE        RED

GRAY       TAN

Due to printing technology actual color may differ.

All TrueTread® colors are available on white stands, with gray and tan available on complementary earth tone stand colors.

COMPATIBLE WITH:

• Cantilever
• Flyte-Deck II
• Salt Pool Jump System
• Supreme
• U-Frame

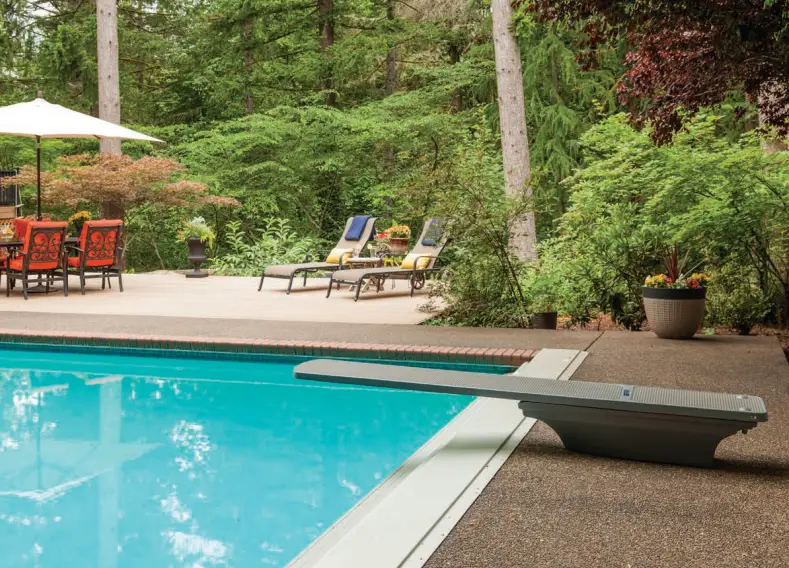

FLYTE-DECK II STAND WITH TRUETREAD® BOARD

REPLACEMENT BOARDS

SALT POOL JUMP SYSTEM WITH TRUETREAD® BOARD

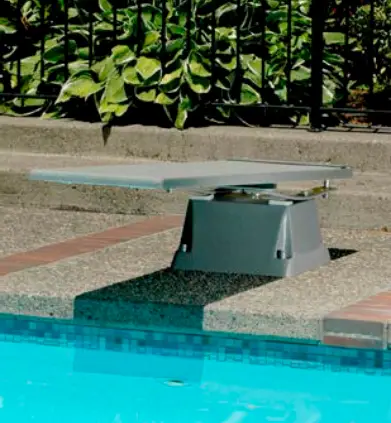

Salt Pool Jump System

Resist corrosion with this new low-profile fiberglass-backed stand and composite spring assembly designed to perform well even in harsh pool environments.

• 6′ or 8′ lengths
• Available in three designer colors to match your backyard décor
• Stainless steel hardware for added corrosion resistance
• Can be retrofitted onto existing 606/608 Cantilever jigs

Stand & Spring Colors

WHITE

TAUPE

PEWTER GRAY

Due to printing technology actual color may differ.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

TrueTread® Board

Frontier III Board

See page 18-19 for diving board part numbers.

SALT FRIENDLY JUMP STAND WITH FRONTIER III BOARD

Salt Pool Jump System springs and bases cannot be interchanged with other S.R.Smith springs and bases.

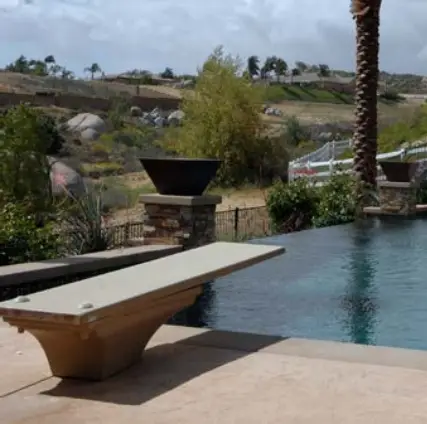

Flyte-Deck II Stand

The Flyte-Deck II stand’s sleek appearance and sturdy construction make it one of our best selling models.

• Made of durable, scratch-resistant acrylic reinforced with fiberglass
• 6′, 8′ or 10′ lengths – find the right size for your diving pool
• Available in a variety of colors to match your poolscape and backyard décor!
• Stainless steel hardware for added corrosion resistance
• Board has a matching, non-slip sanded tread, white.

Board + Stand Colors

WHITE                    PEBBLE

TAUPE                    GRAY GRANITE

PEWTER GRAY      SILVER GRAY

BLUE

Due to printing technology actual color may differ.

Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

TrueTread® Board

Fibre-Dive Board

Frontier III Board

See page 18-19 for diving board part numbers.

FLYTE-DECK II STAND WITH FIBRE-DIVE BOARD
FOR MATCHING TREAD, ADD “T” BEHIND PART NUMBER

Board, and stand are matching in color. Pebble and Grey Granite boards come with clear tread.

ACCESSORIES
71-209-710-SS 6’ & 8’ Flyte Deck Stand Bolt Kit
71-209-710-SS 610 Flyte Deck Stand Bolt Kit

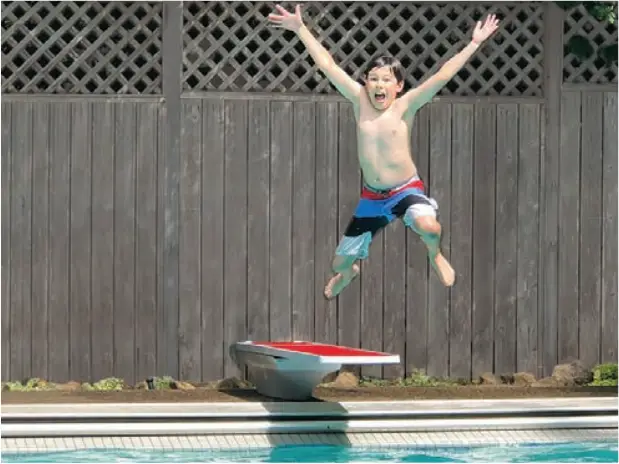

Supreme (656/658) Stand

The Supreme stand is a high-end stand that offers users extreme diving fun!

• Made of durable, scratch resistant acrylic reinforced with fiberglass
• 6′ or 8′ lengths
• Available in a variety of colors – match your pool slide and backyard décor
• Stainless steel hardware for added corrosion resistance
• Board has a matching, non-slip sanded tread

Board + Stand Colors

WHITE                    PEBBLE

TAUPE                    GRAY GRANITE

PEWTER GRAY      SILVER GRAY

BLUE

Due to printing technology actual color may differ.

Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

TrueTread® Board

Frontier III Board

See page 18-19 for diving board part numbers.

SUPREME JUMP STAND WITH FRONTIER III BOARD
FOR MATCHING TREAD, ADD “T” BEHIND PART NUMBER

Kits with white stand include white springs. For matching springs, please contact Customer Service at 800.824.4387.

*Pebble kits come with Taupe springs. Gray Granite kits come with Rock Gray springs. Pebble and Grey Granite boards come with clear tread.

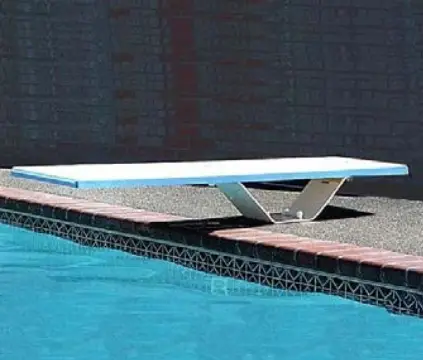

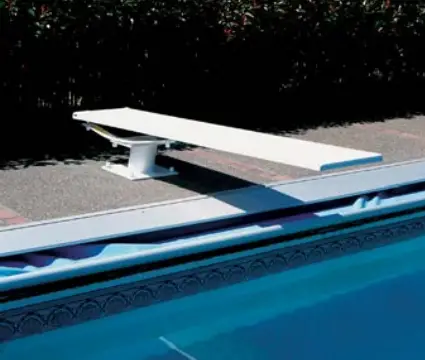

Cantilever (606/608) Stand

• Powder-coated for increased corrosion resistance
• 6′ or 8′ lengths
• Available in designer colors to match your pool slide and backyard décor
• Stainless steel hardware for added corrosion resistance
• Board has a matching non-slip sanded tread
• Salt Pool Jump System can be retrofitted on a Cantilever jig

Stand Colors

WHITE                  SILVER GRAY

TAUPE                  ROCK GRAY

Board Colors

WHITE                    PEBBLE

TAUPE                    GRAY GRANITE

BLUE                      SILVER GRAY

PEWTER GRAY

Due to printing technology actual color may differ.

Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

TrueTread® Board

Frontier III Board

See page 18-19 for diving board part numbers.

CANTILEVER JUMP STAND WITH FRONTIER III BOARD

All Kits come with matching Springs. Pebble kits come with Taupe springs. Gray Granite kits come with Rock Gray springs. Pebble and Grey Granite boards come with clear tread.

Frontier II Stand

The Frontier II is a high-value stand and board ideal for price-sensitive customers.

• Made of strong steel and powder-coated white for increased corrosion resistance
• 6′ or 8′ lengths
• Stand comes in white, with your choice of board color to match your pool slide and backyard décor
• Stainless steel hardware for added corrosion resistance
• Board has a matching non-slip sanded tread

Stand Color

WHITE

Board Colors

WHITE                    PEBBLE

TAUPE                    GRAY GRANITE

PEWTER GRAY      BLUE

SILVER GRAY

Due to printing technology actual color may differ.

Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

Frontier II Board

See page 18-19 for diving board part numbers.

WHITE FRONTIER II JUMP STAND WITH FRONTIER II BOARD*
FOR MATCHING TREAD, ADD “T” BEHIND PART NUMBER

Not recommended for salt pools or decks with pavers. All kits have White Stand.
Pebble and Grey Granite boards come with clear tread.

FRONTIER II BASES & JIG

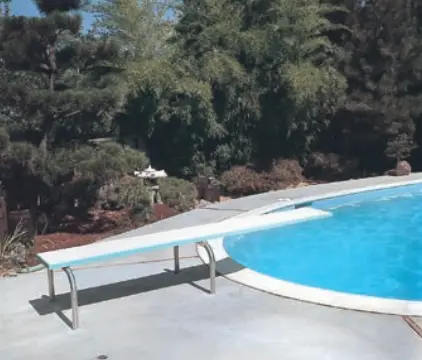

U-Frame Stand

The U-Frame stand is a great entry-level stand, ideal for price-sensitive users.

• Made of 1.90″ OD, .049″ or .065″ wall, 304 or 316L stainless steel tubing, and includes a slip-on rubber fulcrum
• Choose from a variety of board colors to match your pool slide and backyard décor
• Pair with 6′, 8′, 10′ or 12′ boards

Stand Color

POLISHED STEEL

Due to printing technology actual color may differ.

All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Compatible with:

TrueTread® Board

Fibre-Dive Board

Frontier III Board

Frontier IV Board* (8′ only)

See page 18-19 for diving board part numbers.

• For Marine Grade (316L), add -MG to part number
• Boards are sold separately

* Not recommended for salt pools

U-Frame with 8′ Frontier IV Board*

The special U-Frame Stand, designed specifically for our Frontier IV board, is a great alternative to consider for pools with heavy diving traffic and more athletic pool users.

• The Frontier IV board comes in an 8′ length
• Mounting bolts are on 11″ centers
• Frontier IV comes in white, with a matching non-slip sanded tread for maximum safety
• Made of 1.90″OD, .109 wall tubing, 304 or 316L stainless steel tubing
• 400 lb. weight limit

Notes: Weight limit 400 lbs.
*The Frontier IV board has 11” bolt centers and requires this SPECIAL U-Frame that will only work with this board

FC-100A (18”)
FC-200A (20”)

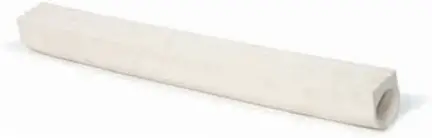

U-Frame Fulcrum Pad

• Heavy-duty rubber
• 18″ or 20″ long
• Accommodates 1.90″ OD tubing

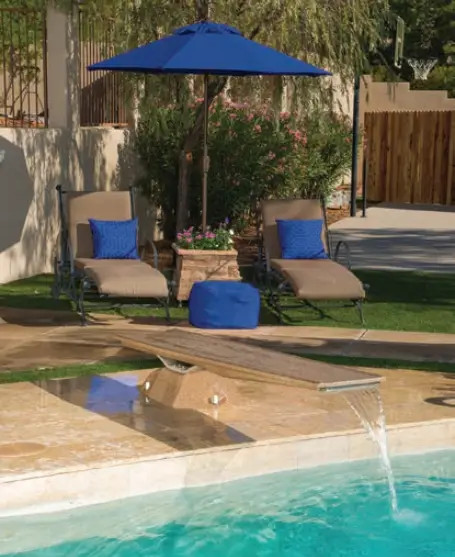

T7 Jump System

• Unique 7’ diving board can be installed on type I – type V pools
• Durable, long lasting fiberglass construction with advanced composite springs
• Advanced high-tech RTM manufacturing
• Optional board fall compatible base
• Weight limit = 300 lbs
• Variety of earth tones & granite colors available
• Suitable for use with salt systems
• Matching products: designed to match the landscape slide products or destination series in-pool furniture perfectly for a complete designer pool look

COLOR OPTIONS


TAN -51                          GRAY -52              MONT BLANC -54


PEBBLE -55      FASHION GRAY -56        CAPPUCCINO -57


AUTUMN SUN -58    STARRY NIGHT -60     SEASHELL -61

T7 DIVING SYSTEM – COMPLETE BASIC SETUP

Complete system comes with Board, Spring, Base, Jig and all Stainless Steel Mounting Hardware.

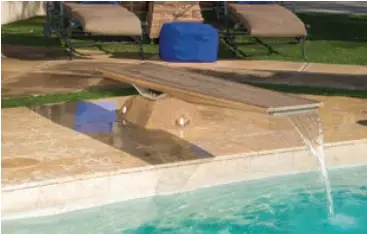

T7 DIVING SYSTEM – COMPLETE WITH WATER-FALL

Complete system comes with Board, Spring, Base, Jig, Waterfall Feature and all Stainless Steel Mounting Hardware.

T7 SAND TREAD BOARD W/ MOUNTING HARDWARE

Comes with 7’ Sand Tread Surface Board Only and Stainless Steel Hardware.

T7 SPRINGS (PAIR) WITH MOUNTING HARDWARE

T7 Springs (pair) with Spring to Base Stainless Steel Hardware

T7 BASE AND JIG WITH MOUNTING HARDWARE

T7 Base and Jig with Jig to Base Stainless Steel Hardware

T7 BASE WITH MOUNTING HARDWARE – NO JIG

T7 Base with Stainless Steel Mounting Hardware without Jig

OPTIONAL WATERFALL ASSEMBLY KIT

Residential Board Part Numbers

All part numbers shown are for a diving board with a white tread, unless noted.
TO ORDER A DIVING BOARD WITH A MATCHING TREAD, ADD A “T” AT THE END OF THE PART NUMBER.

Fibre-Dive Boards (2-hole)
Weight Limit = 250 lbs.

* Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

Frontier II Boards (3-hole)
Weight Limit = 250 lbs.

DIVING BOARDS + STANDS

Frontier III Boards (2-hole)
Weight Limit = 250 lbs.

* Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

Frontier IV Boards* (2-hole)
Weight Limit = 400 lbs.

*Frontier IV board requires a special stand

Mounting Kits

• 67-209-911-SS            Residential Board – White
• 67-209-911-SS-PG     Residential Board – Gray
• 67-209-911-SS-TP      Residential Board – Taupe
• 69-209-032-SS            Frontier II Board
• 67-209-913-SS            Frontier IV Board
• 67-209-909-SS            Bolt Kit, residential with (5) 5.5″ bolts
• 67-209-910-SS            Bolt Kit, residential with (5) 5″ bolts

NOTE: If replacing a board you must replace the fulcrum pad. Failure to do so will void warranty.

srsmith.com | 800.824.4387

PoolBetter™

800.824.4387
srsmith.com

No part of this may be copied or reproduced without the expressed written consent of S.R.Smith, LLC

©Copyright 2021 S.R.Smith, LLC. All rights reserved. | M-E-BRO-320

5M   1022

References

• Pool Deck Equipment - Pool Slides And Diving Boards | S.R.Smith
• TrueTread Diving Board | S.R.Smith
