JUICEE
30 000MAH EMERGENCY BATTERY WITH USB-C PORT
Features

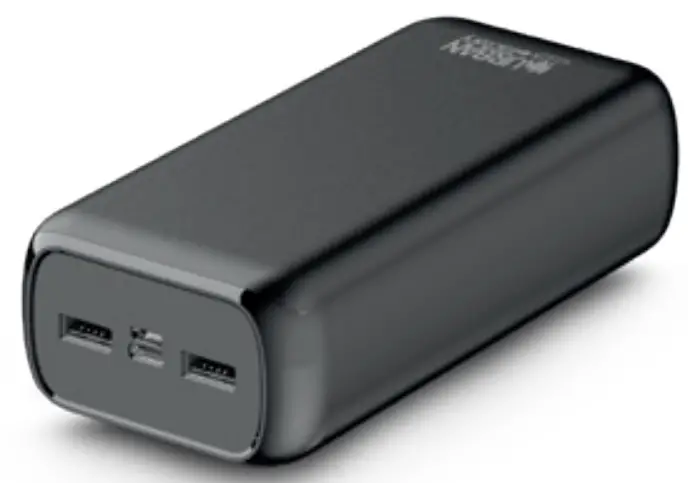

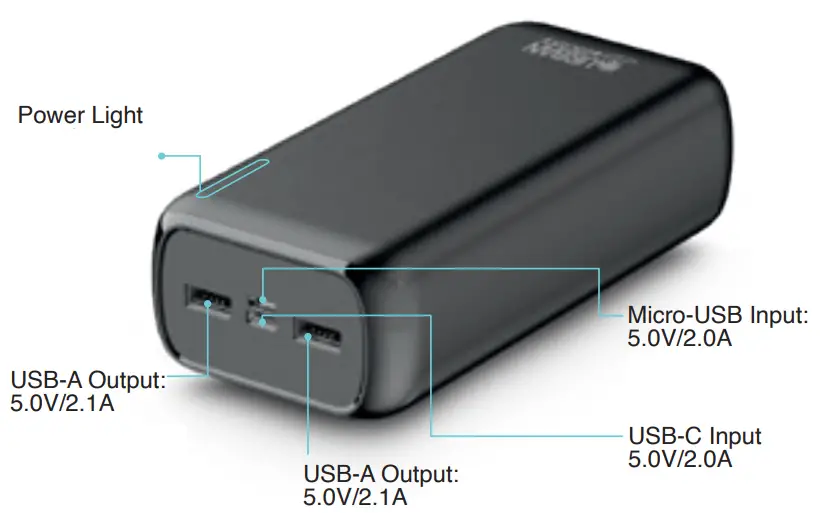

1.1 Product appearance
1.2 Specifications
- Battery type: A grade high-energy density Polymer cell
- Capacity: 30 000mAh – 111Wh
- USB-C Input: DC 5V
2.0A - USB-A Output (1 & 2): DC 5V 2.1A
- Micro-USB Input: DC 5V 2.0A
2.0A1.3 Into the box
1* Powerbank
1*Micro-USB / USB-A Cable 30CM
1*User Guide
Display light
Indicator light
4 lights on the device to show the capacity
 | Flashing |
 | Switch off |
 | Lighting |
Power bank will check and show the percentage of capacity when power on.
CHARGE THE POWER BANK
| Display | Lights | Level | Notes |
| 1 Flashing | | 0%–25% | Powerbank is fully charged when all the lights are ON. |
| 1 | | 25%–50% | |
| 2 | | 50%–75% | |
| 3 | | 75%–100% | |
| 4 | | 100% |
CHARGE THE DEVICES
| Display | Lights | Level | Notes |
| 1 Flashing | | 0%–25% | When the power is close to 5%, the last light flashes until power runs out |
| 1 | | 25%–50% | |
| 2 | | 50%–75% | |
| 3 | | 75%–100% | |
| 4 | | 100% |
Charging instructions
Charge the Powerbank
- Connect the USB-A cable port to a charging device and the other end to the USB-C or the Micro-USB input connector.
- After connecting, the power bank will automatically charged and the current power level on the battery status indicator will flash.
Storage
If you don’t use the battery
1/ Recharge the battery to half capacity and keep it in a cool and dry place
2/ It is recommended to perform a complete charging and discharging every 3 months.
Safety instruction
– Do not throw the battery into fire, it might burn, explode or releae toxic gas.
– Do not connect postive and negative poles.
– Do not store battery with other metallic materials.
– Do not open the battery and do not drop it into water, the battery needs to keep dry.
– Stop using the battery if leaking, heating itself, out of shape, smelling or any abnormal phenomenon.
– Use the battery at room temperature between 10°C and 30°C .
– Do not charge with a non certified device.
| Product Name | Toxic and Hazardous Substances or Elements | |||||
| Pb | Hg | Cd | Cr(VI) | PBB | PBDE | |
| Portable Battery Pack | X | 0 | 0 | 0 | 0 | 0 |
| 0: Means (that) the content of this harmful substances in all the parts of homogeneous material is under S/T11363-2006 required standards. | ||||||
| X: Means (that) the content of this harmful substances at least in parts of a homogeneous material is within S/T11363-2006 required standards. | ||||||
Charging instructions
How to use the battery
- Connect your device on the battery with the appropriate cable. The battery will discharge automatically and the power indicator will turn off after 5s.

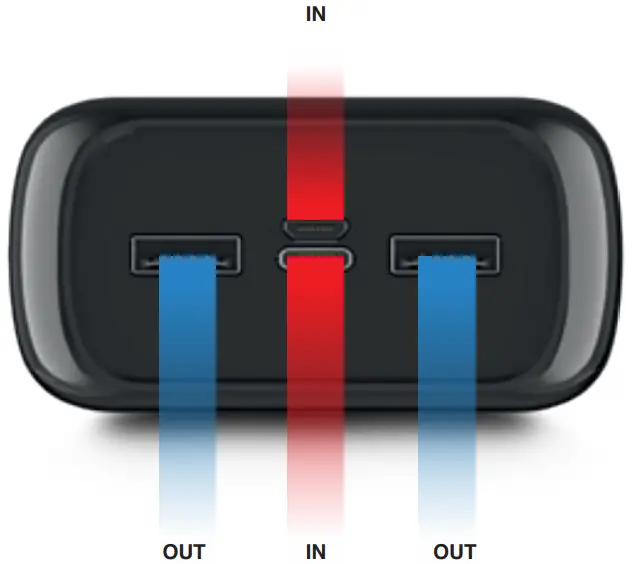

USB Output : Charge your smartphone or tablet
Micro-USB or USB-C Intput : Charge your Powerbank
USB Output : Charge your smartphone or tablet
Micro-USB or USB-C Intput : Charge your Powerbank
Declaration of Conformity
URBAN FACTORY hereby declares that the BCP30UF powerbank complies with the essential requirements and other relevant provisions of Directive 2014/53 / EU.
Headquarters: Urban Factory, 57 rue de la Convention 75015 Paris FRANCE
Product Name: JUICEE: BIG CAPACITY POWERBANK 30 000MAH USB-C
Reference: BCP30UF
To which this statement relates is in conformity with the following European and international normative document(s).
European Low Voltage Directive (Directive LVD 2014/35/EU )
– EN 62368-1: 2014 + A11: 2017
Règlement 1907/2006 (REACH)
EMC (Directive 2014/30/EU)
– EN 55032 : 2015 + A11 : 2020
– EN 55035 : 2017
– EN 61000-3-2: 2019; EN 61000-3-3: 2013 + A1: 2019
Warning
- Do not charge the battery and your external device at the same time.
- Do not let cables connected to the USB outputs if the battery is not in use.
- If your device required higher voltage than the battery, your device might not charge or not fully charge.
- If your device required lower voltage than the battery, the battery might overcharge or damage your device.
Contact: [email protected]
Tel: +33 (0)1 45 78 45 78
