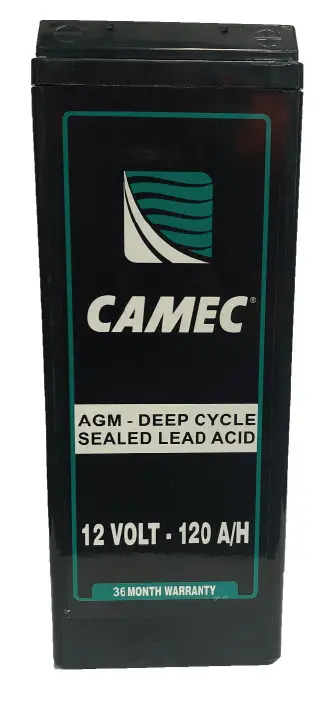

Camec Slim Battery
AGM – Deep Cycle 12V-120AH
- 36 month warranty
- Front terminals make installation, maintenance and supervision easy
- Shield design protects terminals from short circuit
- Unique vent valve design, reducing water loss and prevent air/spark from entering.
Specifications
| Specifications | |
| Nominal voltage | 12v |
| Nominal capacity | 120Ah @ 20 hour rate FV (1.8V/cell) |
| Approximate weight | 31.0kg (68.34lbs) |
| Terminals | 13 (m8 female thread) |
| Internal resistance | ≤ 3.5 Ω (fully charged) |
| Maximum discharge current | 1200A (5sec) |
| Maximum charge current | 25A |
| Operating temperature range | Charge: -100C~ 400C (140F ~ 1040F) Discharge: -200C ~ 500C (40F ~1 220F) Storage: -150C ~ 400C (50F ~ 1040F) |
| Self discharge | 3% of capacity declined per monthat 250C |
| Dimensions battery | 395mmL x 110mm W x 285mm H |
| Dimensions terminal | 16mm dia x 6mm H x 8mm hole dia |
