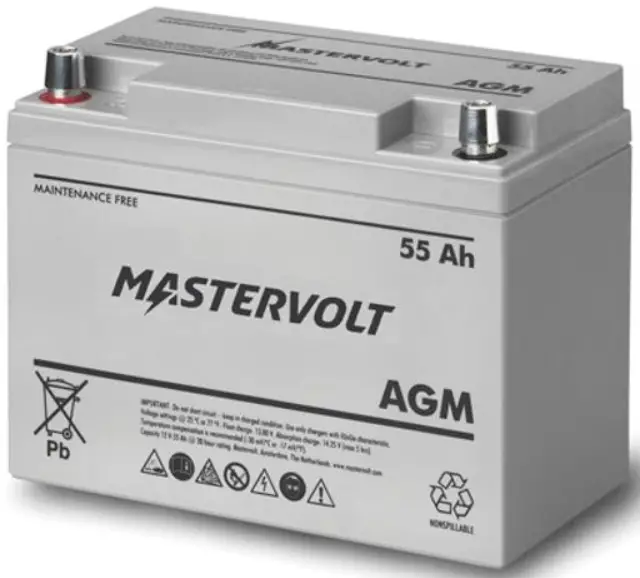

MASTERVOLT MV62000550 AGM Battery 55Ah Battery
| Observe these instructions and keep them located near the battery for future reference. Work on the battery should only be carried out by qualified personnel. |
| Do not smoke or introduce sparks in the vicinity of the battery. Explosion and fire hazards are present. |
| While working on batteries wear protective eye-glassing and clothing. Observe accident protection rules. |
| Any acid splashes on the skin or in the eyes must be flushed with plenty of water immediately. Then seek medical assistance. Spillages on clothing should be rinsed out with water. |
| Explosion and fire hazard. Do not short circuit, use insulated tools. |
| Electrolyte is strongly corrosive. Under normal conditions contact with electrolyte is impossible. If the housing is damaged the electrolyte can be available. |
| Batteries are heavy. Ensure adequate mounting security and always use suitable handling equipment for transportation. |
| Metal parts of the battery are always alive. Do not place tools or other items on the battery. Do not wear any metallic items such as watches, bracelets, et cetera. |
General
Master volt AGM batteries are immediate ready for use.
Installation
- Prior to installation check battery for mechanical damages and firmly tightened terminals.
- Recommended torque for screw connections: 14.7 to 19.6 Nm / 130 to 170 InLbs (Model 55Ah: 11 to 14.7 Nm / 97 to 130 InLbs).
- Install in upright position.
- Keep >1cm />0.5 inch space between the batteries.
- Keep away from heat sources.
- Allowed operating temperature: –20 to 55ºC / –4 to 131ºF; Nominal operating temperature: 5 to 35ºC / 41 to 95ºF. Recommended at 25ºC/ 77ºF. The battery life is halved for every 10ºC of rise in temperature. Lower temperatures will reduce the available capacity
- Under overcharging conditions lead acid batteries can vent an explosive mixture of hydrogen gas. If contained, assure adequate ventilation.
- Clear the terminals before connection.
- During installation all loads and chargers must be switched off.
- For best possible connection, direct mounting of the cable lug to the battery post is recommended. Therefore the battery pole adapter should be removed first. See figure 6.
- Use properly sized and reliable cable lugs and battery terminals. Tighten all connections firmly.
- Connect the battery with correct polarity. The position of the battery poles may differ from previous installed batteries!
- Connect the minus cable last of all.
- Use protective battery terminal insulators.
- Batteries in series or parallel must be of the same brand, type, capacity and state of charge. Do not mix old and new batteries. See figure 1 to 5 if batteries must be connected in parallel or in series.
Charging
Use only chargers with IUoUo characteristic.
Voltage settings: float charge 13.80V @ 25ºC / 77ºF; absorption charge 14.25V @ 25ºC / 77ºF (max 5 hrs). Temperature compensated charging is recommended
(–30mV/ºC or –17mV/ºF).
Maximum charge current: 30% of rated capacity @ C10. Incomplete charges may damage the batteries. Therefore the batteries must be charged to the full 100% regularly, at least every month.
Discharge
Avoid deep discharges. Regular discharges beyond 50% of the nominal capacity are not recommended as they might shorten the lifetime of the battery.
Recharge the battery immediately after a discharge. Never discharge below the final discharge voltage. The final discharge voltage is related to the discharge current. See table “Final discharge voltage”.
Maintenance
Check batteries and connections on a regular base, at least every three months. Defects such as loose or corroded connections must be corrected immediately. Keep battery in charged condition. Elevated environmental temperatures increase the self-discharge rate of the batteries. See “Battery storage” Batteries should be recharged when the open circuit voltage drops below 12.3 Volt. Keep the battery dry and clean. Use only a wet soft cloth to clean the battery. Never use any additives, acids and/or scourers.
Do not open the battery. Never add acid or distilled water.
Disposal of batteries
Spent batteries are harmful to health and the environment. Therefore batteries may not be mixed with domestic or industrial waste but must be collected and recycled separately. Contact your supplier for recollection and recycling of batteries or contact an authorized waste management company.

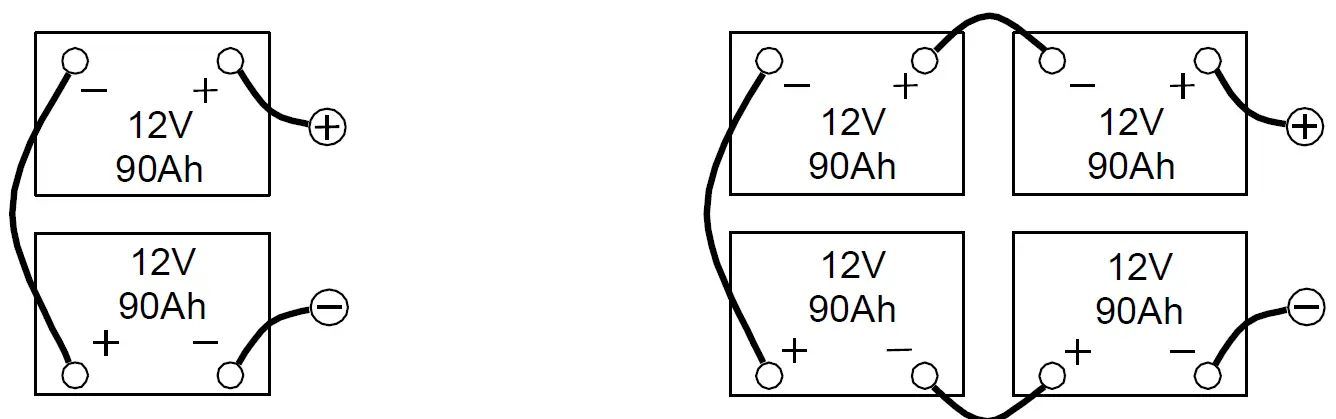

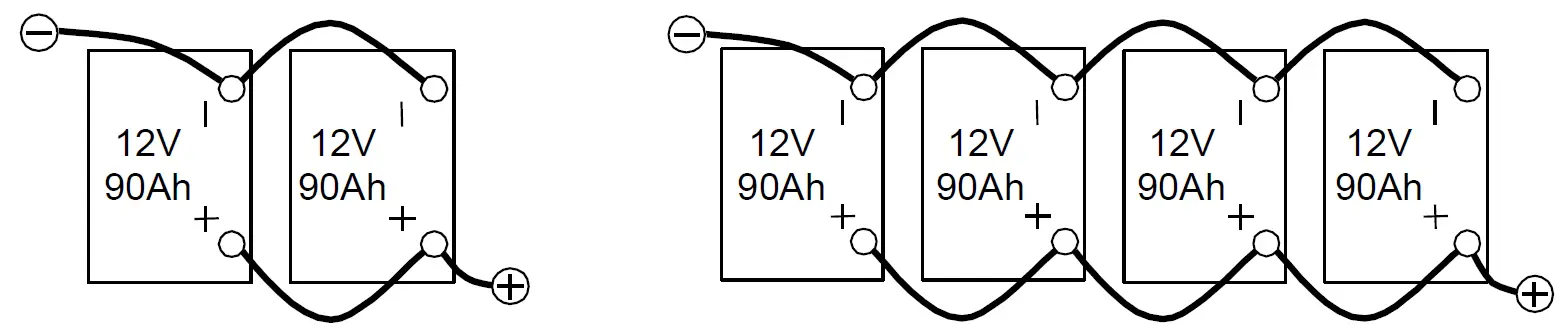

SERIAL CONNECTION
- 24V /90Ah
- 48V /90Ah
PARALLEL CONNECTION
- 12V/180Ah
- 12V/360Ah
Maximum number of batteries: 4
Connection of the plus and minus wiring must be crosswise.

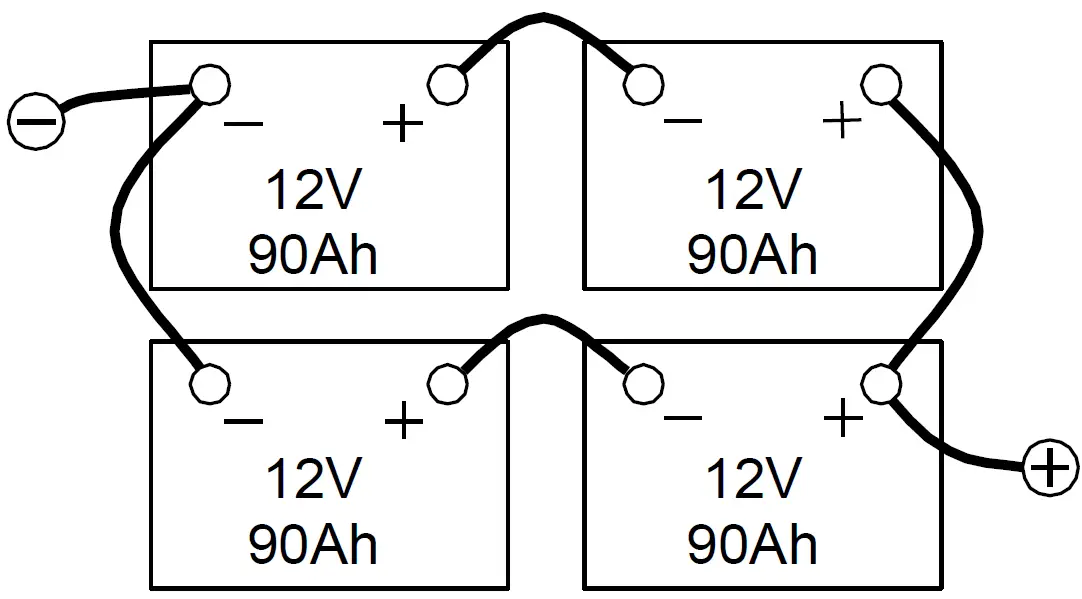

SERIAL-PARALLEL CONNECTION
Serial-parallel connection
Maximum number of batteries: 4
- 24V /180Ah
Connection of the plus and minus wiring must be crosswise.

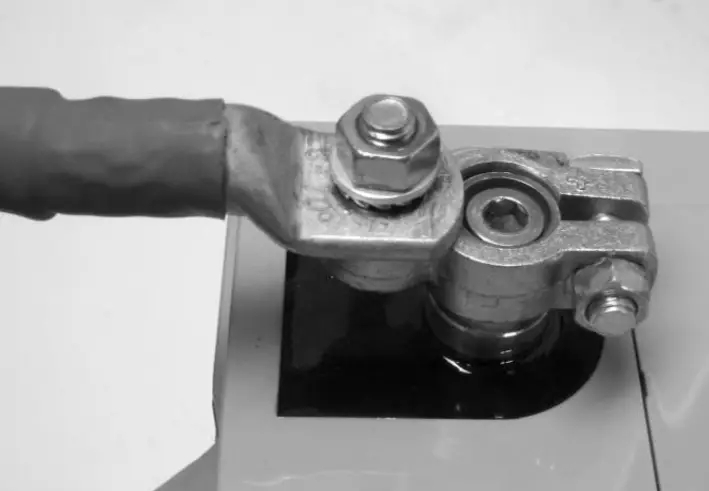

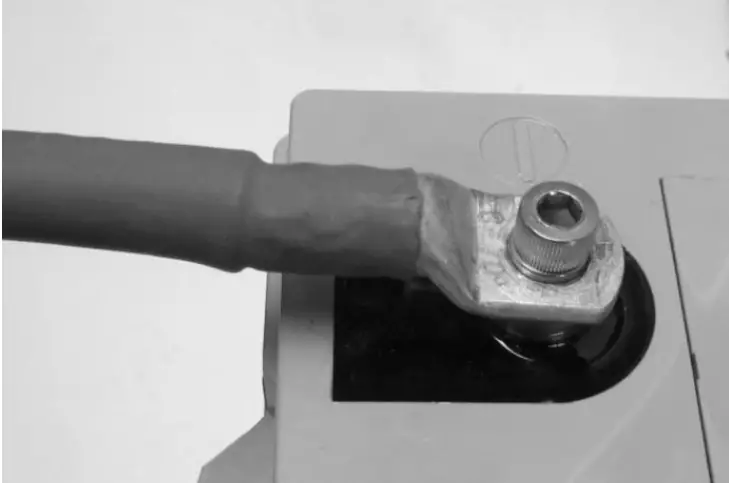

BATTERY POST CONNECTION
- Recommended connection
- Option
RATED CAPACITY
| Rated capacity | @25ºC/77ºF | Capacity affected by temperature: | ||||||
| Model | C20 | C10 | C5 | C3 | C1 | |||
| AGM-55Ah | 55Ah | 51Ah | 44Ah | 39.9Ah | 30.6Ah | Temperature: | Capacity | |
| AGM-70Ah | 70.6Ah | 65Ah | 56Ah | 50.7Ah | 39Ah | 0ºC (32ºF) | 86% | |
| AGM-90Ah | 90Ah | 85Ah | 72.5Ah | 66.4Ah | 51Ah | 20ºC (68ºF) | 97% | |
| AGM-130Ah | 128Ah | 120Ah | 102Ah | 92.4Ah | 70Ah | 25ºC (77ºF) | 100% | |
| AGM-160Ah | 160Ah | 150Ah | 134Ah | 121.8Ah | 92Ah | 40ºC (104ºF) | 103% | |
| AGM-225Ah | 226Ah | 210Ah | 180.5Ah | 163.8Ah | 126Ah | |||
| AGM-270Ah | 270Ah | 255Ah | 229Ah | 214Ah | 176Ah |
FINAL DISCHARGE VOLTAGE
Battery model Discharge current
AGM-55Ah | < 11A | 11 – 23A | 23 – 55A | > 55A |
| AGM-70Ah | < 13A | 13 – 32A | 32 – 65A | > 65A |
AGM-90Ah | < 17A | 17 – 42A | 42 – 85A | > 85A |
| AGM-130Ah | < 24A | 24 – 60A | 60 – 120A | > 120A |
AGM-160Ah | < 30A | 30 – 75A | 75 – 150A | > 150A |
| AGM-225Ah | < 42A | 42 – 105A | 105 – 210A | > 210A |
AGM-270Ah | < 51A | 51 – 128A | 128 – 255A | > 255A |
Final discharge voltage | 10.8V | 10.5V | 10.2V | 9.6V |
MAXIMUM DISCHARGE CURRENT
| Model: | AGM | AGM | AGM | AGM | AGM | AGM | AGM |
| 55Ah | 70Ah | 90Ah | 130Ah | 160Ah | 225Ah | 270Ah | |
| Continual discharge: | 50A | 65A | 85A | 120A | 150A | 210A | 255A |
| Discharge time t ≤ 2min: | 150A | 195A | 255A | 360A | 450A | 630A | 765A |
| Discharge time t ≤ 10sec: | 300A | 410A | 510A | 720A | 900A | 1260A | 1530A |
CONSTANT CURRENT DISCHARGE (AMPS @25ºC/77ºF)
| Time (minutes) | 10 | 15 | 20 | 30 | 45 | 60 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | 1200 |
| Final voltage (V) | 7.8 | 7.8 | 7.8 | 9.6 | 9.6 | 10.0 | 10.2 | 10.5 | 10.5 | 10.5 | 10.5 | 10.8 | 10.8 | 10.8 |
| AGM-55Ah | 132.5 | 99.7 | 82.2 | 55.0 | 43.7 | 31.2 | 18.0 | 13.4 | 10.7 | 8.8 | 7.8 | 6.1 | 5.1 | 2.8 |
| AGM-70Ah | 162.5 | 123.5 | 97.5 | 78.8 | 52.0 | 39.0 | 22.8 | 16.9 | 13.0 | 11.2 | 9.9 | 7.7 | 6.5 | 3.5 |
| AGM-90Ah | 213.0 | 162.0 | 127.5 | 98.0 | 68.0 | 51.0 | 30.0 | 21.8 | 17.1 | 14.5 | 12.9 | 10.1 | 8.5 | 4.8 |
| AGM-130Ah | 300.0 | 228.0 | 180.0 | 137.5 | 95.0 | 70.0 | 40.3 | 30.8 | 19.2 | 20.4 | 18.1 | 14.3 | 12.0 | 6.4 |
| AGM-160Ah | 390.0 | 318.6 | 245.5 | 179.0 | 122.4 | 92.0 | 54.2 | 40.6 | 30.8 | 26.8 | 23.5 | 18.2 | 15.0 | 8.0 |
| AGM-225Ah | 315.0 | 241.5 | 168.0 | 126.0 | 73.5 | 54.6 | 42.0 | 36.1 | 31.9 | 25.0 | 21.0 | 11.3 | ||
| AGM-270Ah | 318.4 | 222.9 | 175.8 | 95.5 | 71.3 | 54.8 | 45.8 | 39.2 | 30.6 | 25.5 | 13.5 |
CONSTANT POWER DISCHARGE (WATT /CELL @25ºC/77ºF )
| Time (minutes) | 10 | 15 | 20 | 30 | 45 | 60 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | 1200 |
| Final voltage (V) | 7.8 | 7.8 | 7.8 | 9.6 | 9.6 | 10.0 | 10.2 | 10.5 | 10.5 | 10.5 | 10.5 | 10.8 | 10.8 | 10.8 |
| AGM-55Ah | 225.4 | 174.5 | 147.4 | 100.5 | 83.2 | 59.0 | 34.3 | 25.7 | 20.7 | 17.1 | 15.0 | 12.9 | 10.2 | 5.5 |
| AGM-70Ah | 305.5 | 234.0 | 191.1 | 141.1 | 103.4 | 77.2 | 45.2 | 33.7 | 25.9 | 22.3 | 19.8 | 15.5 | 13.0 | 7.0 |
| AGM-90Ah | 400.0 | 306.0 | 250.0 | 184.5 | 135.2 | 101.6 | 59.0 | 42.5 | 34.0 | 29.0 | 25.8 | 20.2 | 17.0 | 9.0 |
| AGM-130Ah | 564.0 | 432.0 | 353.0 | 259.5 | 188.5 | 139.4 | 80.5 | 61.5 | 46.3 | 40.7 | 36.1 | 28.6 | 24.0 | 12.8 |
| AGM-160Ah | 730.5 | 600.6 | 471.5 | 337.5 | 243.3 | 182.0 | 106.8 | 80.8 | 61.2 | 53.2 | 46.8 | 36.4 | 29.9 | 16.0 |
| AGM-225Ah | 588.0 | 434.0 | 318.0 | 237.7 | 136.5 | 101.6 | 80.1 | 69.9 | 62.0 | 48.0 | 42.0 | 21.4 | ||
| AGM-270Ah | 600.8 | 443.0 | 348.0 | 189.9 | 142.1 | 109.2 | 91.4 | 78.5 | 60.9 | 50.9 | 27.0 |

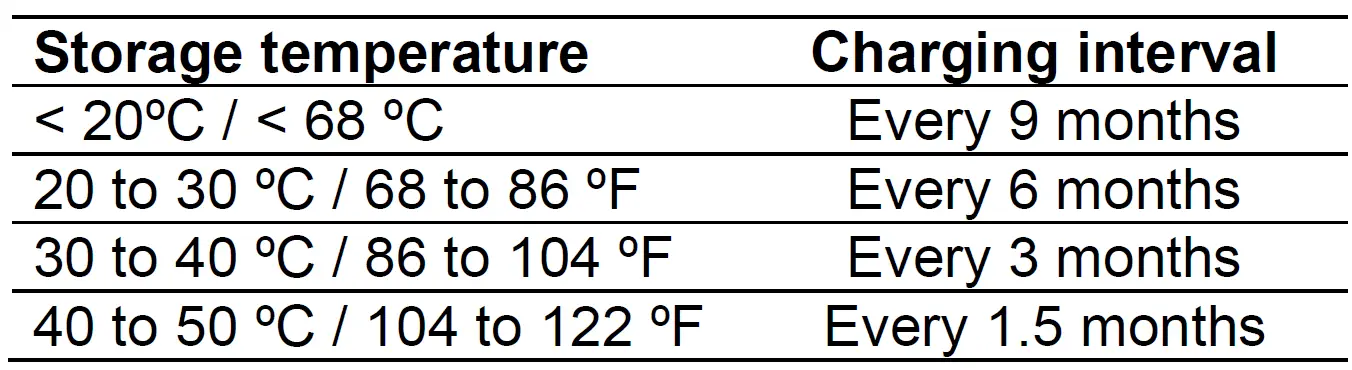

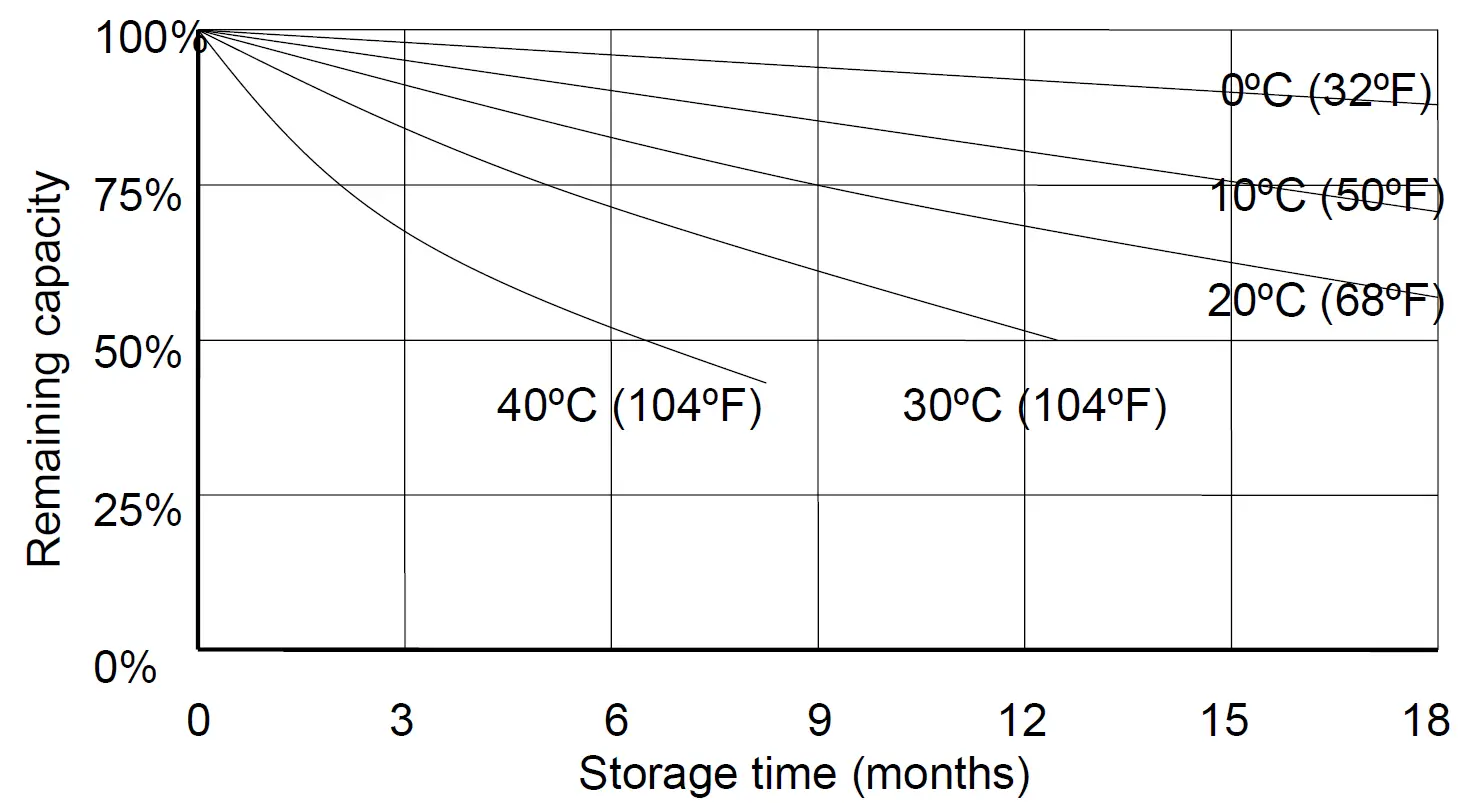

BATTERY STORAGE
The rate of self discharge is approximately 3% per month @ 20ºC. Therefore batteries need supplementary charge according to the table below to keep its capacity.

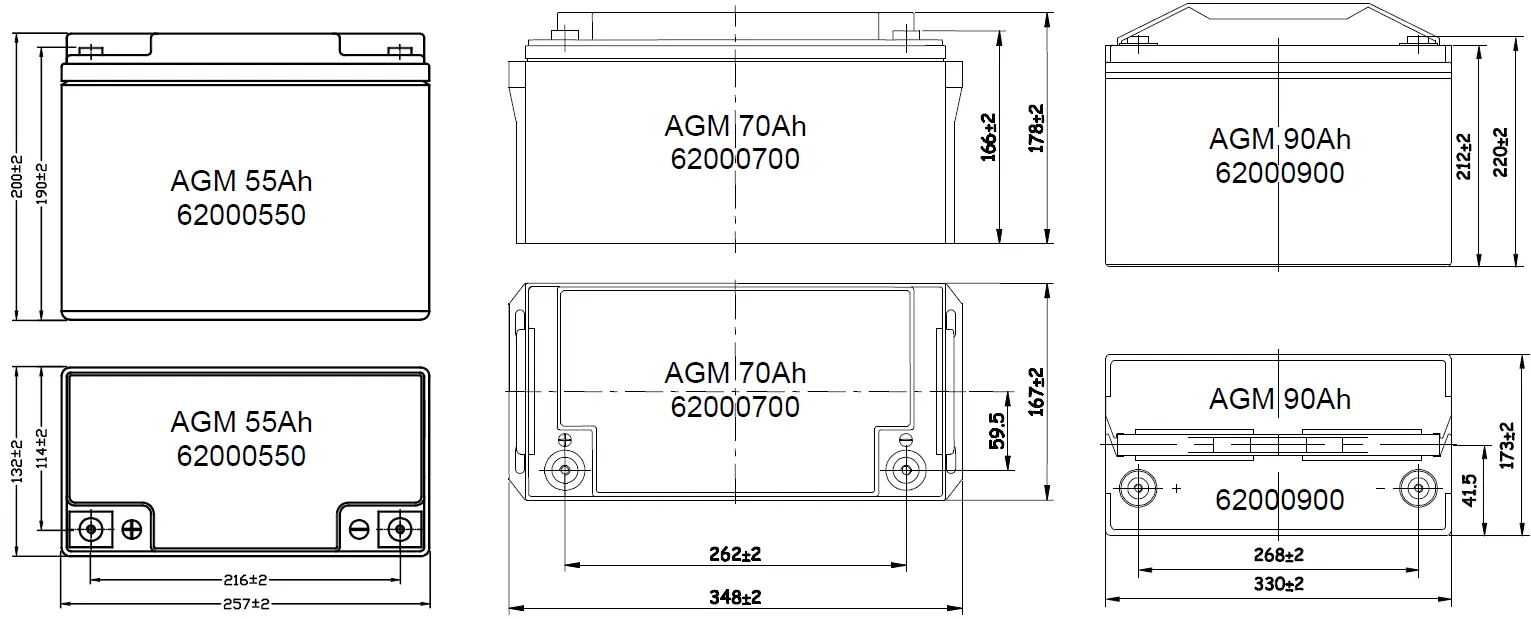

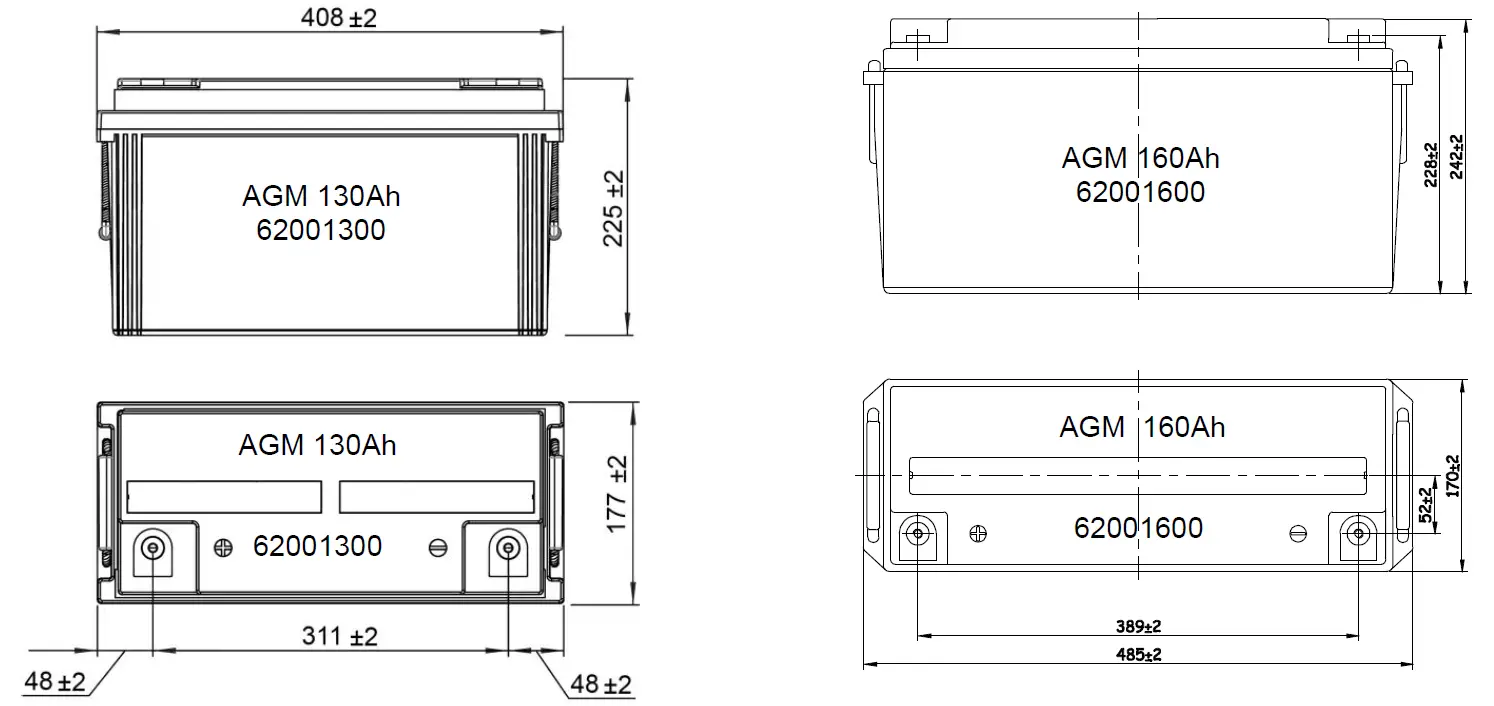

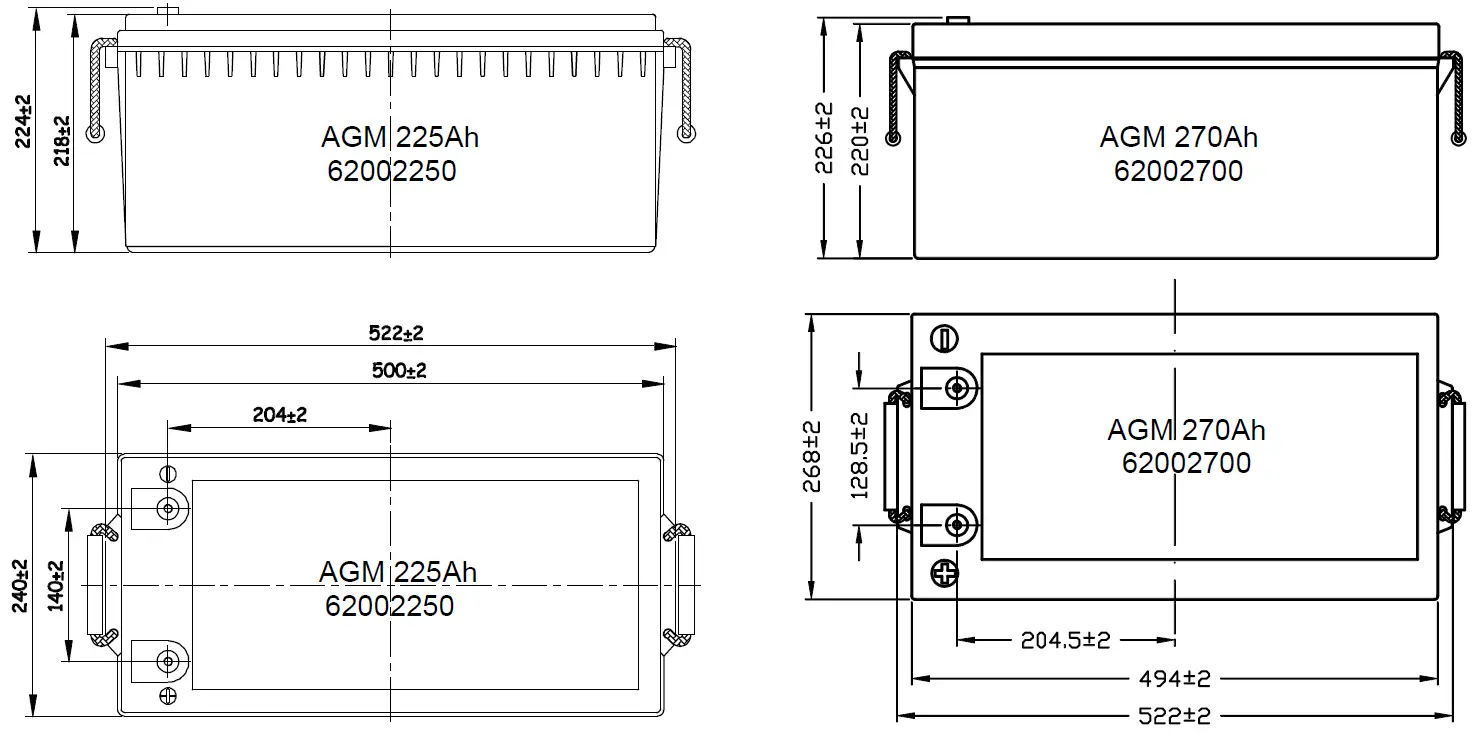

DIMENSIONS
Dimensions in mm. See www.mastervolt.com/batteries for detailed drawings
Battery casing material: ABS
SPECIFICATIONS MASTERVOLT AGM BATTERIES
| Model | AGM-55Ah | AGM-70Ah | AGM-90Ah | AGM-130Ah |
| Part number | 62000550 | 62000700 | 62000900 | 62001300 |
| Nominal voltage | 12V | 12V | 12V | 12V |
| Nominal capacity (C20) | 55Ah | 70Ah | 90Ah | 130Ah |
| Reserve capacity* | 80 min | 113 min | 179 min | 240 min |
| Number of cells per battery | 6 | 6 | 6 | 6 |
| Maximum charge current: | 15.3A | 19.5A | 25.5A | 36A |
| Approximate weight: | 17.0 kg / 37 Lbs | 21.0 kg / 46 Lbs | 28.0 kg / 62 Lbs | 37.6kg / 83 Lbs |
| BCI group number | 24 | 27 | 31 | – – |
| Terminal: threaded insert stud | M6 | M8 | M8 | M8 |
| Short circuit current acc. to IEC60896-2 | 1500A | 1625A | 2000A | 2700A |
| CCA to DIN | 250 A | 290 A | 360 A | 590 A |
| CCA to SAE | 400 A | 460 A | 570 A | 940 A |
| Model | AGM-160Ah | AGM-225Ah | AGM-270Ah |
| Part number | 62001600 | 62002250 | 62002700 |
| Nominal voltage | 12V | 12V | 12V |
| Nominal capacity (C20) | 160Ah | 225Ah | 270Ah |
| Reserve capacity* | 351 min | 474 min | 600 min |
| Number of cells per battery | 6 | 6 | 6 |
| Maximum charge current: | 45A | 63A | 76.5A |
| Approximate weight: | 42.3 kg / 93 Lbs | 62.5 kg / 138 Lbs | 73.0 kg / 161 Lbs |
| BCI group number | 4D | 8D | Super 8D |
| Terminal: threaded insert stud | M8 | M8 | M8 |
| Short circuit current acc. to IEC60896-2 | 3500A | 3650A | 4400A |
| CCA to DIN | 550 A | 680 A | 750 A |
| CCA to SAE | 870 A | 1080 A | 1200 A |

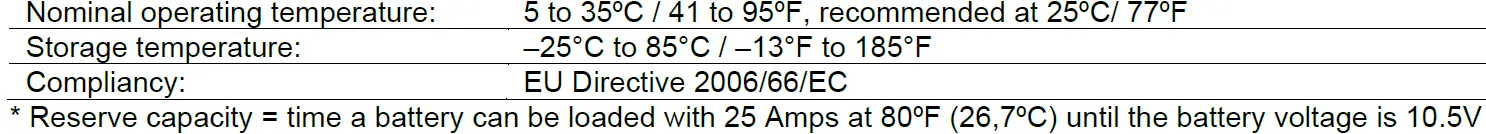

| General | |||
| Operating temperature | –20 to 55ºC / –4 to 131ºF; |
Mastervolt - Innovative power systemsfor autonomous use
