NEA0100 Battery
Instruction Manual
WARNING
To avoid injury, always read the Instructions for use and accompanied documents before using the product.
Mandatory to read the Instructions for use.

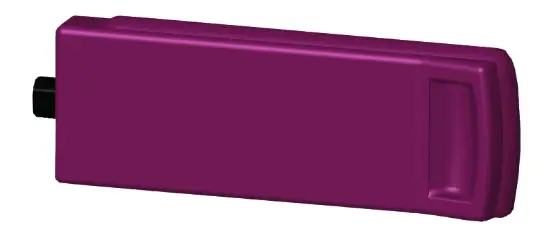

Battery NEA0100-083
NOTE
Before using the battery read the Product and Battery charger Instructions For Use.
Only charge the battery with the following Arjo battery chargers:
NEA1000–EU,
NEA2000–GB,
NEA4000–US,
NEA6000–AU,
NEA7000-JP,
NEA 8000-WW and
NEA 8000-AU.
- The battery is delivered and charged. It is recommended to recharge the battery upon receipt due to a slow self discharge.
- Do not expose cells or batteries to heart or fire
- Avoid storage in direct sunlight.
TECHNICAL SPECIFICATION
| Battery weight | 1.4 kg (3.08 lb) |
| Battery Capacity | 2.5Ah |
| Battery Voltage | 24 V DC |
| Degree of protection | IP 24 |
| OPERATING, TRANSPORT, AND STORAGE | |
| Temperature | +5 °C (41°F) to +35°C (95°F) Operating -10°C (14°F) to +45°C (113 °F) Transport -10°C (14 °F) to +45 °C (113 °F) Storage |
| Humidity | Max 90% at 20°C (68°F) Operating 80% at 20°C (68°F) Transport 80% at 20°C (68°F) Storage |
| Atmospheric pressure | 500 hPa to 1060 hPa Operating, Transport, Storage |
RECYCLING
Nickel-metal hydride.
The battery must be recycled separately. Batteries are to be disposed of in accordance with national or local regulations.
SYMBOL EXPLANATION
| Read the Instructions for use before use. |
REF | Reference number |
LOT | Manufacturer’s lot number. |
 | CE marking indicates conformity with European Community harmonised legislation. |
 | Name and address of the manufacturer. |
 | Separate electrical and electronic components for recycling in accordance with the European Directive 2012/19/EU (WEEE) |
 | Indicates that the material is part of the recycling process. |
 | Caution is necessary when handling this product. |
 | Indicates compliance with both Canadian and U.S. requirements. |
 | Battery connector |
Design Policy and Copyright
® and ™ are trademarks belonging to the Arjo group of companies.
© Arjo 2020.
As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
The content of this publication may not be copied either whole or in part without the consent of Arjo.
