Gossen Metrahit Z270g Lithium Polymer Battery Instruction Manual (+ PDF)

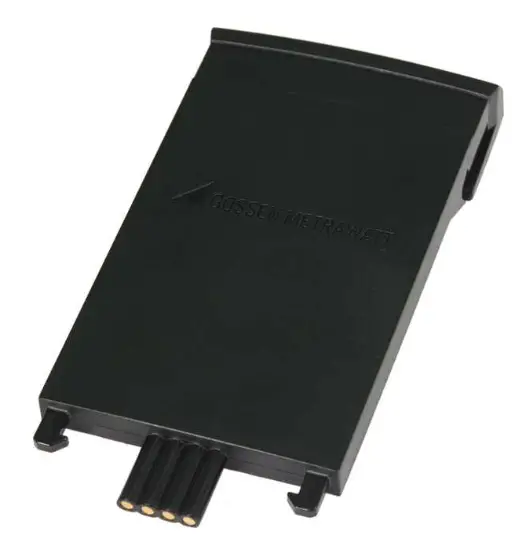

The Z270G accessory battery module is used for the power supply of the METRAHIT IM XTRA / METRAHIT IM E-DRIVE / METRAHIT IM TECH insulation tester and milliohm meter.
Application for any other purpose is not permitted.

Attention!

Please observe the currently valid safety notes for lithium Ion batteries!

The installation of the battery module is described in the short-form operating instructions (3-447-036-15) for METRAHIT IM XTRA / METRAHIT IM E-DRIVE / METRAHIT IM TECH.

Requirements According To UN Classification

The Z270G battery module contains exactly one Lithium polymer rechargeable battery by the manufacturer EEMB Energy Power CO., LTD. and an additional switch to limit the charging voltage which is only active when charging voltage is applied and which has no feedback effect on the battery with its internal protective circuit. We herewith confirm that the Lithium polymer battery integrated in the Z270G battery module fulfills the UN transport tests quoted in volume III, section 38.3 of the„ Manual for Tests and Criteria“ of the UN. We explicitly refer to the attached Material Safety Data Sheet “Reference No. 180101B of the manufacturer EEMB Energy Power CO., LTD. We also refer to the attached„ Test Report for Rechargeable Lithium-ion Polymer Battery Pack model 1p4563122 “Ref: UN38.3.

The two complete documents are available in the download section of our homepage. Please also note the transport document for detached Lithium ion batteries (3-349-854-15)!

Return and Environmentally Sustainable Disposal of the Lithium Polymer Battery

If the battery inserted in your instrument is no longer efficient, it must be properly disposed of in accordance with the applicable national regulations.
Please ensure that the battery is disposed of in accordance with the applicable regulations or return it to GMC-I Service GmbH free of charge, address see below.

Repair and Replacement Parts Service

Calibration Center and Rental Instruments Service

If required please contact:
GMC-I Service GmbH
Service Center
Beuthener Straße 41
90471 Nürnberg • Germany
Phone: +49 911 817718-0
Fax: +49 911 817718-253
e-Mail: [email protected]
www.gmci-service.com

This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries.

EEMB Energy Power CO., LTD.

6/F,110# Building,Jindi Industrial Zone,
ShaTou Street, Futian District, ShenZhen, China
Tel: +86 755 22225375
E-mail: [email protected]
Website: http://eemb.com

MATERIAL SAFETY DATA SHEET

Reference No. 180101B
LITHIUM ION BATTERY

PRODUCT IDENTIFICATION

Product: Lithium Ion Battery
Model: LP4563122-PCM-NTC-LD/

Composition & Information on Ingredients

Composition:
Steel, Copper, Aluminum: 31%
Polypropylene: 10%:
Lithium cobaltite: 29%
Organic solvents: 13%
Salts: 1%
Lithium metal: 0%

Electrochemical system:
Negative Electrode: Carbon
Positive Electrode: Lithium cobaltite (LiCoO2)
Electrolyte: Solution of lithium hexafluorophosphate (LiPF6) in a mixture of organic solvents
Nominal Voltage: 3.7 V
No more than 0.5g/pc lithium is contained.

The information and recommendations set forth are made in good faith and believed to be accurate as of the date of preparation. EEMB CO., LTD. makes no warranty, expressed or implied, with respect to this information and disclaims all liabilities from reliance on it.

UN3 8. 3 Test Report

Sample Description & Model: Rechargeable Lithium-ion Polymer Battery Pack LP4563122
Applicant: EEMB Energy Power Co., Ltd ..
Manufacturer: EEMB Energy Power Co., Ltd.

SAMPLE DESCRIPTION

Sample Description	Rechargeable Lithium ion Polymer Battery Pack			Sample Model	LP4563122
Applicant	EEMB Energy Power Co., Ltd.
Manufacturer	EEMB Energy Power Co., Ltd.
Nominal Voltage	3.7V		Rated Capacity	4Ah	Limited Charge Voltage	4.28V
Charge Curre11t	0.8A		Maximum Continuous Charge Current	4A	End Charge Current	0.08A
Cut-off Voltage	2.75V		Maximum Discharge Current	SA	Use	—
Cell Number In Each Battery	1 PCS		Cell Model	LP4563 l22	Cell Capacity	4Ah
Electrochemistry System		Li-Co
Manufacturer of cell		EEMB
Entrust date		2018-05- l l		Finished date	2018-06-0 l

TEST METHOD

UNITED NATIONS “Recommendations on the TRANSPORT OF DANGEROUS GOODS” Manual of Tests and Criteria (ST/SG/AC.I 0/11/Rev.6), Part Ill sub-section.

TEST ITEM

Altitude simulation
Thermal test
Vibration
Shock
External short circuit
Crush
Overcharge
Forced discharge

CONCLUSION

ITEM	SAMPLE NUMBER	STANDARD	CONCLUSION
Altitude simulation	N1~N10	UN38.3 ST/SG/AC.10/11/Rev.6	PASS
Thermal test			PASS
Vibration			PASS
Shock			PASS
External short circuit			PASS
Crush	N11 ~N1 5		PASS
Overcharge	N16~N19 CI-C4		PASS
Forced discharge	N20~N29 C5~C14		PASS

The Samples has passed the test items of UNITED NATIONS “Recommendations on the TRANSPORT OF DANGEROUS GOODS” Manual of Tests and Criteria (ST/SG/AC.10/11/Rev.6), Part III sub-section.

Appraiser:

Checker:

Approver:

Issue Date: June 1,2018

Hotline 400-819-5688 www.ponytest.com
Pony Testing International Group Shenzhen Co . Ltd.
Address: IF., Building 6, Zhongxing Industry City Chuangye Rood, Nanshan District, Guangdong, Shenzhen, China
