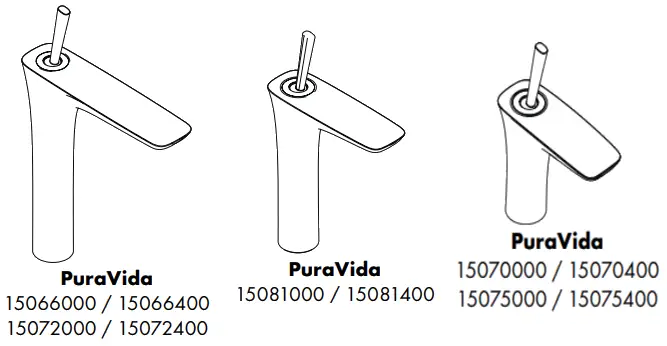

Instructions for use / assembly instructions
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes. The hot and cold supplies must be of equal pressures.

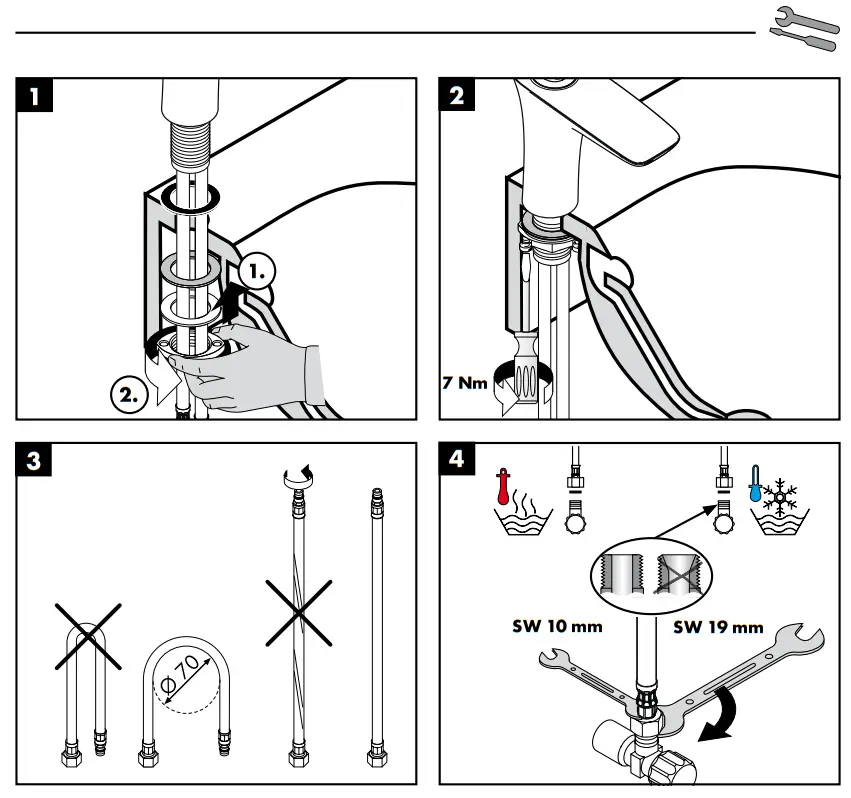

Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
- If the water is flowing along the fixture in the direction of the shaft, the spray former must be replaced with a standard air bubbler 13913000.
Technical Data
This mixer series-produced with EcoSmarr (flow limiter)
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 MPa |
| (1 MPa = 10 bar = 147 PSI) Hot water temperature: | max. 80°C |
| Recommended hot water temp. | 65°C |
Symbol description
 | Do not use silicone containing acetic acid! |

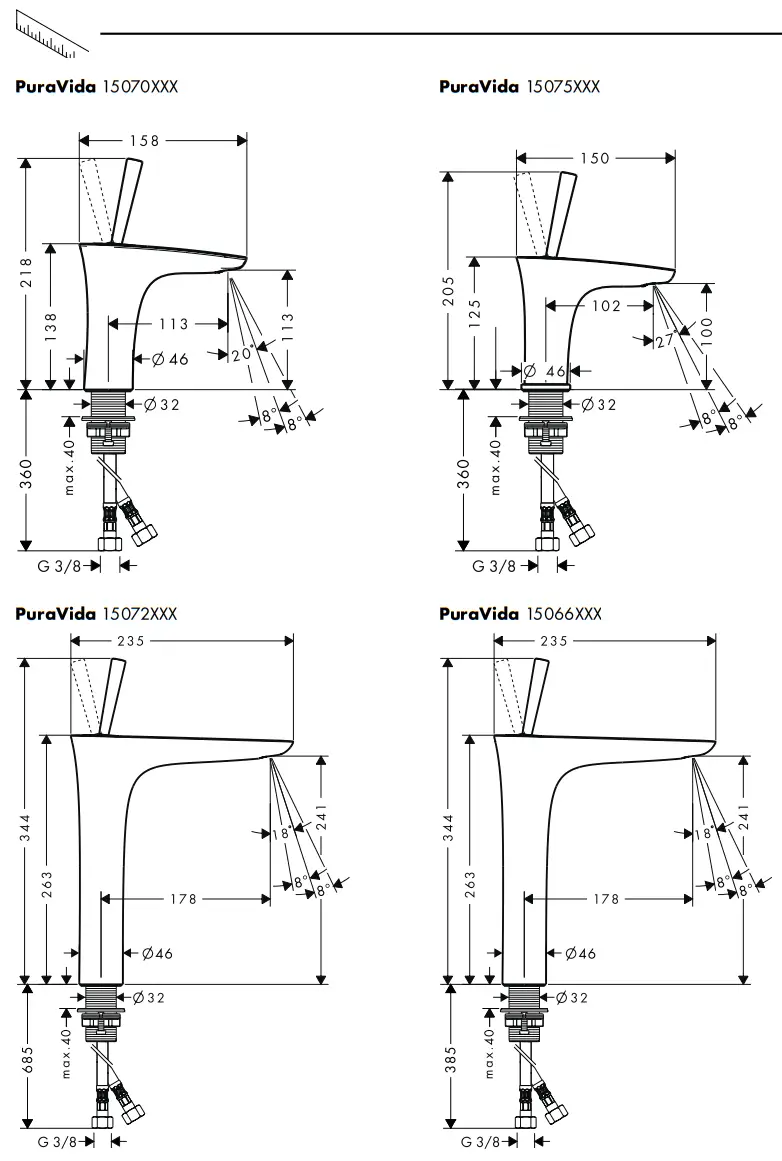

 | Dimensions (see page 32) |
 | Flow diagram (see page 33) 1. with EcoSmart ® 2.without EcoSmart ® |

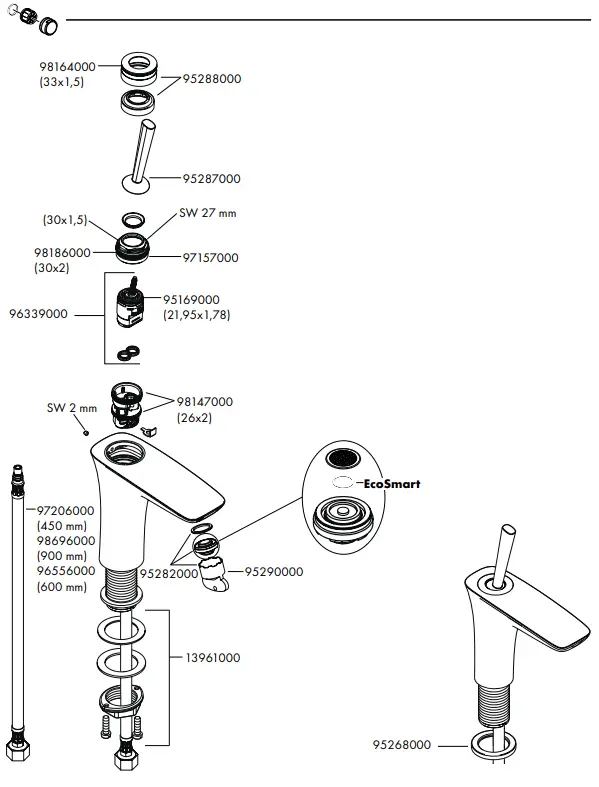

 | Spare parts (see page 36) |

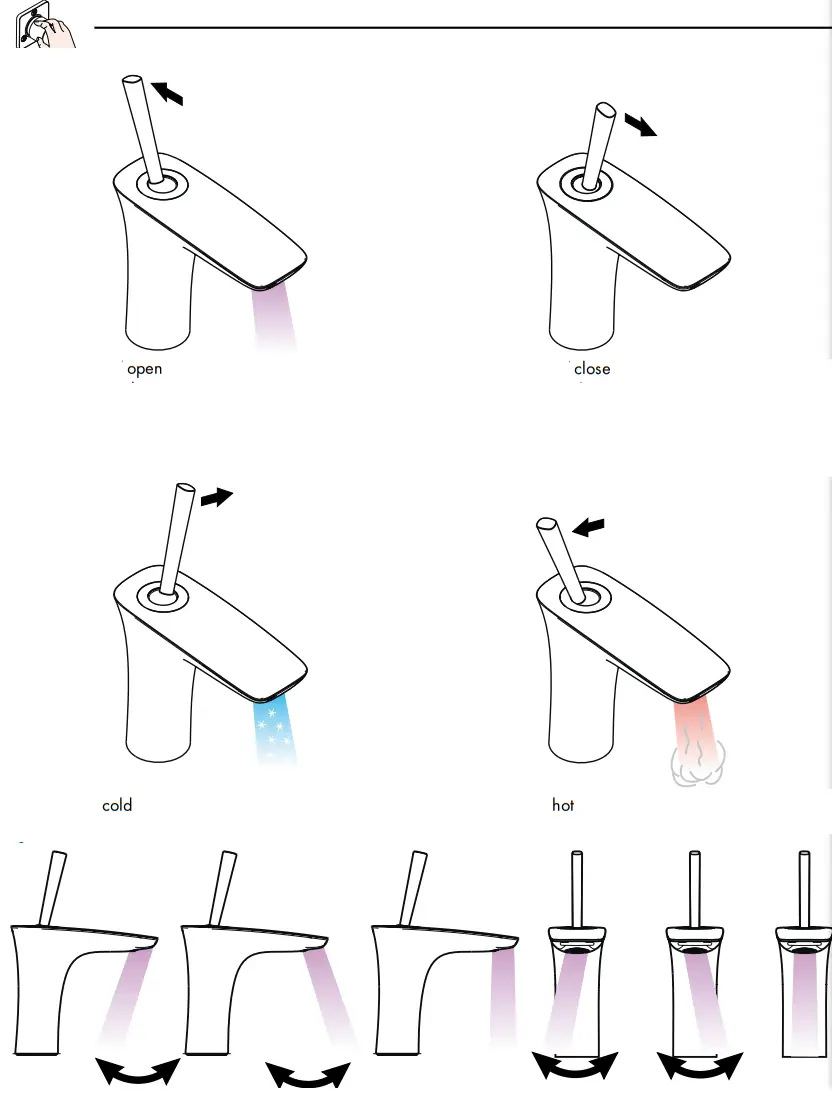

 | Operation (see page 34) |

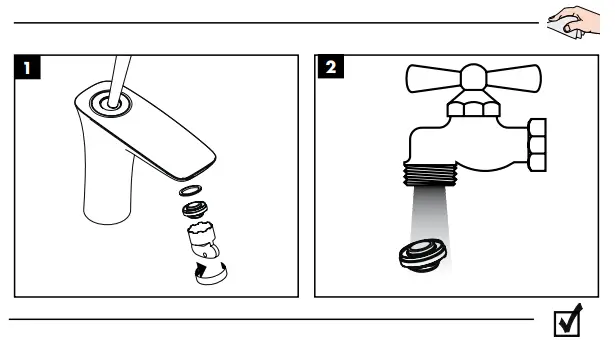

 | Cleaning (see page 35) and enclosed brochure |
 | Test certificate (see page 35) |
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 15066XXX | ||||||||
| 15070XXX | P-IX 19313/IO | CL0393 | ||||||
| 15072XXX | P-IX 19313/IO | CL0393 | ||||||
| 15075XXX | P-IX 19313/IO | CL0393 | ||||||
| 15081XXX |
