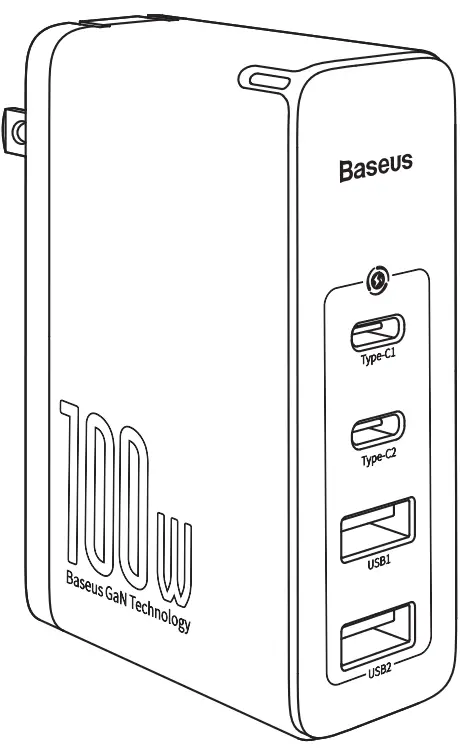

Baseus CCGAN100US 100W USB C Charger
Baseus CCGAN100US 1
Product Parameter
- Name: GaN2 Pro Quick Charger
- Model No.: CCGANlOOUS
- Material: PC
- Input: AC 100-240V-, 50/60Hz, 2.SA Max.
- Type–Cl/r type-C2 Output: 5V/9V/12V/15V-3A, 20V-SA USB1/USB2 Output: SV/9V/12V{lW= :,A
- Type-Cl+ Type-C2 Output: 65W+?,OW/30W+65W
- US Bl +USB2 Output: SV-3A
- Type–Cl/rype-C2+USB1/USB2 OUtput: 65W+30W Type-Cl+ Type-C2+USB1/USB2 Output: 60W+20W+ 18W Type-Cl+ Type-C2+USBl+U5B2
- Output: fiJW+2QW+ 15W Product size: 85.2 X 30.5 X 54.8mm
- Product weight: 205g
- Name: Baseus MiniWhiteSeries Data Cable(with E-Markerchip}
- Material: TPE
- Current: SA (20V-SA lOOW)
- Interface: Type-C to Type–C
- Length: lm
- The above data are measured by the Baseus laboratory, the actual use will be slightly different depending on the specific circumstances.
Packing List
- ChargerXl
- User Manual X 1
- Warranty Card Xl
- SA C to C 20V-5A lOOW Charging cable (With E-MarkerChip) x 1

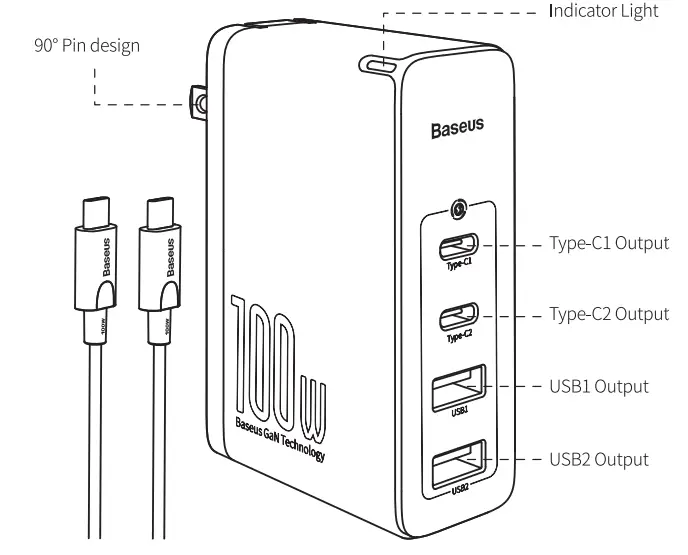

Product Diagram
Product description
This product is a 100W travel charger made of new semiconductor material Gan. The product has a small size, rich interfaces (2C 2U), complete fast charging protocols, and supports QC4 +, PD3.0, QC3.0, QC2.0, SCP, FCP, AFC, PE+, etc. the maximum output power of Type-Cl and Type-C2 is lOOW when they are used separately {’20V = SA), which can provide full speed fast charging for most laptops. When Type-Cl type-C2 and USBl or USB2 ports are charged at the same time, 95W output power can still be supported, which can provide the same speed fast charging for Apple laptops. At the same time, it can support fast charging for Huawei 22.SW, Samsung 45W, Xiao mi 2T#, and other mobile phones, which can achieve fast charging for most mobile phones and laptops. Products built-in over-current, over-voltage, temperature protection and other multiple safety protection circuit
Use environment
- Operating environment temperature: non-tropical areas below 2000m above sea level.
- Not to be used in tropical regions.
- Notto be used above2000m.
- Not suitable for outdoors.

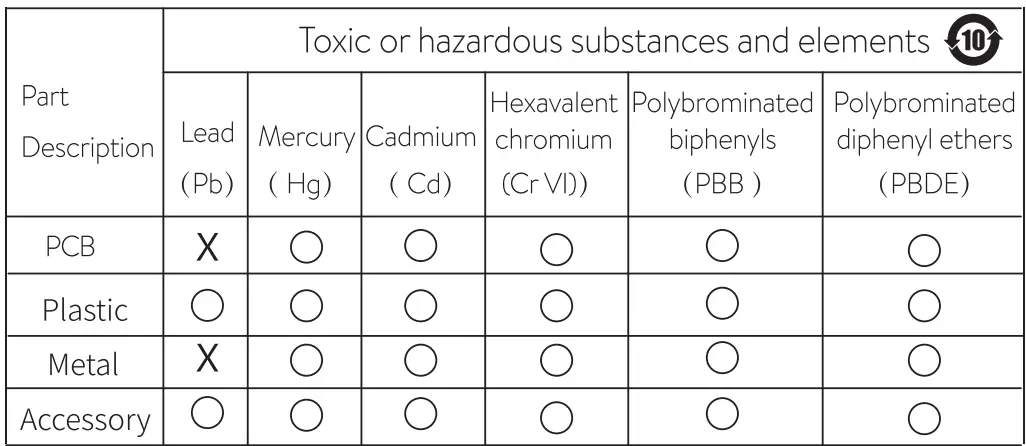

Statement on Toxic and Hazardous Substances in Electronic Information Products
This form is compiled in accordance with SJ/T 11364.
- O: indicates that the content of the toxic and harmful substance in all homogeneous materials of the component is below the limit specified in GB/T26572 standard.
- X: The content of toxic and harmful substances in at least one homogeneous material of this part exceeds the limit stipulated in GB/T 26572 standard.
This product complies with EU Ro HS 2.0 Directive(2011/65/EU)
The 10-year icon refers to the “effective life of environmental protection”, not the product quality assurance period. Electronic products all contain toxic and harmful substances such as lead, mercury and cadmium. Once they are overused, toxic and harmful substances may leak or mutate, cause pollution to the environment, or cause serious damage to people and property. The term of “environmental protection use” means that all electronic products will be required to use within this effective period. We will no longer be responsible for the quality of the products due to the safety risks that arise after the safe use period.
Tips
Please read all instructions and warnings before using this product. Non-standard use will damage the product or the person’s safety.
- Do not store the product in high temperatures, strong light, and a strong magnetic field. Do not place it in other harsh environments such as fire sources.
- Improper use of the product can easily cause damage to the product or may endanger personal and property safety.
- Consumers shall be liable for any personal and property damage resulting from their improper use of the user manual or ignoring the warning. to which our company will not bear any legal liability.
- The disintegration of this product by non-professionals is strictly prohibited.
- Use of household appliances or loads in excess of the output current of this product shall be avoided (no output due to circuit protection).
- Intense physical actions including knocking, throwing, trampling on and squeezing, etc. shall be avoided.
FCC Rules
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cotTectthe interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning Please follow the above safety instructions otherwise it will cause fire, electric shock, damage or other damage.
Shenzhen Times Innovation Technology Co., Ltd.
Md: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen
Manufacturer: Dongguan Baolaipo Communication technology.,Ltd Manufacturer Address: No. 11, Vader Road, Hengli Village, Shengli Town, Dongguan City Executive Stand an rd: Q/SSCZ 009-2019
Hotline: +86-4Q()J-712-711 Website: www.baseus.com
Copyright©2010-2021 Shenzhen Times Innovation Technology Co., Ltd. All Rights Reserved
FAQS
yes. It work with the zephyrusg14 2022.
configuration. i have tried numerous 100w-rated USB cables.
Not sure what could be the reason but you could check your laptop power management configuration. It’s working fine with my Lenovo Legion 5 Pro. I use the same cable which came with Baseus charger connected to the first USB-C on the charger. The other end the the cable connected to USB-C PD on my laptop. While charging, just make sure it’s the only active connection in order to get the full 100W charging.
the white version is in stock and available. In addition, it is also a warranty product, please rest assured to purchase.
yes, we support lifetime warranty, if you have any questions, please feel free to contact us.
If only one device is being charged it is capable of charging at 100W on either port.
The diagram in the product description shows it better.
Most likely, this question is for the manufacturer. I don’t know. I only know that it perfectly charges my macbook, iPhone and power bank at the same time.
Yes… That’s what it said on the product description.
yes, out this 100W gan charger input voltage is 100-240V. If you have any question, please feel free to contact us.
USB A port support QC, USB C port support QC, and PD.
Yes, It is USB-IF certified so you can buy this 100W charger without worrying.
No. It cannot charge two devices at 100W at the same time.
The diagram in the description shows the power split at roughly 70/30 when charging multiple devices.
Per its specification, when only using 1 USB-C, it delivers 20V-5A (100 watts) max.
