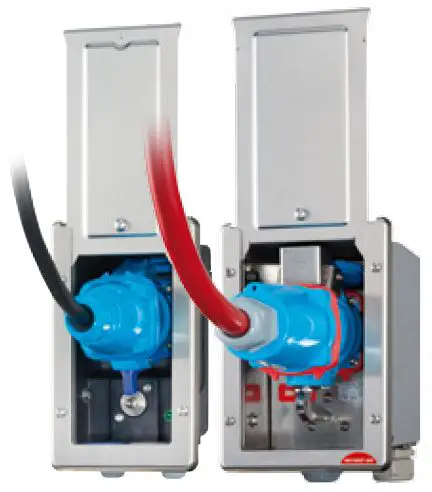

RETTBOX 20A Plugs and Sockets
20 A/32 A
- For all types of emergency vehicles
- DECONTACTOR™ for power supply with secure/automatic ejection RETTBOX® or power supply with compressed air RETTBOX®-Air
- AISI 316 L stainless steel housing with the electromagnetic coil (12 V DC-24 V DC)
- Automatic ejection of the coupler socket upon start-up of the vehicle
- 5 pin connector for Anti-start function
- Voltage presence indicator
- RETTBOX®-Air: Compressed air supply up to 13 bar
- More than 10,000 matings tested

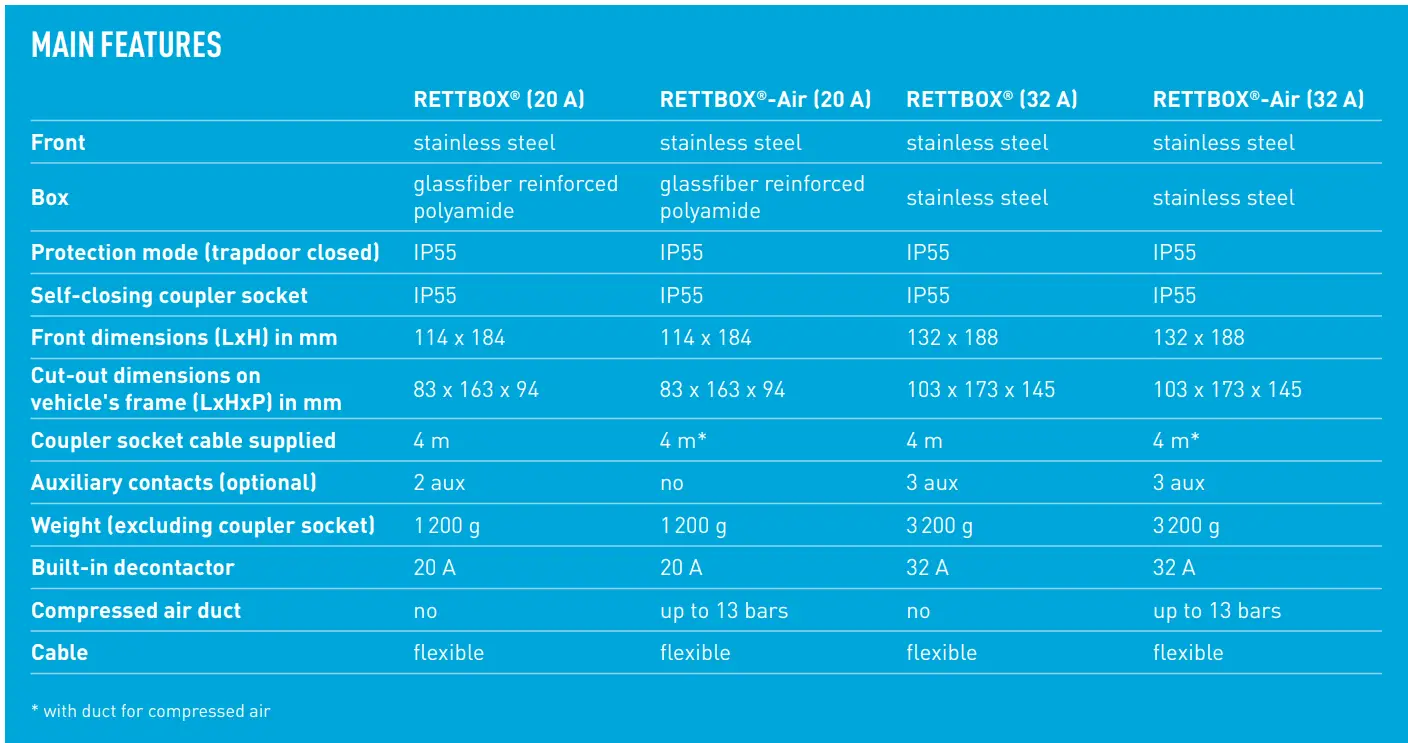

Main Feature

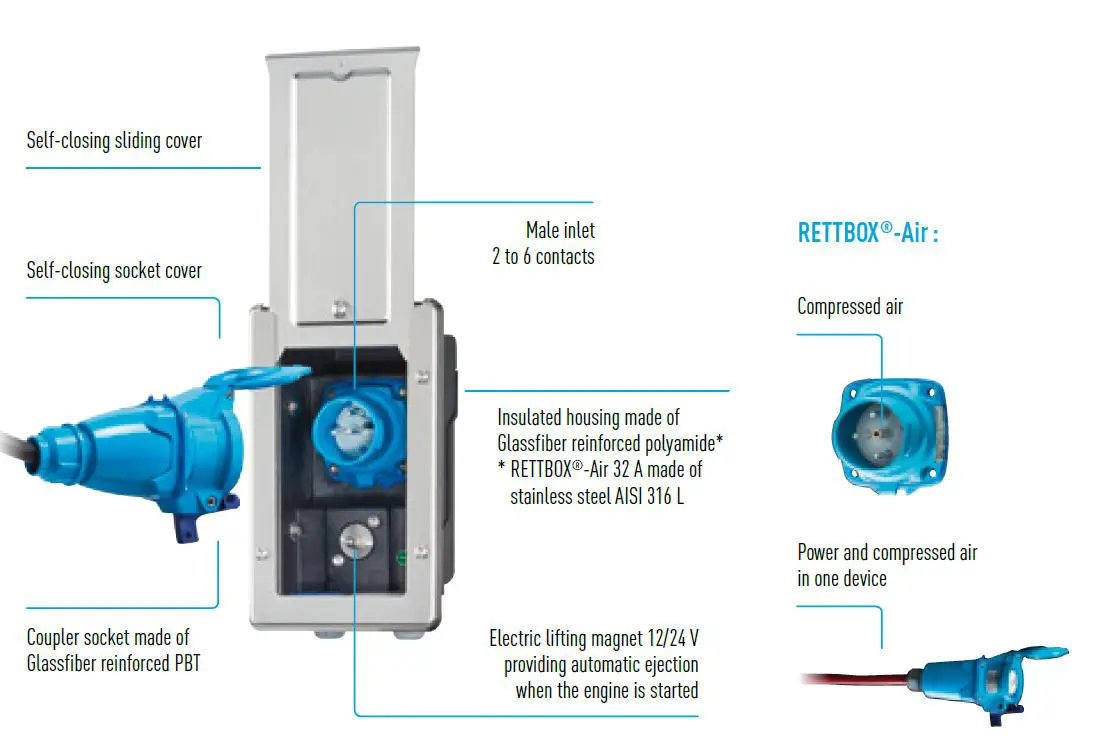

| ENSURE SPEED AND SAFETY Loading box connected to the electrical system of the vehicle. Automatic ejection of the coupler socket upon start-up of the vehicle by way of an electric lifting magnet. Protection against water and dust by means of a self-closing cover. |
switched off charge |
Starting ejection |
|
|
protection | INFOS + |

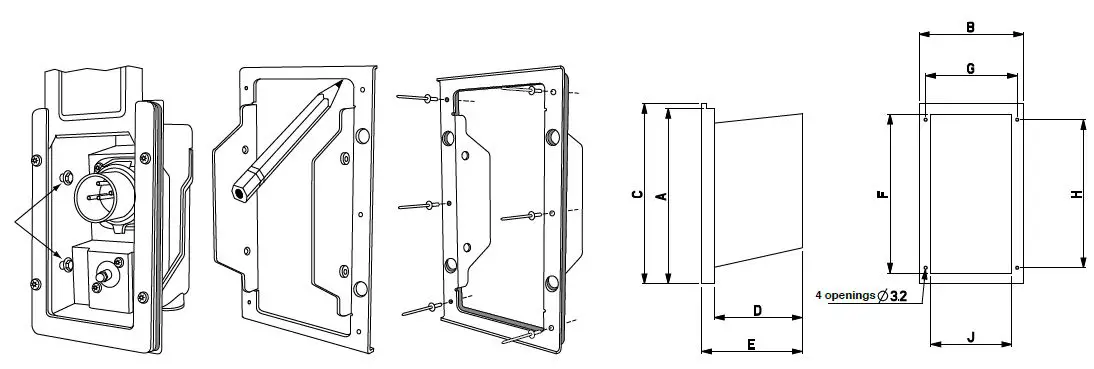

INSTALLATION STEPS & DIMENSIONS
| A | B | C | D | E | F | G | H | J | |
| RETTBOX® 20 A | 184 | 114 | 184 | 89 | 114 | 163 | 94 | 152 | 83 |
| RETTBOX®-Air 20 A | 184 | 114 | 184 | 89 | 114 | 163 | 94 | 152 | 83 |
| RETTBOX® 32 A | 188 | 132 | 197 | 140 | 151 | 173 | 116 | 169 | 103 |
| RETTBOX®-Air 32 A | 188 | 132 | 197 | 140 | 151 | 173 | 116 | 169 | 103 |
TYPICAL CONNECTING DIAGRAM RETTBOX®

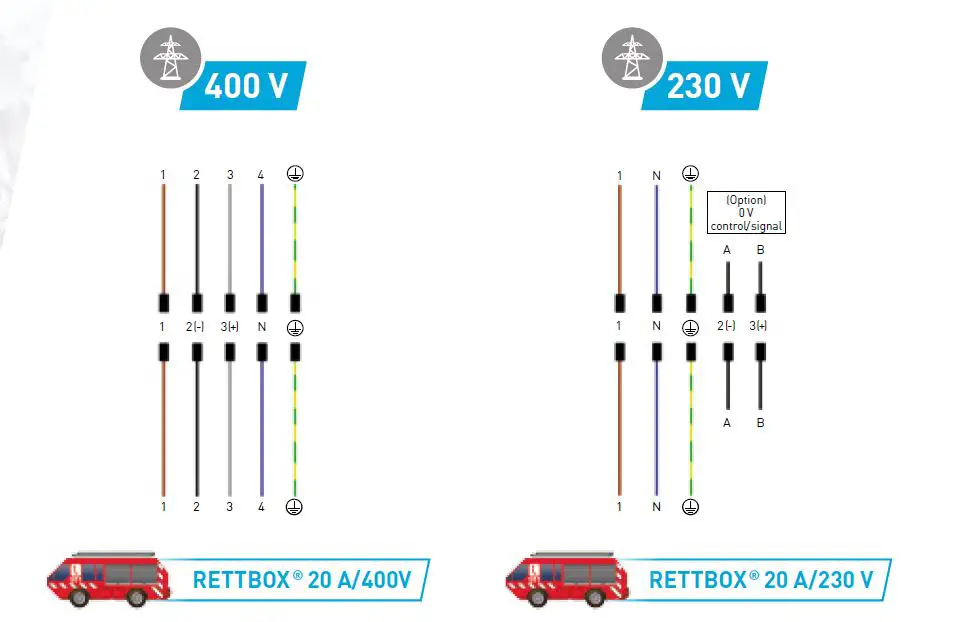

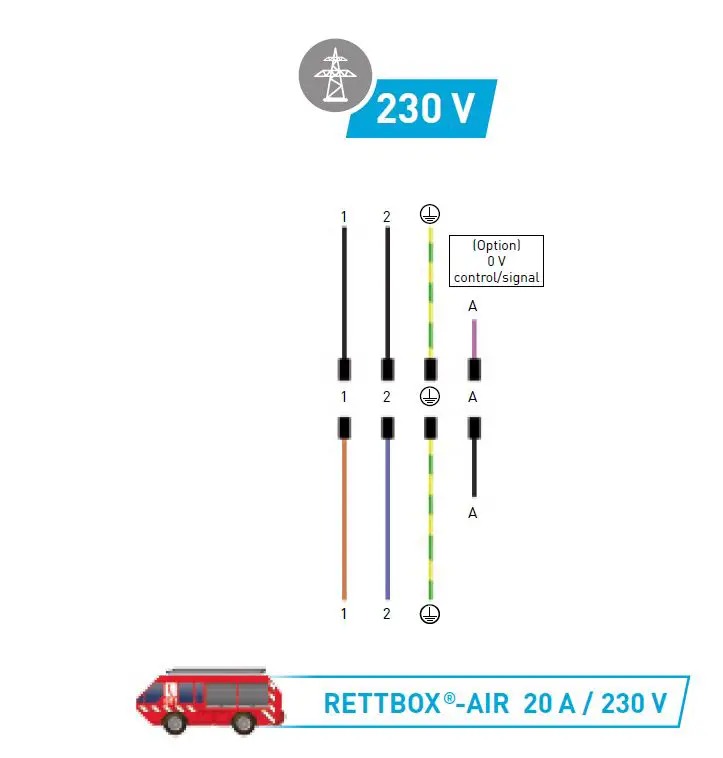

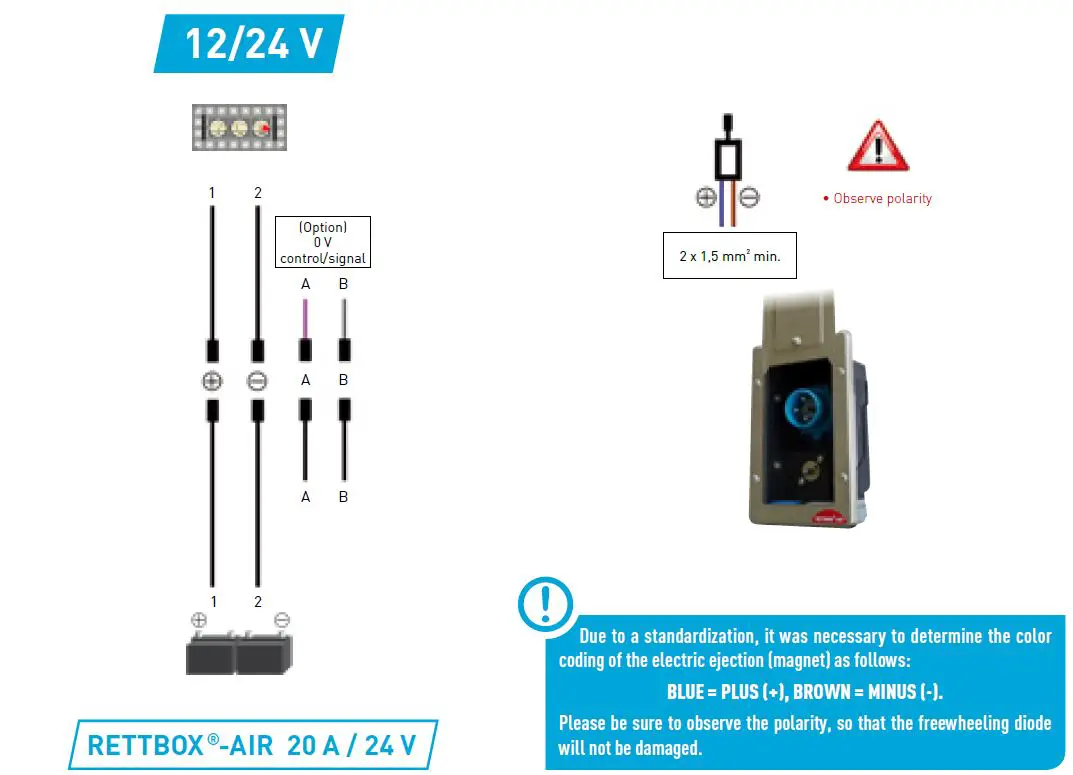

WIRING DIAGRAM/RETTBOX® 20 A

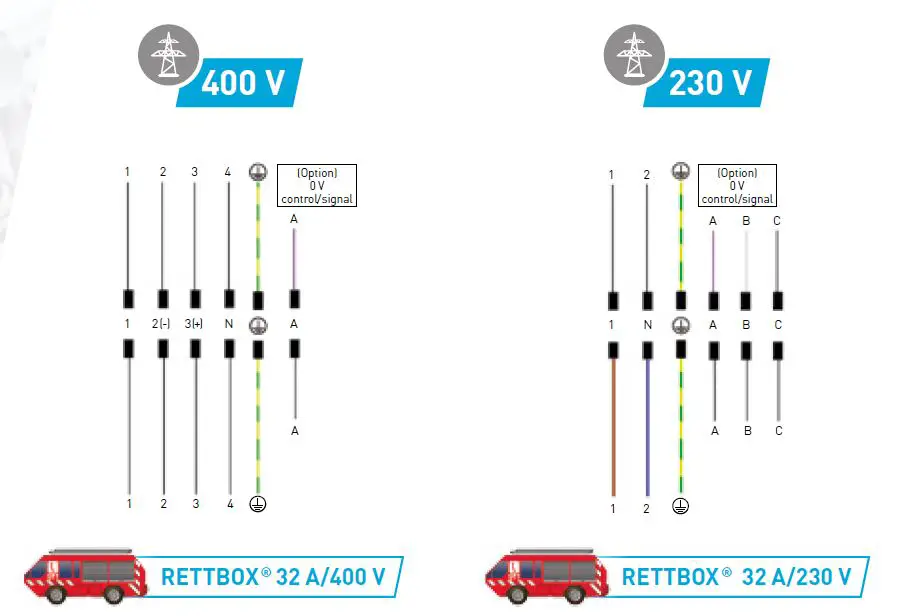

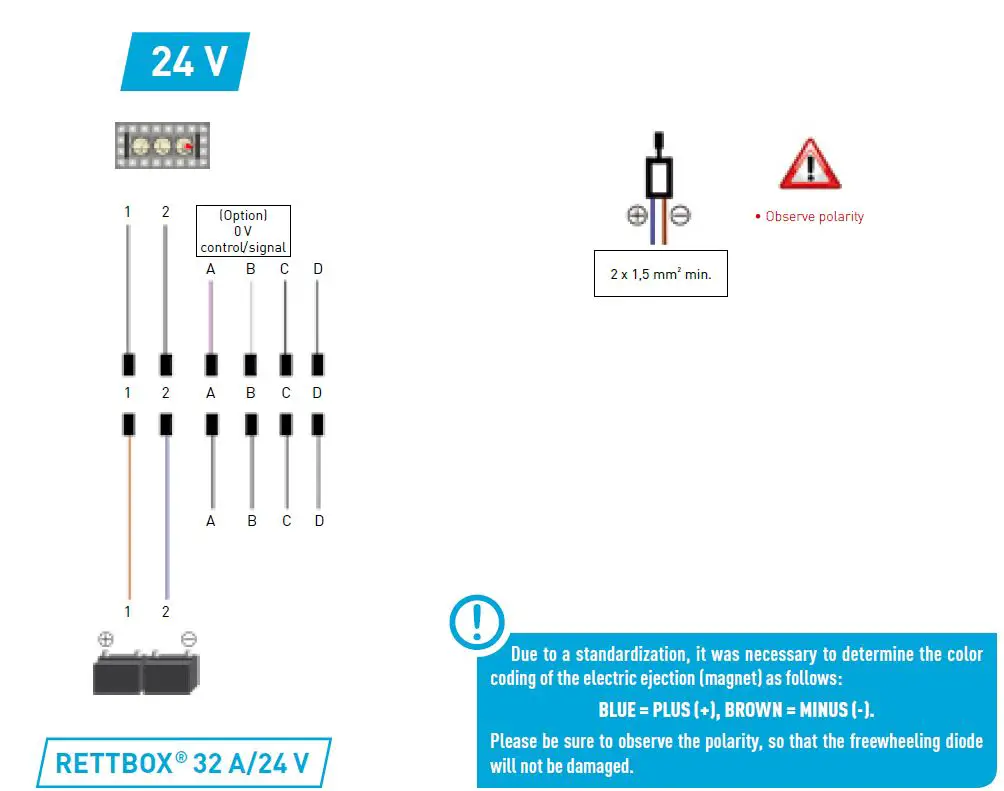

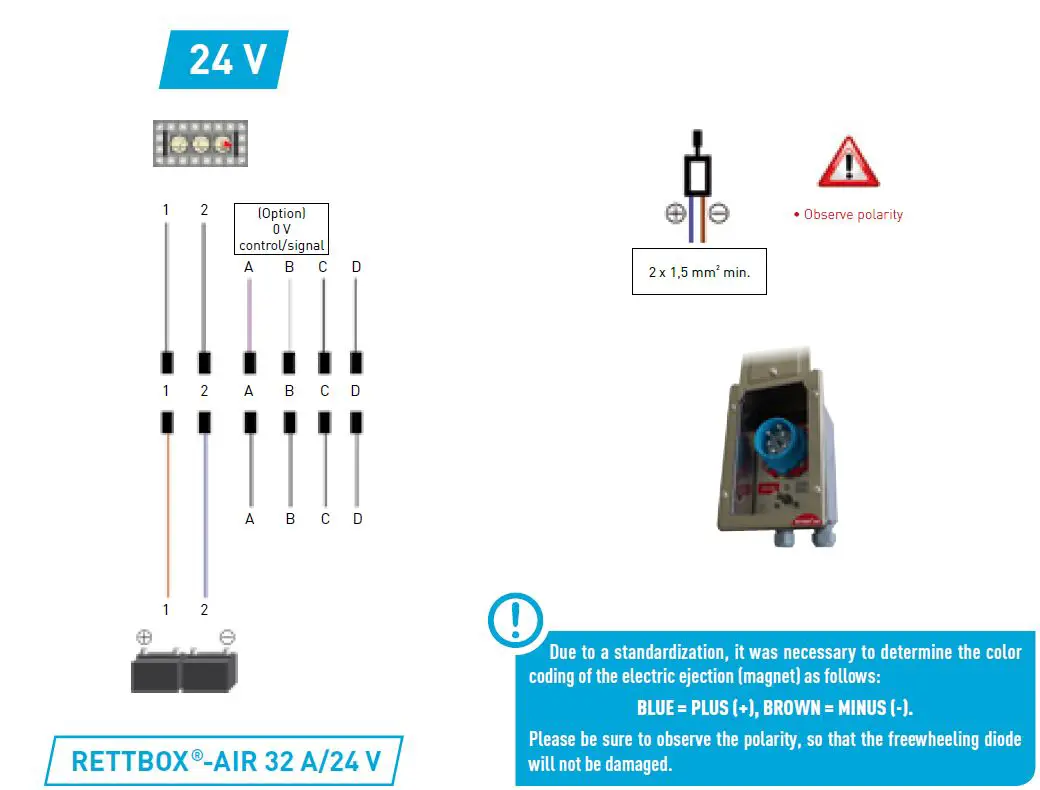

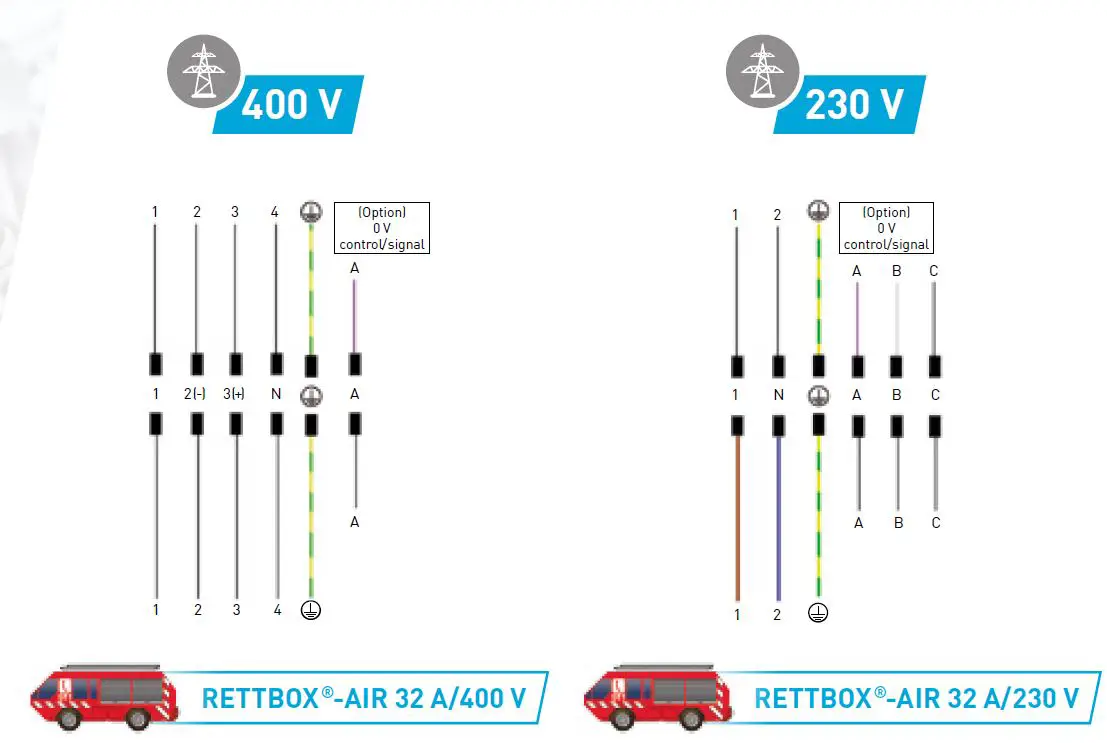

WIRING DIAGRAM/RETTBOX® 32 A

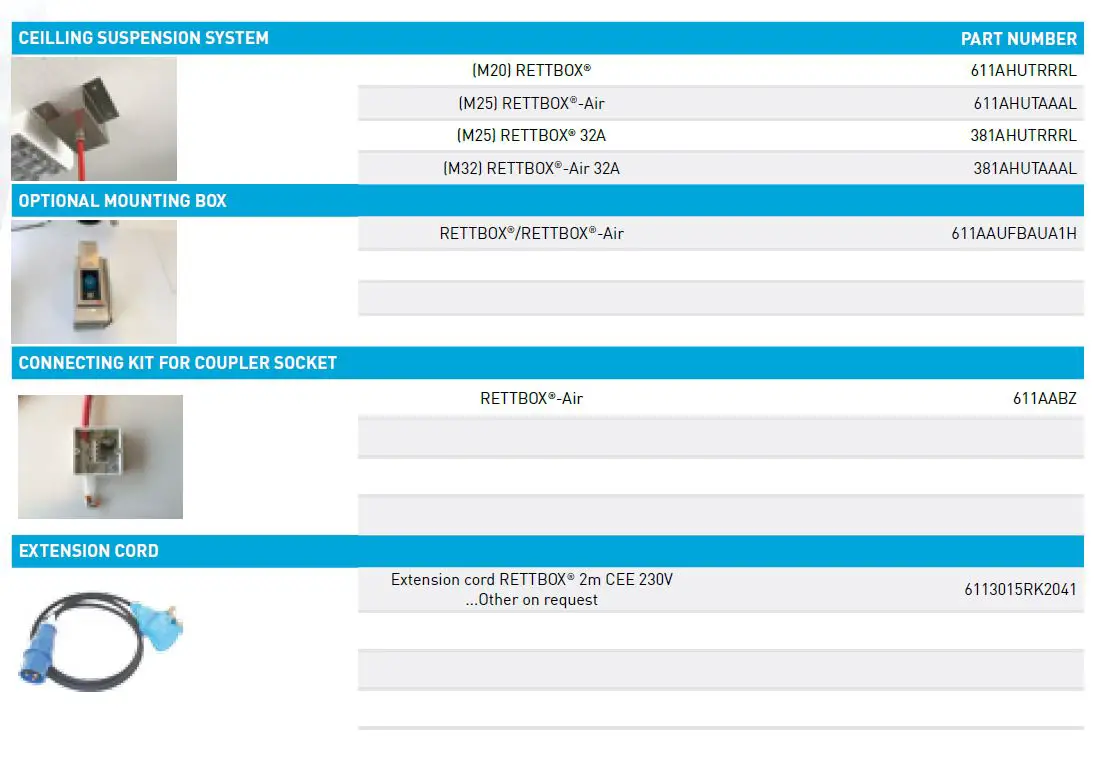

OPTIONS

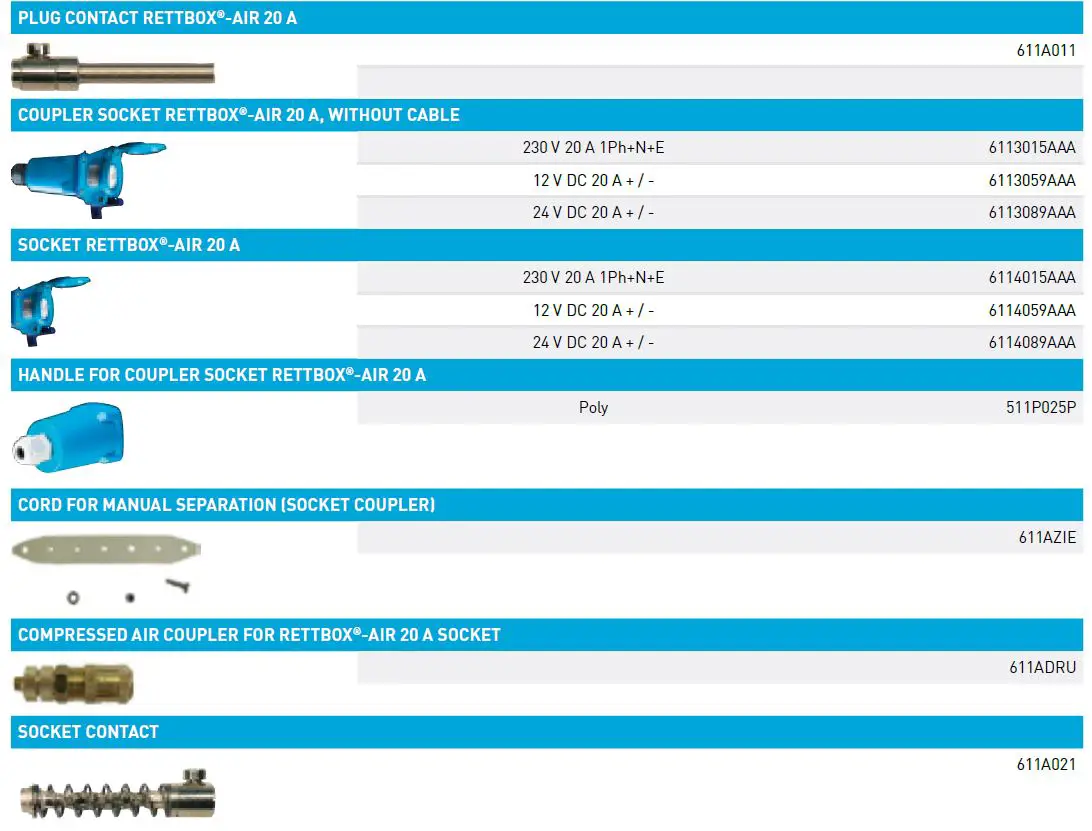

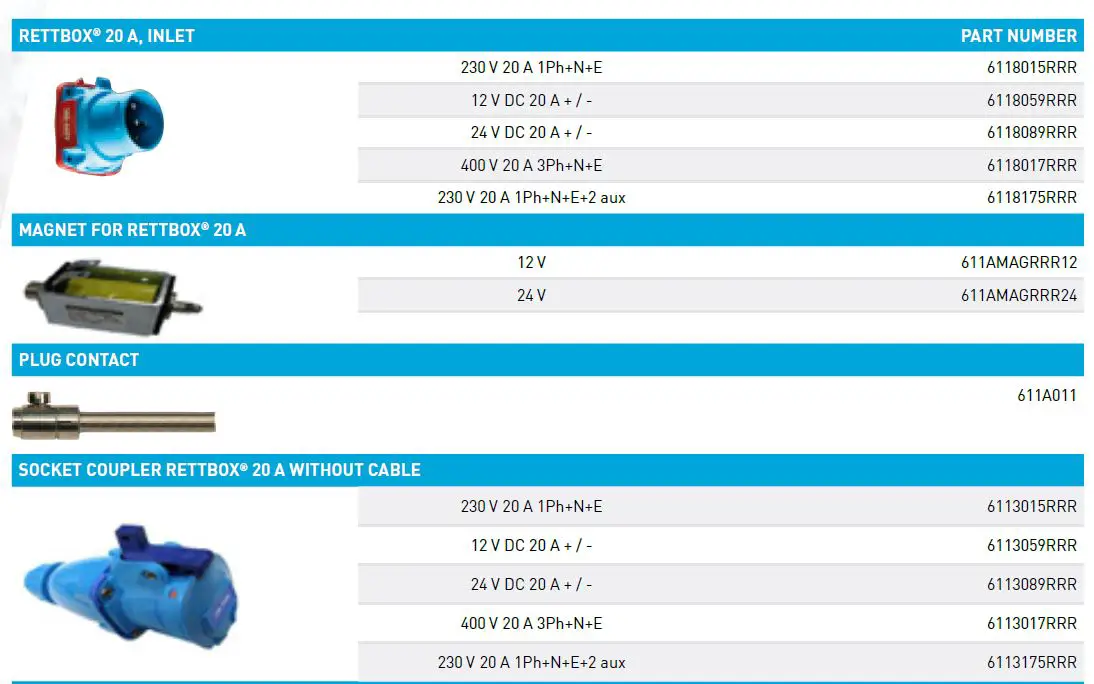

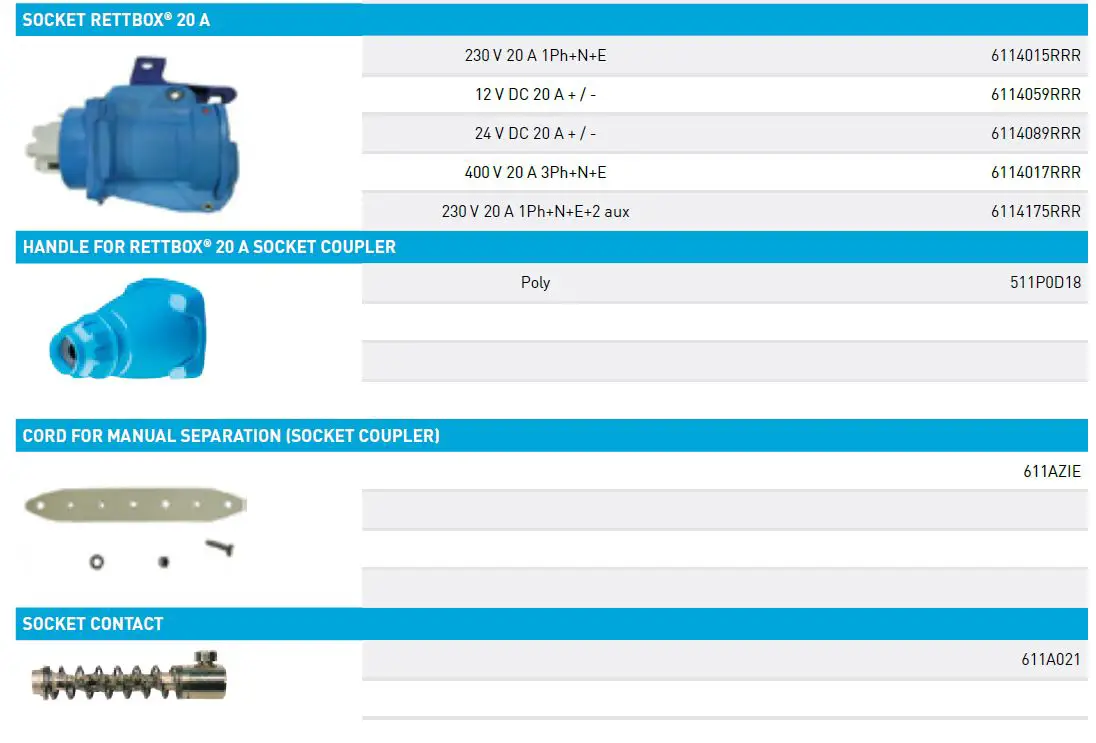

SPARE PARTS RETTBOX® 20 A

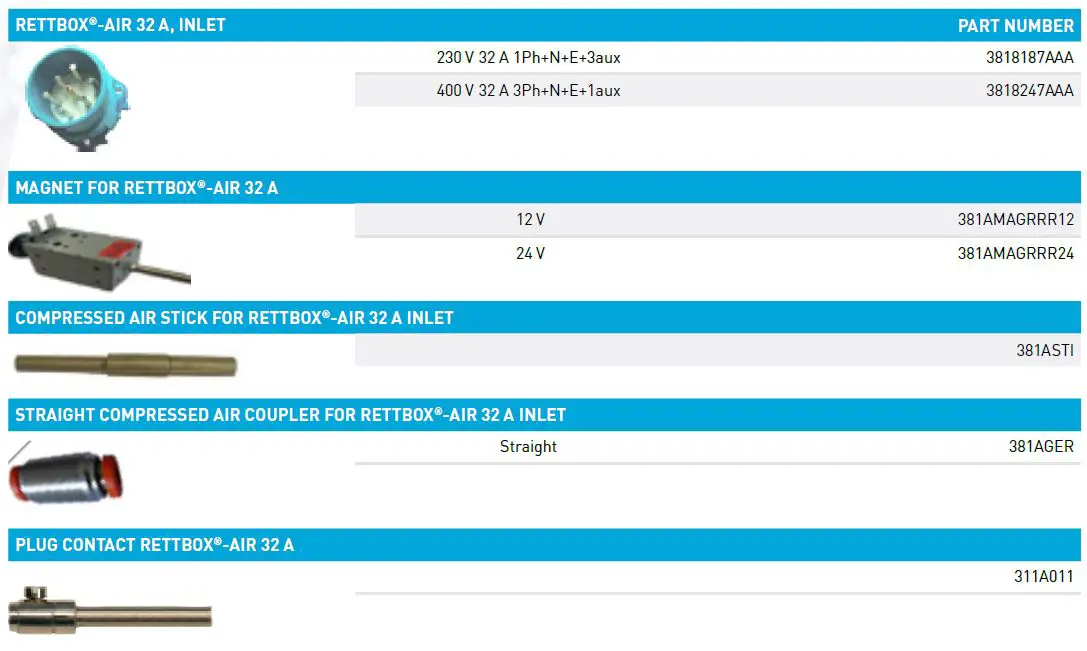

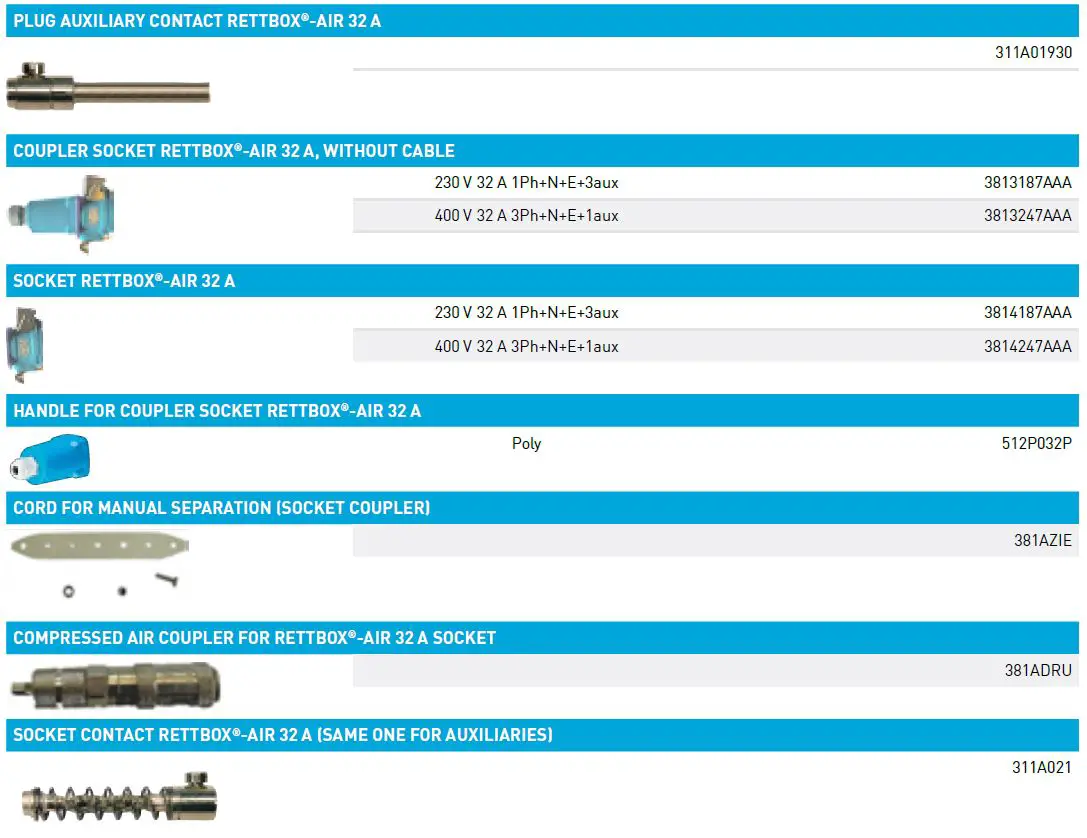

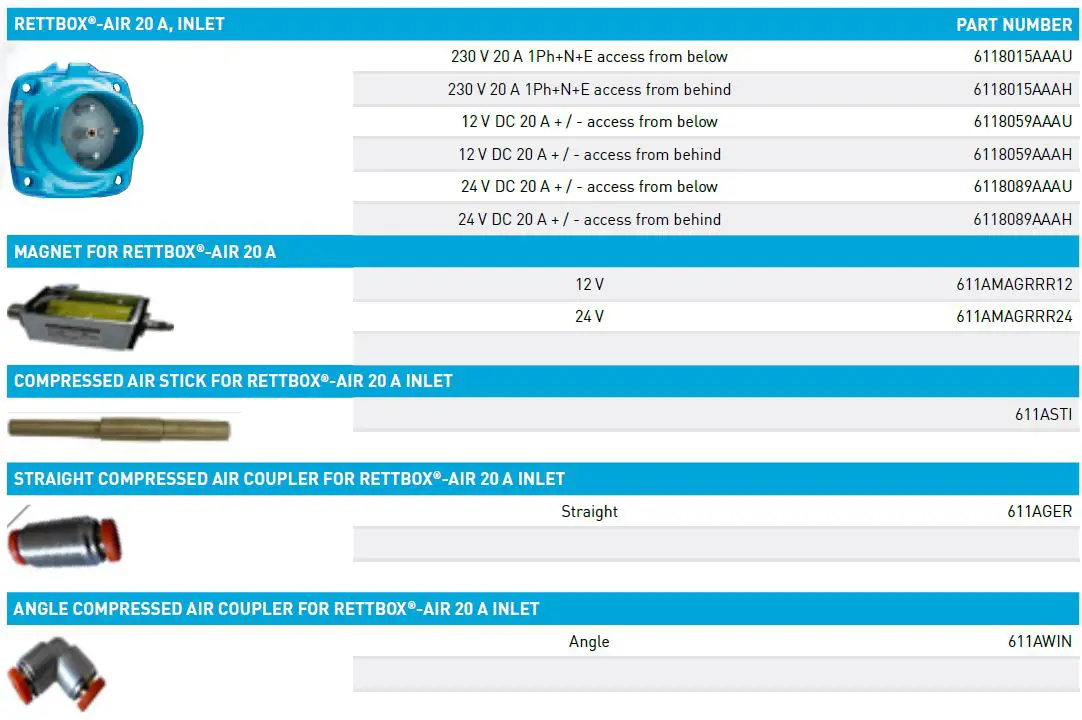

SPARE PARTS RETTBOX® 32 A & RETTBOX®-AIR 32 A
WEBSITE
- Retrieve your business contacts.
- Download our documentation related to your field of activity.
- Learn more about our group.
- Discover our new products.
- Follow our current events.
- Ask your questions online.
NON CONTRACTUAL DOCUMENTS AND PICTURES
All the indications appearing in this catalog are indicative and could not constitute a commitment on our part. We reserve the right to alter the specifications of our products without any prior notice in our efforts to continuously improve our product’s features. For your information, the most updated version is the one on our website.
