3030–INCH RTR TUG BOAT

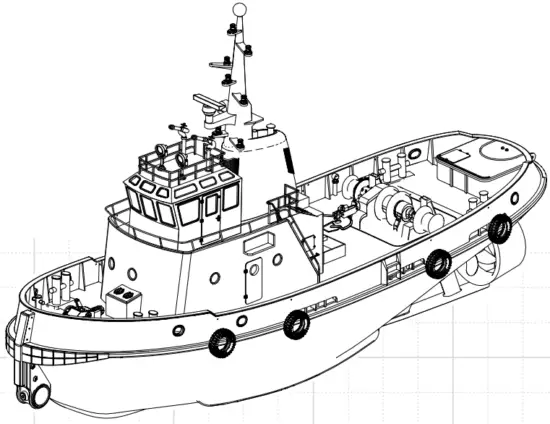

PROBOAT 30 INCH RTR TUG BOAT Horizon Harbor

Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
PROBOAT Logo 3

PROBOAT 30 INCH RTR TUG BOAT Horizon Harbor - QR CODE

https://www.horizonhobby.com/product/PRB08036.html

PRB08036
Owners Manual

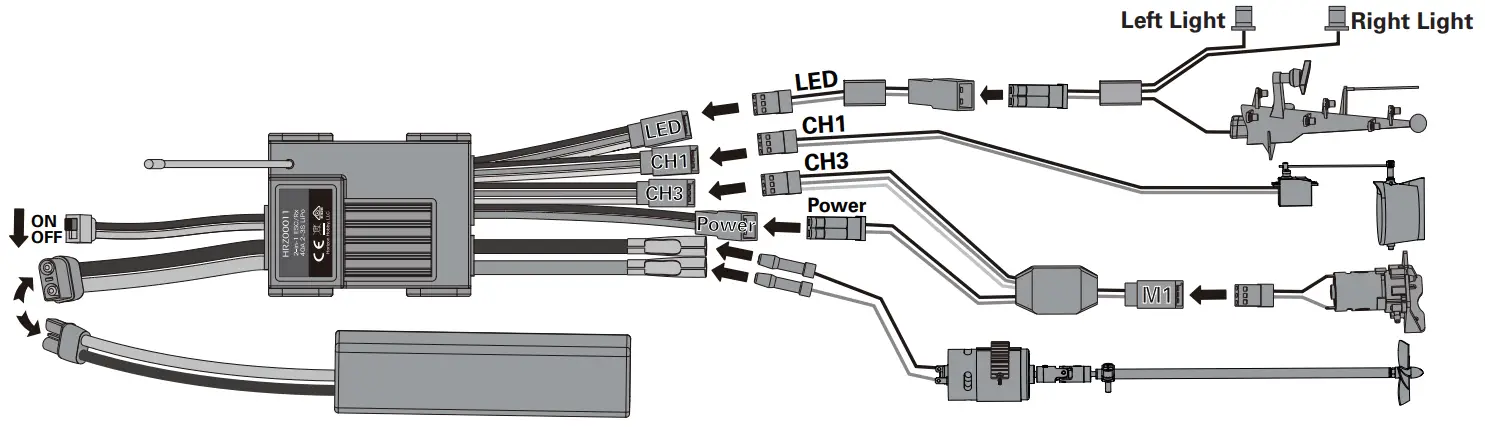

Electronics Connection Guide

PROBOAT 30 INCH RTR TUG BOAT Horizon Harbor - FIG 1

Replacement Parts

Part #
HRZ00010Horizon Multi-Model LT Transmitter
HRZ000112-in-1 40A Brushed ESC/LT Receiver
PRB281106Hull
PRB281107Deck Cabins
PRB281108Tire and Bumper Set
PRB281109Handrails
PRB281110Accessory Set
PRB281111Hatch Set
PRB281112Retriever System
PRB281113Servo and Motor Mount Set
PRB281114Rudder Set
PRB281115Mast
PRB282083Propeller
PRB282086Drive Shaft Set
PRB282087Motor Coupler
PRB282088Motor and Heatsink Set
PRB286083Steering Pushrod Set
SPMS605S605 Analog Waterproof 9kg Surface Servo, 23T

Recommended Parts

Part #
DYNE4200Grease Gun with Marine Grease 5 oz
DYNT0502Start-Up Tool Set: Pro Boat
PRB0100Marine Grease
HAN3626Self Stick Weight, 6 oz
SPMX50003S30H35000mAh 3S 11.1V Smart 30C, IC3
SPMXBC100SMART Battery and Servo Tester
SPMXC1010SMART S2100 AC Charger, 2x100W
SPMXC1070SMART S150 AC/DC Charger, 1x50W

Optional Parts

Part #
PRB380001Water Canon Pump

59107.1 Updated: 11/2021
©2021 Horizon Hobby, LLC.
Pro Boat, the Pro Boat logo, Horizon Harbor, EC5, IC5, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.
The Spektrum trademark is used with the permission of Bachmann Industries, Inc.
All other trademarks, service marks, and logos are the property of their respective owners.
Other patents are pending.
PRB08036
Horizon Harbor 30-Inch Tug Boat
