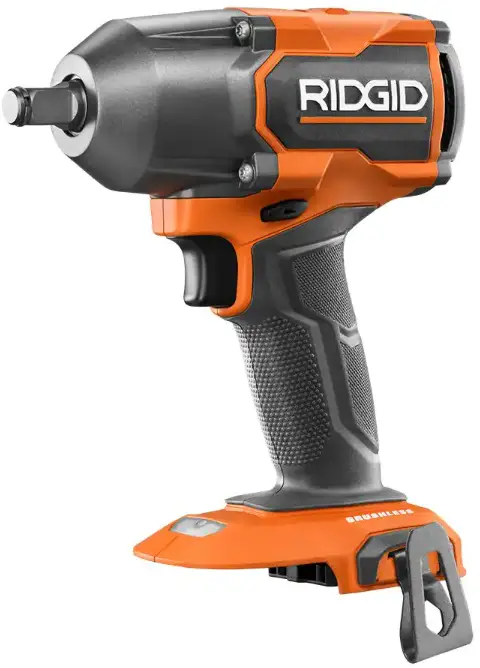

RIDGID R86012 Mid Torque Impact Wrench Instruction Manual
CONSUMER POWER TOOLS
The model number and manufacturing location will be found on a label attached to your product. Always mention this information in all communications regarding this product and when ordering parts.
Part Description

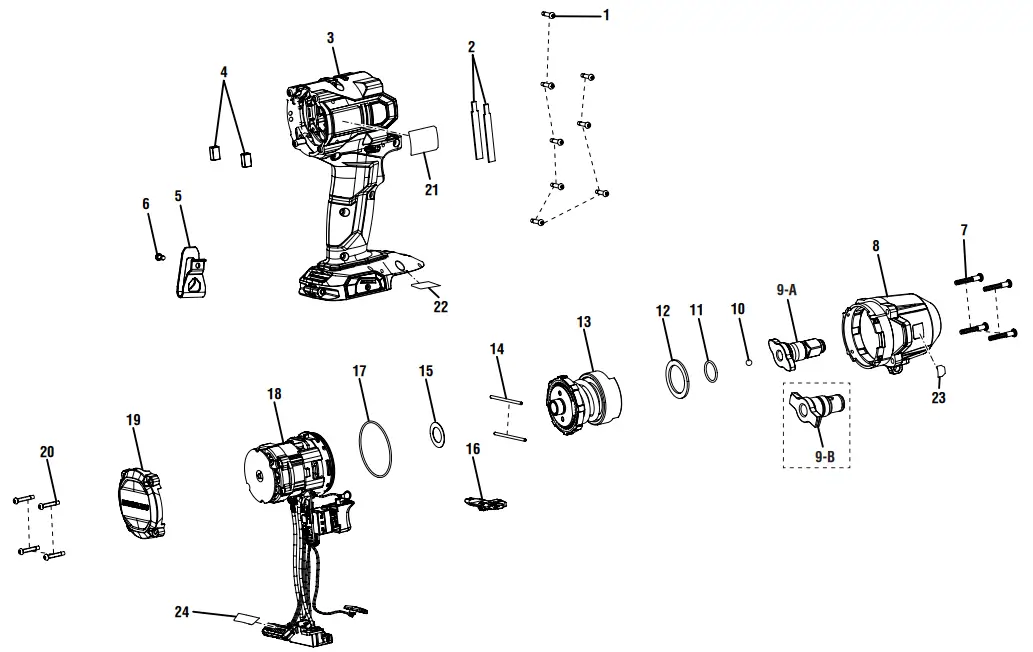

PARTS LIST
| KEY NO | PART NO | DESCRIPTION |
| 1 | 660031029 | Screw (M3.5 x 16 mm, T10 Torx Pan Hd.) |
| 2 | 565165001 | Silicon Rubber Cushion |
| 3-A | 204200002 | Housing Assembly (Inc. Key Nos. 21-22) |
| 3-B | 204200007 | Housing Assembly (Inc. Key Nos. 21-22) |
| 4 | 564253001 | Rubber Cushion |
| 5 | 659358002 | Belt Clip |
| 6 | 661763001 | Screw (M4 x 8 mm, Pan Hd.) |
| 7 | 662483005 | Screw (M4.5 x 28 mm) |
| 8 | 206200005 | Gear Case Assembly (Inc. Key No. 23) |
| 9-A | 204200005 | 1/2 in. Anvil with Friction Ring Assembly |
| 9-B | 204200008 | 1/2 in. Anvil with Pin Detent |
| 10 | 680595003 | Ball |
| 11 | 566012001 | Small O-Ring |
| 12 | 680335170 | Flat Washer |
| 13 | 204200004 | Gear Box Assembly |
| 14 | 674258001 | Pin |
| 15 | 680335148 | Washer |
| 16 | 543482001 | Forward/Reverse Button |
| 17 | 566129001 | Large O-Ring |
| 17 | 206200003 | Motor and Circuit Board Assembly |
| 18-A | 206200004 | Motor and Circuit Board Assembly |
| 18-B | 371483001 | End Cap |
| 19 | 660419003 | Screw (M3.5 x 20 mm, T10 Torx Pan Hd.) |
| 20 | 941123745 | Data Label |
| 21-A | 941123966 | Data Label |
| 21-B | 941120745 | Battery Statement Label |
| 22 | 941120852 | Hot Surface Icon Label |
| 23 | 941120871 | LED Label |
| 24 | Not Shown: | |
| 998000699 | Operator’s Manual |
If a key number has multiple part numbers, please order the part that corresponds with the model number shown on the product’s data label.
A: R86012
B: R86012PD

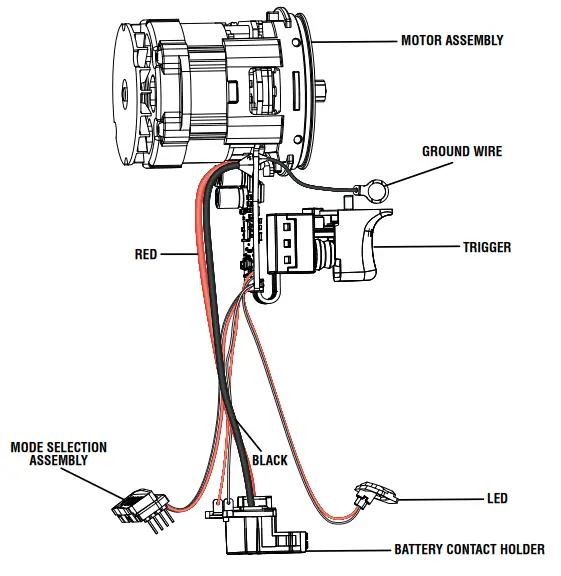

WIRING DIAGRAM
