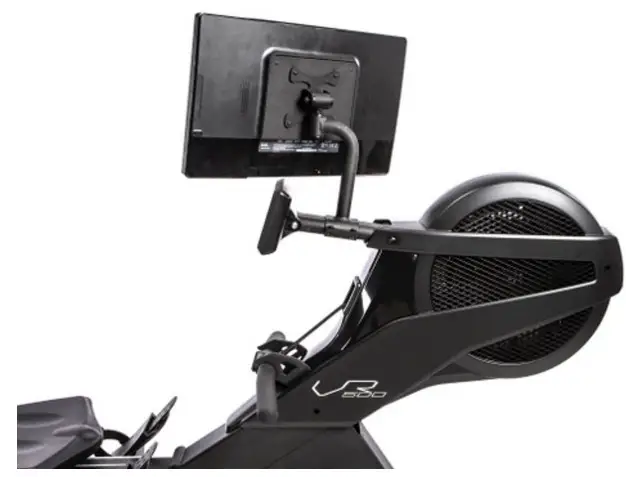

VR-Bracket-001-ASM SP-Bracket for Indoor Training Cycles
Owner’s Manual
http://www.bodycraft.com/VR-Bracket-qr.html
Assembled Parts List – VR Bracket
| Part # | Assembly Parts List | QTY |
| VR-Bracket-001-ASM | Main Frame Assembly | 1 |
| VP-Bracket-007 | Support Bracket, Bottom | 1 |
| VP-Bracket-008 | Bolt, Allen Head, M8 x 20mm L | 4 |
| VP-Bracket-009 | Nut, Nylon Lock, M8 x 1.25 P | 4 |
| VR-Bracket-010 | Cable Clip Mount | 5 |

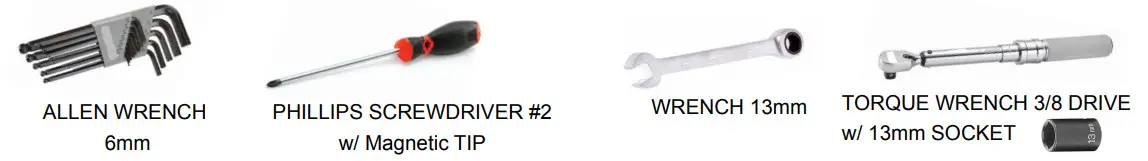

THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY:
WWW.BOOYCRAFT.COM
800-990-S5S56
[email protected]
Product Assembly

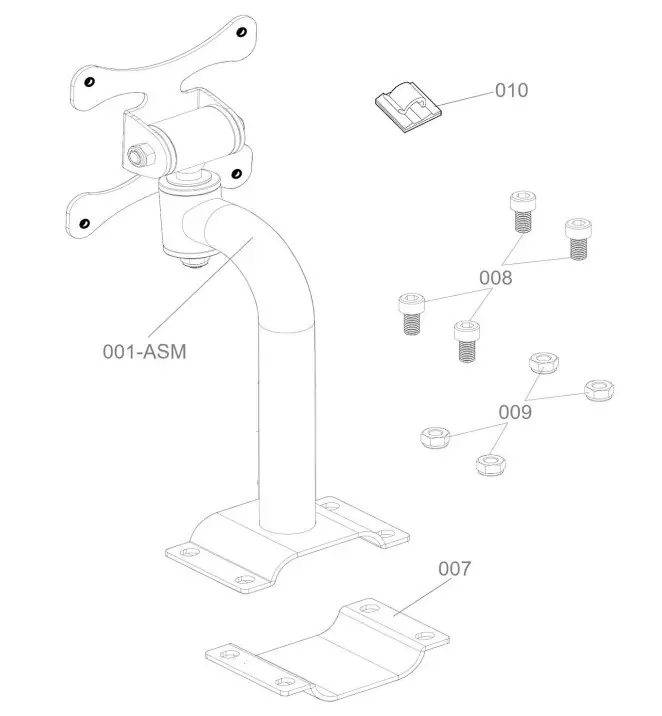

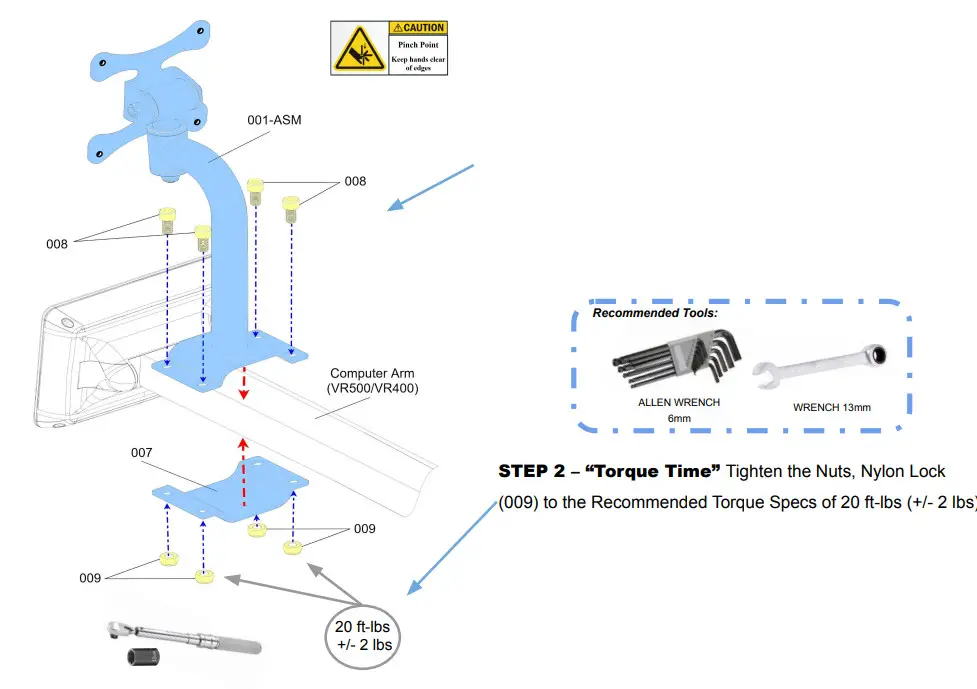

STEP 1: Install Main Frame Assembly
a. Place the Main Frame Assembly (01-ASM) into the top of the Computer Arm.
b. Then place the Support Bracket, Bottom (007) under the Computer Arm.
c. Secure the Main Frame Assembly (001-ASM) to the Support Bracket, Bottom (007) with the following hardware:
i. 4: Bolts, Allen Head, M8 x 20mm L (008)
ii. 4: Nut, Nylon Lock, M8 x 1.25 P (009)
STEP 3: Install Connect-22
Secure the Connect-22 (Connect-22-001) to the

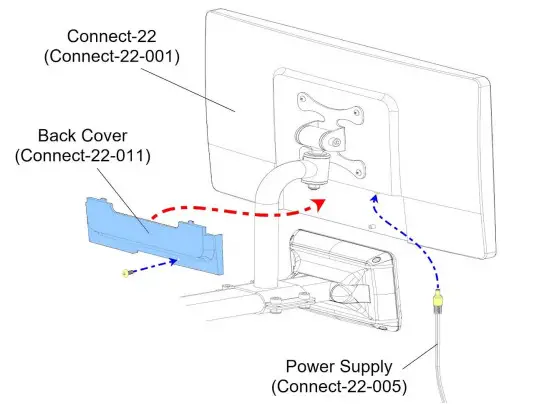

STEP 4: Power Supply & Back Cover
Install the Power Supply (Connect-22-005) and then the Back Cover (Connect-22-011) to the Connect-22 (Connect-22-001) using the following hardware that was pre-attached:
1: Philips Head Screws (M3 x 6mm L)
NOTE: Back Cover not required, only for cosmetic.
NOTE: Confirm the Screws are tightened down to withstand vigorous usage.
Product Assembly – Connect-22 Cable Routing per Machine
CAUTION: It is highly suggested to follow the steps below to secure the cable away from moving parts. Do not let the cable dangle straight down to the floor.

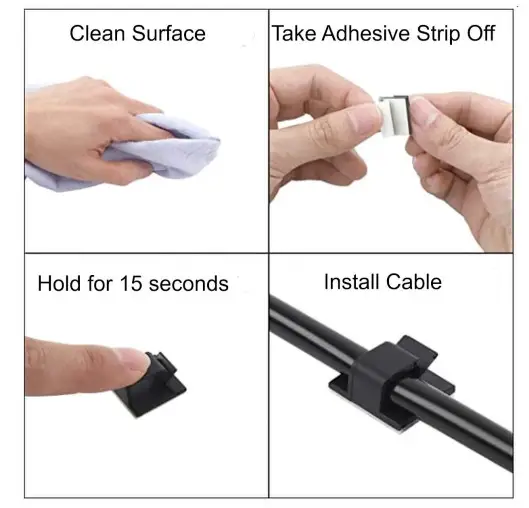

STEP 5: How to install Cable Clip Mounts
a. Clean the surface with mild spray soap or a window cleaner and dry with a 100% cotton rag.
b. Take the adhesive strip off the back of the Cable Clip Mount.
c. Place Cable Clip Mount and hold for 15 seconds.
d. Install Cable under the clip while gently holding the back.
NOTE: DO NOT over-stretch clip mount opening. Only open enough to gently slide the cable under the mount.

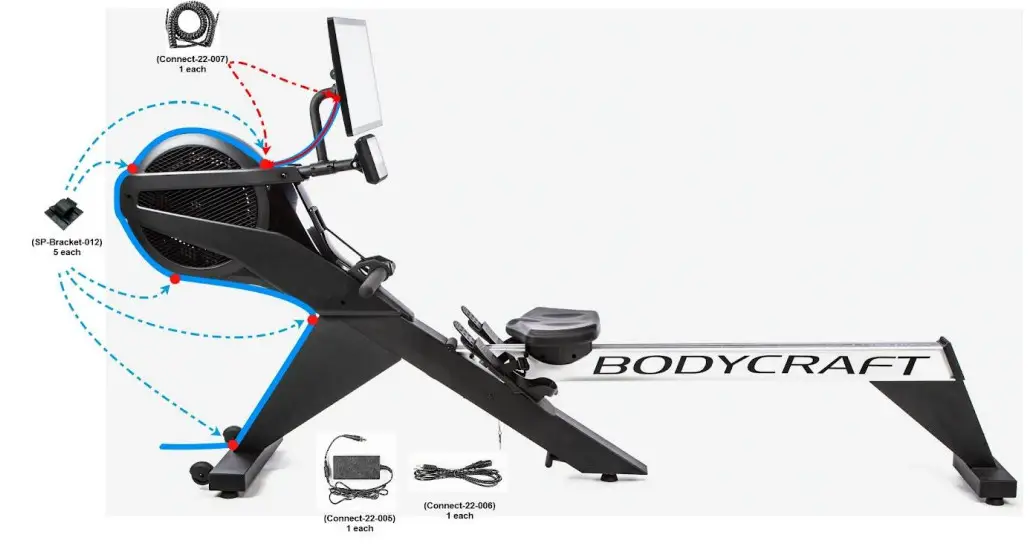

STEP 6: Install Cable Clip Mounts
a. Install a Cable Clip Mount at each arrow located on the top left side of the shroud in case of any service issues.
b. Then fully install the cable with the 2.5mm power cord end at the Connect-22 back plug. Follow the Cable Clip Mounts with the cable to the base of the Rower.
NOTE: If you have downloaded this document, zoom in to see the light blue arrows and their locations.

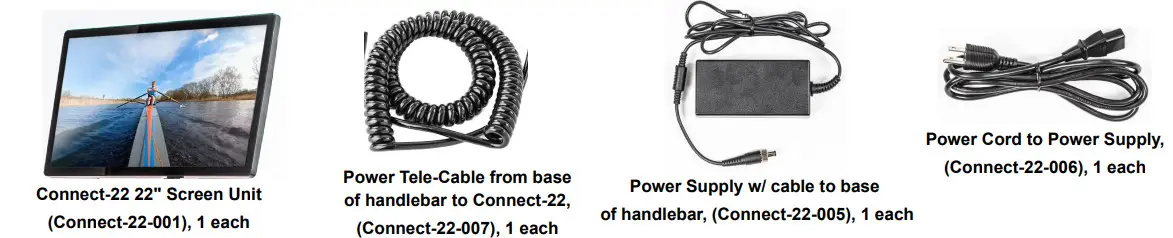

Parts from the Connect 22 (items below are not to scale)

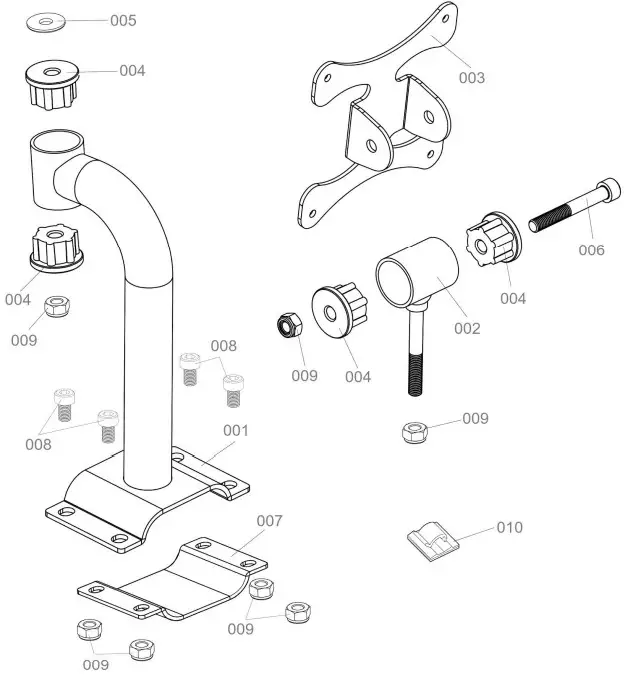

Detailed Parts List & Parts Exploded View
| Part # | Detailed Parts List | QTY |
| VP-Bracket-001 | Main Frame | 1 |
| VP-Bracket-002 | Universal Joint | 1 |
| VP-Bracket-003 | Vesa 100 Bracket | 1 |
| VP-Bracket-004 | Bushing | 4 |
| VP-Bracket-005 | Flat Washer, M8 x 2.0mm T x 23mm OD | 1 |
| VP-Bracket-006 | Bolt, Allen Head, M8 x 60mm L | 1 |
| VP-Bracket-007 | Support Bracket, Bottom | 1 |
| VP-Bracket-008 | Bolt, Allen Head, M8 x 20mm L | 4 |
| VP-Bracket-009 | Nut, Nylon Lock, M8 x 1.25 P | 6 |
| VR-Bracket-010 | Cable Clip Mount | 5 |
 | 800.990.5556 [email protected] WWW.BODYCRAFT.COM |
 | BODYCRAFT 7699 GREEN MEADOWS DR. LEWIS CENTER, OHIO 43035 |
