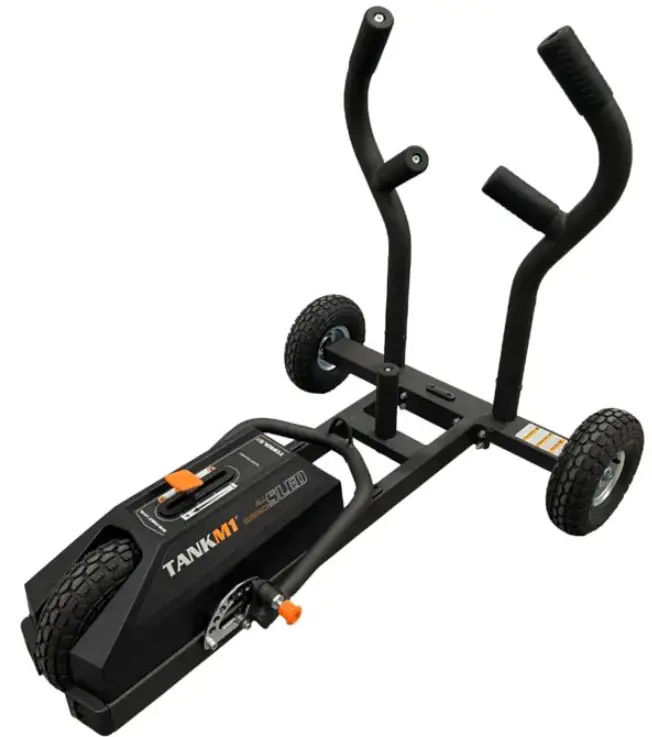

TORQUE TANK M1 Weight Fitness Sled Installation Guide
| ITEM | PART NUMBER | DESCRIPTION | QTY |
|---|---|---|---|

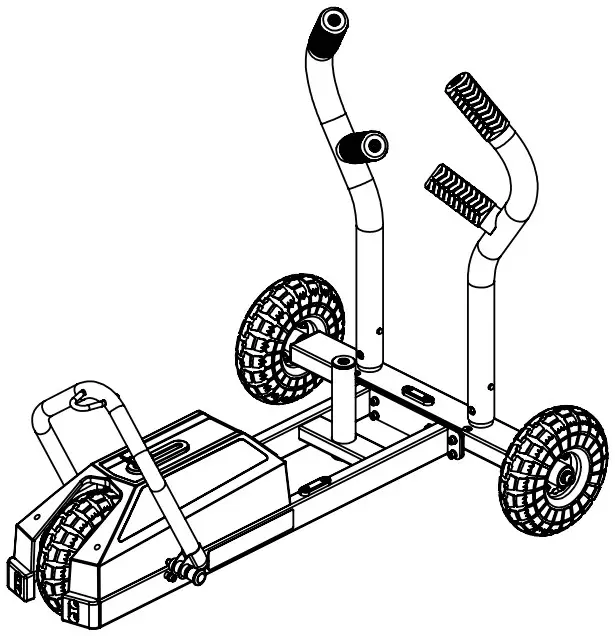

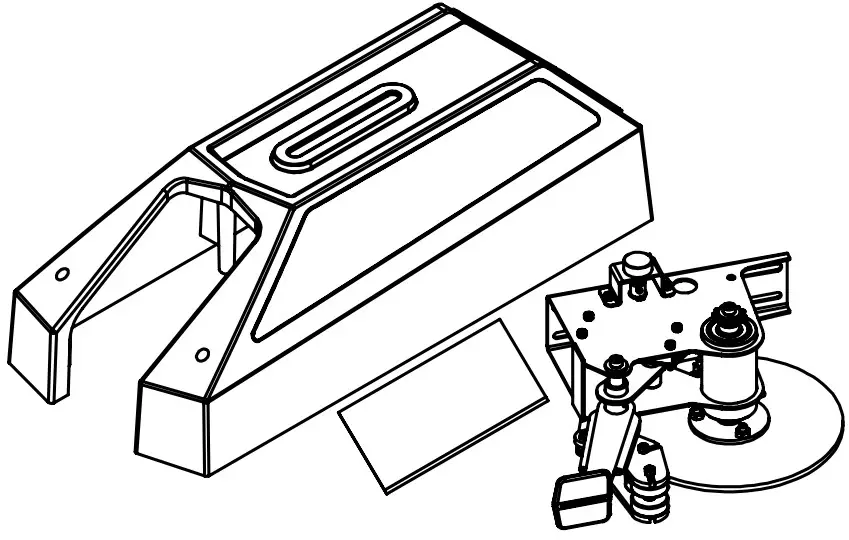

| 1 | 5702201 | ASSY, M1 SHROUD | 1 |
| 2 | 5775201 | ASSY, BRAKE MODULE-TECH | 1 |
| 4 | 5872401 | INSTRUCTION MANUAL, RETRO CONSOLE UPGRADE | 1 |
TOOLS NEEDED FOR ASSEMBLY
- 10MM WRENCH
- PHILLIPS SCREW DRIVER
TABLE OF CONTENTS
- SHROUD REMOVAL: PAGE 3
- BRAKE REMOVAL: PAGE 4
- BRAKE INSTALLATION: PAGE 5
- CHAIN ADJUSTMENT: PAGE 6

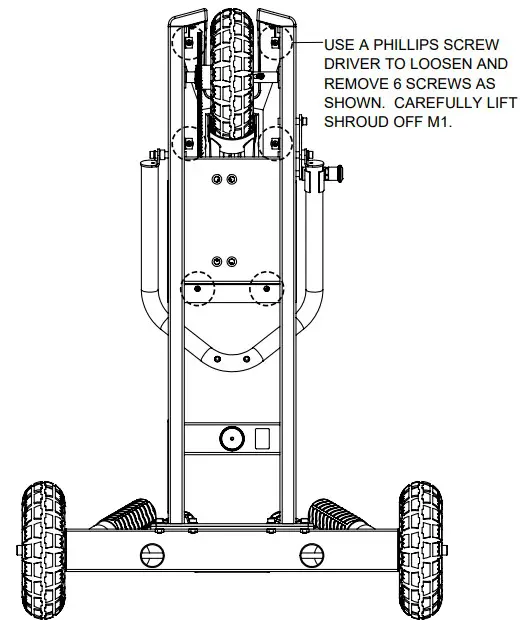

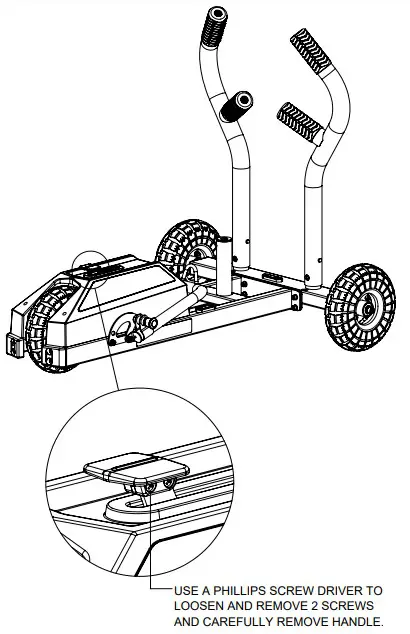

STEP 1- SHROUD REMOVAL
STEP 2– SHROUD REMOVAL

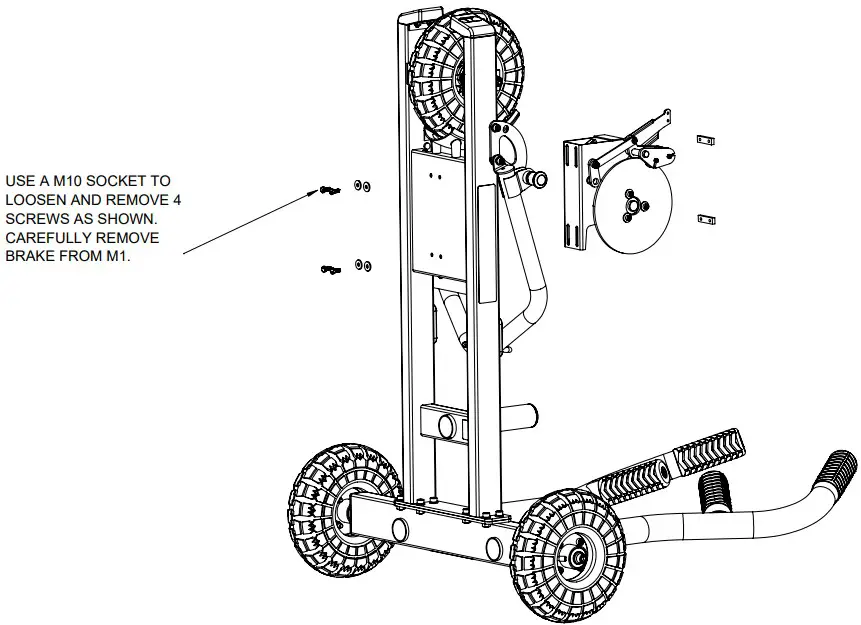

BRAKE REMOVAL

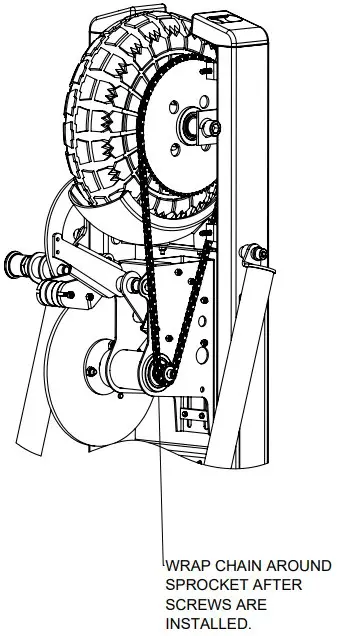

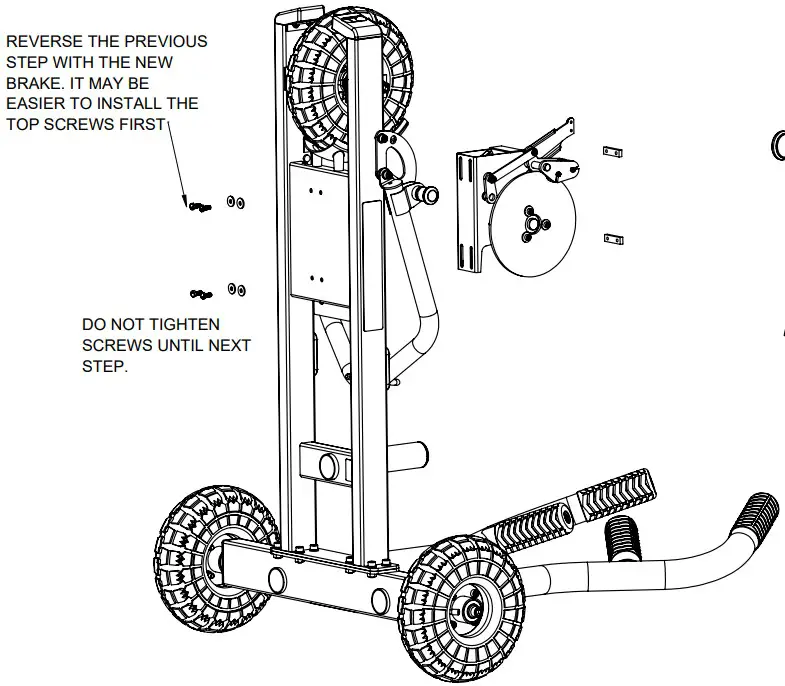

BRAKE INSTALLATION
CHAIN ADJUSTMENT
TO SET THE CORRECT CHAIN TENSION
FOLLOW THESE STEPS:
- TIP M1 BACK SO THAT IT RESTS ON THE REAR WHEELS AND PUSH HANDLES. AS SHOWN.
- GRAVITY WILL PROVIDE THE PROPER CHAIN TENSION
- SECURELY RE-TIGHTEN THE FOUR BOLTS
TO COMPLETE THE INSTALLATION OF THE CONSOLE, PLEASE FOLLOW INSTRUCTIONS INCLUDED WITH CONSOLE
