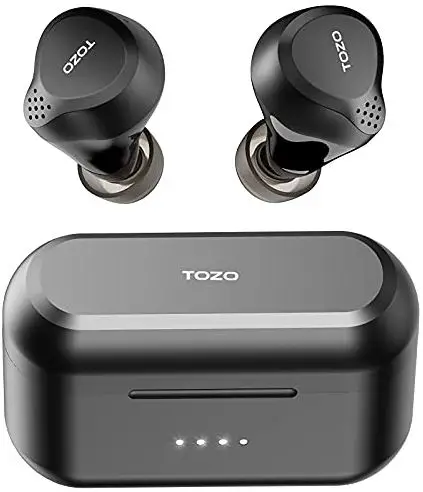

TOZO NC7 Active Noise Cancellation Wireless Earbuds

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-product-img

Bluetooth pairing and wearing

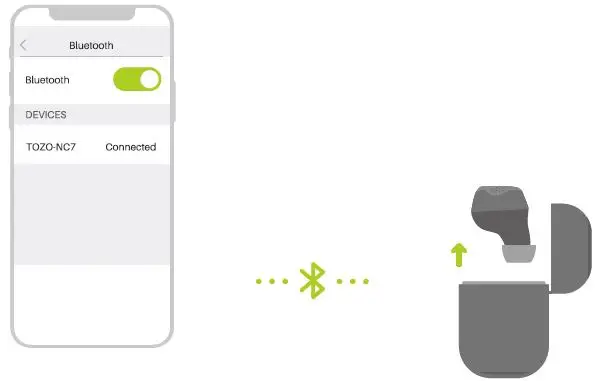

Bluetooth pairing

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-1

  1. Take out the 2 earbuds from the charging case, they will power on and pair within 10&
  2. The two earbuds flash red and blue alternately.( Pairing Model
  3. Search for pairing name [TOZO- NC7l

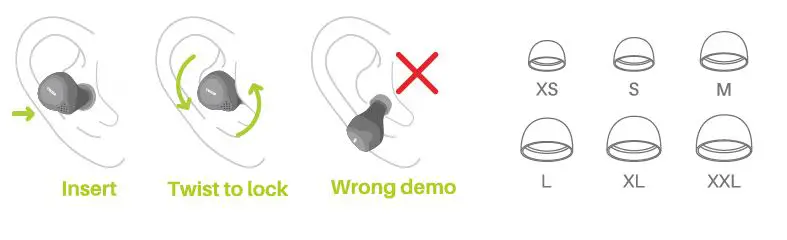

Wearing

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-2

  1. Ensure the early facing downwards, then place the earbud into your ears.
  2. Rotate the earbuds back to the auricle side to fit snugly.
  • Eartlp facing upwards Is the correct way to wear the earbuds.

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-3

Smart touch control

  • X1: Prassonce
  • X2: Presstwlce
  • X3: Pressthreetlmes
  • Hold: Prass and hold for 2 seconds
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-4Pravloussong
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-5Volume down
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-6Active Noise Cancellation mode/Transparent mode/Active Noise Cancellation off mode.
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-7Answer
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-8RaJect
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-9Play/Pause
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-10Next song
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-11Volume up
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-12Voice assistant
  • TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-13Hang up

Power on/off

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-14

Power on

  • Open the cover of the charging case, the earbuds will power on automatically.

Power off

  • Put the earbuds into the charging case, close the cover, and automatically power off.

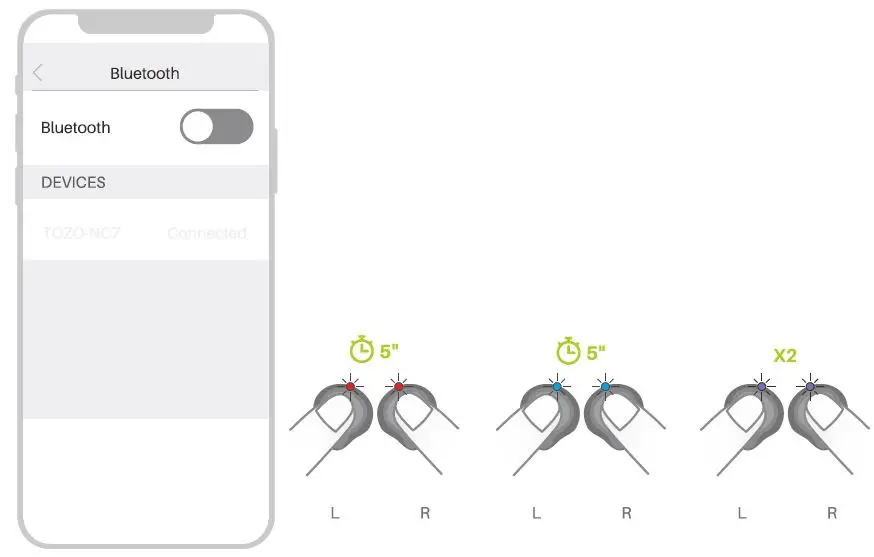

Reset

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-15TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-15

If you accidentally get only one earbud work or fails to pair each other, please reset it:

  1. Delete all [TOZO-NC7] Bluetooth records on the phone, and turn off Bluetooth. Take the earbuds out from the charging case, and press the touch panel for 5 seconds to turn the earbuds off.
  2. Press both earbuds for 5 seconds till the Blue light goes out, and then quickly double-tap the panel. The reset is complete once the purple light is on.

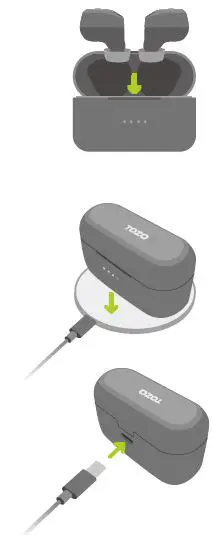

Charging

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-16

  • Place the case upright on the wireless charger. (Wireless charging pad not Included) Or charge the case via a USB-C connector. (USB-Ccable Included)

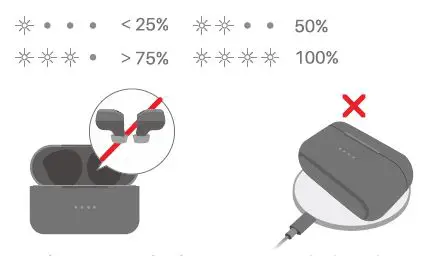

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-17

  • Don’t put wet earbuds into the charging case, fully dry off the earbuds before charging.
  • Don’t place the case face up or face down.

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-18

Thank you for purchasing the TOZO authentic product. For more latest products, parts, and accessories, please visit www.tozostore.com For any assistance please contact Email: [email protected]

TOZO-NC7-Active-Noise-Cancellation-Wireless-Earbuds-fig-19
