Tozo Nc9 Plus Active Noise Cancellation Earbuds User Guide

Tozo Nc9 Plus Active Noise Cancellation Earbuds User Guide

TOZO logo

www.tozostore.comTOZO NC9 Plus Active Noise Cancellation Earbuds

NC9 Plus Active Noise Cancellation Earbuds
User Guide

How to wear your TOZO earbuds

TOZO NC9 Plus Active Noise Cancellation Earbuds - fig1

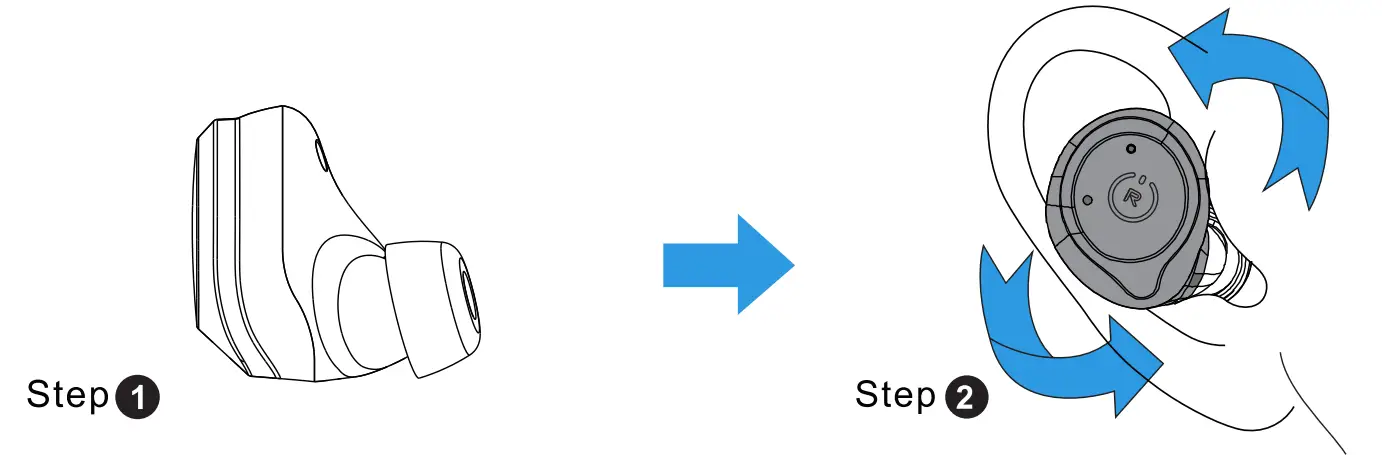

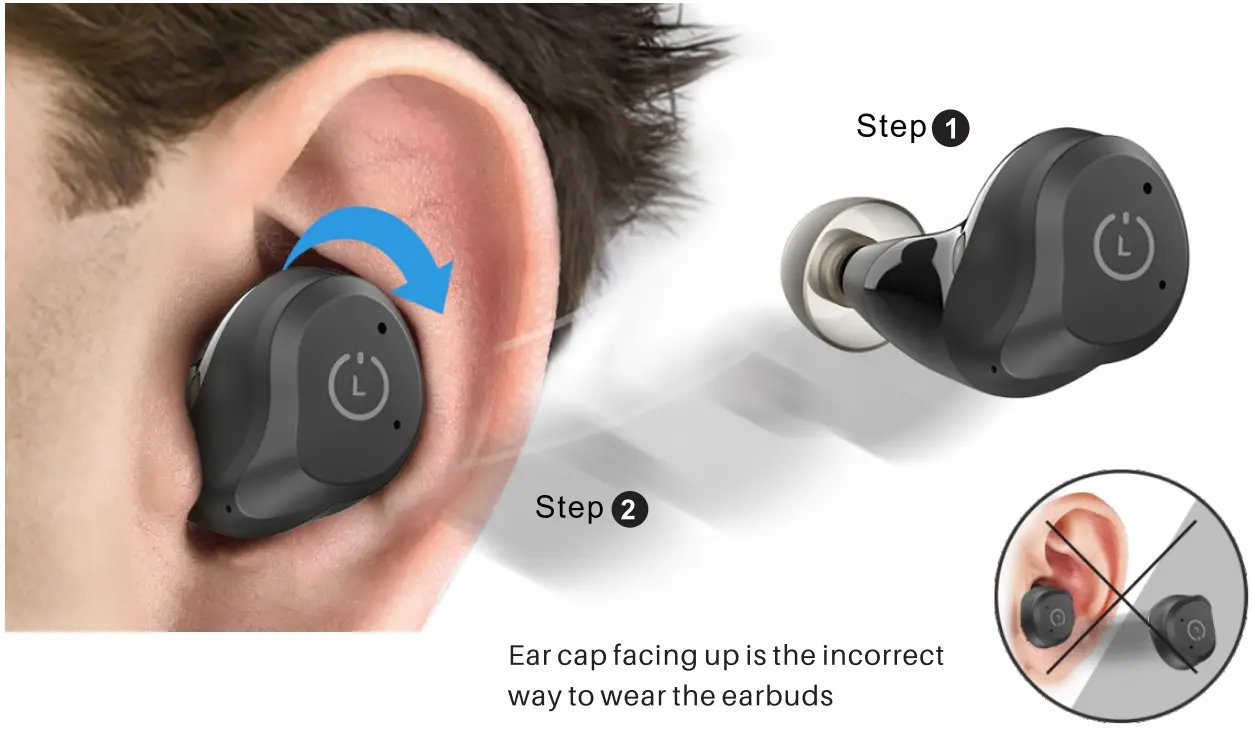

Step 1: Ensure the earbud tip facing downwards, then place earbuds into ear.
Step 2: Rotate earbuds back to the auricle side to fit snugly.TOZO NC9 Plus Active Noise Cancellation Earbuds - fig2

How To Pair

TWS Auto Pairing

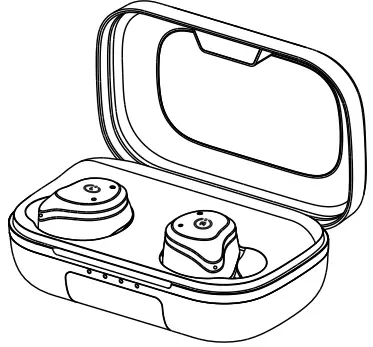

  1. Open the charging case, they will power on automatically and will connect to each other automatically within 10 seconds.
    TOZO NC9 Plus Active Noise Cancellation Earbuds - fig3
  2. If the earbud is in full charge, the earbud will flash blue light for 5 seconds, then disappear. If the earbud is not at full charge, it will keep the red light until full charge.
    TOZO NC9 Plus Active Noise Cancellation Earbuds - app

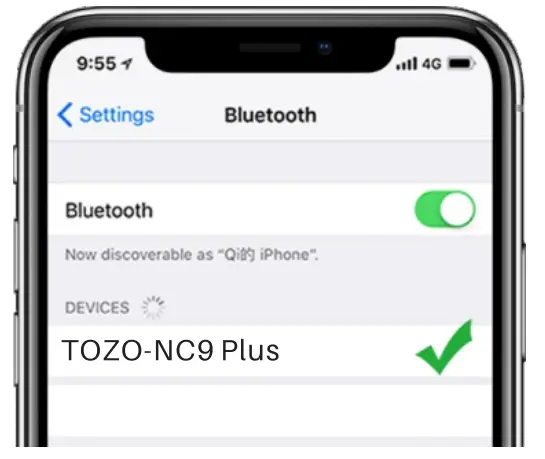

  3. Search for the pairing name [TOZO-NC9 Plus], and select it on your phone.

TOZO NC9 Plus Active Noise Cancellation Earbuds - fig4

Reset
If you accidentally get only one earbud work or fail to pair each other, please reset it:

  1. Delete all TOZO-NC9 Plus records on the phone, then turn off the Bluetooth. Take the earbuds out from the charging case, and press the touch panel for 5 seconds to turn the earbuds off.
  2. Hold both earbuds button for 5 seconds till red lights on to turn off the earbuds.

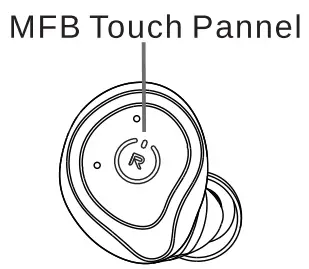

  3. Holding the MFB Touch Panel on each of the earbuds for another 5 seconds till the blue light turns on and off, and then clicking the MFB Touch Panel on each of the earbuds twice quickly, the reset process will be done when the Purple light is on for 1s, then two earbuds flash red and blue alternately, reset is complete.
    NOTE: In case there is (Connection Unsuccessful] in your devices, please consider deleting all historical records of [TOZO-NC9 Plus] and try the pairing process again.

Left Earbud

TOZO T12 True Wireless Stereo Earbuds - fig5

TOZO T12 True Wireless Stereo Earbuds - icon1 Power on: Hold or pick up earbuds from the battery case to power on automatically.
TOZO T12 True Wireless Stereo Earbuds - icon2 Power off: Hold or put earbuds into the battery case to power off & charging automatically.

TOZO NC9 Plus Active Noise Cancellation Earbuds - icon1 Active Noise Cancellation Mode / Transparency Mode I Active Noise Cancellation Mode Off

TOZO T12 True Wireless Stereo Earbuds - icon4Previous
TOZO T12 True Wireless Stereo Earbuds - icon8End
TOZO T12 True Wireless Stereo Earbuds - icon7Accept
TOZO T12 True Wireless Stereo Earbuds - icon5Adjusting the volume
TOZO T12 True Wireless Stereo Earbuds - icon9Reject
TOZO T12 True Wireless Stereo Earbuds - icon6Activating the voice assistant.
TOZO T12 True Wireless Stereo Earbuds - fig10Siri, Google Assistant, Baidu, depending on a mobile phone.

Right Earbud

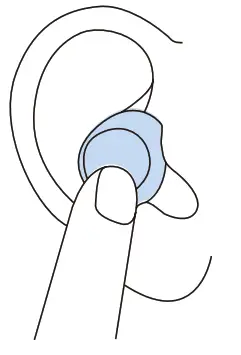

fig 1TOZO T12 True Wireless Stereo Earbuds - icon1 Power on: Hold or pick up earbuds from the battery case to power on automatically.
TOZO T12 True Wireless Stereo Earbuds - icon2 Power off: Hold or put earbuds into the battery case to power off & charging automatically.

TOZO T12 True Wireless Stereo Earbuds - icon3Play/Pause
Previous
TOZO NC9 Plus Active Noise Cancellation Earbuds - icon2Adjusting the volume
TOZO T12 True Wireless Stereo Earbuds - icon6Activating the voice assistant.
TOZO T12 True Wireless Stereo Earbuds - icon7Accept
TOZO T12 True Wireless Stereo Earbuds - icon8End
TOZO T12 True Wireless Stereo Earbuds - icon9Reject
TOZO T12 True Wireless Stereo Earbuds - fig10Siri, Google Assistant, Baidu, depending on a mobile phone.

Thank you for purchasing the TOZO authentic product.
For more latest products, parts and accessories,
please visit: www.tozostore.com
For any assistance please contact Email: [email protected] TOZO T12 True Wireless Stereo Earbuds - icon10
