DD24DCHTX9 N Double DishDrawer Dishwasher
User Guide
QUICK REFERENCE GUIDE > DD24DCHTX9 N
Double DishDrawer™
Dishwasher, Tall, Sanitize
Series 7 | Contemporary
Stainless Steel
DD24DCHTX9 N Double DishDrawer Dishwasher
Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.
Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
Built-in water softener improves wash performance by reducing unwanted minerals in the water
Flexible racking can be folded down to fit bigger dishes

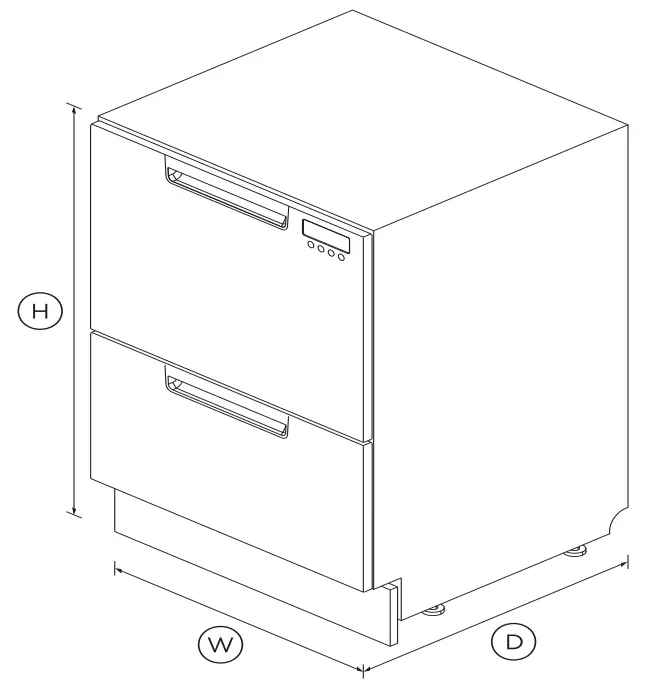

DIMENSIONS
| Height | 34 – 36 3/8″ |
| Width | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
EASE OF USE
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
INDEPENDENT WASH
With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
QUICK, SANITIZE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
QUIET PERFORMER
Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Kickstrip | included |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 12.25″ (top) 11″ (bottom) |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
| Place settings per drawer | 7 |
| Consumption | |
| Energy rating | Energy star |
| Water usage (per wash cycle) | 3.81 gal running both tubs |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Built-in water softener | • |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Motor type | BLDC |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 44dBA |
| Power requirements | |
| Amperage | 9.6A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 9/16″ |
| Height | 34 – 36 3/8″ |
| Width | 23 9/16″ |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 15 |
| Water connection | |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 100kPa – 1000kPa |
| Water supply | 3/8″ to suit Male Compression |
| SKU | 82332 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872
Wwww.fisherpaykel.com
Date: 03.05.2023 > 3
