Date: 26.01.2022
QUICK REFERENCE GUIDE > DD24DDFTB9_N

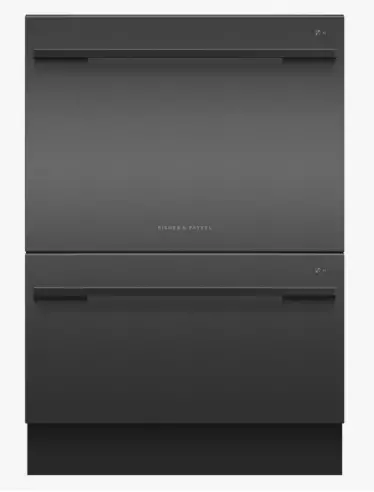

Double DishDrawer™ Dishwasher, Tall, Sanitize
Series 9 | Contemporary
Black Stainless Steel
Doing the dishes got easier. Load one drawer while the other washes with the top drawer fitting your large dinner plates easily.
- Black stainless steel, pairing well with other Fisher & Paykel black appliances
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Flexible racking can be folded down to fit bigger dishes

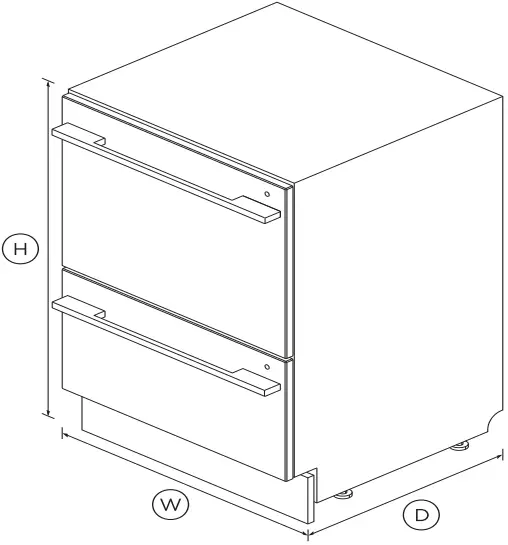

DIMENSIONS
Height 34 – 36 3/8″
Width 23 9/16″
Depth 22 9/16″
FEATURES & BENEFITS
Multiple wash types
Wash modifiers allow you to use specialized cycle settings. Quick delivers faster with no performance reduction, Sanitize provides extra protection from bacteria, and Extra Dry is perfect for plastic dishes.
Ease of use
The DishDrawer™ Dishwasher features smooth open and close action, and flexible racking allows adjustment for dishes of all shapes and sizes. The taller top drawer provides extra space for large dishes.
Beauty of choice
As much a high performance appliance as a design component, the black DishDrawerTM Dishwasher brings a touch of sophistication to your kitchen, whether on its own or part of a matching kitchen appliance set.
Independent washing
With the ability to use both drawers independently and select different wash programs, the DishDrawerTM Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
True Half Load
Each drawer holds a true half load for small, fast dish washing that won’t waste water. Both drawers operate independently so different wash cycles can operate simultaneously to accommodate varying loads.
Quiet performer
The DishDrawer™ Dishwasher does its job without making a fuss – running at a very low decibel rating, they produce little in the way of noise.
SPECIFICATIONS
Accessories
Cutlery basket •
Kickstrip included
Knife clip and multipurpose •
Capacity and loading
Accommodates round plates 12.25″ (top) 11″ (bottom)
Adjustable height, foldable •
Fold down tines •
Pitch adjustable tines •
Consumption
Energy rating Energy star
Energy usage 263 kWh/year
Controls
Child lock •
Electronic fault/Diagnostic •
End of cycle beeps •
Energy saving delay start •
Internal wash selector •
Rinse aid indicator light •
Features
Fan assisted drying •
Flow through detergent •
Quiet operation •
SmartDrive™ technology •
Performance
Noise on gentle cycle top 44dBA
Power requirements
Amperage 9.6A
Rated current 15A
Supply frequency 60Hz
Supply voltage 120V
Product dimensions
Depth 22 9/16″
Height 34 – 36 3/8″
Width 23 9/16″
Warranty
Parts and labor Limited 2 years
Wash Programs
Delicate •
Eco •
Extra Dry •
Fast •
Heavy •
Medium •
Normal eco •
Number of wash programs 6
Quick •
Rinse •
Sanitize •
Wash modifiers 3
Water connection
Supplied hose to suit 3/8″ •
SKU 81834
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
