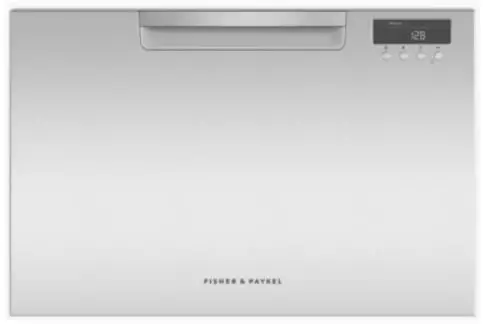

FISHER and PAYKEL DD24SAX9 N Single DishDrawer Dishwasher
Series 7 | Contemporary
Stainless Steel
A compact size to fit anywhere, room to wash a half load, and less bending.
- Six wash programs to suit any load, from Delicate to Heavy
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading

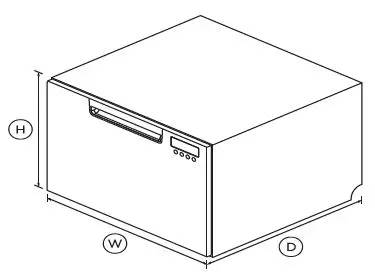

DIMENSIONS
| Height | 16 1/8″ |
| Width | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending.
Flexible wash options
DishDrawer™ Dishwashers feature many programs including:
Rinse, Fast, Delicate, Normal Eco, Normal and Heavy. These options allow the DishDrawer™ to wash everything from fine glass and crystal to heavily soiled pots and pans at the touch of a button.
Complementary Design
DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen
appliances, with matching handles, premium styling and quality materials.
Quiet performer
Running at a very low decibel rate, these DishDrawer™
Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater
reliability and excellent wash performance.
SPECIFICATIONS
Capacity and loading
| Accommodates round plates | 11″ |
| Fixed height, foldable cupracks | • |
| Fold down tines | • |
Consumption
| Energy rating | Energy star |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 45dBA |
Power requirements
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply voltage | 120V |
Product dimensions
| Depth | 22 9/16″ |
| Height | 16 1/8″ |
| Width | 23 9/16″ |
Safety and compliance
| ADA compliant | • |
Warranty
| Parts and labor | Limited 2 years |
Wash Programs
| Delicate | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Rinse | • |
| SKU | 81603 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
