QUICK REFERENCE GUIDE > DD24DTX6PX1
Double DishDrawer™
Dishwasher, Tall, Sanitize
Series 11 | Professional
Stainless Steel
User Guide

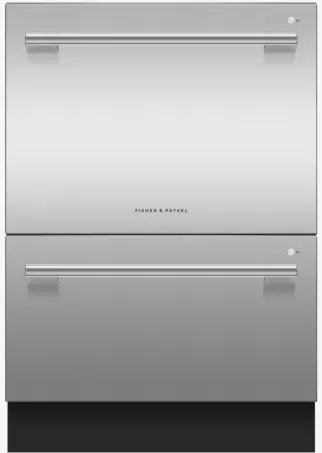

DD24DTX6PX1 Double DishDrawer Dishwasher
Boasting bold Professional styling including a stainless steel interior, each drawer operates independently, for flexible washing Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Tall top drawer fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
- With soft-close drawers, and knock to pause convenience
- Wi-Fi capability and a SmartHQ™ app for remote control and notifications

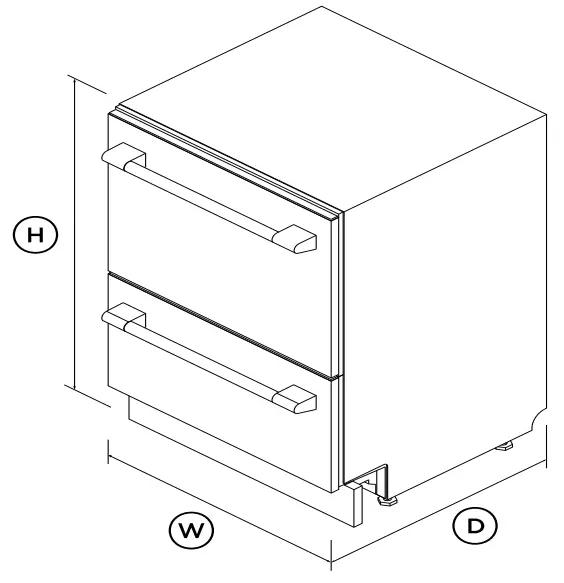

DIMENSIONS
| Height | 34 – 36 3/8″ |
| Width | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
EASE OF USE
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 12 1/4 inches, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
COMPLEMENTARY DESIGN
With distinctive, bold styling, this DishDrawer™ Dishwasher is designed to match the Fisher & Paykel Professional style family of appliances.
TRUE HALF LOAD
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
EFFICIENT PERFORMANCE
With a 2021 Energy Star Most Efficient rating, this DishDrawer™ Dishwasher is recognised amongst the most energy efficient models on the market.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Kickstrip | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 12.25″ (top) 11″ (bottom) |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
| Wine glass supports with | • |
| Consumption | |
| Energy rating | Energy star Most efficient |
| Energy usage | 239kWh/year |
| Water usage (per wash cycle) | 3.4 gal running both tubs |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Intuitive capacitive touch | • |
| Rinse aid indicator light | • |
| Spray arm sensing | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flow through detergent | • |
| Internal tub material | Stainless steel |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Soft close drawer | • |
| Performance | |
| Noise on standard cycle top | 44dBA |
| Power requirements | |
| Amperage | 10A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 9/16″ |
| Height | 34 – 36 3/8″ |
| Width | 23 9/16″ |
| Warranty | |
| Parts and labor | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | • |
| Quiet | • |
| Sanitize | • |
| Wash modifiers | 3 |
| Wash Programs | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 8 |
| Water connection | |
| Inlet water temperature | 140°F |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 0.03 Mpa – 1 Mpa (4.3-145 psi) |
| SKU | 82397 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
