QUICK REFERENCE GUIDE > DD60DCHX9
Double Dish Drawer™ Dishwasher, Sanitise
Series 7 | Contemporary Stainless Steel

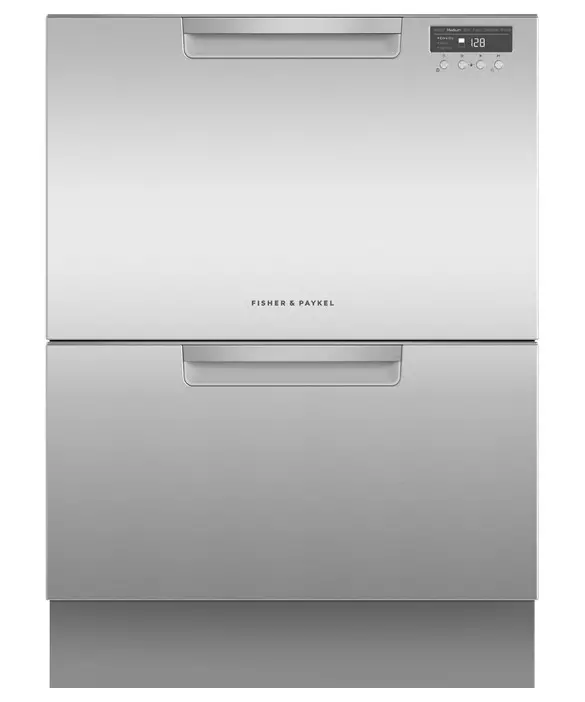

DD60DCHX9 Double DishDrawer Dishwasher
Wash one drawer while you load the other, with minimal bending. Or wash both at once, with room in each drawer for full size dinner plates.
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Flexible racking allows you to customise internal shelves to suit your needs

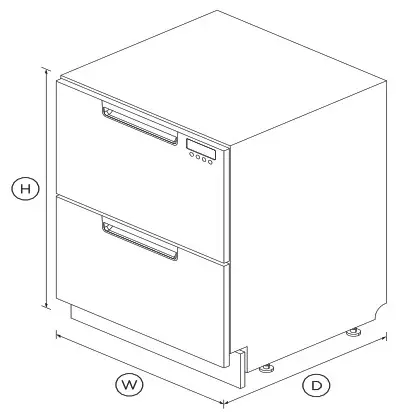

DIMENSIONS
| Height | 820 – 880mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
EASE OF USE
Dish Drawer™ Dishwashers are as easy to open and close as kitchen drawers, making loading dishes simple. Flexible racking allows you to make adjustments to fit in a variety of dishes.
INDEPENDENT WASH
With the ability to use both drawers independently and select different wash programs the Dish Drawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
TRUE HALF LOAD
Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can operate simultaneously to accommodate a variety of loads.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
DESIGNED TO MATCH
Dish Drawer™ Dishwashers are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials for a stylish finish in your kitchen.
QUIET PERFORMER
The combination of intelligent technology and simple mechanics means more space for your dishes, greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 280mm |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 12 |
| Consumption | |
| Energy rating | E |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Features | |
| Built-in water softener | • |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 43dBA |
| Power requirements | |
| Amperage | 8.5A |
| Product dimensions | |
| Depth | 573mm |
| Height | 820 – 880mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 5 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash Programs | |
| Delicate | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Rinse | • |
| SKU | 82348 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
