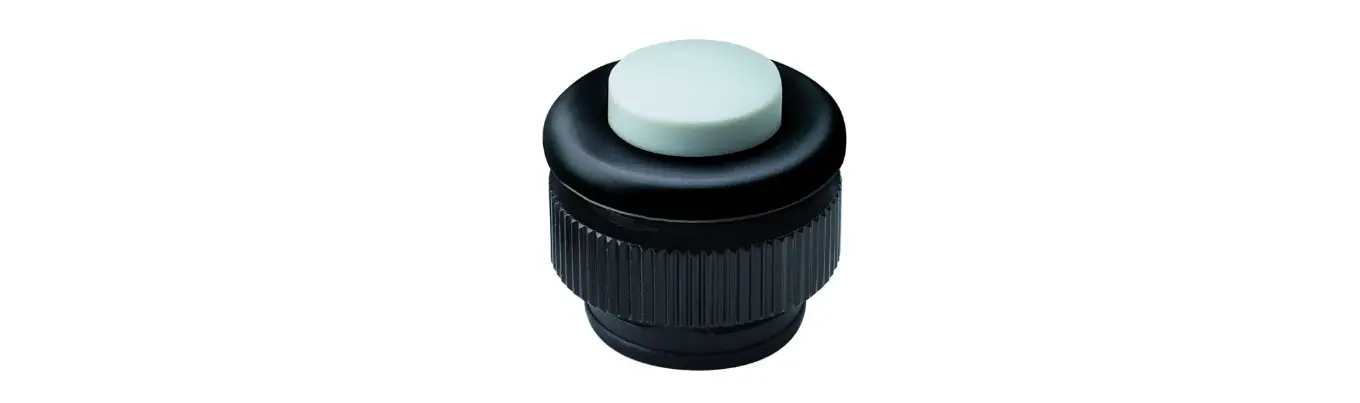

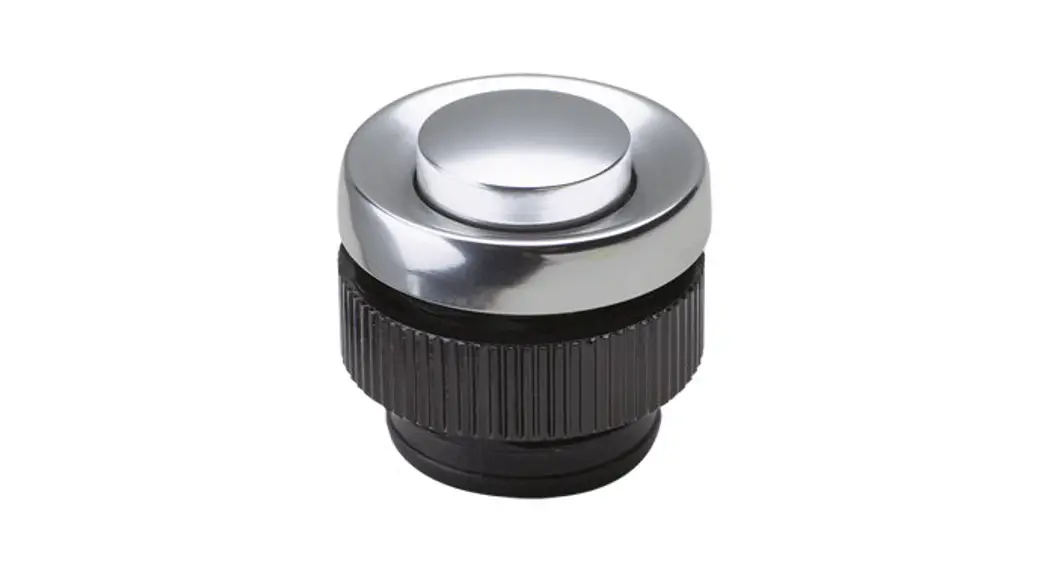

TASTER
PROTECT XXX

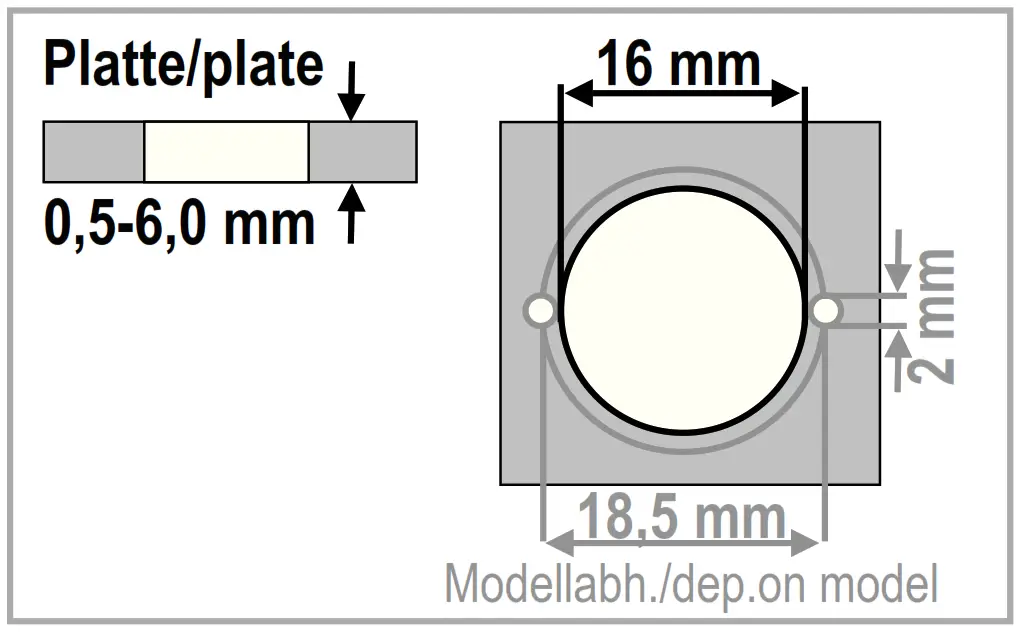

Installation Instructions

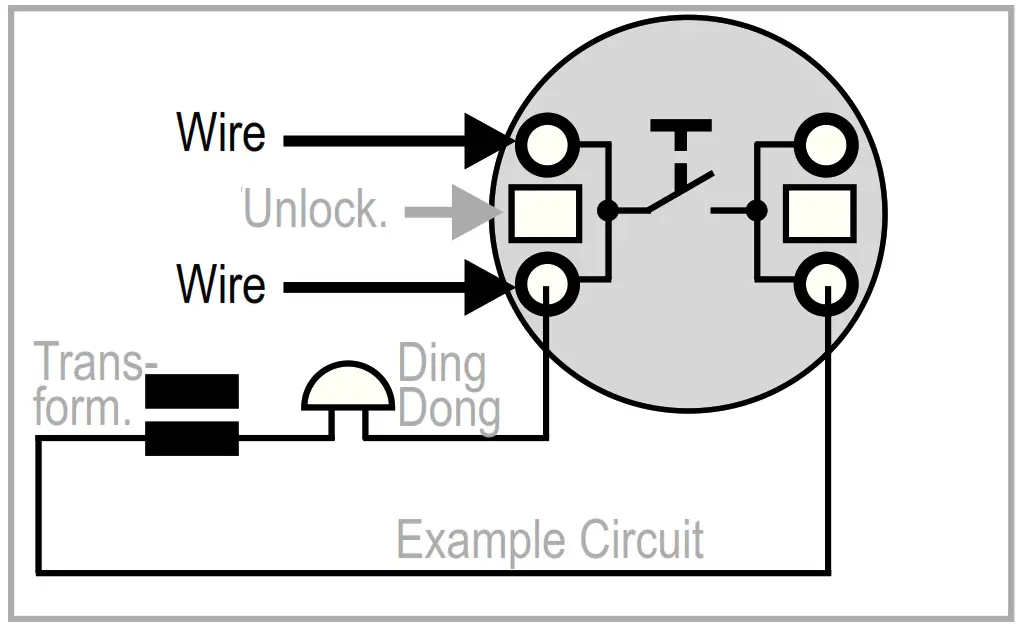

Verdrahtung wiring
 |  |  |

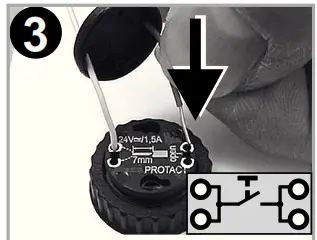

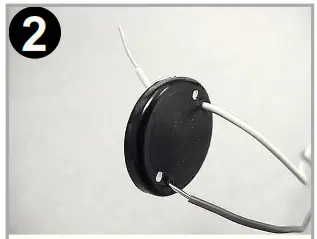

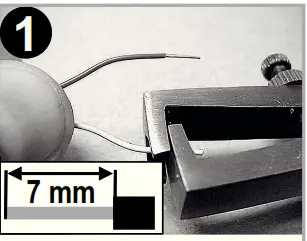

| Strip the wire (7 mm) | Insert wire into sealing | Connect wire |
 |  |  |

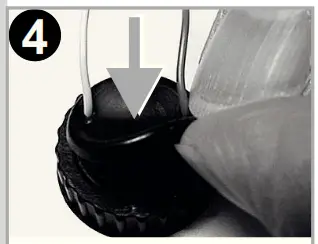

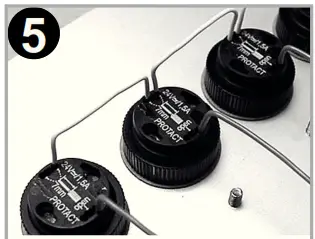

| Fix the sealing | Combination of pushes | Unlocking (with spec. tool) |
 |  |  |

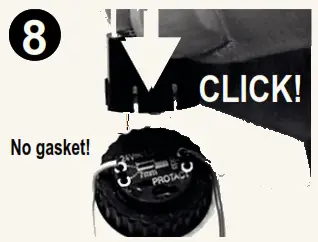

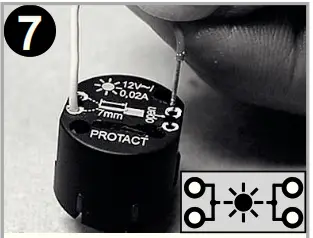

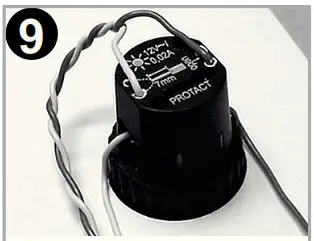

| Connect wire (12V~/AC) | Fix the LED unit | LED push incl. wiring |
 |  |
LED-UNIT
Techn. Dat.
- max. 24V=/~ (AC/DC)/1,5A (LED: 12V~/0,02A)
- Protect. low volt. only!
- Wire rigid 0,6 – 0,8 mm
- Wire flex.: Photo 6.A: Erst entriegeln/Unlock
- -20°C…60°C / IP54, Druckkraft/Op. force 5 N
Grothe GmbH
Löhestraße 22 * D-53773 Hennef
Tel.: (0 22 42) 88 90-0 * Fax: -36
Internet: www.grothe.de
