trend Staircase Housing Jig
OVERVIEW

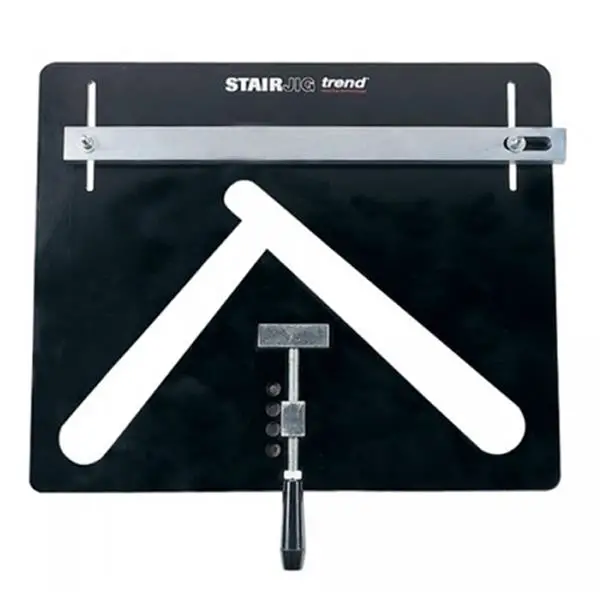

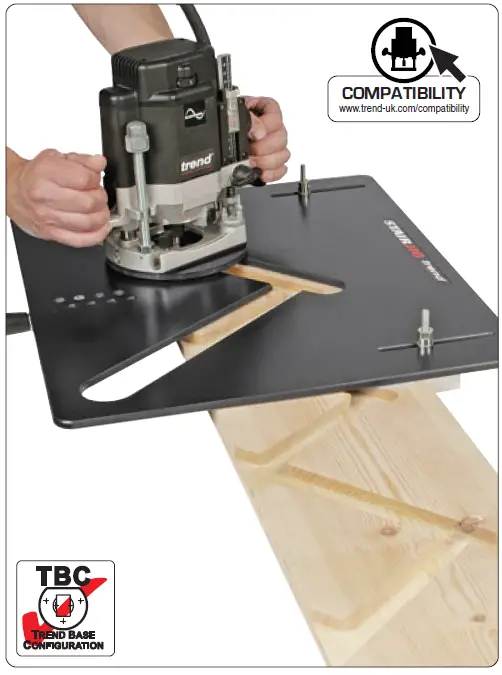

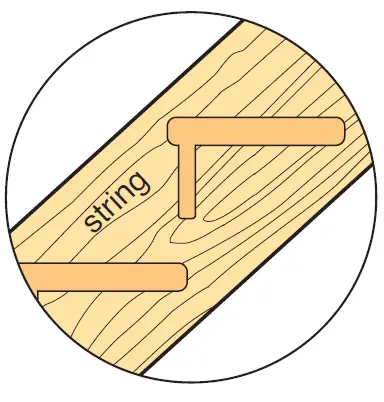

These template jigs are a well proven means of routing out stair housings quickly and accurately.
CLOSED RISER
- For use with all heavy duty routers with 1/2” shank capacity and over 1600 watts.
- Constructed from solid laminate.
- Reversible and adjustable angle fence for the exact matching of stair strings.
- Integral reversible and adjustable front clamp.

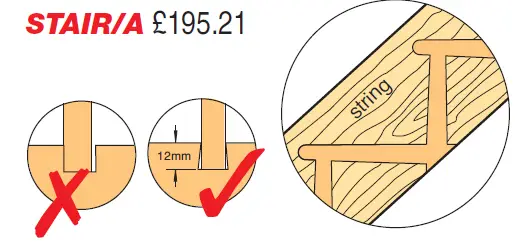

- Closed riser jig has adjustable nosing and uses dovetail cutters to give a neat joint.
STAIR/A £195.21
INCLUDES:
- 1 x Sub-base
- 1 x Adjustable reversible clamp
- 1 x Reversible clamp bar
- 1 x Nosepiece
- 1 x Line-up pin & bush
- 2 x Spanners
OPTIONAL ACCESSORIES

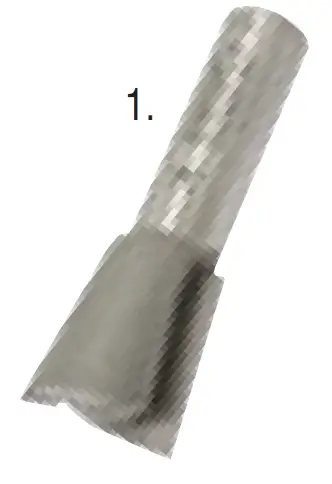

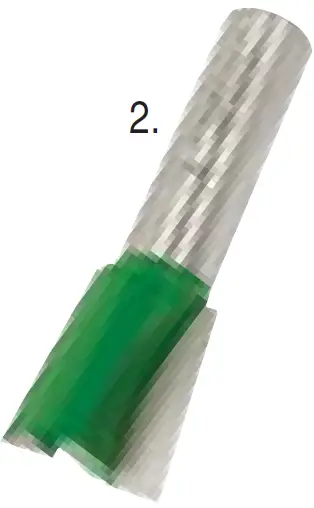

| 1. Recommended | Professional dovetail | cutters | 2. Recommended | CraftPro dovetail cutte | rs | |||||||
| 32/10X1/2TC | 22mm (7⁄8”)* | 14mm | £57.67 | C240X1/2TC | 22mm (7⁄8”)* | 13.5mm | £33.09 |  |  |  | ||
| 32/11X1/2TC | 25.4mm (1”) | 16mm | £57.67 | C241X1/2TC | 25.4mm (1”) | 16mm | £34.39 | |||||
| 32/12X1/2TC | 28.5mm (1-1⁄8”) | 19mm | £59.81 | C242X1/2TC | 28.5mm (1-1⁄8”) | 19mm | £35.73 | |||||
| 32/13X1/2TC | 32mm (1-1⁄4”) | 22mm | £59.81 | C243X1/2TC | 32mm (1-1⁄4”) | 22mm | £37.05 | |||||
| * 7/8” tread will have a slight gap under nosing. | ||||||||||||
OPEN RISER
- For use with all heavy duty routers with 1/2” shank capacity and over 1600 watts.
- Constructed from solid laminate.
- Reversible and adjustable angle fence for the exact matching of stair strings.
- Integral reversible and adjustable front clamp
STAIR/B £195.21

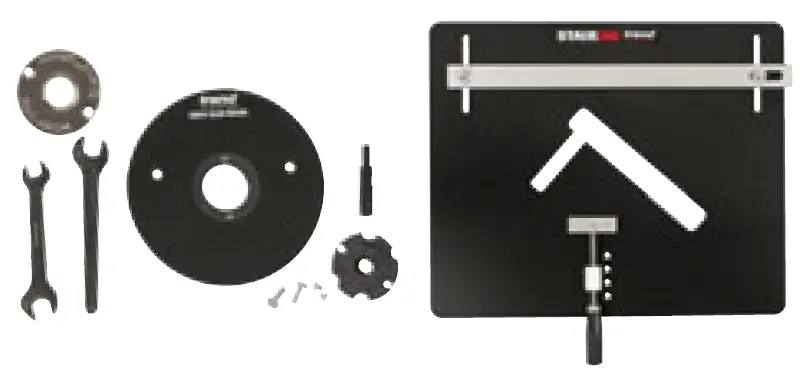

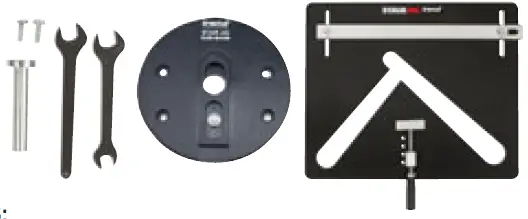

INCLUDES:
- 1 x Adjustable reversible clamp
- 1 x Reversible clamp bar
- 1 x Sub-base
- 1 x 24mm guide bush
- 1 x Line-up pin
- 2 x Spanners
- 1 x Line up guide bush

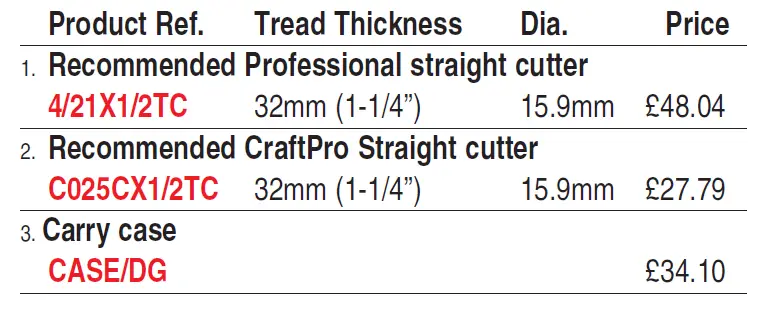

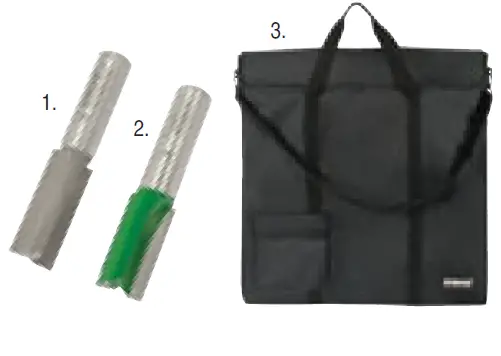

OPTIONAL ACCESSORIES
