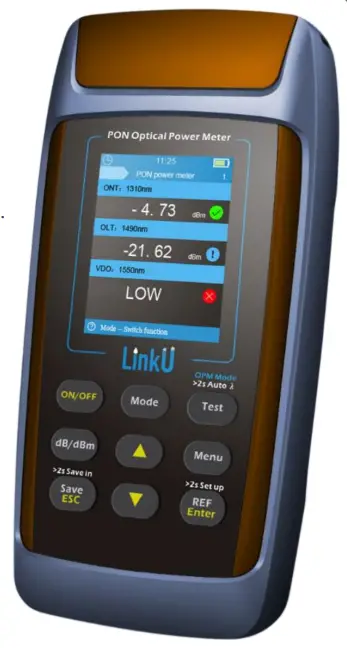

TELRAN OPBB00013 PON Power Meter
Description
The PON Power Meter is designed for the FTTX PON (APON,
BPON, EPON and GPON) network installation and maintenance. It can directly show the status of pass or fail by setting threshold.
Features
- Pass/Fail testing with warning tone
- Two testing ports with “ONU” & “OLT/Video”
- Filtered measurements with distinct power display
- Self-calibration
- Auto power-off with sleeping mode, battery indicator
- LCD display with back-light
- 10 thresholds setting
- Up to 1000 testing results storage
- USB port for data transmission
- Up to 10 hours continuous operation
Specification
| Calibration Wavelength | 1310nm | 1490nm | 1550nm |
| Measurement Range | -40dBm~+10dBm (continuous) -30dBm~+10dBm (burst signal) | -50dBm~+10dBm | -50dBm~+30dBm |
| Spectral Passband | 1260nm~1360nm | 1480nm~1500nm | 1530~1570nm |
| Max. Inputting Power | 15dBm | 15dBm | 30dBm |
| Isolation | N/A | 30dB (to 1550nm) | 30dB (to 1490nm) |
| Accuracy* | ±0.5dB (±1dB for burst signal) | ||
| Resolution | 0.01dB | ||
| Pass Through Attenuation | <1.5 dB | ||
| Return Loss | >50 dB | ||
| Connector | SC/PC or customized | ||
| Operating/ Storage Temperature | -10ºC ~ 50ºC / -20ºC ~ 70ºC | ||
| Power supply | 3 * AA batteries; AC/DC adaptor | ||
| Dimensions (L*W*H) | 170mm*82mm*35 mm | ||
| Standard Accessories: | |||
| SC/PC adapter, carrying bag, Manual (CD) | |||
| Optional Items | |||
| VFL Module (10mW @ 650nm; CW&.2Hz) | |||
* @ 20+3°C, CW, SC/PC connector, -10dBm
