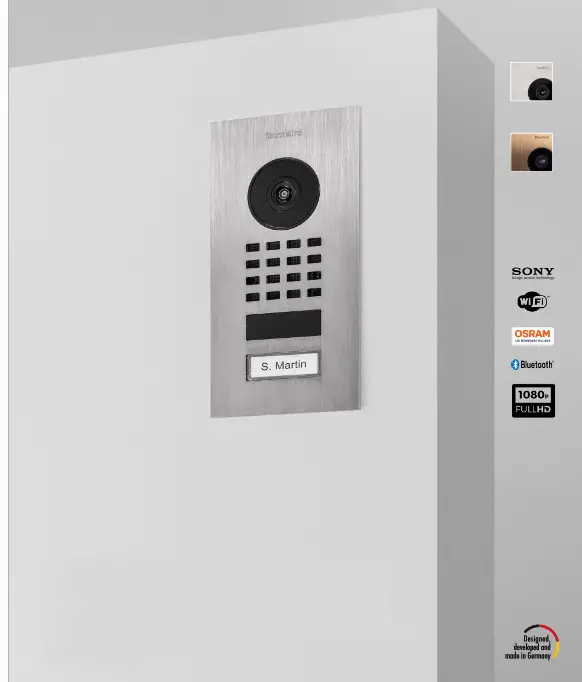

D1101V FLUSH-MOUNT
IP VIDEO DOOR STATION
Compact Edition
1 Call Button
ANSWER YOUR DOOR ANYWHERE.
HOW DOES IT WORK?
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you are not only able to talk to the visitor but also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home.
SMART HOME STARTS AT THE FRONT DOOR
DoorBird is the smart solution for your house entrance.
Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a standalone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as a door chime or an electric door opener can still be used and controlled ia the DoorBird App.

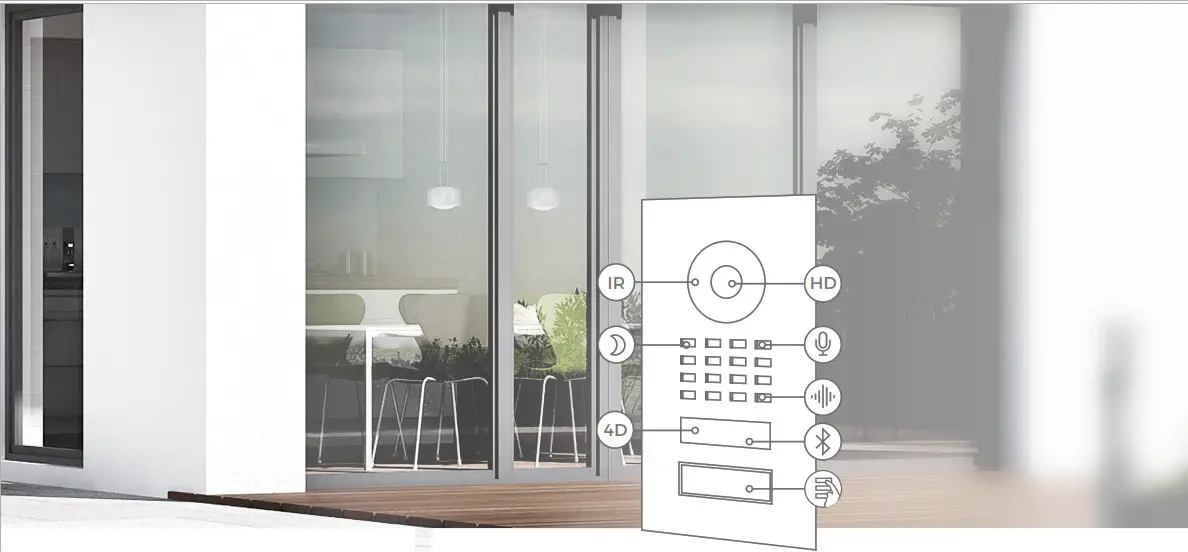

QUALITY MADE IN GERMANY
All DoorBird products are designed, developed and produced by Bird Home Automation GmbH in Berlin, Germany. We manufacture all products with the greatest care and precision and deliver them to our customers all over the world.
FEATURES
Open API
• Local interface for integration with third-party systems and SIP
 | Video and audio call • On smartphones, tablets (iOS, Android), IP and landline phones (SIP) |  | Light sensor For night vision mode |
 | Smart Transmission Mode (STM) Real-time audio/video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G |  | Motion sensor with 4D technology • Distance up to 6 m (19,7f) adjustable via App (interval: 1 m / 3.3f) |
 | Smart Home & NVR compatible • Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others |  | HDTV Video • Ultra wide-angle, hemispheric lens, 200° |
 | Individual action schedules, e.g.: • Access via Bluetooth on Wednesday from 9 am until 11 am |  | Noise reduction and echo cancellation (AEC, ANR) |
 | Automatic door opener • For use in medical offices and office environments |  | Bluetooth Low Energy (BLE) • For access control, compatible external sensors and smart locks Free visitor history |
 | Free visitor history • Store still images for free. Optional video recording available. |  | Call button • With a backlit nameplate |
 | Geofencing • Automatic door and gate opening when returning home |  | Easy connection to the network • Connection via a network cable or a bell wire (with a 2-wire transformer) to an RJ45 socket (PoE, network data) |
 | Burglary prevention • Prevents more break-ins than an alarm system |  | One freely configurable bi-stable switching relay |
 | Easy self-install • Quick installation via QR code scan |  | WiFi-enabled • Works within a WiFi network, no LAN cable needed |
 | Night vision • With 12 Infrared LEDs | ||
TECHNICAL SPECIFICATIONS
| GENERAL | |
| Front panel | 3 mm (0.12 in), Available in brushed stainless steel V2A / V4A and with Bronze-Finish, V4A |
| Mounting housing (backbox) | Stainless steel |
| Mounting type | Flush-mounted, the surface-mounted version sold separately |
| Call button | Plastic see www.doorbird.com/buy |
| Nameplate | Illuminated |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 525 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • Bi-stable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for the electric door opener • Switch relays, max. 24 V DC / AC, 1 A, e.g. for conventional door chimes • External input for external door opener button • 15 V DC input (+, -), max. 15 W |
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi CERTIFIED™ |

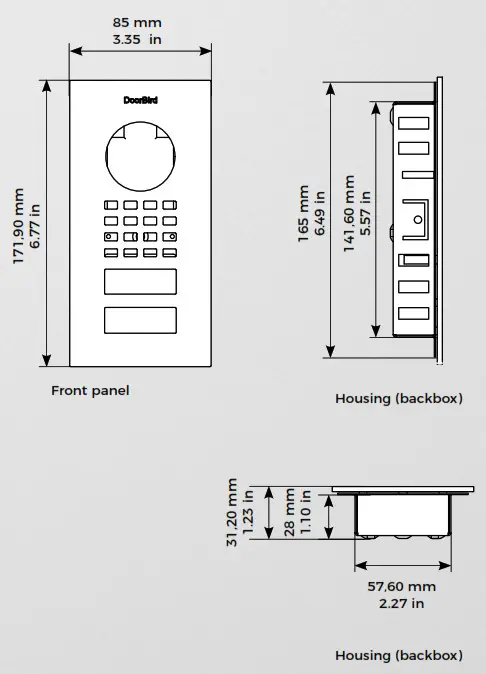

| Dimensions | 171,9 x 85 x 32 mm (H x W x D) 6.77 x 3.35 x 1.26 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 – 240 V AC to 15 V DC) 1x Screwdriver 1x Quick start guide with Digital Passport 1x Installation manual 1x Small parts |
| Warranty | see www.doorbird.com/warranty |
| SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High- Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height | The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height. |
| VIDEO | |
| Camera | HDTV 1080p, dynamic (VGA – HDTV) |
| Lens | High-end ultra-wide-angle hemispheric lens 200° (D), 150° (H), 90° (V), straightened, IR-capable |
| Night vision | Yes, light sensor, automatic IR-cut filter,12 Infrared LEDs (850 nm) |
| AUDIO | |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way |
| NETWORK | |
| Ethernet | PoE 802.3af Mode-A, 10/100 Base-T |
| WiFi | 2.4 GHz b/g/n |
| Supported protocols | HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 80° (H), 50° (V) |
| Range | 1 – 6 m (3.3 – 19.7 ft), depends on the environment, configurable in 1 m (3.3 ft) steps. |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE) |
| Configuration | Via App, e.g. • Range (1 – 6 m / 3.3 – 19.7 ft) |
| INTEGRATED WIRELESS MODULES | |
| WiFi | 2.4 GHz |
| Bluetooth | Bluetooth Low Energy (BLE), enabled with future firmware and App update |
| Sensor | 24 GHz, can be disabled |
| THIRD-PARTY INTEGRATION (DOORBIRD CONNECT) | |
| Partner integrations | see www.doorbird.com/connect |
| API | see www.doorbird.com/api |
| Simultaneous video streams | One, for event-based recording |
| OPTIONAL ACCESSORIES | |
| Sold separately | see www.doorbird.com/buy |
Errors and omissions excepted. | Last update 03/2020 – Copyright © 2020 Bird Home Automation GmbH – www.doorbird.com
