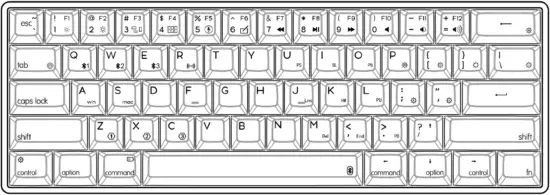

SK1 series RGB USB /Bluetooth+2.4G 3-mode keyboard
Applicable models: SK1 Mechanical switch/SK1 Optical switch series keyboard
* The space bar module can be replaced
One of the blue LED is flashing, The keyboard is connecting the BT/2.4G equipment.
Bluetooth or 2.4G ON/OFF switch, Link to USB mode.
Press Fn with the function keys
FN function description
BT/2.4G Setting (BT model only, can not modify)
| Key | Feature | |
| FN + Space |  | Bluetooth ON/OFF switch |
| Link to USB mode or the last BT equipment. | ||
| FN + Q |  | Long press: The red&green LED of Q keycap will flash, The bluetooth equipment can be paired. |
| Press: The keyboard will connect the BT equipment or disconnect. | ||
| FN + W |  | Long press: The red&green LED of W keycap will flash, The bluetooth equipment can be paired. |
| Press: The keyboard will connect the BT equipment or disconnect. | ||
| FN + E |  | Long press: The red&green LED of E keycap will flash, The bluetooth equipment can be paired. |
| Press: The keyboard will connect the BT equipment or disconnect. | ||
| FN + R |  | Press: The keyboard will connect the 2.4G equipment or disconnect. |
| Note: If the bluetooth pairing is timed out or failed, please re-pair. If the bluetooth pairing is successful on the equipment, but the keyboard can not work still, please delete the keyboard in the bluetooth list of equipment and pair again. | ||
FN + Tab  | SK BT/2. 4G model series long press for 3 seconds to on/off the keyboard | |
| SK Optical model series long press the key in the label under the keyboard for 3 seconds to on/off the keyboard | |
| FN + Win |  | Clock/Unlock Win key |
| FN + command |  | Off/on the charge Indicator light, LOGO light and backlight |
Lighting control (can not modily)
| Key | Feature | Key | Feature |
FN + |  Backlight ON/OFF | FN + \| |  Light color switching |
| FN + P |  Backlight Brightness – | FN + ; |  Backlight Effect Speed – |
| FN + {[ |  Backlight Brightness + | FN + “ |  Backlight Effect Speed + |
| FN + ]} |  Backlight mode 1-18 | FN + Control |  Ambient light/Logo light mode switch |
Media control 1 (can not modily)
| Key | Mac Feature | Win Feature |
FN + 1  | Screen brightness – | Screen brightness – |
FN + 2  | Screen brightness + | Screen brightness + |
FN + 3  | Expand all active windows | Expand all active windows |
FN + 4  | Enter the main interface of the app | Show desktop |
FN + 5  | Enter Spotlight global search | / |
FN + 6  | Enter handwriting input | / |
Media control 2 (can not modily)
| Key | Feature | Key | Feature |
| FN + 7 |  Previous | FN + 0 |  Mute |
| FN + 8 |  Play/Pause | FN + – |  Volume – |
| FN + 9 |  Next | FN + + |  Volume + |
Double-click function (Write light on and you can Input F1-F12)
| Key | Feature |
| Double-click FN then press the number key 1! ~ =+ | F1 ~ F12 |
| Note: Click FN again to exit the double-click function | |
Arrow key (factory setting)
| Key | Feature | Key | Feature |
| FN + /? |  | FN + command |  |
| FN + option |  | FN + Control |  |
| Note: After double-clicking the FN key, the keys are locked as arrow keys, click FN again to unlock | |||
Mac/Win OS Switch (can not modily)
| Key | Feature |
| FN + A | Enter Win mode, The blue light on A, the media key is only for Win/Android |
| FN + S | Enter Win mode, The blue light on S, the media key is only for Mac/iOS |
Combination key (factory setting)
| Key | Feature | Key | Feature |
| FN + U | PS | FN + J | Ins |
| FN + I | SL | FN + K | HM |
| FN + O | PB | FN + L | PU |
| FN + < | End | FN + M | Del |
| FN + > | PD | FN + Esc | ` |
| FN + Shift + ESC | ~ |
Custom mode description
| Key | Feature |
| FN + Z Layer 1 | (1) FN+Z Enter user mode 1, the white light under the Z key will light up, no need to Connect the driver, the keyboard can Execute the set custom function. Users can modify the key functions and macro settings by the driver And the setting can be downloaded to the keyboard and saved. |
| FN + X Layer 2 | (2) FN+X Enter user mode 2, the white light under the X key will light up, no need to Connect the driver, the keyboard can Execute the set custom function. Users can modify the key functions and macro settings by the driver And the setting can be downloaded to the keyboard and saved. |
| FN + C Layer 3 | (3) FN+C Enter user mode 3, the white light under the C key will light up, no need to Connect the driver, the keyboard can Execute the set custom function. Users can modify the key functions and macro settings by the driver And the setting can be downloaded to the keyboard and saved. |
| Note: The three layers need to be customized in the drive environment, and after customization, they will be automatically downloaded to the keyboard and saved locally. | |
For more technical support, please update the driver for setup http://www.sikakeyb.com
Contact us: [email protected]; [email protected]
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Warning: changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment
