INSTALL GUIDE
CS-HA(RS)-HA6P-[OL-RS-HA6]-EN
DOCUMENT NUMBER
78189
REVISION DATE
20211213
FIRMWARE
CS-HA(RS)-HA6P-[OL-RS-HA6]
HARDWARE
OL-RS-HA6
ACCESSORIES
OL-LOADER (REQUIRED)
CRIMESTOPPER REVOSTART RF-KIT (OPTIONAL)

TERMS OF USE: Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are employed by a registered business specialized in the installation of auto- motive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install Guide, and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of economic opportunity, and the like that may or may not have resulted from the use, misuse, improper installation or operation of its products. ADS reserves itself the right to suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, non-compliant Certified Technicians, or end-users.

Contents hide

1 BEFORE INSTALLATION

2 FEATURES

3 BOX CONTENTS

4 Documents / Resources

4.1 References

5 Related Posts

BEFORE INSTALLATION

Connect the module to a computer
Login to the Weblink account
Flash firmware to module (module is not preloaded with firmware)
Use accessories accordingly (accessories are sold separately)

	NOTES * WARNING: 1- No takeover available. Upon opening the vehicle, the door engine will shut down. 2- All doors must be closed to the remote start vehicle.
MAKE	MODEL	YEAR	YEAR
ACURA	RLX PTS AT*	14-15	14-15
HONDA	Accord PTS AT*	13-17	13-17
	Accord Hybrid PTS AT*	13-17	13-17
	Civic PTS AT*	14-15	14-15
	CR-V PTS AT*	14-16	14-16
	Crosstour PTS AT*	13-15	13-15

FEATURES

DATA IMMOBILIZER BYPASS	•	•	•	•	•	•
3X LOCK START/STANDALONE MOD.	•	•	•	•	•	•
ARM OEM ALARM	•	•	•	•	•	•
DISARM OEM ALARM	•	•	•	•	•	•
DOOR LOCK	•	•	•	•	•	•
DOOR UNLOCK	•	•	•	•	•	•
TRUNK/HATCH RELEASE	•	•	•	•	•	•
DOOR STATUS OUTPUT	•	•	•	•	•	•
TRUNK STATUS OUTPUT	•	•	•	•	•	•
HOOD STATUS OUTPUT*	•	•	•	•	•	•
AUTO LIGHT CTRL	•	•		•	•	•
TACHOMETER OUTPUT	•	•	•	•	•	•
BRAKE PEDAL STATUS	•	•	•	•	•	•

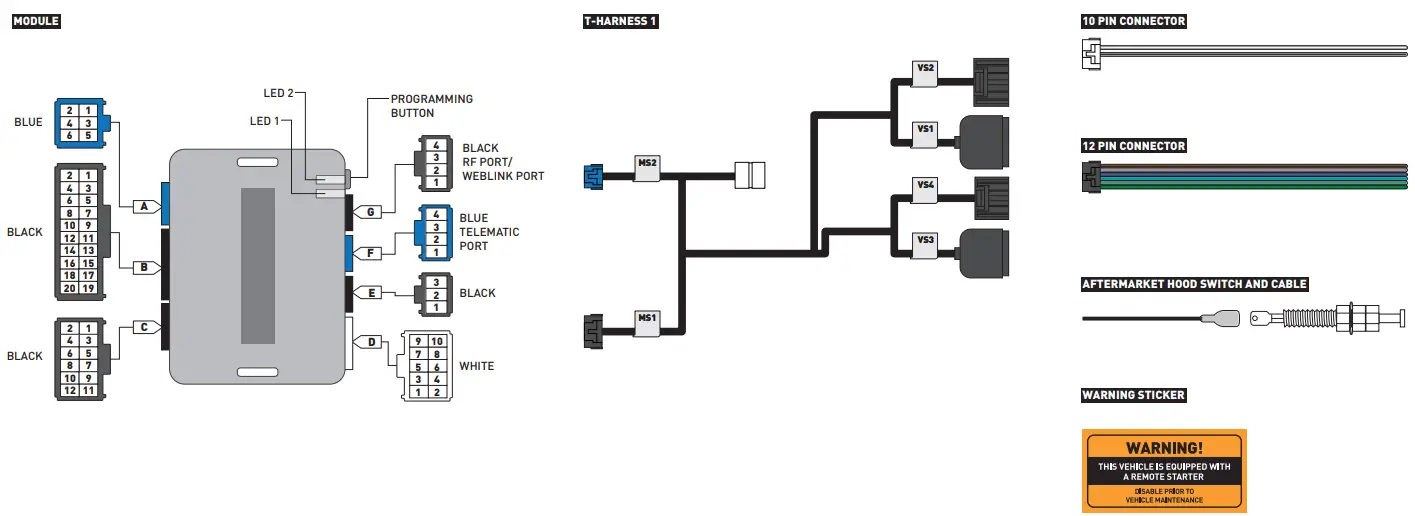

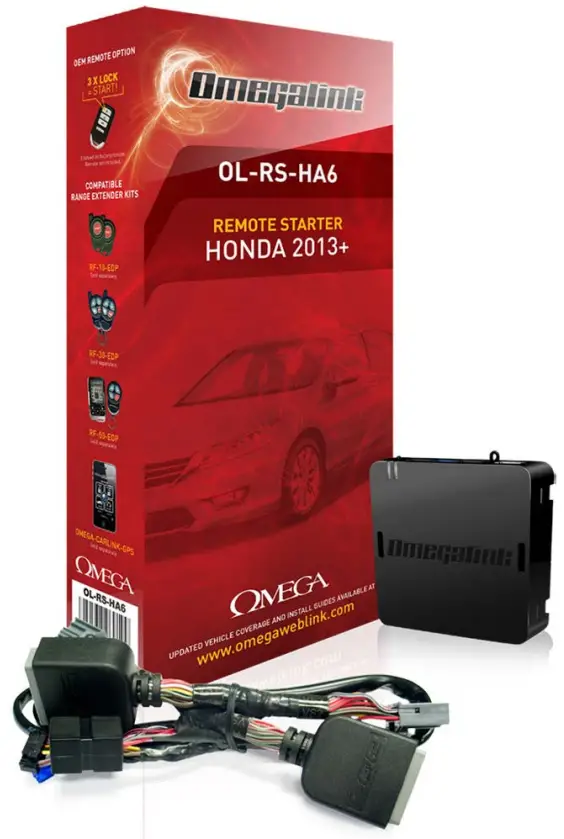

BOX CONTENTS

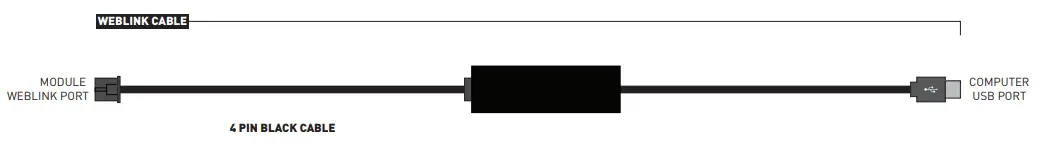

WEBLINK CABLE (required accessory sold separately)

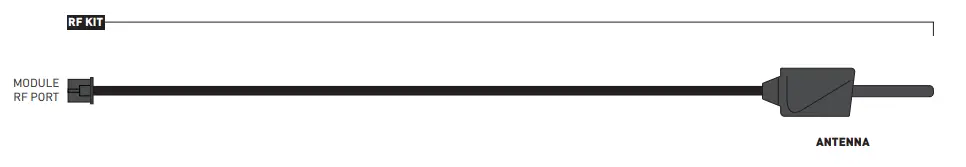

RF KIT (accessories sold separately)

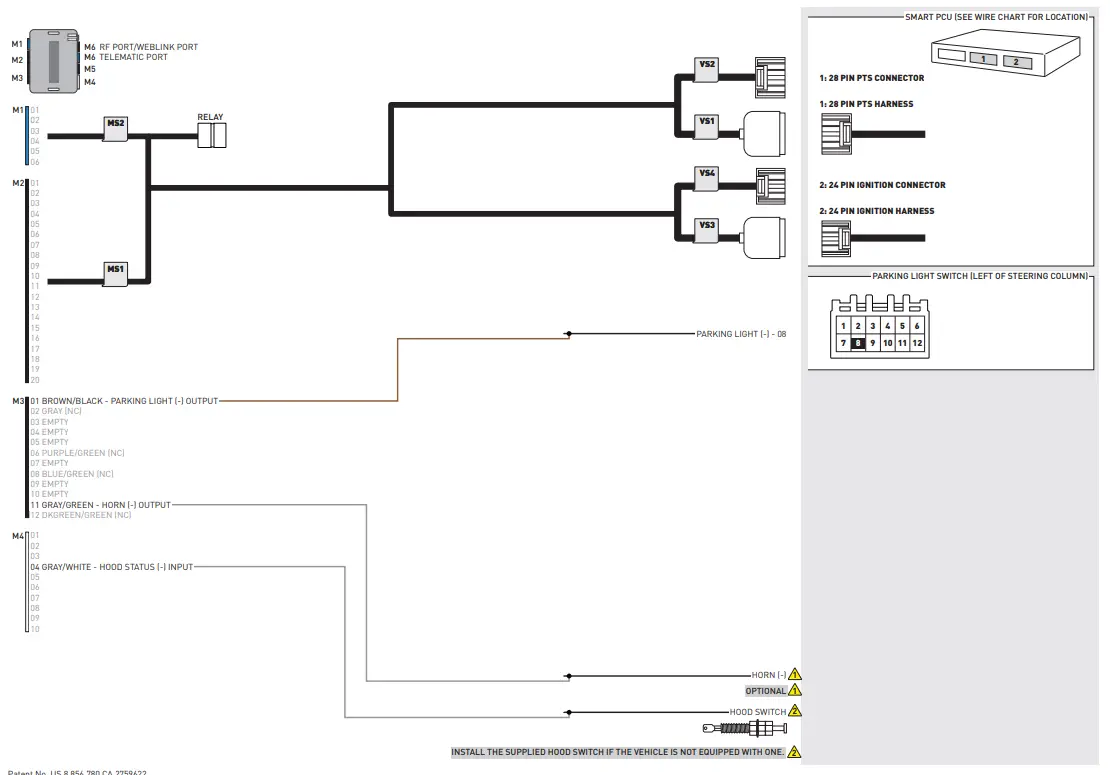

TYPE 1 – WIRE CHART – 1 OF 1

ACURA	MODEL	YEAR	WIRE DESCR INCEPTION	CONNECTOR NAME	CONNE CTOR COLOR	CONNECTOR TYPE	POSITION	WIRE COLOR	POLARITY	MODULE LOCATION	COMPONENT LOCATOR
MAKE	RLX PTS AT	14-15	Parking Light	~	Blue	12 pin	8	Pink	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	A10	Orange	(-)	Steering wheel clock spring connector	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
HONDA	Accord PTS AT	13-17	Parking Light	~	Blue	12 pin	8	Gray	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	A2	blue	(-)	Steering wheel clock spring connector	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
	Accord Hybrid PTS AT	13-17	Parking Light	~	Blue	12 pin	8	Gray	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	A2	blue	(-)	Steering wheel clock spring connector	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
	Civic PTS AT	14-15	Parking Light	~	Gray	12 pin	8	Gray	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	A2	Orange	(-)	Steering wheel clock spring connector	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, under the dash, above and right of steering column*	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, under the dash, above and right of steering column*	~
	Crosstour PTS AT	13-15	Parking Light	~	Blue	12 pin	8	Gray	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	A2	blue	(-)	Steering wheel clock spring connector	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, under the dash, left of the steering column	~
	CR-V PTS AT	14-16	Parking Light	~	Gray	12 pin	8	Blue	(-)	Parking light switch (left of the steering column)	~
			Horn	~	~	~	~	~	~	~	~
			PTS Harness	~	~	~	~	~	~	Smart PCU, behind the glove box	~
			Ignition Harness	~	~	~	~	~	~	Smart PCU, behind the glove box	~

* If the vehicle is equipped with an OEM ampliﬁ er, it has to be removed to access Smart PCU.

MODULE PROGRAMMING PROCEDURE – 1 OF 1

1	Set ignition to ON position.	7	Set ignition to ON position.
2	Wait, LED 1 will ﬂ ash GREEN rapidly.	8	Wait, LED 1 will turn solid GREEN for 2 seconds.
3	Set ignition to OFF position.	9	Set ignition to OFF position.
4	WARNING: Disconnect power last. Disconnect the module from the vehicle.	10	Press UNLOCK on the OEM remote.
5	Connect module to computer and proceed with extended programming.	>>	If the vehicle is equipped with a power liftgate: Open and close the power liftgate with the OEM keyfob.
6	Connect power first. Connect module to vehicle.	11	Module Programming Procedure completed.

VALET MODE PROGRAMMING PROCEDURE – 1 OF 1

>>	NOTE: In Valet Mode, the Remote starter is not functional. Keyless entry, Lock, and Unlock will remain functional. See RF kit user manual for alternate valet mode programming.	01	Time restriction. Complete next step within 7 seconds.
02	Cycle ignition ON fi ve times [5x OFF/ON] rapidly.	03	Wait, LED 1 will turn solid RED for 2 seconds.
04	Set ignition to OFF position.	05	Valet Mode Programming Procedure completed.
>>	To exit valet mode: repeat steps 1 to 5.

AFTERMARKET REMOTE PROGRAMMING PROCEDURE – 1 OF 1

>>	WARNING: Program aftermarket remotes before usage. A maximum of four [4x] aftermarket remotes per system.	06	LED 1 will ﬂ ash GREEN once [1x].
01	Time restriction. Complete next step within 7 seconds.	07	LED 1 will turn solid RED.
02	Cycle ignition ON fi ve times [5x OFF/ON] rapidly.	>>	To program additional remotes: repeat steps 4 to 7 using each additional remote.
03	LED 1 will turn solid RED.	08	Wait, LED 1 will turn OFF.
04	Time restriction. Complete next step within 2 seconds from the previous step.	09	Set ignition to OFF position.
05	Press once [1x] on the LOCK button of the aftermarket remote.	10	Aftermarket Remote Programming Procedure completed.

MODULE NAVIGATION PROCEDURE – 1 OF 1

>>	It is mandatory to exit the Module Navigation at the end of this procedure. Failure to exit the Module Navigation will drain the vehicle battery. To exit the Module Navigation at any time: Follow STEP 13.	07	LED 1 will ﬂash GREEN as many times as the current (or default) setting number, continuously.
>>	The module must be programmed to the vehicle.	08	IN THE SETTINGS: Press the programming button as many times as necessary to access your setting. LED 1 will ﬂ ash GREEN an equal amount of times continuously.
>>	Use the Module Navigation Chart on the next page.	09	To return to the MENUS: exit the Module Navigation and redo the Module Navigation Procedure.
01	Set ignition to OFF position.	10	To save and return to the OPTIONS: Press and hold the programming button until LED 1 turns solid RED.
02	TO ACCESS THE MENUS: Press and hold programming button until LED 1 turns solid GREEN.	11	LED 1 will ﬂ ash RED as many times as the current option number continuously.
03	IN THE MENUS: Press the programming button as many times as the menu number indicates. LED 1 will ﬂ ash GREEN an equal amount of times continuously.	12	Configure every other setting and proceed to step 13.
04	TO ACCESS THE OPTIONS: Press and hold programming button until LED 1 turns solid RED.	13	MANDATORY: EXIT MODULE NAVIGATION. Press and hold the programming button for 7 seconds. LED 1 will ﬂ ash RED rapidly. Release programming button. LED 1 will turn OFF.
05	IN THE OPTIONS: Press the programming button as many times as the option number indicates. LED 1 will ﬂ ash RED an equal amount of times continuously.	14	Module navigation completed.
06	TO ACCESS THE SETTINGS: Press and hold the programming button until LED 1 turns solid GREEN.	>>	Failure to exit the Module Navigation will drain vehicle battery.

MODULE NAVIGATION CHART – 1 OF 2

MODULE NAVIGATION CHART: NOTES	[X] MENUS		[Y] OPTIONS		[Z] SETTINGS
I Default settings are listed in bold. II Make sure the option is covered on the vehicle before attempting to change the setting.	1	CONFIGURATION	1	DISARM/UNLOCK BEFORE START	1	OFF
			1	DISARM/UNLOCK BEFORE START	2	ON
			2	RELOCK AFTER START	1	OFF
			2	RELOCK AFTER START	2	ON
			3	RELOCK AFTER SHUTDOWN	1	OFF
			3	RELOCK AFTER SHUTDOWN	2	ON
			4	FORCE UNLOCK ALL ON FIRST PRESS	1	OFF
			4	FORCE UNLOCK ALL ON FIRST PRESS	2	ON
			5	N/A	1	N/A
			6	N/A	1	N/A
			7	FACTORY KEYLESS RS SEQUENCE	1	DISABLE
					2	N/A
					3	LOCK + UNLOCK + LOCK
					4	LOCK + LOCK + LOCK
			8	MODULE RUN TIME	1	03 MIN
					2	05 MIN
					3	10 MIN
					4	15 MIN
					5	25 MIN
					6	30 MIN
					7	35 MIN
					8	15 MIN
			9	WAIT TO START DELAY	1	02 SEC
					2	05 SEC
					3	08 SEC
					4	10 SEC
					5	15 SEC
					6	20 SEC
					7	25 SEC
					8	30 SEC
			10	N/A	1	N/A
			11	N/A	1	N/A
			12	N/A	1	N/A
			13	N/A	1	N/A
			14	HORN EVENT TRIGGER	1	DOUBLE LOCK
					2	LOCK + UNLOCK
					3	LOCK + UNLOCK + START
					4	DOUBLE LOCK + START
			15	HORN CHIRPS WIDTH	1	30 mSEC
					2	15 mSec
					3	60 mSec
	7-Feb	Technical Support only	1	N/A	1	N/A

*Vehicle will shut down when a door is opened.
REMOTE STARTER ERROR CODES – 1 OF 1

REMOTE STARTER ERROR CODES: NOTES	[X] NUMBER OF PARKING LIGHT FLASHES	DIAGNOSTIC
I WARNING: The following applies only when the parking lights are connected and supported by the system. II After a remote starter failure, the parking lights will ﬂash three [3x] times, then will ﬂ ash [X] number times to indicate an error code. See table.	1	Engine running.
	2	Key in the ignition at ON position.
	3	N/A
	4	The trunk is open.
	5	The foot brake is ON.
	6	The Hood is open.
	7	N/A
	8	Tach failure.
	9	N/A
	10	The system is in Valet Mode.
	11	CAN communication failure
	12	RS is not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.

REMOTE STARTER SHUTDOWN ERROR CODES: NOTES	[Y] NUMBER OF PARKING LIGHT FLASHES	DIAGNOSTIC
I WARNING: The following applies only when the parking lights are connected and supported by the system. II If the engine shuts down after a remote starter sequence: Press and hold the Trunk button and the Start button at the same time for 2.5 seconds when using a 1-WAY remote. OR Press once [1x] on button “4” when using a 2-WAY remote. The parking lights will ﬂ ash four [4x] times, then will ﬂash [Y] number times to indicate an error code. See table.	1	Engine tach signal is lost.
	2	N/A
	3	The foot brake is ON.
	4	The Hood is open.
	5	Engine RPM limiter is ON.
	6	Glow plug timeout error.
	7	The vehicle is moving (VSS).
	8	Check engine warning light is ON.
	9	The low fuel warning light is ON.
	10	N/A
	11	CAN communication failure during RS sequence.

MODULE DIAGNOSTICS – 1 OF 1

TEST MODULE		LED 1 STATUS	DIAGNOSTIC
I	DURING PROGRAMMING	Flashing RED	Missing/wrong information from firmware or vehicle.
		Solid RED	Module waiting for more vehicle information.
		Flashing GREEN	Additional steps are required to complete module programming.
		Solid GREEN then OFF	Module correctly programmed.
		OFF	No activity or module is already programmed.
II	DURING REMOTE START	Flashing RED	Module incorrectly programmed.
		Solid RED	Module incorrectly programmed.
		Flashing GREEN	Module correctly programmed and operational.
		Solid GREEN then OFF	Reset in progress.
		OFF	Invalid ground when running status from remote starter.
III	WITH IGNITION OFF	Flashing RED	Module incorrectly programmed or connected.
		Solid RED	Module not programmed. Waiting for more vehicle information.
		Flashing GREEN	False ground when running status from remote starter.
		Solid GREEN then OFF	Reset in progress.
		OFF	The module is at rest and ready for a remote start sequence.

MODULE RESET PROCEDURE – 1 OF 1

01	Disconnect all connectors from the module except the BLACK 20-PIN connector.	06	Module RESET completed.
02	Disconnect the BLACK 20-PIN connector.	07	Reconnect all connectors.
03	PRESS AND HOLD the module’s programming button while connecting the BLACK 20-PIN connector.	08	Repeat programming procedure.
04	Wait, LED 1 will ﬂash RED. RELEASE programming button.	>>	Failure to follow procedure may result with a DTC or a CHECK ENGINE error message.
05	LED 1 will turn RED for 2 seconds.

CHECKLIST

1	WARNING: The vehicle engine will start many times. Test in a well-ventilated area.
2	Close all vehicle doors, hood, and trunk.
3	Press the LOCK button once [1x] on the aftermarket keyfob.
	Question 1: Do the doors lock?
	YES: Go to the next step.
	NO: Verify the remote programming, the RF connections, and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.
4	Press the UNLOCK button once [1x] on the aftermarket keyfob.
	Question 2: Do the doors unlock?
	YES: Go to the next step.
	NO: Verify the remote programming, the RF connections, and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.
5	Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.
	Question 3: Does the trunk or hatch open/unlock?
	YES: Close trunk or hatch and go to the next step.
	NO: Verify the remote programming, the RF connections, and the wired trunk/hatch connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.
6	Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.
	Question 4: Does the driver-side sliding door open?
	YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to the next step.
	NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.
7	Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.
	Question 5: Does the passenger side sliding door open?
	YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to the next step.
	NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.
8	Press the START/STOP button once [1x] on the aftermarket keyfob to the remote to start the vehicle.
	Question 6: Does the vehicle remote start?
	YES: Go to the next step.
	NO: Verify the remote programming, and the RF connections, and check the remote start error codes. Repeat the test and call technical support, if the problem persists.
9	Press the START/STOP button once [1x] on the aftermarket keyfob to shut down the vehicle.
	Question 7: Does the vehicle shut down?
	YES: Go to the next step. NO: Repeat step. If the problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.
10	RAP and auto light shutdown test
	Question 8: Did the radio, interior controls, and headlights turn off within 60 seconds after the remote start shutdown?
	YES: Go to the next step.
	NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.
11	Open hood.
12	If not already installed, afﬁ x the mandatory orange warning sticker under the hood and proceed to the next step.
13	Press the START/STOP button once [1x] on the aftermarket keyfob to the remote start vehicle.
	Question 9: Does the vehicle remote start?
	YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.
	NO: Go to the next step.
14	Close hood.
15	Enter the vehicle and close the doors.
16	Press the START/STOP button once [1x] on the aftermarket keyfob to the remote to start the vehicle.
17	Wait for the vehicle to start.
18	Press the brake pedal.
	Question 10: Does the vehicle shut down?
	YES: Go to the next step.
	NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once [1x] on the aftermarket keyfob to shut down the vehicle, check the connection as illustrated in the wiring diagram, if applicable, and call technical support.
19	Exit vehicle.
20	Installation checklist completed.
