FORTIN E400 Automatic & Manual Transmission Remote Starter and Alarm

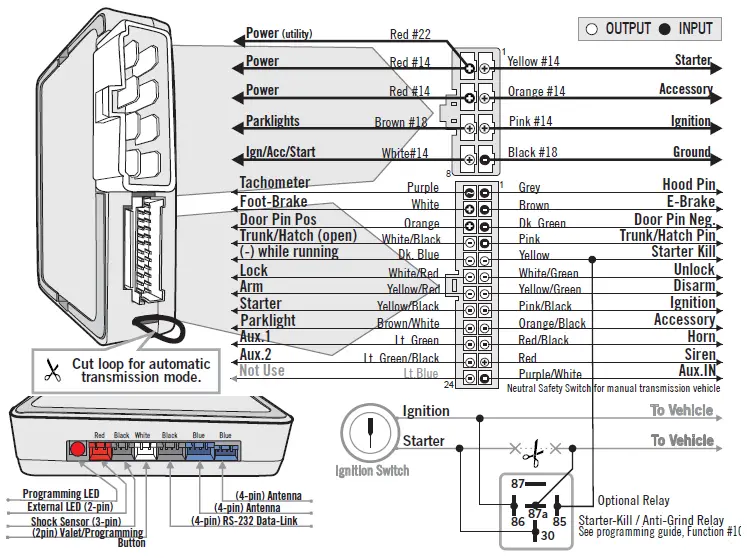

WIRING / CONNECTION GUIDE

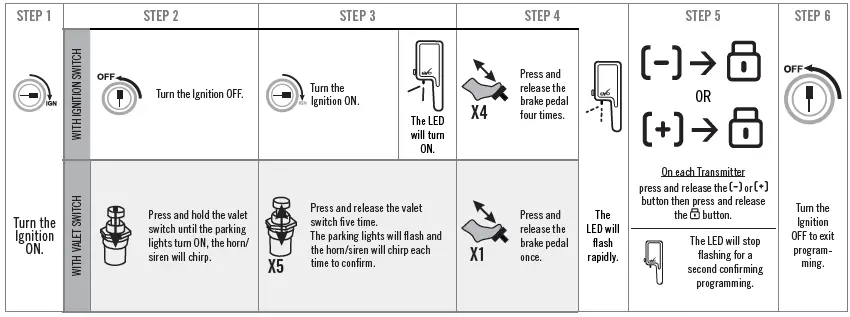

PROGRAMMING REMOTE TRANSMITTER(S)
The system can learn up to a maximum of 4 transmitters. Any transmitters can be stored in more than 1 memory slot. When a 5th transmitter is learned the 1st remote is erased (FIFO).

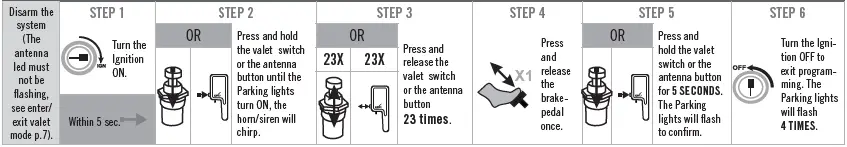

ERASES ALL REMOTES THAT HAVE BEEN PROGRAMMED AND RESETS ALL FUNCTIONS BACK TO DEFAULT.

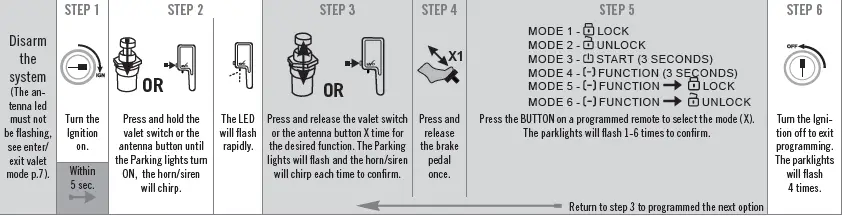

FUNCTION PROGRAMMING
| FUNCTION MODE 1 DEFAULT MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 | ||||||||||
| 1 | — | — | — | — | — | — | — | |||
|
2 |
Programmable Output (+) Ign/Acc/Start/ Park-Light |
2nd Ignition |
2nd Accessory |
2nd Starter | Pink | Ignition | Pink | Ignition | Pink | Ignition |
| Orange | 2nd Ignition | Orange | Accessory | Orange | Accessory | |||||
| White | Starter | White | 2nd Ignition | White | Starter | |||||
| Yellow | 2nd Starter | Yellow | Starter | Yellow | 2nd Starter | |||||
| Brown | Park-Light (+) | Brown | 2nd Accessory | Brown | 2nd Ignition | |||||
| Aux. 1 | Park-Light (-) | Aux. 1 | Park-Light (-) | |||||||
| 3 | Tachless sensivity | Increase crank time | Decrease crank time | |||||||
| (By default) | ||||||||||
| 4 | Remote car starter runtime | Gas: 15 minutes Diesel: 30 minutes | Gas: 7 minutes Diesel: 14 minutes | Gas: 3 minutes Diesel: 6 minutes | — | — | — | |||
| 5 | Add Remote on FMH antenna series | Add Remote | — | — | — | — | — | |||
| 6 | Lock/Unlock control | No | Unlock before remote- start & Lock after remote-start. | Lock after remote-start. | Unlock and relock after shut-down. | Relock 10 sec.after shut-down. | Disarm before shut down. | |||
| FUNCTION | MODE 1 DEFAULT | MODE 2 | MODE 3 | MODE 4 | MODE 5 | MODE 6 | |
| 7 | Ignition Lock/Unlock control | No | Lock after foot-brake & unlock after key is turned off. | Unlock after key is turned off. | Doorlock Output at Ignition only. | — | — |
| 8 | Unlock Pulse Time | Single 0.25 sec | Double 0.25 sec | Single 4.0 sec | Single 2.5 sec | Single 1.5 sec | Single 0.75 sec |
|
9 |
Active or Passive Alarm & Starter Kill | Active Press LOCK to activate the Alarm and starter-kill. | Passive (Lock disabled) Arm alarm activate starter- kill 30 (MODE 4), 60 (MODE 5), or 120 (MODE 6) sec. after the door is closed. | Passive (Lock enabled) Arm alarm, activate starter-kill and lock doors 30 (MODE 4), 60 (MODE 5), or 120 (MODE 6) sec. after the door is closed. | Passive arm 30 seconds (by default if MODE 2 or 3 is activated. | Passive arm 60 seconds. (if MODE 2 or 3 is activated. | Passive arm 120 seconds. (if MODE 2 or 3 is activated. |
| 10 | Starter Kill Output | Starter-kill &anti- grind | Anti-grind only | Relay normally open | — | — | — |
| 11 | Sound confirmation & LED antenne | 1st LOCK/UNLOCK silent – 2nd LOCK/ UNLOCK sound ——————– Antenna LED active. | LOCK/UNLOCK sound always. | Antenna LED disabled. | Antenna LED disabled with ignition. | Confirmation sound at LOCK only | Panic mode disabled |
| 12 | Horn/Siren confirmation | Horn(-) only. | Siren(+) only | Siren(+) & Horn(-) | During alarm siren(+) will pulse and horn(-) is constant. | — | — |
| 13 | Confirmation Pulse | Long | Short | — | — | — | — |
| 14 | Alarm ON/Off Starter ON/Off | Alarm OFF Remote-starter ON | Alarm ON Remote-starter ON | Alarm ON Remote-starter OFF | — | — | — |
| 15 | Smart Arming Smart Doorlock Smart Lock pulse | Disable | (Unlock signal) Automatically LOCK and rearm alarm if door(s) are not opened after 30 seconds. | Automatic Lock when starter kill arms. | Lock pulse only when its Unlock | — | — |
| 16 | Cold Start Timer | 3 hours at -5oc/ Runtime | 1.5 hours at -5oc/ Runtime | 3 hours at -5oc/5 minutes | 1.5 hours at -5oc/5 minutes | Cold time OFF | — |
| 17 | Domelight Delay | Disable | Enable Ignore door trigger (dome light) when arming or Remote-starting | — | — | — | — |
| FUNCTION | MODE 1 DEFAULT | MODE 2 | MODE 3 | MODE 4 | MODE 5 | MODE 6 | |
| 18 | Diesel Mode | Disable | Enable (20 seconds) Delay between Ignition power up and Starter (crank). | Enable (10 seconds) Delay between Ignition power up and Starter (crank). | Enable No delay between Ignition power up and Starter (crank). | — | — |
| 19 | Turbo timer | Disable | Run 2 minutes. | Run 4 minutes. | — | — | — |
| 20 | Engine supervision: -Tachless – analog tach- Tach Data- Link- | Tachless on crank and supervision Tach Data- Link or analogic after | Tachless only. ( vehicles with automatic transmission only) | Analog Tach learning (see p.8 for programming) | Start (crank) 8 sec on tachless. ( vehicles with automatic transmission only) | Start (crank) 8 sec + Supervision by Data-Link Tach (Data interface required) | Tach Data-Link only (Data interface required) |
| 21 | Start Attempts | 2 | 1 | 3 | — | — | — |
| 22 | — | — | — | — | — | — | — |
| 23 | Master RESET | RESET all programming options by default. (Retains already programmed remote.) | — | — | — | — | — |
| 24 | Special application | Disable | Application 1 | Application 2 | Application 3 | — | — |
| 25 | Auxiliary 1 Output Function AUX–> LOCK | 0.5 seconds & disarm alarm | 0.5 seconds | 10 sec latch or until a button is pressed | 20 sec latch or until a button is pressed. | 30 sec latch or until a button is pressed. | Latch until shutdown |
| 26 | Hybrid mode | Gas / Diesel vehicle | Hybrid vehicle | — | — | — | — |
| 27 | Auxiliary 2 Output- Function AUX–> UNLOCK | 0.5 seconds & disarm alarm | 0.5 seconds | 10 sec latch or until a button is pressed | 20 sec latch or until a button is pressed | 30 sec latch or until a button is pressed | — |
| 28 | Manual transmission Neutral safety switch Special Application | No application | Enable (see p.8) | For manual transmission vehicles equipped with neutral safety switch. DO NOT CUT THE LOOP. Connect the auxiliary IN (Purple/White) to the neutral safety switch of the vehicle. | |||
| 29 | Alarm Duration | 30 seconds | 60 seconds | 120 seconds | — | — | — |
| 30 | Valet code | Ignition ON Valet button x3 times. | Ignition ON Valet button x3 times and x1 times 3 seconds. | Ignition ON Valet button x4 times and x1 times 3 seconds. | Ignition ON Valet button x5 times and x1 times 3 seconds. | Ignition ON Valet button x6 times and x1 times 3 seconds. | Ignition ON Valet button x7 times and x1 times 3 sec. |
| 31 | Special application Programmable output (+) | No special application Priority on function 2 | Special application – Function 2 (all option) not available. | — | — | ||
| Enable at ground out, disable with vehicle ignition off | White wire (5th relays): Trunk output(+) | White wire (5th relays): (+)Parking light output | |||||
| FUNCTION | MODE 1 DEFAULT | MODE 2 | MODE 3 | MODE 4 | MODE 5 | MODE 6 | |
|
32 | Configuration Dk.Blue (Pin17) Yellow/Red (Pin19) wire | Dk.Blue (Ground out, Pin17): Shut-down 1 second after remote start run time. —————— Yellow/Red (Pin19)=Arm | Dk.Blue (Ground out, Pin17): Shut-down 3 seconds after remote start run time. |
Yellow/Red (Pin19) (Arm): Shutdown after |
— |
— |
— |
| 33 | Manual transmission function | Activated by the remote starter remote. See page 7. | Automatically activated by hand-brake and Foot Brake. | Manual sequence completed by locking the doors | Cancel ready mode when trunk open. | — | — |
| 34 | Trunk output | Pulse 0.5 seconds | Pulse 2.5 seconds | Unlock before trunk pulse 0.5 sec | Trunk Output at ignition only | — | — |
| 35 | Door unlock Special application | No special application | Activate vehicle ignition at unlock. | Activate vehicle ignition and accessory at unlock. | — | — | — |
| 36 | Activation/ desactivation remote Valet Mode | — | by remote : FUNCTION –> LOCK + UNLOCK or Valet button | By Valet button only | — | — | — |
| 37 | Security Remote car starter Special application | No special application | Security ON: Shutdown Engine if the door is opened before UNLOCK is pressed. (Door trigger required). | — | — | — | — |
| 38 | System control by OEM Remote | Disable | Enable (Press 3x Lock to remote start) (Bypass module required) | — | Enable Alarm controled by OEM Remote. | Enable (Press Lock, Unlock Lock to remote start) (Bypass module required) | — |
| 39 | AUX1 CONTROLED BY Temperature | Disable | Enable : AUX1 activated at +5oc when remote started (see function 25) | — | — | — | — |
| LEGEND: FUNCTION BY DEFAULT | |||||||

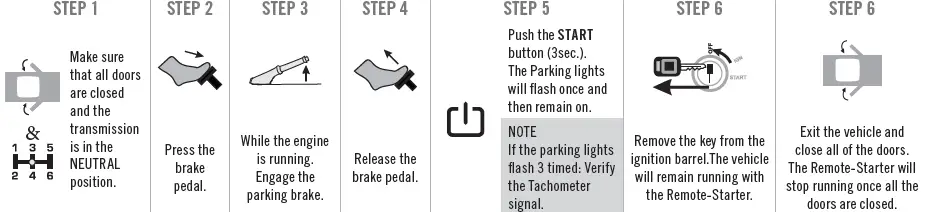

READY MODE
WARNING
THE ENGINE’S TACHOMETER SIGNAL MUST BE DETECTED BYTHE REMOTE STARTER TO OPERATE IN A MANUAL TRANSMISSION.TACHOMETER IS CON-NECTED DIRECTLY TO THE VEHICLE
TO DISABLE READY MODE
STANDARD
- Open any door(s)
- Open the hood
- Disengage the parking brake
WITH NEUTRAL SAFETY SWITCH
- Transmission not in neutral position
- Open the hood
- Disengage the parking brake
Note : If the parking lights flash 3 times when Remote-Starting, Ready Mode is not enabled.
TO ENABLE COLD START MODE
Press and release the FUNCTION button, within 12 seconds simultaneously press and and hold the LOCK and START buttons for 1 second. . The parking lights will flash once.
TO DISABLE COLD START MODE
Press and release the FUNCTION button, within 12 seconds simultaneously press and and hold the LOCK and START buttons for 1 second. The parking lights will flash twice.
- Put the Remote-Starter/alarm into Valet
- Remote-Start the vehicle
- Open the hood
- Press the brake pedal
- Turn the key to the ignition position.
- Disable Ready Mode (manual transmission).
DISARM / ENTER / EXIT VALET MODE
READY MODE FOR NEUTRAL SAFETY SWITCH

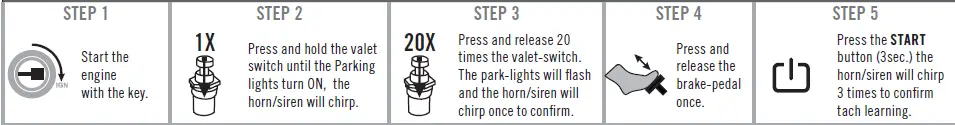

ANALOG TACH LEARNING (PURPLE WIRE)
REMOTE START DIAGNOSTICS
- 3x Ready mode disabled
- 4x Valet mode activated (The LED is on)
- 5x Hood open
- 1x Normal stop (Brake, Park Brake)
- 3x Runtime expired or shut down by transmitter
- 4x No tachometer signal
- 5x Hood open
- 6x Over crank threshold (8 seconds)
- Door open – zone 3
- Shock sensor – zone 4
- Hood open – zone 5
- Trunk open – zone 6
WARNING
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of the product, including either damage to the vehicle itself or to the remote-starter module. This module must be installed by a certified technician including all of the supplied safety devices. Please note that this guide has been written for trained professional technicians, a certain level of skills and knowledge is therefore assumed. Please review the Installation Guide carefully before beginning any work. By default this system is setup for vehicles with a manual transmission. For vehicles with an automatic transmission the safety wire loop on the main unit must be cut. Before proceeding to the installation, make sure that the vehicle does not attempt to start when the when the vehicle is in the “drive” or “reverse” position. If an automatic transmission vehicle starts when the transmission is in gear, ensure that the safety wire loop on the unit is not cut. Once the safety wire loop is cut, the system is considered an automatic transmission remote-starter indefinitely. Once a loop is cut all warranties, guaranties, and liability is immediately void if the unit is install on a manual transmission vehicle.Neither the manufacturer or distributor of this module is responsible of damages of any kind indirectly or directly caused by this module, except for the replacement of this module in case of manufacturing defects. This module must be install by qualified technician. This instruction guide may change without notice. To download the installation guide, user guide, or the latest quick installation guide, visit: www.fortin.ca
Technical support: TEL: 514-255-4357 / 1-877-336-7797
Copyright © 2014-2021, FORTIN AUTO RADIO INC ALL RIGHTS RESERVED MADE IN CANADA REV.:20220224
