Husqvarna 596 29 01-01 Plough Rider Gen II
Safety instructions
This symbol indicates CAUTION. Serious personal injury and/or damage to property may result if the instructions are not followed carefully.- You must read these instructions for use and the machine’s safety instructions carefully.
- Never operate the machine with insufficient protection or without the safety devices in place.
This symbol indicates CAUTION. Serious personal injury and/or damage to property may result if the instructions are not followed carefully.Symbols
The following symbols appear on the machine.
They are there to remind you of the care and attention required in use.
This is what the symbols mean:
Warning! Read the instruction manual and the safety manual before using the machine .
Caution! Do not enter the working area of the machine.
Caution! Switch off the engine before carrying out maintenance, cleaning or repairs .
Warning! Never use this machine on a slope with an angle of inclination that exceeds the one on the base machine manual. However, max. 10° .
Warning! Read the instruction manual and the safety manual before using the machine .
Caution! Do not enter the working area of the machine.
Caution! Switch off the engine before carrying out maintenance, cleaning or repairs .
Warning! Never use this machine on a slope with an angle of inclination that exceeds the one on the base machine manual. However, max. 10° .

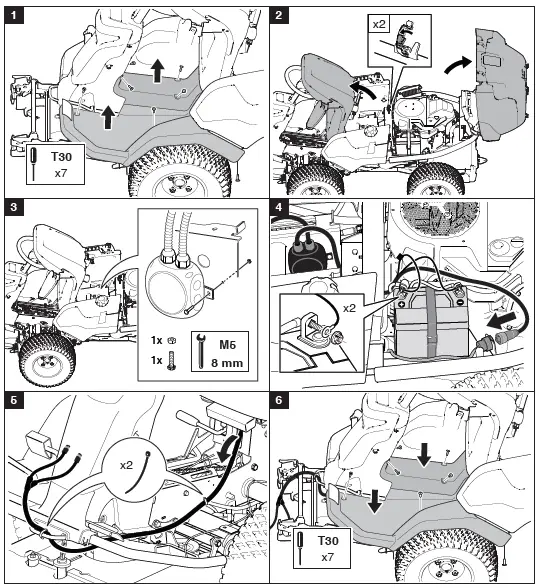

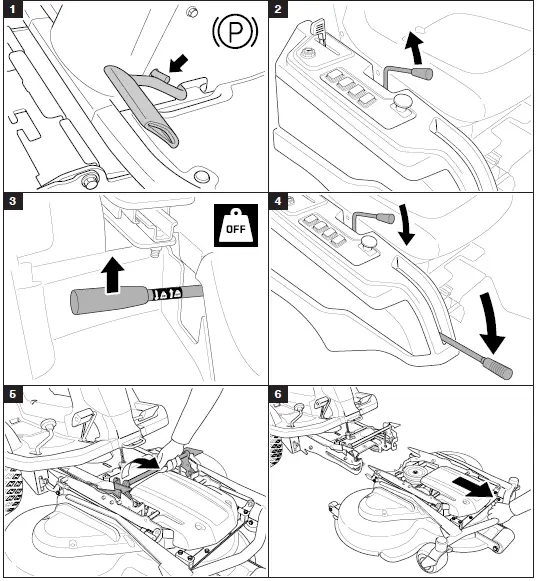

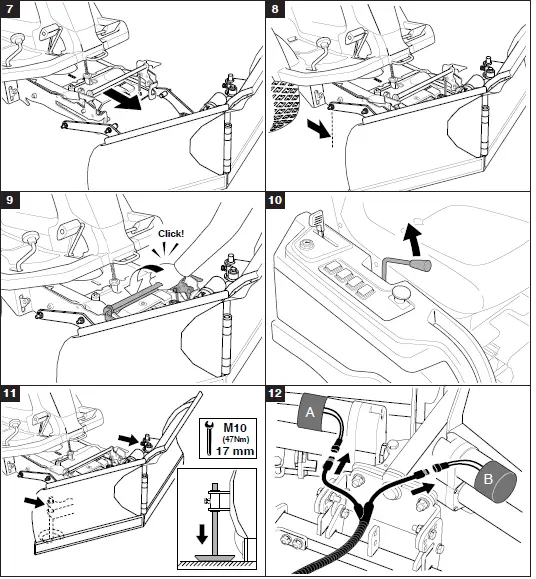

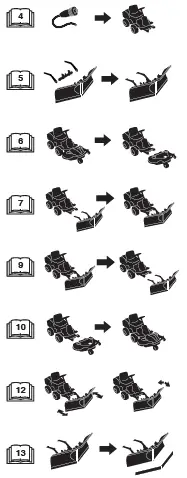

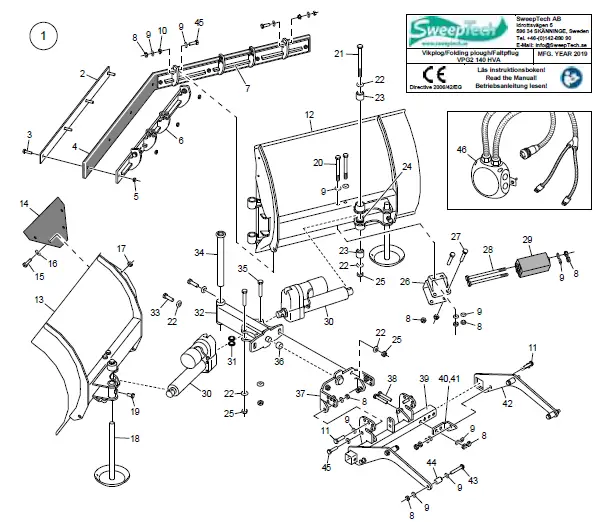

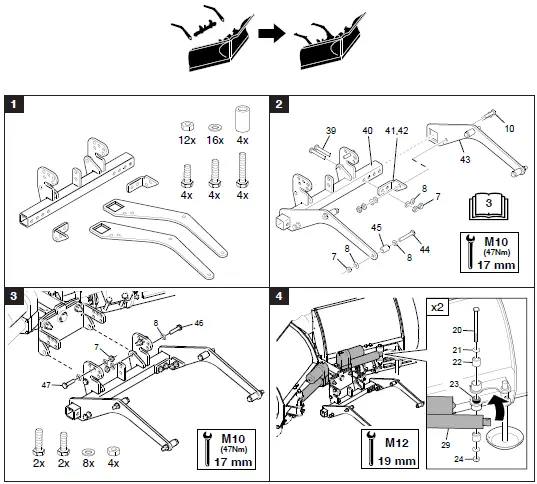

| Nr. | Qty | Part description | HVA art. Nr. | Nr. | Qty | Part description | HVA art. Nr. |
| 1 | 1 | Plough | 596290101 | 24 | 2 | Rubber washer 12 mm | |
| 2 | 2 | Clamping Plate | 599619901 | 25 | 6 | Locking Nut M12 | 502045501 |
| 3 | 8 | Screw M8x35 | 725245771 | 26 | 2 | Torsion Bracket | 599620501 |
| 4 | 1 | Wear Rubber | 599590101 | 27 | 4 | Hex Bolt M10x80 | 725250771 |
| 5 | 8 | Locking Nut M8 | 522919401 | 28 | 4 | Hex Bolt M10x160 | 725252051 |
| 6 | 1 | Blade Holder 140 LEFT | 599620101 | 29 | 2 | Torsion Element | 599611701 |
| 7 | 1 | Blade Holder 140 Right | 599620201 | 30 | 2 | Electric Actuator 12 VDC | 599624501 |
| 8 | 34 | Locking Nut M10 | 732212051 | 31 | 4 | Rubber washer 25-13-2 | |
| 9 | 44 | Plain Wash M10 | 734117201 | 32 | 1 | Plow Center Section | 599624601 |
| 10 | 4 | Plain Bearing with flange | 599620401 | 33 | 2 | Hex Bolt M12x40 | 725254071 |
| 11 | 6 | Hex Bolt M10x30 | 725249553 | 34 | 1 | Center Axle | 599611801 |
| 12 | 1 | Wing, Right | 599622501 | 35 | 2 | Hex Bolt M12x65 | 725254551 |
| 13 | 1 | Wing, Left | 599624401 | 36 | 1 | Poly Bushing | 599611901 |
| 14 | 1 | Rubber cover | 599611401 | 37 | 1 | Floating Plate | 599620701 |
| 15 | 4 | Hex Bolt M6x16 | 725236851 | 38 | 4 | Hex Bolt M10x70 | 725250551 |
| 16 | 4 | Plain washer M6 | 513918900 | 39 | 1 | Attachment frame | 599621101 |
| 17 | 4 | Locking Nut M6 | 732211601 | 40 | 1 | Angle Right | 599621101 |
| 18 | 2 | Skids, long shaft | 599611501 | 41 | 1 | Angle Left | 599621201 |
| 19 | 2 | Hex Bolt M10x20 | 725249171 | 42 | 2 | Attachment Plate VPG2 | 599621501 |
| 20 | 4 | Hex Bolt M10x110 | 725251351 | 43 | 4 | Hex Bolt M10x60 | 725250335 |
| 21 | 2 | Hex Bolt M12x140 | 725255951 | 44 | 4 | Sliding Sleeve | 599621601 |
| 22 | 10 | Plain washer M12 | 734117801 | 45 | 6 | Hex Bolt M10x40 | 725250051 |
| 23 | 4 | Rubber/Metal Bushing | 599611601 | 46 | 1 | Electric Harness | 599624801 |

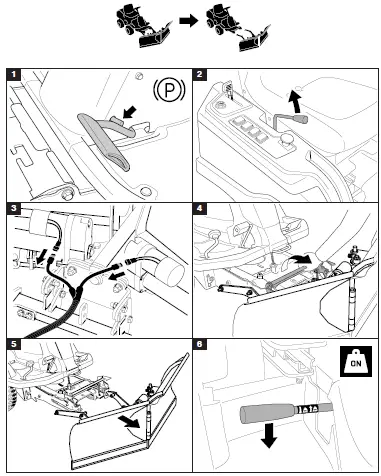

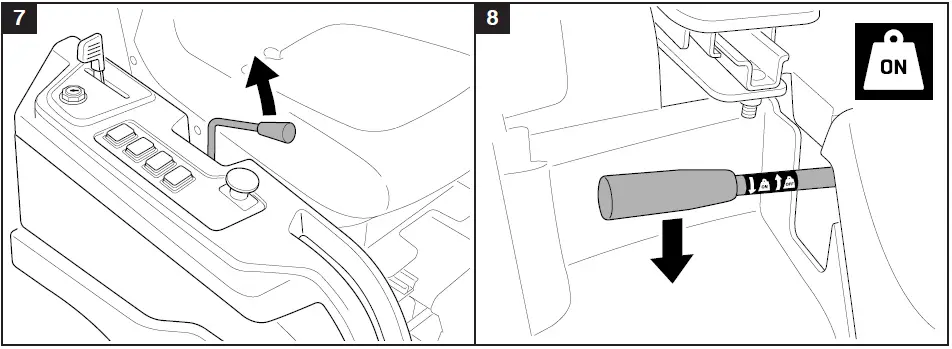

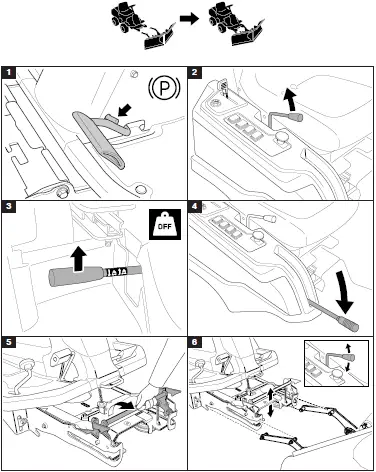

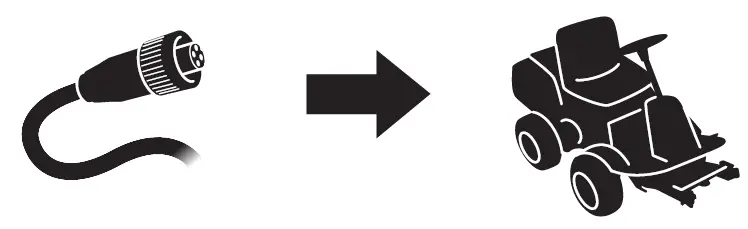

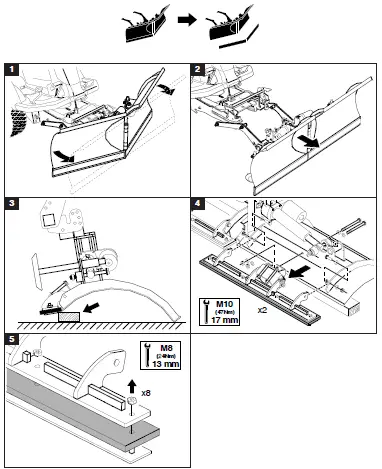

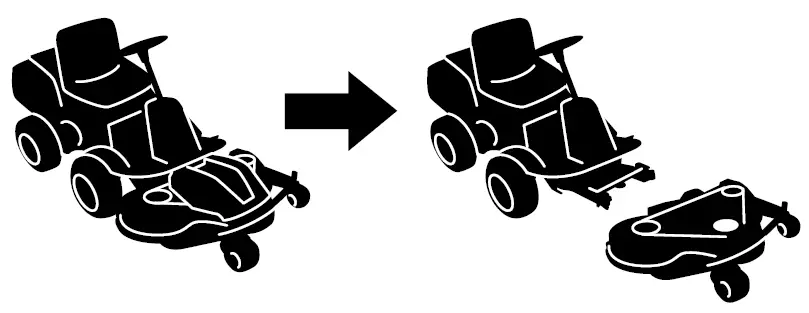

Specifications

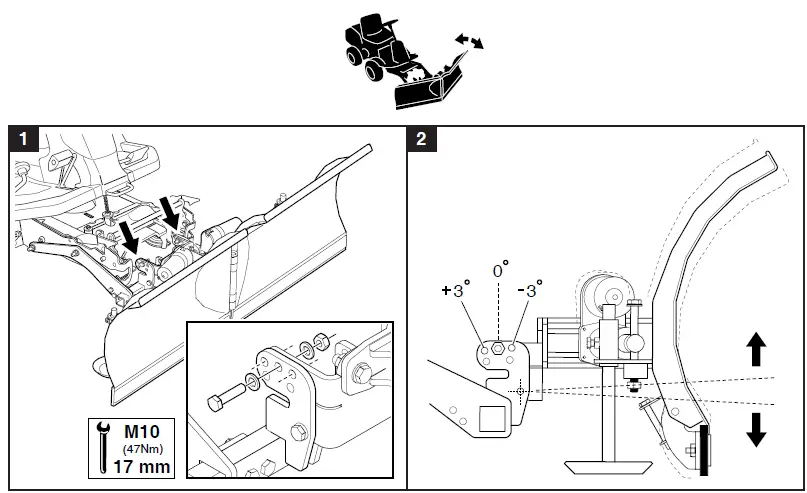

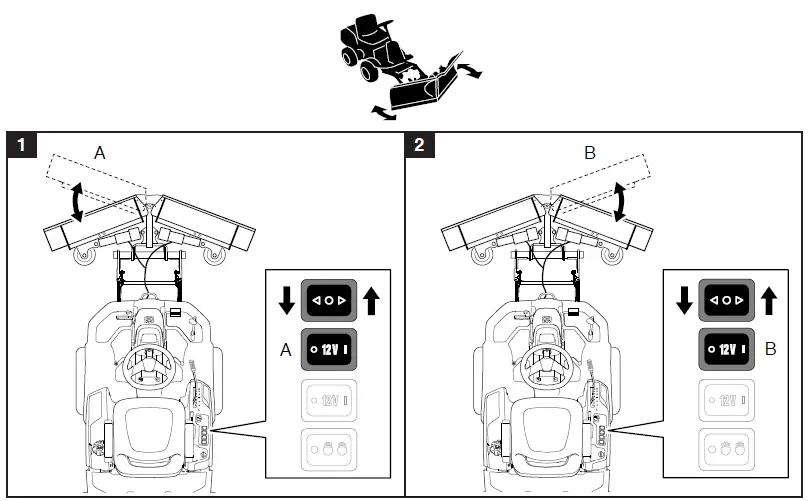

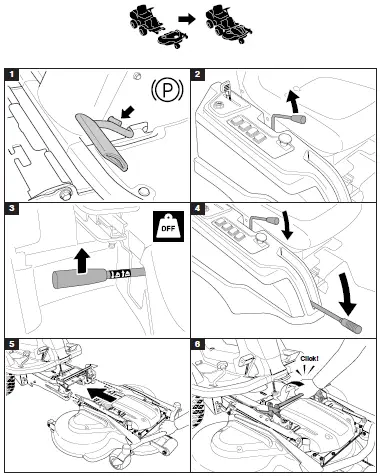

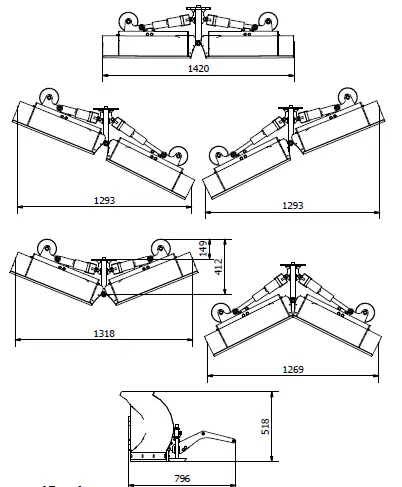

- Working width: See figure.
- Height: 518 mm.
- Weight: 65 kg.
- Gros weight including package: 80 kg
UK Declaration of conformity
We, Sweetish AB, Skinning
Certify under our own responsibility that the product: Folding plough 596 29 01-01 which is covered by this declaration, conforms with the The Supply of Machinery (Safety) Regulations 2008 and the harmonized standard EN 13021+A1:2008 Machines for winter road maintenance.
The undersigned is entitled to issue the technical documentation.
Skänninge 2022-09-29 SweepTech AB
Andreas Källström
CEO
SweepTech AB
Idrottsvägen 5
SE-596 34 SKÄNNINGE, Sweden
Tel. +(0)142-880 90
E-Mail: [email protected]
