Husqvarna LT130 Garden Tractor Repair
HOOD
| 6 | 532140051 | Bracket, Asm. Pivot Frame RH | 23 532139969 | Latch, Hood |
| 7 | 532140050 | Bracket, Asm. Pivot Frame LH | 24 532142873 | Bracket, Pivot Hood RH |
| 10 | 532130850 | Brace, Hood | 26 532052921 | Clip, Tinnerman |
| 11 | 532165791 | Hood | 28 811050400 | Washer, Lock Ext. Tooth 1/4 |
| 12 | 532165794 | Lens, LH | 34 873680400 | Nut, Fin Hex 1/4-20 |
| 13 | 532165792 | Grille | 35 817490512 | Screw, Thdrol 5/16-18 x 3/4 |
| 17 | 874780410 | Bolt, Fin Hex 1/4-20 x 5/8 | 36 532128445 | Bracket, Pivot Hood LH |
| 20 | 819091016 | Washer, Flat 1/4 | ||
| 21 | 532126938 | Bumper, Hood | NOTE: All component dimensions given in U.S. inches | |
| 22 | 532165793 | Lens RH | 1 inch = 25.4 mm | |

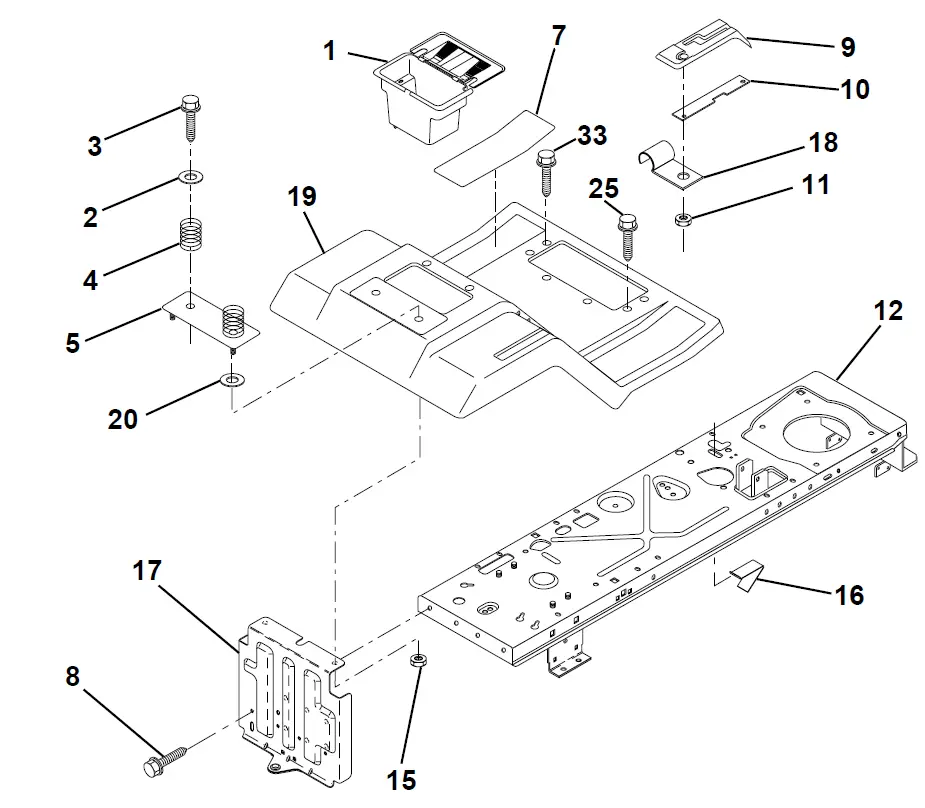

FENDER/CHASSIS
- 532156417 Case, Battery
- 819132012 Washer 13/32 x 1-1/4 x 12 Ga.
- 817490612 Screw, Hex Wsh. Thrdrol.
3/8-16 x 3/4 - 532124181 Spring, Compression, Seat
- 532125142 Plate, Asm. Battery
- 532126700 Pad, Footrest
- 817490512 Screw, Hex Wsh. Thrdrol.
5/16-18 x 3/4 - 532166601 Console, Shift Control
- 532139783 Plate, Shift Lock
- 532124346 Nut, Self-Threading, Wsh Hd 3/16
- 532145190 Assembly, Frame
- ,,
- ..
- 873640400 Nut, Keps 1/4-20 UNC
- 532141736 Switch Actuator
- 532140782 Drawbar
- 532126470 Clip, Insulated
- 532141393 Fender/Footrest
- 819091413 Washer 9/32 x 7/8 x 13 Ga.
25 817060514 Screw Tapping 5/16-18 Unc
33 817190516 Screw Hex 5/16-18 x 1
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

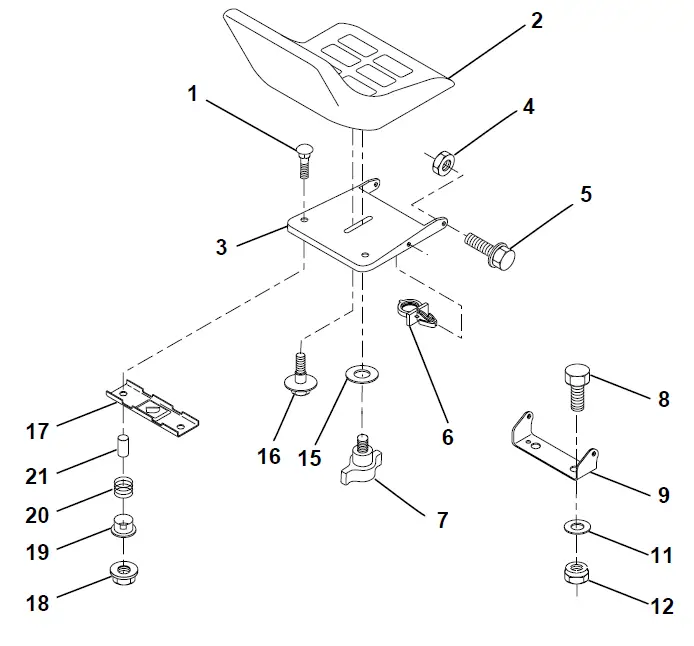

SEAT
| KEY NO. | PART NO. | DESCRIPTION | KEY NO. | PART NO. | DESCRIPTION |
| 1 | 872050412 | Bolt, Carriage 1/4-20 x 1-1/2 | 15 | 819171912 | Washer, 17/32 x 1-3/16 x 12 Ga. |
| 2 | 532140838 | Seat | 16 | 532127018 | Bolt, Shoulder |
| 3 | 532155925 | Pan, Seat | 17 | 532121246 | Bracket, Switch, Mounting |
| 4 | 873800500 | Nut, Lock Hex w/Ins. 5/16-18 | 18 | 532123976 | Nut, Hex Large Flange Lock |
| 5 | 532153236 | Bolt, Shoulder 5/16-18 | 19 | 532121248 | Bushing, Snap |
| 6 | 532145006 | Clip, Push-In | 20 | 532121250 | Spring, Compression |
| 7 | 532166369 | Knob, Seat | 21 | 532134300 | Spacer, Split 28 Id. x .96 Lg. |
| 8 | 874760616 | Bolt, Fin Hex 3/8-16 UNC x 1 | |||
| 9 532140551 11 819133210 | Bracket, Pivot Seat NOTE: All component dimensions given in U.S. inches Washer 12/32 x 2 x 10 Ga. 1 inch = 25.4 mm | ||||
| 12 873800600 | Nut, Lock Hex w/Wsh 3/8-16 | ||||

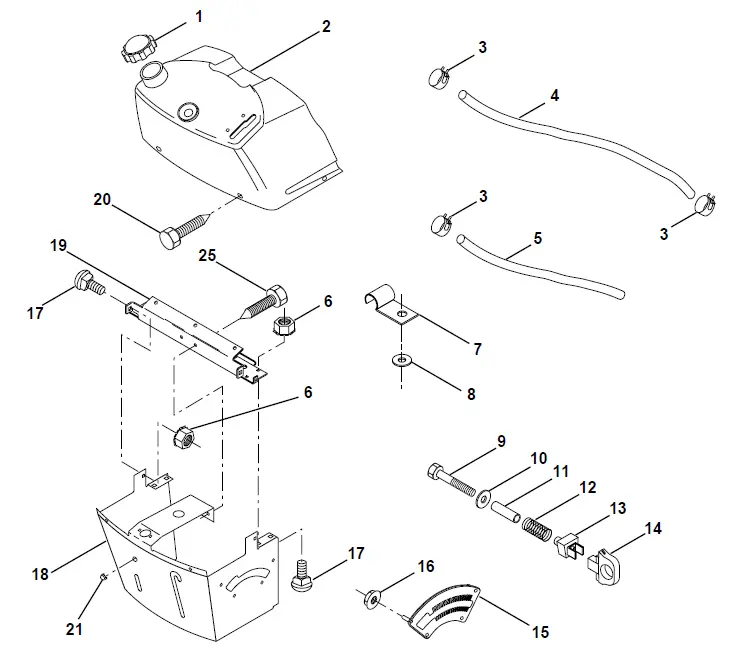

DASH
| KEY NO. | PART NO. | DESCRIPTION | KEY NO. | PART NO. | DESCRIPTION |
| 1 | 532142187 | Cap, Fuel | 14 | 532126115 | Knob, Height Stop |
| 2 | 532138395 | Assembly, Dash & Fuel Tank | 15 | 532122023 | Adjustment, Quadrant Height |
| 3 | 532123487 | Clamp, Hose | 16 | 532124346 | Nut, Self-Threading 3/16-18 |
| 4 | 532008544 | Line, Fuel | 17 | 872110404 | Bolt, Carriage 1/4-20 x 1/2 Gr. 5 |
| 5 | 532008548 | Line, Fuel | 18 | 532130745 | Support Assembly, Dash |
| 6 | 873640400 | Nut, Hex, Keps 1/4-20 | 19 | 532134744 | Brace, Cross |
| 7 | 532124996 | Clip, Fuel Line | 20 | 817060408 | Screw, Self-Tapping 1/4-20 x 1/2 |
| 8 | 819091216 | Washer 9/32 x 3/4 x 16 Ga. | 21 | 532134014 | Plug Dome Black |
| 9 | 874760428 | Bolt, Hex, Fin 1/4-20 x 1-3/4 | 25 | 817720410 | Screw Hex Thd Cut 1/4-20 x 5/8 |
| 10 11 12 13 | 819091413 532121249 532003720 532126450 | Washer 11/32 x 11/16 x 16 Ga. Spacer, Split Spring Clip, Height Adjustment |

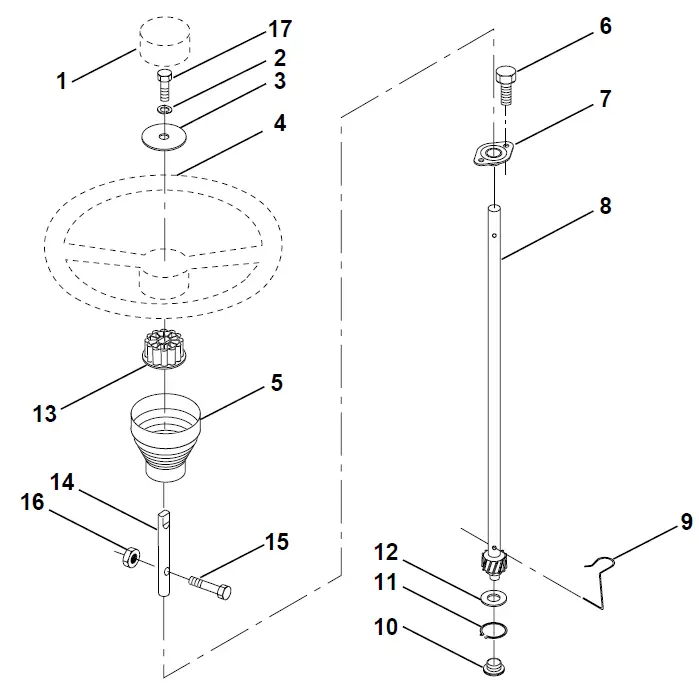

STEERING WHEEL
| KEY NO. | PART NO. | DESCRIPTION | KEY NO. | PART NO. | DESCRIPTION |
| 1 | 532124416 | Insert, Wheel, Steering | 11 | 812000045 | Ring, Retaining |
| 2 | 810040600 | Washer, Lock Hvy Hlcl | 12 | 819211616 | Washer 21/32 x 1 x 16 Ga. |
| 3 | 819133812 | Washer 12/32 x 2-3/8 x 12 Ga. | 13 | 532100711 | Adaptor, Wheel, Steering |
| 4 | 532124415 | Wheel, Steering | 14 | 532153720 | Extension Shaft Steering |
| 5 | 532127396 | Sleeve, Steering | 15 | 874780520 | Bolt Fin Hex 5/16-18 Unc x 1-1/4 |
| 6 | 532152927 | Screw TT #10-32 x 5 x 3/8 Flange | 16 | 873800500 | Nut, Lock Hex w/Ins. 5/16-18 |
| 7 | 532155104 | Bushing Steering | 17 | 874780616 | Bolt Fin Hex 3/8-16 UNC x 1 |
| 8 | 532147391 | Shaft, Steering | |||
| 9 532124210 | Clip, Steering | NOTE: All component dimensions given in U.S. inches | |||
| 10 532123438 | Bushing, Lower, Steering | 1 inch = 25.4 mm | |||

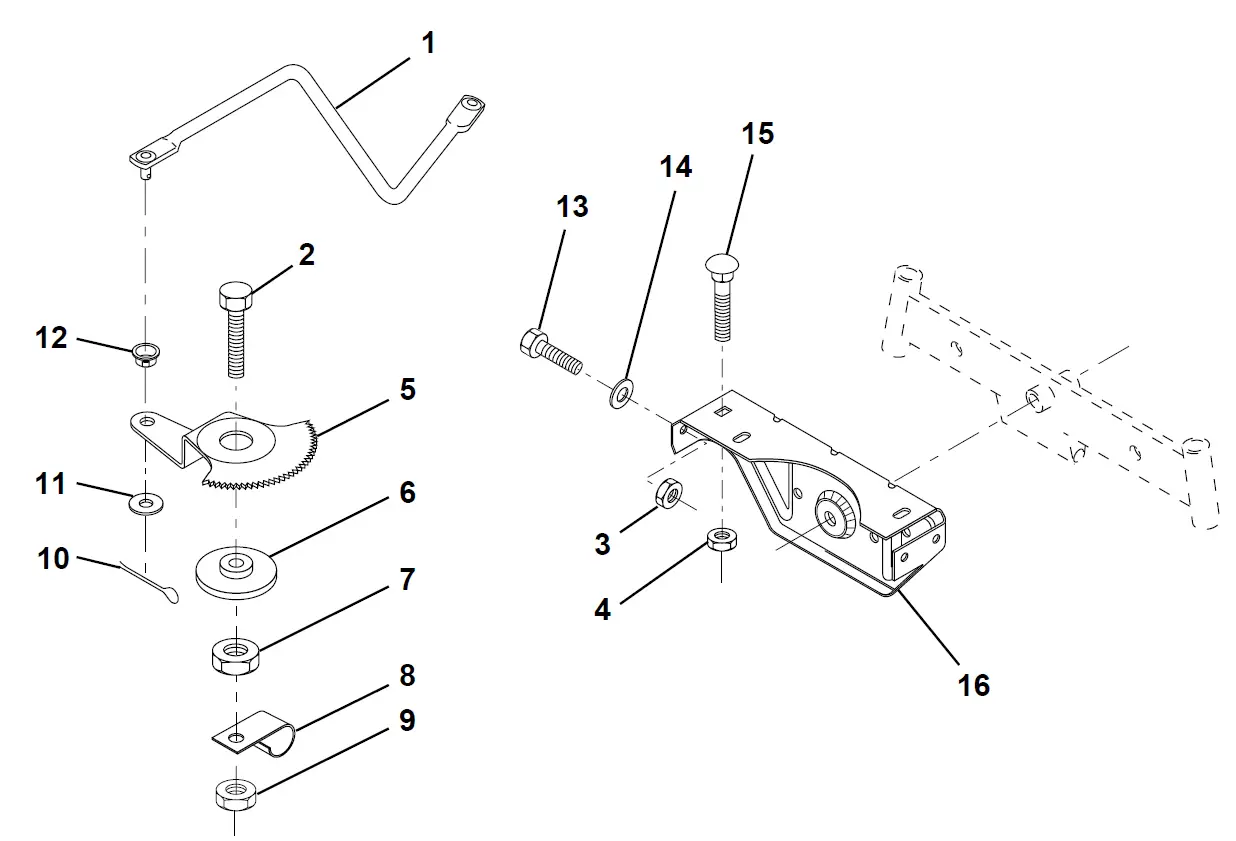

SECTOR GEAR / AXLE SUPPORT
| KEY NO. | PART NO. | DESCRIPTION | KEY NO. | PART NO. | DESCRIPTION |
| 1 | 532132566 | Link, Drag | 10 | 876020412 | Pin, Cotter 1/8 x 3/4 |
| 2 | 874780828 | Bolt, Fin Hex 1/2-13 x 1-3/4 | 11 | 819131316 | Washer, 13/32 x 13/16 x 16 Ga. |
| 3 | 873680500 | Nut, Crownlock 5/16-18 | 12 | 532126847 | Bushing |
| 4 | 873680600 | Nut, Crownlock 3/8-16 | 13 | 874760512 | Bolt, Hex Hd. 5/16-18 UNC x 3/4 |
| 5 | 532121926 | Gear, Sector | 14 | 819111416 | Washer 11/32 x 7/8 x 16 Ga. |
| 6 | 532121927 | Bushing | 15 | 872110606 | Bolt, Carriage 3/8-16 UNC x 3/4 |
| 7 | 873030800 | Nut, Heavy Hex Top Lock | 16 | 532137096 | Support, Front Axle |
| 1/2-13UNC | |||||
| 8 532126472 | Clip, Insulated | NOTE: All component dimensions given in U.S. inches | |||
| 9 873680800 | Nut, Crownlock 3/8-16 | 1 inch = 25.4 mm | |||

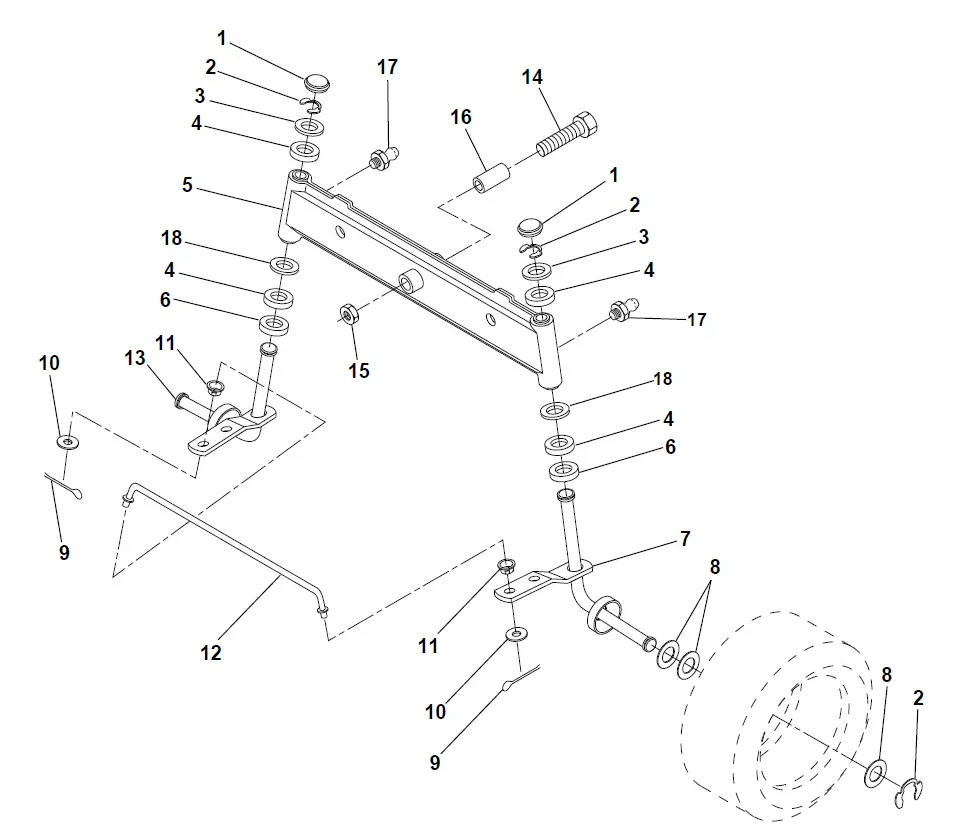

FRONT AXLE
| KEY NO. | PART NO. | DESCRIPTION | KEY NO. | PART NO. | DESCRIPTION |
| 1 | 532121232 | Cap, Spindle | 12 | 532130465 | Rod, Tie |
| 2 | 812000029 | Ring, Clip | 13 | 532161827 | Spindle, L.H. Asm. |
| 3 | 532121748 | Washer 25/32 x 1-5/8 x 16 Ga. | 14 | 874011056 | Bolt, Hex 5/8-11 x 3-1/2 |
| 4 | 532124937 | Bearing, Col Strg. | 15 | 873901000 | Locknut, Flange 5/8-11 |
| 5 | 532142033 | Axle, Front | 16 | 532110438 | Spacer, Bearing |
| 6 | 532124931 | Bearing, Thrust | 17 | 532124836 | Fitting, Grease |
| 7 | 532161826 | Spindle, R.H. Asm. | 18 | 819272016 | Washer 27/32 x 1-1/4 x 16 Ga. |
| 8 | 532121749 | Washer 25/32 x 1-1/4 x 16 Ga. |
9 876020412 Pin, Cotter 1/8 x 3/4
10 819131316 Washer 13/32 x 13/16 x 16 Ga.
11 532126847 Bushing
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

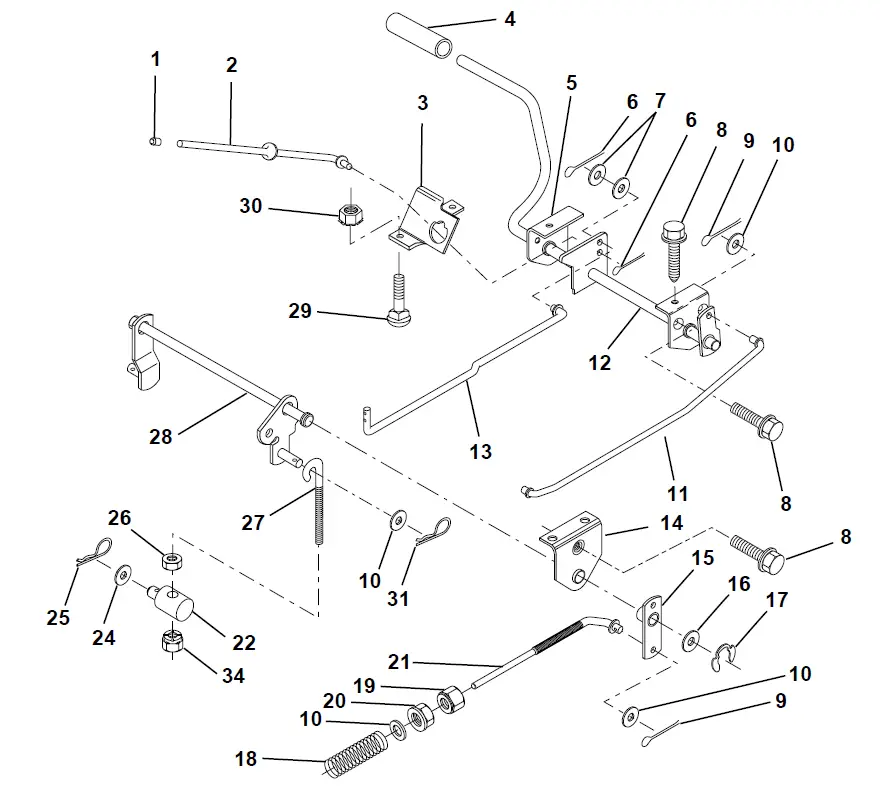

BRAKE / REAR MOWER LIFT ASSEMBLY
| KEY | PART | KEY | PART | ||
| NO. | NO. | DESCRIPTION | NO. | NO. | DESCRIPTION |
| 1 | 532071673 | Cap, Plunger | 17 | 812000034 | Ring, Klip |
| 2 | 532123436 | Rod, Parking Brake | 18 | 532151332 | Spring, Brake Rod |
| 3 | 532123437 | Bracket, Parking Brake | 19 | 873350600 | Nut, Hex, Jam 3/8-16 UNC |
| 4 | 532008156 | Cover, Pedal | 20 | 873800600 | Nut, Lock Hex W/ns. 3/8-16 |
| 5 | 532122504 | Bracket, Clutch/Brake Pedal, L.H. | 21 | 532131460 | Rod, Rear Brake |
| 6 | 876020312 | Pin, Cotter 3/32 x 3/4 | 22 | 532144585 | Trunnion, Lift |
| 7 | 819131016 | Washer 13/32 x 5/8 x 16 Ga. | 24 | 819132012 | Washer 13/32 x 1-1/4 x 12 Ga. |
| 8 | 817490508 | Screw, Hex, Thd. Roll. | 25 | 532124961 | Spring, Retainer |
| 5/16-18 x 1/2 | 26 | 873930600 | Nut, Centerlock 3/8-16 UNC | ||
| 9 876020412 | Pin, Cotter 1/8 x 3/4 | 27 | 532127369 | Link, Threaded | |
| 10 819131316 | Washer 13/32 x 13/16 x 16 Ga. | 28 | 532140776 | Assembly, Rear Mower Lift | |
| 11 532123543 | Rod, Brake Front | 29 | 872110506 | Bolt, Carriage 5/16-18 UNC x 3/4 | |
| 12 532139933 | Assembly, Clutch/Brake Pedal | 30 | 873510500 | Nut, Keps 5/16-16 UNC | |
| 13 532123394 | Rod, Clutch | 31 | 532124660 | Retainer, Spring | |
| 14 532121978 | Bracket, Lift, Shaft | 34 | 873680600 | Nut, Crownlock | |
| 15 532133332 16 819251816 | Assembly, Brake, Pivot, Arm Washer 25/32 x 1-1/8 x 16 Ga. | ||||
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

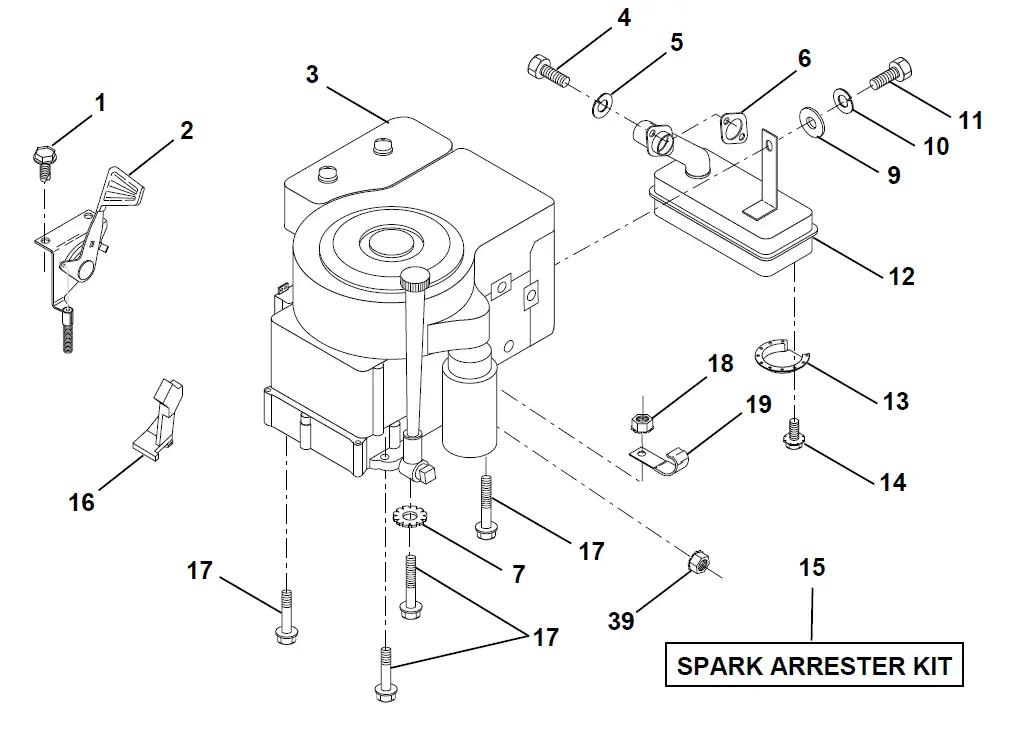

ENGINE
- 817720410 Screw, Hex Thd. Cut 1/4-20 x 5/8
- 532133025 Control, Throttle
- – – – – – – – – Engine, Briggs & Stratton Model No. 28R707
- 871070512 Screw, Hex, Cap 5/16-18 x 3/4
- 810040500 Washer, Lock Heavy Helical Spring 5/16
- 532165291 Gasket, Exhaust
- 811050600 Washer, Lock Ext. Tooth 3/8
- ..
- 819101216 Washer 5/16 x 3/4 x 16
- 810040400 Washer, Lock Heavy Helical Spring 1/4
- – – – – – – – – Bolt, Hex Fin. (Order from Eng. Mfg.)
- 532137437 Muffler
- 532101326 Deflector, Muffler
- 817030808 Screw, Spiderloc
- 532137180 Arrester, Spark (Optional equipment)
- 532127951 Stop, Throttle
- 817490624 Screw, Hex Washer Head, Thdrol.
3/8-16 x 1-1/2 - 873510600 Nut, Keps Hex 3/8-16
- 532124996 Clip, Line Fuel
39 532128861 Nut, Flange 1/4-20
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

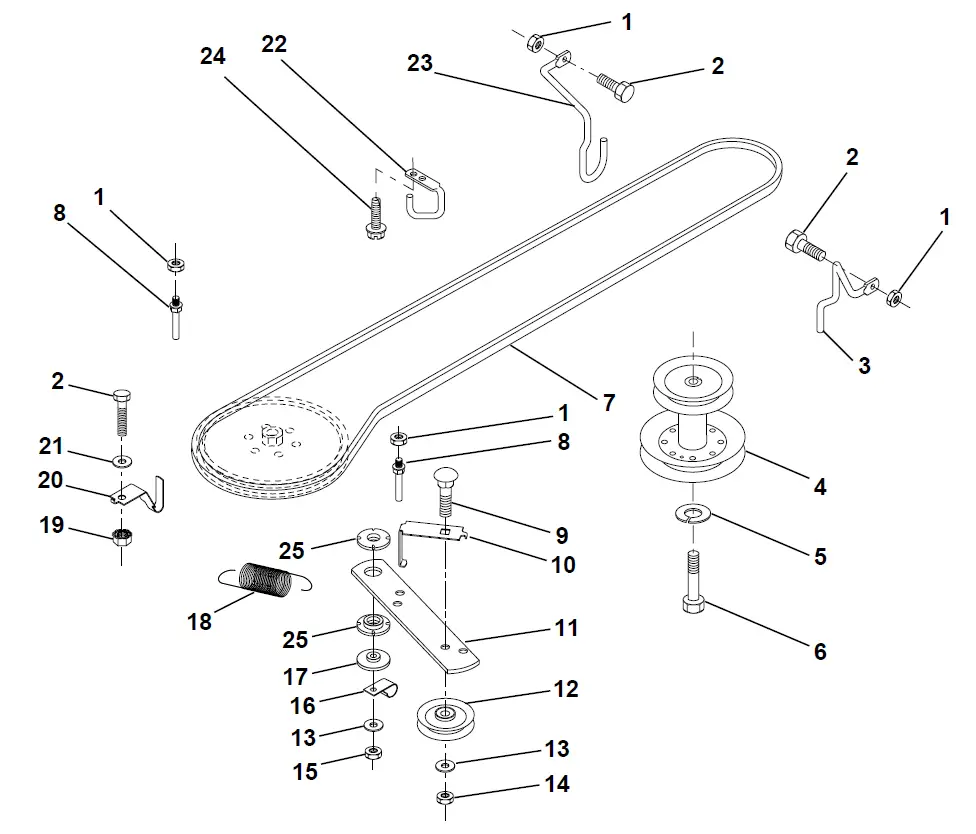

GROUND DRIVE
| NO. | NO. | DESCRIPTION | NO. | NO. | DESCRIPTION |
| 1 | 873680500 | Nut Crownlock 5/16-18 | 15 | 873680600 | Nut, Crownlock 3/8-16 |
| 2 | 874760512 | Bolt, Hex Hd 5/16-18 UNC x 3/4 | 16 | 532126471 | Clip, Insulated |
| 3 | 532141342 | Keeper,Mower Drive, R. H. | 17 | 532150932 | Spacer, Retainer |
| 4 | 532138029 | Pulley, Engine | 18 | 532131459 | Spring Extension |
| 5 | 810040700 | Washer, Lock 7/16 | 19 | 873510500 | Nut, Keps 5/16-18 UNC |
| 6 | 871170744 | Bolt Hex 7/16-20 Gr. 5 | 20 | 532139919 | Keeper, T/A Ground Drive Belt |
| 7 | 531005025 | Traction V-Belt, Drive | 21 | 819111016 | Washer 11/32 x 5/8 x 16 Ga. |
| 8 | 532123405 | Keeper, T/A Ground Drive Belt | 22 | 532123404 | Keeper, Frame Ground Drive Belt |
| 9 | 872140612 | Bolt, Carr. 3/8-16 UNC x 1-1/2 | 23 | 532140916 | Keeper, Mower Drive, L. H. |
| 10 | 532123396 | Keeper, Belt Ground Drive Idler | 24 | 817720408 | Screw, Thd Cut 1/4-20 x 1/2 |
| 11 | 532150926 | Arm, Ground Drive Clutch | 25 | 532150935 | Bushing Nylon |
| 12 | 532123674 | Idler, Flat | |||
| 13 | 819131316 | Washer 13/32 x 13/16 x 16 Ga. | NOTE: All component dimensions given in U.S. inches | ||
| 14 | 873930600 | Nut, Centerlock 3/8-16 Unc | 1 inch = 25.4 mm | ||
TRANSAXLE
KEY PARTNO. DESCRIPTION
- 532123385 Pulley
- 812000028 Ring, Retainer
- – – – – – – – – Transaxle, Peerless (206-545C)
(Order parts from transaxle manf.) - 532125096 Key, Woodruff #9
- 873680500 Nut, Crownlock 5/16-18
- 872140506 Bolt, Carriage 5/16-18 UNC x 3/4
- 532123378 Strap, Torque
- 817060512 Screw 5/16-18 x 3/4
- 532146682 Spring, Brake
- 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
- 532123583 Key, Square
15 819171616 Washer 17/32 x 1 x 16 Ga.
16 532124600 Support, Handle Shift LH
17 532126293 Link, Shift
18 874550412 Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8
19 810040400 Washer, Lock 1/4
20 819091210 Washer 9/32 x 3/4 x 10 Ga.
21 532126292 Arm, Shift
22 532105701 Washer, Shift Plate
23 532121274 Knob, Duckhead
24 532128215 Rod, Shift
25 876020416 Pin, Cotter 1/8 x 1
26 873810500 Locknut 5/16-24 UNF
28 532128085 Spring, Extension
29 532128084 Suppor,t Handle Shift RH
31 532137057 Spacer, Axle
35 812000001 E-Ring
36 817720408 Screw, Thdcut 1/4-20 x 1/2
38 874490540 Bolt, Hex, Flgnd 5/16-18
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

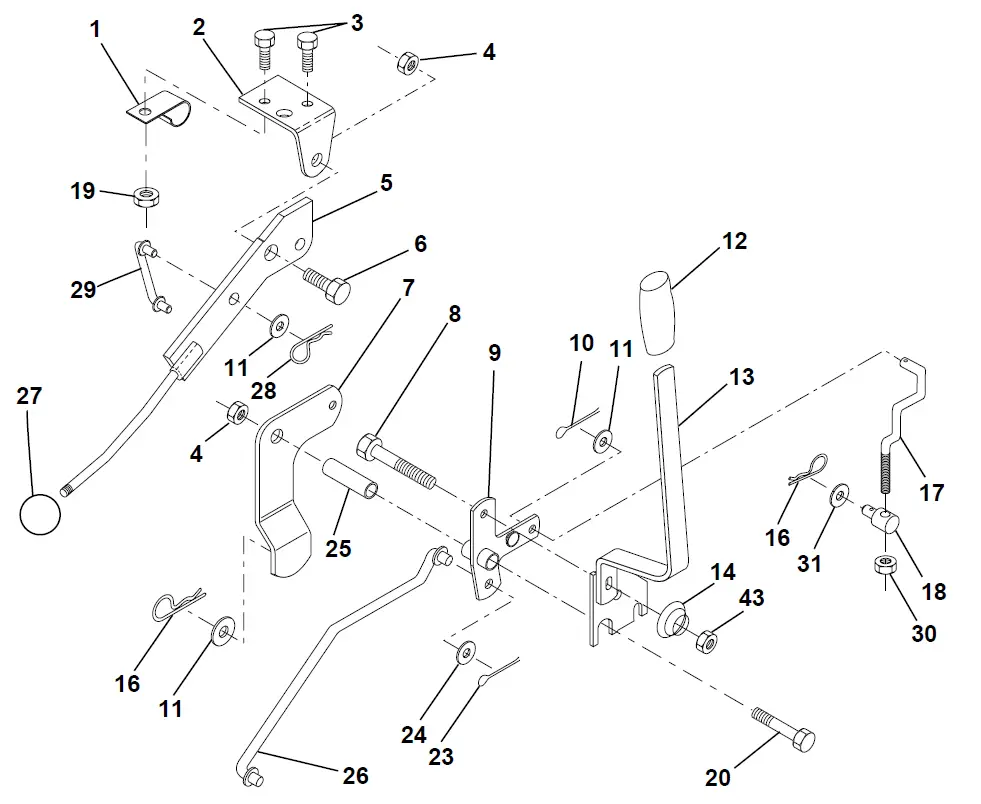

MOWER LIFT LEVER
1 532126470 Clip, Insulated
2 532122018 Bracket, Mower Clutch
3 871110408 Bolt, Fin. Hex
1/4-20 UNC x 1/2
| 4 873680600 | Nut, Crownlock 3/8-16 UNC | 23 | 876020416 | Pin, Cotter 1/8 x 1 | |
| 5 532145187 | Assembly, Clutch Lever | 24 | 819171612 | Washer 17/32 x 1 x 12 Ga. | |
| 6 532106451 | Bolt, Shoulder | 25 | 532121933 | Tube, Spacer | |
| 7 532135371 | Assembly, Mower Clutch Arm | 26 | 532141470 | Rod, Mower Lift | |
| 8 874760636 | Bolt, Hex 3/8-16 UNC x 2-1/4 | 27 | 532121466 | Knob | |
| 9 532121930 | Assembly, Bellcrank Lift | 28 | 532124788 | Retainer, Spring | |
| 10 876020412 | Pin, Cotter 1/8 x 3/4 | 29 | 532131655 | Link, Mower Clutch | |
| 11 819131316 | Washer 13/32 x 13/16 x 16 Ga. | 30 | 873350600 | Nut, Hex Jam 3/8-16 | |
| 12 532122027 | Grip, Handle | 31 | 819132012 | Washer 13/32 x 1-1/4 x 12 Ga. | |
| 13 532139352 | Assembly, Lift Handle | 43 | 873900600 | Nut, Lock Flg. 3/8-16 Unc | |
| 14 532123496 | Spring, Compression | ||||
| 16 | 532124961 | Retainer, Spring | NOTE: All component dimensions given in U.S. inches | ||
| 17 | 532127359 | Link, Front Lift | 1 inch = 25.4 mm | ||
18 532142028 Trunnion, Threaded 3/8-16
19 873680400 Nut, Crownlock 1/4-20
20 874760644 Bolt, Fin. Hex
3/8-16 UNC x 2-3/4

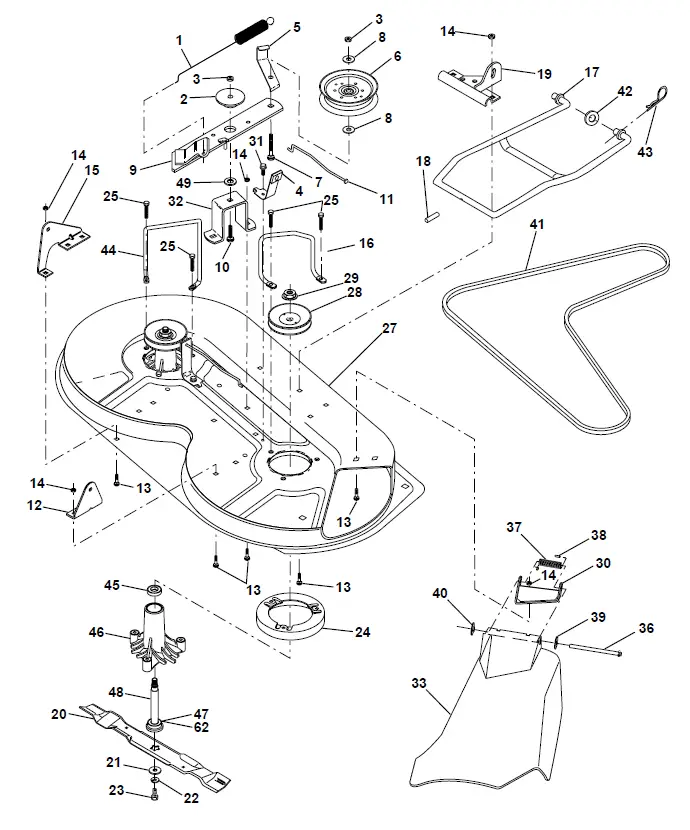

MOWER DECK
- 532140064 Spring, Mower Clutch
- 532165723 Spacer, Retainer
- 873680600 Nut,Crownlock 3/8 – 16
- 532130840 Brake Asm.
- 532131251 Guide, Belt Idler
- 532121316 Pulley, Idler Flat
- 872110616 Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5
- 819131410 Washer 13/21 x 7/8 x 10 Ga.
- 532127744 Arm Asm., Idler Mower
- 872140610 Bolt, Carriage 3/8-16 x 1-1/4
- 532130841 Rod, Brake
- 532127356 Bracket, Lift R. H. Rear
- 872140506 Bolt, Carriage 5/16-18 x 3/4
- 873680500 Nut, Crownlock 5/16-18
- 532127357 Bracket, Lift L. H. Rear
- 532153298 Keeper, R. H.
- 532128508 Link, Asm. Mower Stabilizer
- 532128511 Pin, Drive
- 532127380 Bracket, Asm. Front
- 531005023 Blade, High Lift
- 532140296 Washer, Hardened
- 810030600 Washer, Lock 3/8
- 532850857 Bolt 3/8-24 x 1-1/4 Gr. 8
- 532140329 Stripper
- 532157722 Screw Thd Rolling Wsh Hd
- 532156600 Deck Assembly
- 532153531 Pulley, Mandrel
- 532137266 Nut, Flangelock 9/16
- 532136631 Bracket, Asm. Deflector
- 817490508 Screw, Hex Wsh. Thdrol.
5/16-18 x 1/2 - 532122051 Arm, Support Idler Mower
- 532171156 Deflector
36 532121980 Rod, Hinge
37 532123713 Spring, Torsion Deflector
38 532105304 Cap, Sleeve
39 819111016 Washer 11/32 x 5/8 x 16 Ga.
40 532110452 Pushnut
41 531005026 V-Belt
42 819171616 Washer 11/32 x 5/8 16 Ga.
43 532163552 Retainer, Spring
44 532140608 Keeper, L. H.
45 532110485 Bearing
46 532128774 Housing, Mandrel Vented
47 532129895 Bearing
48 532137645 Shaft, Mandrel (Includes Key
No. 47)
49 532133943 Washer, Hardened
62 532153390 Washer Felt
– – 532130794 Mandrel Asm. (Includes Key Nos.
22-23, 26, 29 and 45-48)
– – 532156866 Deck, Mower Complete
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

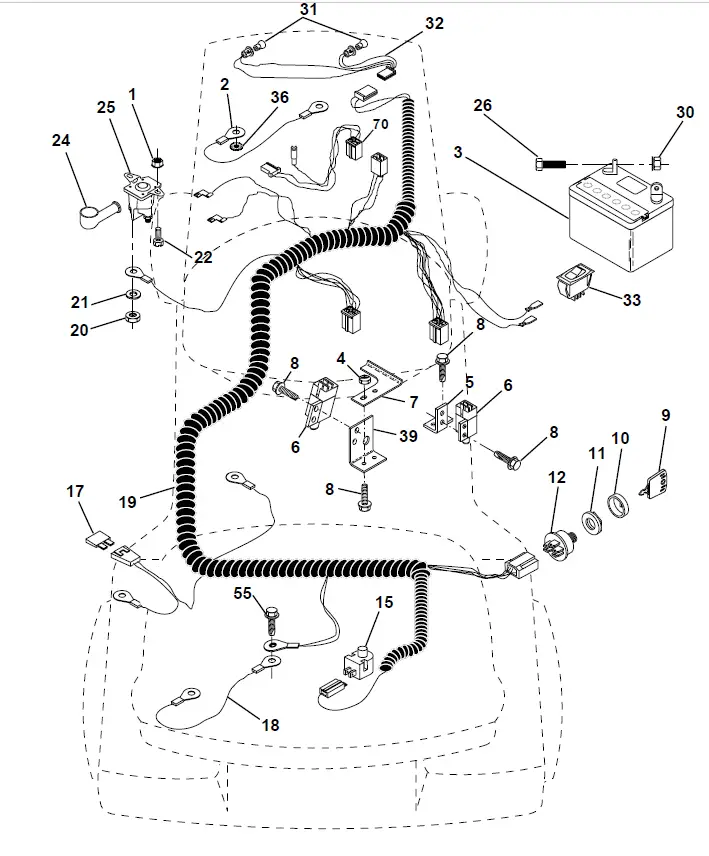

ELECTRICAL
1 873640400 Nut, Hex Keps 1/4-20
2 532108423 Assembly, Cable
3 532144924 Battery
4 532069180 Nut, Lock #10-24
5 532108236 Bracket, Switch
6 532109553 Switch, Interlock (4-terminal)
7 532146374 Keeper, Actuator
8 817021008 Screw, Hex Hd. Tap #10-24 x 1/2
9 532140401 Key, Molded
10 532141226 Cover, Key Ignition
11 532140400 Nut, Ignition
12 532163088 Switch, Ignition
15 532121305 Switch, Plunger
17 532166180 Fuse
18 532128353 Assembly, Cable
19 532170207 Harness, Ignition
20 873350400 Nut, Hex Jam 1/4-20
21 810090400 Washer, Lock 1/4
22 871110408 Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5
24 532131563 Cover, Terminal
25 532145673 Solenoid
26 874760412 Bolt, Hex Hd. 1/4-20 UNC x 3/4
30 873510400 Nut, Keps, Hex 1/4-20 UNC
31 532004152 Bulb, Light
32 532169985 Harness, Headlight
33 532110712 Switch, Light
36 811150400 Washer, Lock Inter. Tooth 1/4
39 532141735 Bracket, Switch Clutch
55 817490508 Screw, Thdrol 5/16 – 18 x 1/2
70 532170242 Harness, Engine

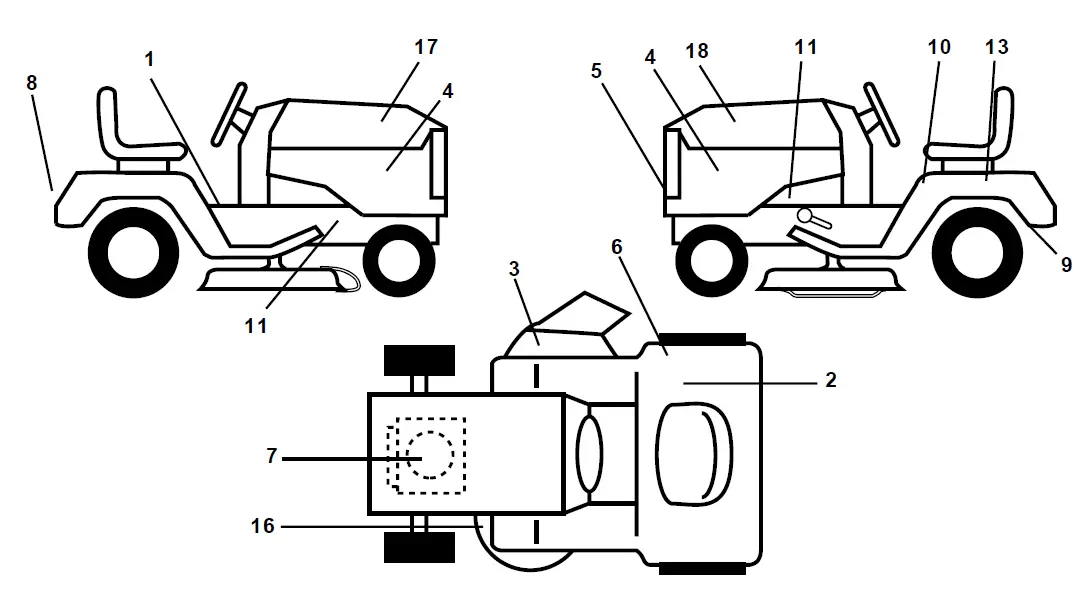

DECALS
1 532159739 Decal, Operating Inst.
2 532126187 Decal, 100 DBA Cert.
3 532145494 Decal, Cutfinger
4 532159713 Decal, Panel Side B&S Husq.
5 532150616 Decal, Logo, Grille
7 532170848 Decal, Engine
6 532145437 Decal, Europe Stand. CE Tractors
8 532150617 Decal, Logo, Fender
9 532162598 Decal, Drawbar Load Limit
10 532145498 Decal, Read Owner’s Manual
11 532159736 Decal, Chassis Hot Muffler
13 532145005 Decal, Caution, Battery
16 532136830 Decal, V-Belt Schematic
17 532151986 Decal, Hood LT130
18 532151987 Decal, Hood LT130
– – 532138311 Decal, Height Adjust
– – 532172218 Manual, Operator’s (Euro.)
– – 532172219 Manual, Operator’s (Scand.)
Available accessories not included with tractor:
– – C36 Rear Bagger
– – MK360 Mulcher Plate

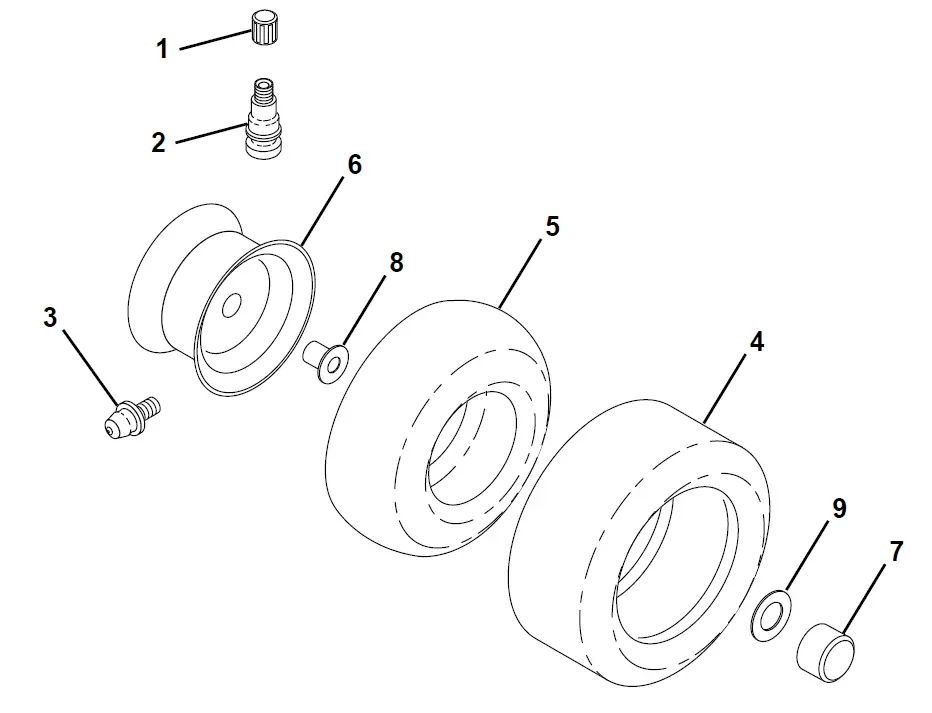

WHEELS & TIRES
1 532059192 Cap, Valve
2 532065139 Stem, Valve
3 532124957 Fitting, Grease\
(Front Wheels Only)
4 532137422 Tire, Front
4 532132703 Tire, Rear
5 532059904 Tube, Front (Optional Service Items Only)
5 532008134 Tube, Rear (Optional Service Items Only)
6 532142039 Rim, Front
6 532141652 Rim, Rear
7 532104757 Cap, Hub
8 532124959 Bearing Flange
9 532121748 Washer 25/32 x 1-5/8 x 16 Ga.
– – 532144334 Sealant, Tire (10 oz. Tube)
