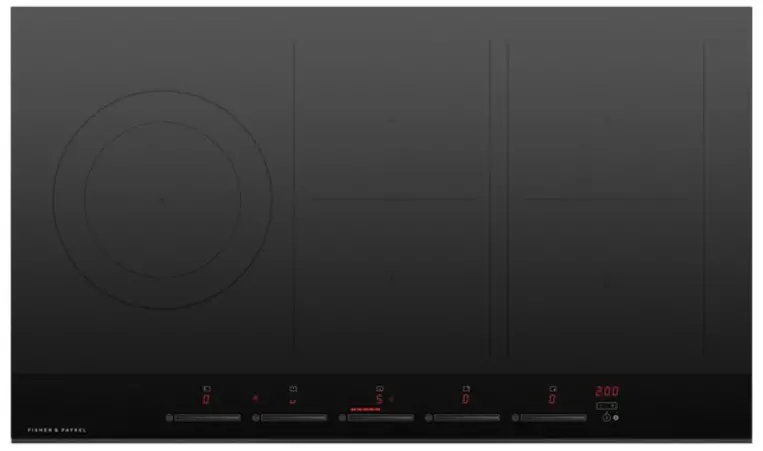

CI905DTB4 90cm Induction Hob
User Guide
This Series 9 hob is a joy to use, with the instant response and energy efficiency of induction technology.
- Immediate heat response and extremely accurate temperature control
- The cooktop remains cool to the touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing the liquid to a boil in less than a minute
- Easily control each cooking zone with Touch&Slide, including pairing cook zones to create a large SmartZone.
DIMENSIONS
| Height | 54mm |
| Width | 900mm |
| Depth | 530mm |
FEATURES & BENEFITS
Complementary design
The subtle black glass and durable matte black detailing are designed to pair with the Minimal style Series 9 Ovens. With premium styling and detailing, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.
Enhanced features
PowerBoost and GentleHeat deliver either very high or very low heat, fast. Perfect for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer ensures a great result every time
Instant response
Go from a boil to a simmer in seconds. Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
Safer choice
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving a cooking surface on.
Easy cleaning
The surface around your cookware stays cool when you cook – preventing baked-on spills and making cleaning up a breeze. The ceramic cooktop surface, including anodized detailing for durability, just needs a quick wipe after use to maintain its good look.
Superior efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the cooktop surface. This makes induction cooking more energy-efficient than electric or gas cooktops.
LARGE, FLEXIBLE COOKING AREA
SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish. This cooktop comes with small pot support and wok stand to complement different cooking styles.
SPECIFICATIONS
| Accessories | |
| Joiner kit | Part 534731 (required to join |
| Cleaning | |
| Flat easy clean glass surface | • |
| Pan detection system | • |
| Controls | |
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
| Performance | |
| Auto heat reduce | • |
| Dual zones | • |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| PowerBoost | • |
| Zone bridging | • |
| Power requirements | |
| Amperage | 43A |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 530mm |
| Height | 54mm |
| Width | 900mm |
| Safety | |
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| Warranty | |
| Parts and labour | 5 years |
| Zone ratings | |
| Centre | 1850/2600W |
| Centre front | 2100W |
| Left front zone (PowerBoost | 2100W (3700W) |
| Left rear zone (PowerBoost | 2100W (3700W) |
| PowerBoost | up to 5500W |
| Right front zone (PowerBoost | 2100W (3700W) |
| Right rear zone (PowerBoost | 2100W (3700W) |
| SKU | 81979 |
The product dimensions and specifications in this page apply to the specific productand model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
