QUICK REFERENCE GUIDE > CI804CTB1
Induction Hob, 80cm, 4 Zones
Series 7 | Contemporary
Black Glass
Date: 09.09.2022 > 1

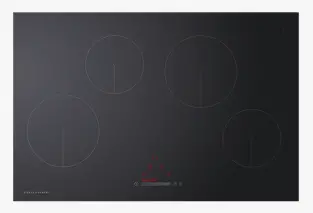

CI804CTB1 Induction Hob
Instant response and cool-to-touch safety in a large cooktop area, with zones designed for different-sized pots and pans.
- Child and pet safe – cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing the liquid to boil in less than a minute
- Touch&Slide controls easily control each cooking zone

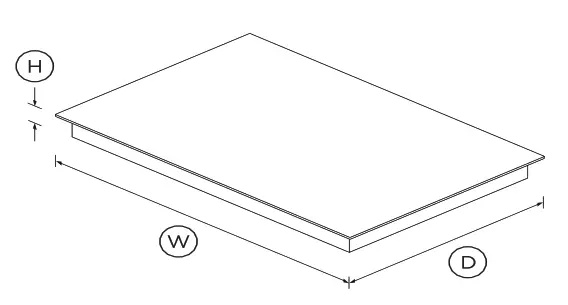

DIMENSIONS
| Height | 57mm |
| Width | 800mm |
| Depth | 530mm |
FEATURES & BENEFITS
Instant response
Go from a boil to a simmer in seconds. Fisher & Paykel Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
Safer choice
Induction hobs only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving an element on.
Easy cleaning
The surface around your cookware stays cool when you cook, preventing baked-on spills and making cleaning up a breeze. The durable ceramic hob surface just needs a quick wipe after use to maintain its good looks.
Enhanced features
PowerBoost and GentleHeat deliver either very high or very low heat fast for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer keeps you on track.
Superior efficiency
No heat is wasted during induction cooking because only the cookware is heated, not the surface of the hob. This makes induction hobs more energy-efficient than electric or gas hobs.
Precision Control
Fisher & Paykel induction hobs offer extremely accurate, consistent temperature control from very high to very low heats, so you can sear, sauté and temper like a pro.
SPECIFICATIONS
| Cleaning | |
| Flat easy clean glass surface | • |
| Pan detection system | • |
| Controls | |
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
| Performance | |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| PowerBoost | • |
| Power requirements | |
| Amperage | 32A |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 530mm |
| Height | 57mm |
| Width | 800mm |
| Safety | |
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| Warranty | |
| Parts and labour | 5 years |
| Zone ratings | |
| Left front | 2300W |
| Left front zone (PowerBoost | 3000W |
| Left rear | 1200W |
| Left rear zone (PowerBoost | 1400W |
| PowerBoost | up to 3000W |
| Right front | 1200W |
| Right front zone (PowerBoost | 1400W |
| Right rear | 2300W |
| Right rear zone (PowerBoost | 3000W |
| Zones | |
| Number of elements | 4 |
| SKU | 81375 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
